THUNDER TIGER ZK2 Bedienungsanleitung

INSTRUCTION MANUAL

WARRANTY

Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship.

The total monetary value under warranty will in no case exceed the cost of the original kit purchased. This warranty

does not cover any components damaged by use or modification. Part or parts missing from this kit must be

reported within 60 days of purchase. No part or parts will be sent under warranty without proof of purchase. To

receive part or parts under warranty, the service center must receive a proof of purchase and/or the defective part

or parts. Should you find a defective or missing part, contact the authorized Thunder Tiger Service/Distributor

nearest you. Under no circumstances can a dealer or distributor accept return of a kit if assembly has started.

1/182WDMINIMONSTERTRUCK

NO.6551-FS

Please read the instruction manual carefully before operating your car.

Thank you for purchasing the Thunder Tiger ZK-2 mini monster truck. Thunder Tiger strives to bring you

the highest level of quality and service we can provide. We race and test our products around the world

to bring you state-of-the-art items.

This instruction manual contains the steps you will use to prepare and use your new vehicle. Please read

all instructions and familiarize yourself with the systems and controls of this product before operating.

You should enjoy many hours of trouble free use from this advanced R/C product. We offer on-line help

24-7 on our www.acehobby.com or www.thundertiger.com.tw web site and our product specialists are

ready to take your call if you have any technical questions. Have fun and enjoy the exciting world of R/C.

Please read all instructions thoroughly before operation.

1. This product is not a toy. It is a high performance model product. It is important to familiarize yourself

with the model, its manual, and its construction before assembly or operation. Children operating

under the supervision of the adults is necessary.

2. Do not operate model products in rain, on public roads, near crowds, near airport, or near areas with

restricted radio operation.

3. This product, its parts, and its construction tools can be possibly harmful to your health. Always

exercise extreme caution when assembling and/or operating this product. Do not touch any part of

model that rotates.

4. Check your radio frequency with the proper operating frequency of the area or country. Always check

if there are any modelers operating on the same frequency as you are. Also, check your radio for

proper operation before operating a mode.

5. Use an adequate charger for the batteries and follow the instruction correctly.

6. Right after use, do not touch equipment on the model because they may generate high temperatures!

7. Do not stall the motor. The ESC may fail if power is applied to the motor when car cannot move freely.

8. Improper operations may cause personal and/or property damage. Thunder Tiger and its distributor

have no control over damage resulting from shipping, improper building materials, construction, or

improper usage.

9. Thunder Tiger assumes and accepts no responsibility for personal and/or property damages resulting

from the use of improper building materials, equipment and operations. By the act of assembling or

operating this product, the user accepts all resulting liability. If the buyer is not prepared to accept this

liability, then he/she should return this product in new, unassembled, and unused condition to the

place of purchase

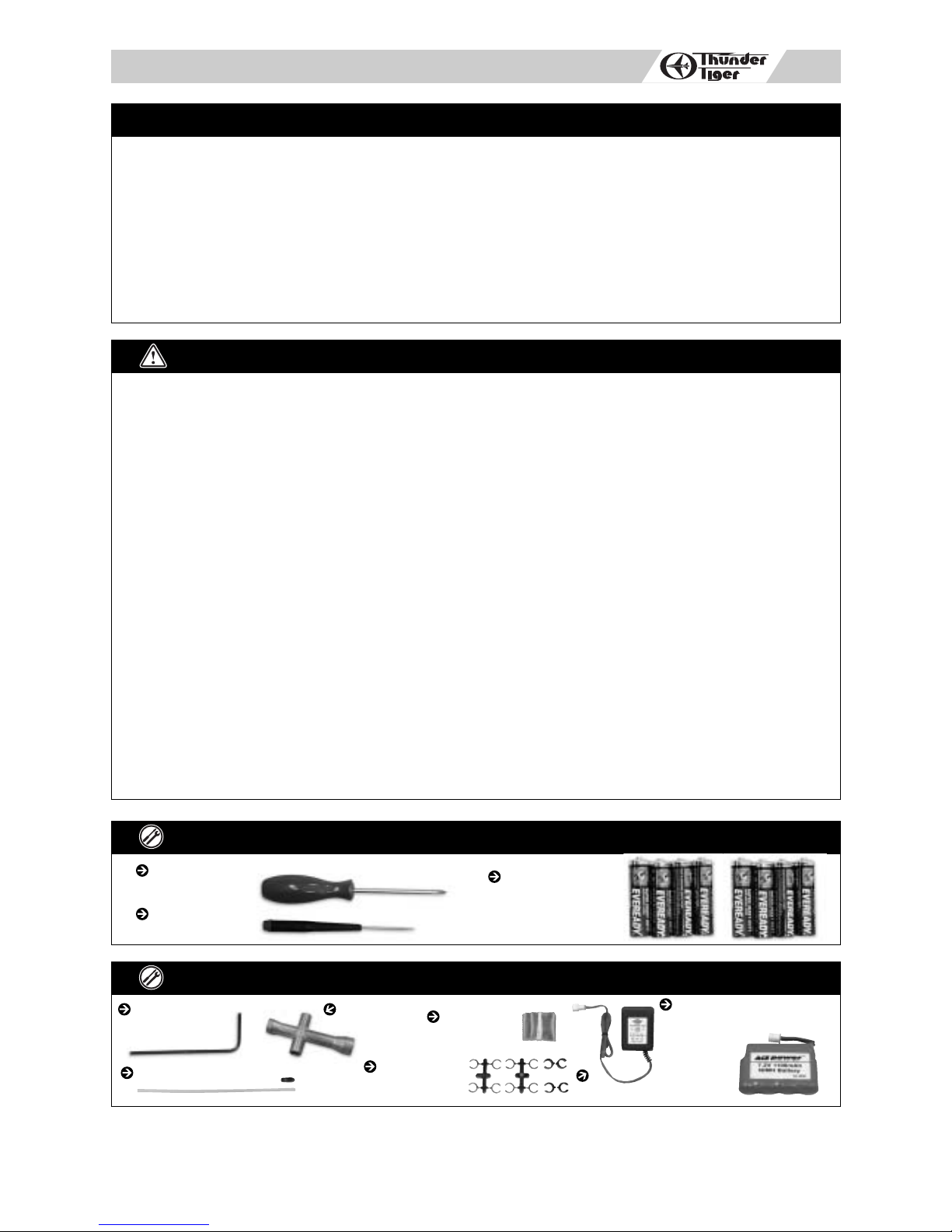

ITEMS REQUIRED

ACCESSORIES INCLUDED

Hex wrench,

1.5mm, 3/32"

8 AA Size Alkaline

Batteries For

Transmitter

Operation

Phillips

Screwdriver(S)

1100mAh,Ni-Mh Batteries,

7.2V(6cell) power pack

10 hours

battery charger

4-way cross

wrench

Allen Wrench

(0.5mm)

INTRODUCTION

PRECAUTION

Antema tube and Cap Shock Spring

Clips

Radio

Colored Flag

The Radio Control System

Thunder Tiger ZK-2 mini monster truck features with an advanced PPM AM radio control system,

including a micro servo, RS Receiver/Speed Control and a ACE Jaguar T2P 2-Ch AM pistol grip

transmitter or T2D Dual-stick transmitter. Before operating your new radio system, please take a few

minutes to familiarize yourself with the various features of the system by reading the introduction below.

1. Transmitter Antenna: Never operate the transmitter without extending this antenna or you

may create interference to other modeler.

2. Battery Level Indicator: Three LED display to indicate the battery voltage level. If the Red LED

flashes, please replace the batteries.

3. Servo Reversing Switches: To reverse the servo's rotation direction at the flip of the switch. The

reversing switches are recessed into the transmitter to prevent

accidental operation.

4. Steering Trim: Adjusts the steering in small increments or decrements to run the

model straight.

5. Throttle Trim: Adjusts the throttle in small increments or decrements to shift the

neutral position.

6a. Steering D/R (Dual Rates): Allow you to choose between two different control sensitivities.

6b. Throttle Kick-Down: Allow you to shift the physical position of the throttle stick change.

7. External Charging Jack: Recharges the transmitter battery only as using a rechargeable Nicd

or NiMh battery pack.

8. Crystal: To change the channel number your radio broadcasts.

9. Steering Wheel / Steering Stick: Controls the steering of the model.

10. Power Switch: Sliding to turn the transmitter on or off.

11. Throttle Trigger / Throttle Stick: Pulled or pushed to control the movement of the model.

12. Battery Cover: Sliding to open the battery cover for battery replacement/installation.

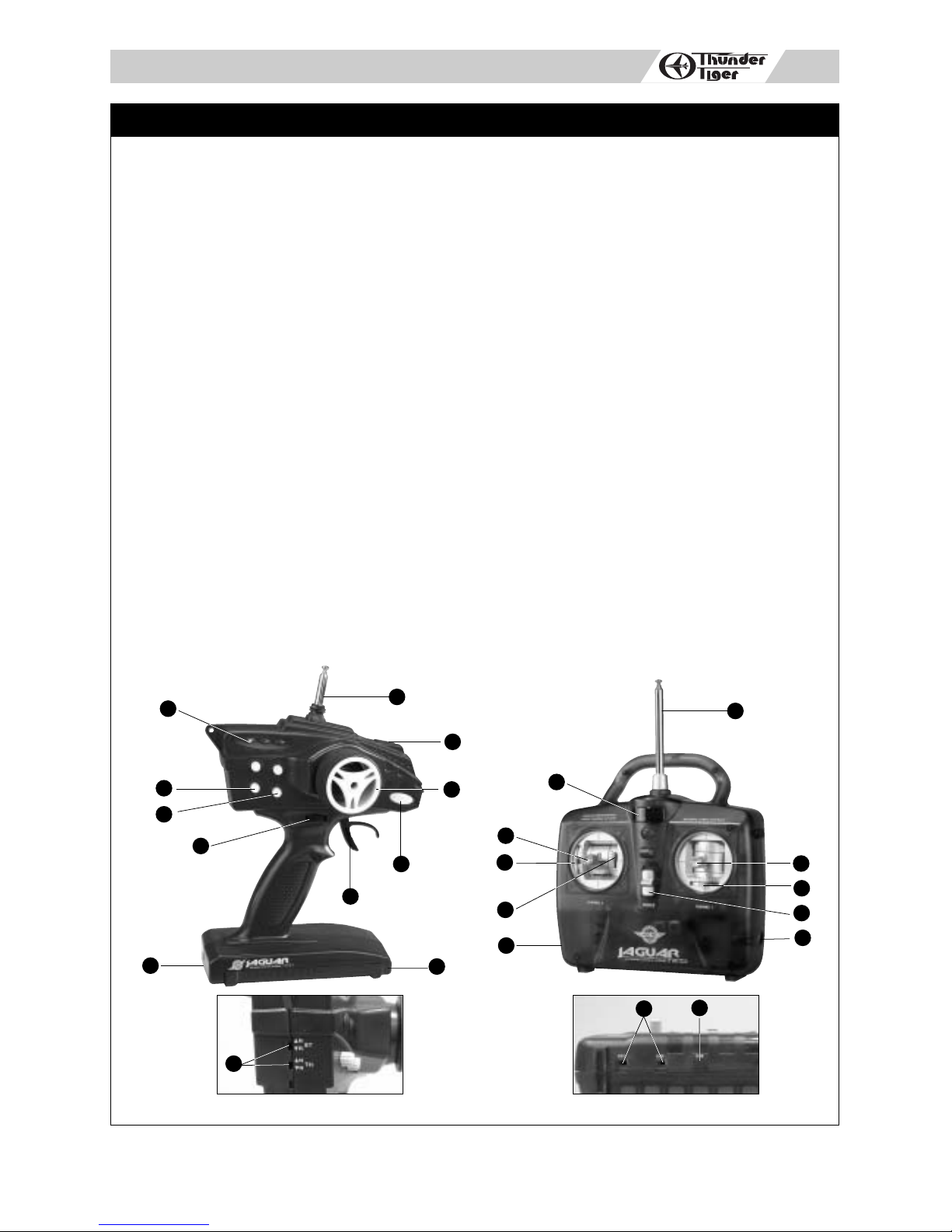

The Transmitter

Jaguar T2P Pistol Grip Transmitter Jaguar T2D Dual-stick transmitter

1. Receiver & ESC: Receives the signal from the transmitter to control your vehicle and control the

power input and rotating direction of the motor.

2. Crystal: To change the channel it receives

3. Power Switch: Sliding to turn the unit on or off.

4. Antenna Holder/Tube: Mounts the antenna tube as a transmitter's link.

5. Power Harness Plug: Connects the battery pack to the unit.

6. Steering Servo Socket:Connects the steering servo to the unit.

7. Motor Plug: Connects the motor to the unit to get power supply.

The RS AM Module can be used with 26, 27 or 40 MHz frequency band to operate your vehicle. Each

band has 6 different channels available allowing users to change the crystals for versatile operating at the

same time. When changing the crystal, just replace a set of crystal plugging on transmitter and on

receiver simultaneously by pulling it out. Then push a new set of crystal into the socket carefully on the RS

module and Transmitter respectively. (Caution: do not bend the two pins of the crystal or it would cause

damage of your model.) The following frequency channels are available at 27MHz band.

Each frequency is assigned a colored

flag and channel number. Attach this

flag to the end of your transmitter

antenna so that other modelers can

determine your frequency from a

distance. This is very important since

it is not possible for more than one

model to operate on the same

frequency at the same time.

6 1

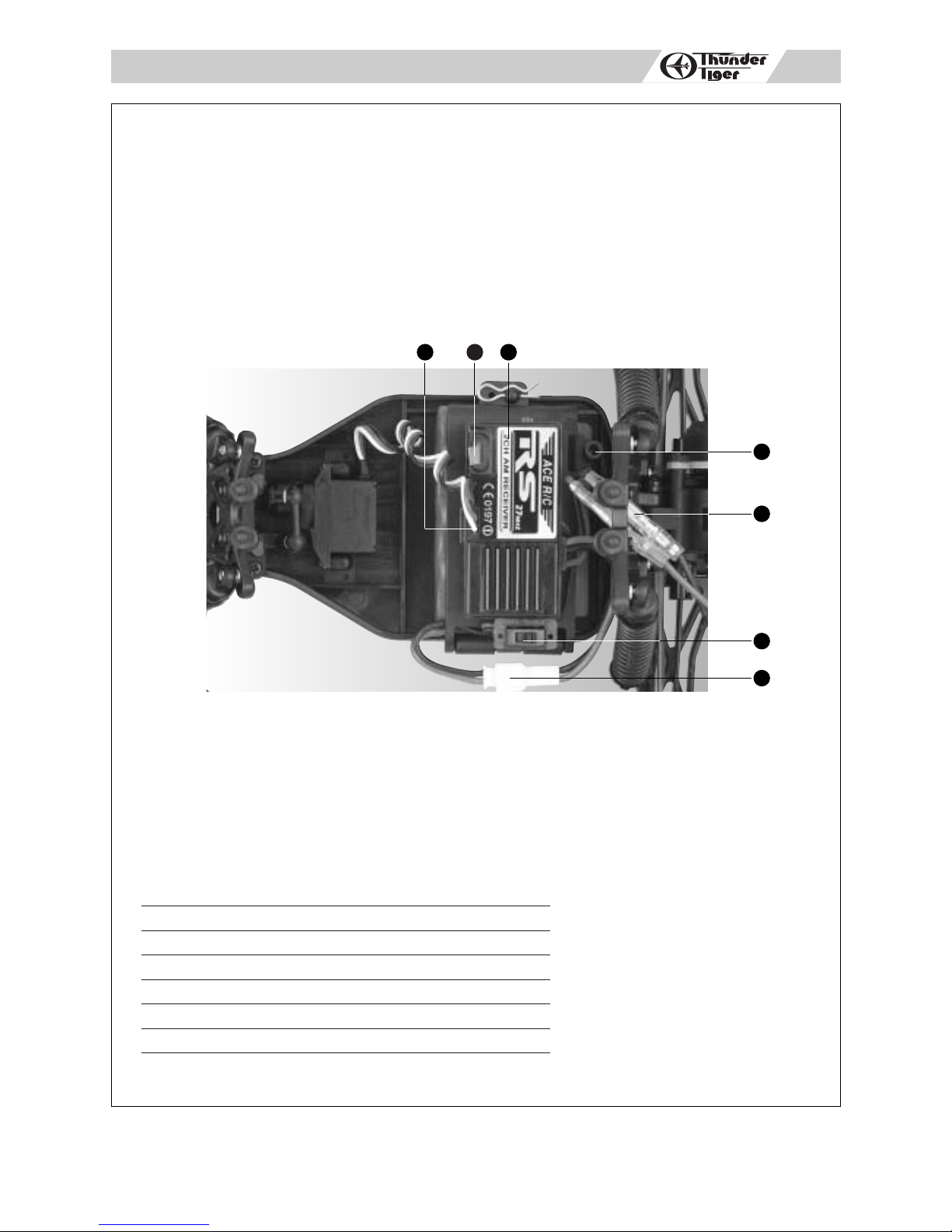

The RS Receiver/ ESC (Electric Speed Control) Module

Frequency

CHANNEL FREQUENCY FLAG THUNDER TIGER

BAND COLOR PART NO.

●CH1 26.995 MHz Brown Flag AQ0311

●CH2 27.045 MHz Red Flag AQ0312

●CH3 27.095 MHz Orange Flag AQ0313

●CH4 27.145 MHz Yellow Flag AQ0314

●CH5 27.195 MHz Green Flag AQ0315

●CH6 27.255 MHz Blue Flag AQ0316

a. Install the antenna into transmitter

b. Check the frequency printed on the transmitter crystal.

c. Check the frequency printed on the RS ESC/Receiver module and crystal. Make sure

it matches with the transmitter crystal. Make sure no one will operate on the same

frequency when you are. When there is a radio glitch, it will most likely be caused by

improper crystal, damaged crystal, or people operating on the same frequency.

Install 8 AA size alkaline batteries into the transmitter.(Make sure the correct polarity order)

b. Install supplied power pack into the batter holder. And then secure the battery holder

under the battery cover plate and RS ESC/Receiver module by using a small "R" clip.

c. Connect the plug harness of the battery with the RS ESC/Receiver module.

a When turning radio on, first turn on the transmitter.

b. Then, turn on the receiver. When turning off, first turn the receiver off, then the

transmitter off. It's an important hint to prevent unexpected damages.

To reverse the functions of servos, use the small, white servo reverse switches located on side

of the pistol transmitter. To trim the servos on the pistol transmitter, use the trim switches on

side of the steering wheel (the ST. trims steering, and the TH trims throttle/brake). On a stick

transmitter, the trim levers are located accordingly around the sticks.

Frequency interference

Never operate the transmitter without checking your radio frequency, or you may create

interference to other modeler.

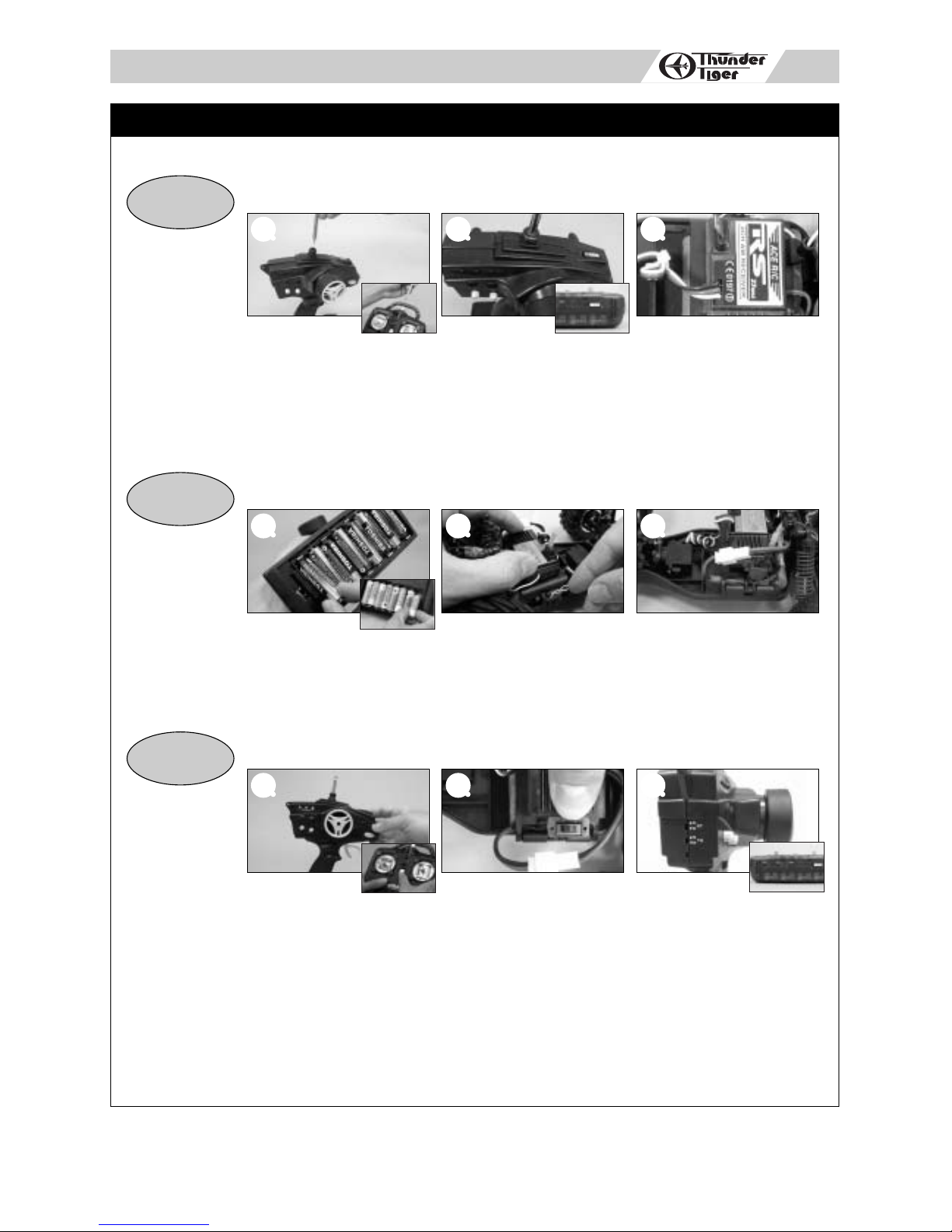

Step

PREPARING THE RADIO

Step

BATTERY INSTALLATION

Step

RADIO OPERATION

OPERATION

aabbcc

a. When driving your car forward, it should move in a straight line. If not, turning the

steering trim knob clockwise or counter-clockwise until you get the neutral steering.

Then the car will track in a straight line without turning the steering wheel. On a stick

transmitter, the steering trim is under the steering stick.

b. Steering D/R (comes with ACE R/C T2P pistol grip transmitter only) allows you

change the steering sensitivities while running. By turning the dual rate dial as shown

to correct over-steering and under-steering problems.

aabb

Step

STEERING ADJUSTMENT

a. Check the radio steering functions. With the radio transmitter and receiver on, turn

the steering wheel/ stick to the left. The front tires/wheels should turn left accordingly.

If not, flip the steering servo reverse switch.

b. Return the steering wheel/ stick to neutral. The front tires / wheels should point

straight forward. If not, use the steering trim knob to correct it.

c. Turn the steering wheel/ stick to the right. The front tires/wheels should turn right

accordingly.

Running with A.T.L function

(Comes with ACE R/C T2P Pistol Grip Transmitter only )

RS module features Anti-Throttle-Lock (A-T-L) function which has been designed to

prevent incorrect operation of turning on the transmitter. The function will work in the

conditions below,

●When turning on your vehicle, leave the trigger in the natural position. If you pull the

trigger before switching on, the transmitter will start beeping and disconnecting the

signal transmission for safety.

If the A.T.L function works; turn off the vehicle first and follow the guide to turn

on the radio again!(Radio first, vehicle second!!!)

aabbcc

Step

STEERING OPEATION

Travel Travel

Minimum Maximum

Steering D/R Dial

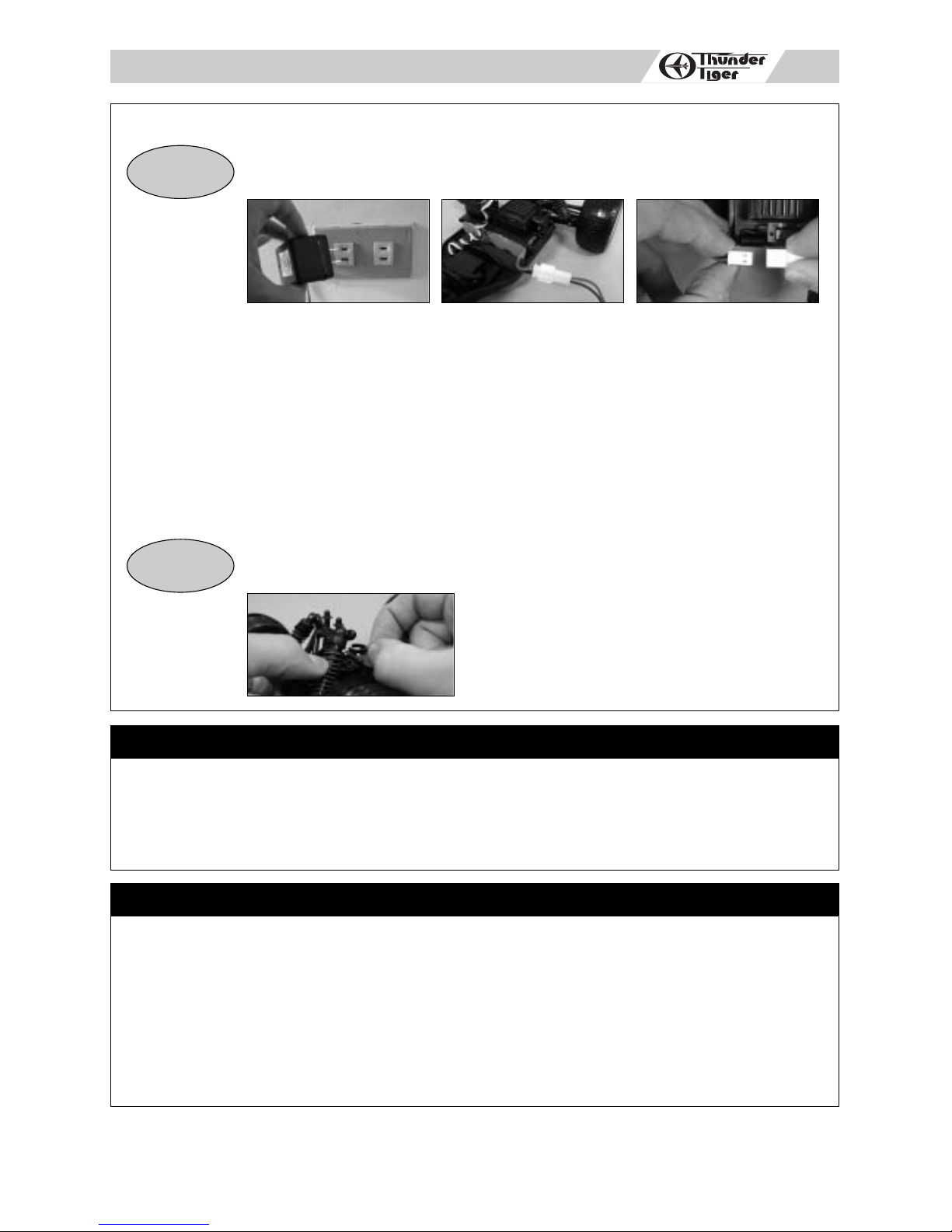

Ride height ( or Droop ) is the distance from the

ground to the bottom of the chassis. By removing or

installing the pre-load spring clips, the distance can

be decreased or increased to adapt to the different

terrains. Basically, a rough surface will need a higher

ride height.

a. Always turn off the radio system and unplug the battery pack when not using the truck.

b. Remove the sand, dirt, and any other elements completely from the truck before you store it.

c. Never use chemicals or any solvents to clean the chassis as it may cause damage to the electronics

components and plastic parts as well. Use compressed air, soft paintbrush, or toothbrush to clean

dust and dirt.

Thunder Tiger is pleased to inform our customers that you don't need to wait for long-term developed

optional parts anymore. Thunder Tiger also offers you the chance to turn your truck in "Factory" version!

Thunder Tiger offers a series of optional parts for your appreciative choosing. It's much more durable,

faithful and perfect fitting than any other aftermarket hop-up parts made for your mighty truck. Please

contact your hobby shop for more exciting product information from Thunder Tiger.

* Aluminum. Oil-Filled Shock Absorbers

* Competition High Power Motor

* Competition Mini ESC and Receiver

* High Torque Micro Servo

Step

RIDE HEIGHT (or DROOP) ADJUSTMENT

MAINTENANCE AFTER RUNING

HOP-UPS

a. Make sure that the battery pack is completely discharged prior to charging.

Discharging the battery pack by running the electric motor until it slows down or using

a discharger(Not included).

b. For best results, let the battery pack cool before charging. Heat may prevent the battery

pack from charging to full capacity and also decreases the performance of the battery.

c. Once the battery is ready to be charged, first plug the AC quick charger into the outlet

of AC power source, and then connect the battery input/output harness to the charger.

d. Continue to monitor the battery as it is being charged. As soon as the battery is fully

charged, disconnect the battery. from the charger plug(Over-charging or charging

incorrectly using inadequate chargers may cause the battery pack to become

dangerously hot.)

Step

BATTERY CHARGING

Inhaltsverzeichnis

Andere THUNDER TIGER Motorisiertes Spielzeugauto Handbücher

THUNDER TIGER

THUNDER TIGER PHOENIX BX RTR - Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER KT8 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER MTA4 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER ZT2 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER tomahawk 6195-F Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER 6542-F Installationshandbuch

THUNDER TIGER

THUNDER TIGER TS-4E SPORT V.2 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER MTA4 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER ER-1 SPORT Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER DUCATI 999R Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER SLEDGE HAMMER S50 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER EB 4 RALLY CAR Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER TS-4N Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER PHOENIX ST Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER SparrowHawk VX Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER EB-4 G3 6400-F Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER MTA4 S28 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER 6540-F Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER G3 ER-4WD Installationshandbuch

THUNDER TIGER

THUNDER TIGER Bush Master 8E Installationshandbuch

THUNDER TIGER

THUNDER TIGER MTA4 S28 Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER TS-4N PRO Bedienungsanleitung

THUNDER TIGER

THUNDER TIGER Tomahawk Installationshandbuch

THUNDER TIGER

THUNDER TIGER Sparrowhawk DT12 Bedienungsanleitung

Beliebte Motorisiertes Spielzeugauto Handbücher anderer Marken

Eduard

Eduard Humber Scout Car Mk.I exterior Bedienungsanleitung

Traxxas

Traxxas 4995X Bedienungsanleitung

Jamara

Jamara VW T1 Bus Bedienungsanleitung

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Bedienungsanleitung

Schumacher

Schumacher Pro Cat Bedienungsanleitung

Tamiya

Tamiya TT-01 TYPE E Bedienungsanleitung

Eduard

Eduard Krupp Protze 6x4 1/48 Bedienungsanleitung

New Bright

New Bright 61072UEP Bedienungsanleitung

Team Durango

Team Durango DEX410v5 Bedienungsanleitung

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Bedienungsanleitung

PLAYMOBIL

PLAYMOBIL 9536 Bedienungsanleitung

Atomic

Atomic BZ3 Bedienungsanleitung

Aiyaplay

Aiyaplay 370-290V00 Bedienungsanleitung

Power Wheels

Power Wheels GRJ53 Bedienungsanleitung

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Bedienungsanleitung

INJUSA

INJUSA 412 Bedienungsanleitung

Maverick

Maverick MSC-30BR-WP Bedienungsanleitung

Land of B.

Land of B. Rollin' Riders Bedienungsanleitung
