Tibaldi G0404 Bedienungsanleitung
INSTRUCTION MANUAL
INSTRUCTION MANUAL – G0404
CHRONOGRAPH MOVEMENT
Describe:Stainless Steel Case And Bezel Plating In Ip Gold,Mineral Glass,
Ip Gold Crown, Black Dial Applied With Gold Roman Indexes , Black
Leather Strap, 6 Hands, Ronda 3540.D Mov’t, 5Atm
WATCH DISPLAY & TIME SETTING
1Pull out the crown to position III
(the watch stops).
2Turn the crown until you reach the
correcttime 8:45.
3Push the crown back into position I.
Please note:
* In order to set the time to the exact
second, 1 must be pulled out when
the second hand is in position «60».
Once the hour and minute hands have
been
set, 3must be pushed back into
position I at the exact second.
SETTING THE TIME
1Pull out the crown to position II
(the watch continues to run).
2 Turn the crown anticlockwise until
the correct date 1 appears.
3Push the crown back into position I.
SETTING THE DATE
Quick Mode
Please note:
During the date changing phase
between approx. 08.30 PM and 12 PM;
the date must be set to the date of the
following day.

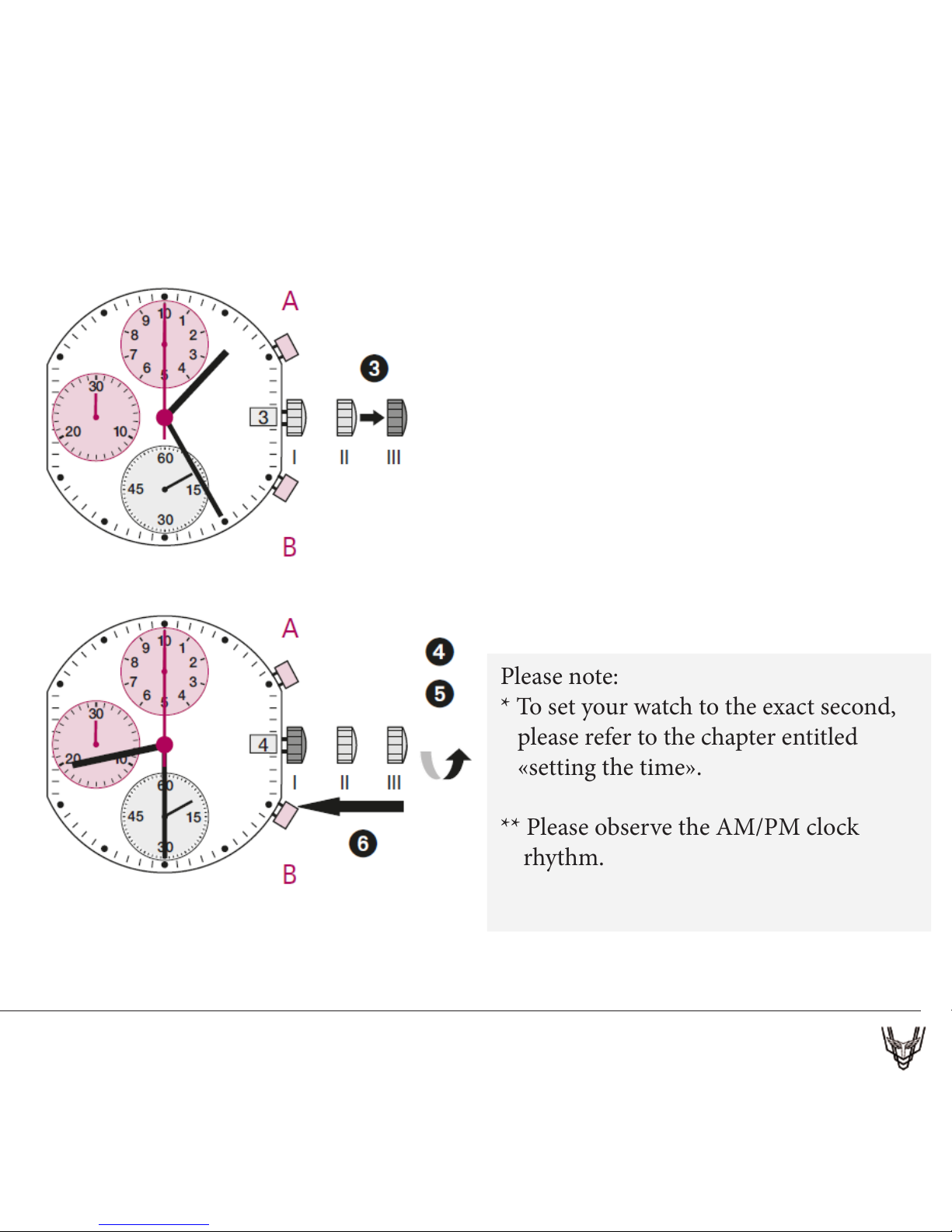

SETTING THE DATE/TIME
Example:
– Date / time on the watch: 17 / 1:25 AM
– Present date / time: 4 / 8:30 PM
1 Pull out the crown to position II
(the watch continues to run).
2Turn the crown anticlockwise until
yesterday’s date appears 3 .
3* Pull out the crown to position III
(the watch stops).
4 Turn the crown until the correct
date 4 appears.
5 ** Continue to turn the crown until
the correct time 8:30 PM appears.
6Push the crown back into position I.
Please note:
* To set your watch to the exact second,
please refer to the chapter entitled
«setting the time».
** Please observe the AM/PM clock
rhythm.
Example:
1Start: Press push-button A.
2Stop: to stop the timing, press
push-button A once more and read
the chronograph counters:
4 min / 38 sek / 7⁄10 sec
3Zero positioning:
Press push-button B.
(e chronograph hands will be
reset to their zero positions.)
CHRONOGRAPH: BASIC FUNCTION
(Start / Stop / Reset)
Example:
1Start: (start timing)
2Stop: (e.g. 15 min 5 sec following 1)
3Restart: (timing is resumed)
4 * Stop: (e.g. 5 min 12 sec following 3)
= 20 min 17 sec
(e accumulated measured time is shown)
5Reset:
e chronograph hands are returned to
their zero positions.
Please note:
* Following 4, the accumulation of the
timing can be continued by pressing
push-button A
(Restart / Stop, Restart / Stop, …).
CHRONOGRAPH: ACCUMULATED TIMING
(Start / Stop / Reset)
Example:
1Start: (start timing)
2Display interval: e.g. 20 minutes 17
seconds (timing continues in the background)
3Making up the measured time:
(the chronograph hands are quickly
advanced to the ongoing measured time.)
4Stop: (Final time is displayed)
5Reset:
e chronograph hands are returned to
their zero position
Please note:
* Following 3, further intervals or
intermediates can be displayed by pressing
push-button B (display interval / make up
measured time, ...).
CHRONOGRAPH: INTERMEDIATE OR INTERVAL TIMING
