Timberk TIR HP1 1500 Bedienungsanleitung

Outlook of devices, aslo colour scores can be revised without any special advance

notices.

Производитель вправе менять внешний вид прибора и цветовую гамму при-

бора без специального уведомления.

Instruction manual

Руководство по эксплуатации

Инфракрасный

электрический

обогреватель

Модели/Models: TIR HP1 1500

TIR HP1 1800

Electric

ceiling heater

(infrared heater)

Руководство по эксплуатации включает в себя гаратийный талон

www.timberk.com • electric ceiling heater

Dear customer!

Thank you for good choice and purchase of the TIMBERK

infrared heater. It will serve long.

Electric infrared heater TIMBERK is designed for general,

additional or local heating of living and production premises,

and also can be used outdoors. The heater can be installed on

the ceiling, ceiling constructions, wall, rack mounting horizontal

arrangement of a longitudinal axis. In places where it is possible

to connect to the electrical wiring with single-phase power

supply to 220V~, 50Hz. This heater is effective and efficient in

use in connection with the minimal losses of electricity.

Please carefully read the Operation Manual before using the infrared heater.

This Operation Manual contains the important information on your safety,

as well as some recommendations on proper use of the appliance and its

maintenance.

Keep the Operation Manual along with the warranty certificate, sales

receipt, and, if possible, cardboard package and packing material.

The purchased infrared may somewhat differ from one described in the

Manual, but this does not affect the methods of use and operation.

Important precautions and instructions given in this Manual do not include all

possible modes and situations, which can be encountered. It is necessary

to understand that common sense, cautiousness, and carefulness are the

factors, which cannot be «integrated» to any product.

These factors should be considered by the person, who is interested in

proper operation of the device. The manufacturer is not responsible for

damage of the appliance or its components during transportation, as a

result of incorrect installation, as a result of voltage surges, as well as in the

event of changes or modifications in any part of the appliance.

During use of the infrared heater, it is necessary to observe some

precautions. Improper operation with disregard of precautions may result

in infliction of harm to health of the user and other people, as well as in

infliction of damage to their property.

1.Read all instructions before using the heater.

2.The temperature of the safety grille and body at the heater can reach

very high values. To avoid burns, do not touch the hands and other

body parts to the surfaces of the device, as well as prevent the ability to

touch, including accidental person in the heater through training and the

placement of the device in a safe place.

3.The heater should be placed far from flammable and easily deformable

objects.

4.The device is not equipped with the device temperature adjustment. Do

not use the device in small rooms, when they are people or animals who

cannot leave on their own.

5.The power cord and other objects should not contact hot surfaces of

the heater.

6.Make sure that the heater body and its radiating boards get cold before

demounting and placing the heater to the package for long storage.

7. During demounting of the heater or its movement, take special

precautions to exclude hits of the appliance and its falling.

8.When the heater is not used for a long time, keep it in dry cool place in

the factory cardboard package.

9.DO NOT COVER the heater. Do not dry clothes and any other fabrics/

materials on the appliance. This may lead to its overheating, breakdown, or

WARNING!

This heater is not equipped with a device to control

the room temperature. Do not use this heater in small

rooms when they are occupied by persons not capable

of leaving the room on their own, unless constant

supervision is provided.

After the heater is fixed on the base and poles, the

heater must be at least 1.8 meter above the ground.

1. IMPORTANT INFORMATION

2. PRECAUTIONS

www.timberk.com • electric ceiling heater 3

3. WORKING PARAMETERS

Operation principle

The infrared heater is an appliance with an electric heating element and

radiating boards, which upon heating emit heat to the environment via

directed infrared radiation. Radiant energy is absorbed by the surrounding

surfaces and it heats them being transformed to thermal energy.

Surface temperature of objects can be different depending on their

absorbing properties (surface color, material), incidence angle of infrared

beams, surface shape and area. Surfaces also release some heat to air.

At that, heated air flows up to the ceiling and gradually cools down. As

a result, air temperature at the head level of a standing person appears

below the floor temperature by 1-2 °C.

Main features

1.Significant economic effect as compared to convectional heating, where

heat is significantly consumed for heating of unused roof space (first, air

is heated throughout the room volume, and then air heats objects and

surfaces in the room).

2.Capability of local heating only for those areas in the room, where it is

necessary, without heating of the whole room volume.

3.Low air temperature in the room at comfortable temperature on surfaces

of objects, floor, and walls creates the freshness effect air is not dried up.

4.Low convection (thermal movement of air volumes) reduces amount of

dust kicked up from the floor.

5.High protection class of the device (IP65) allows to apply the device in

10.The heater should be connected to the electric mains equipped with an

automatic circuit breaker.

11.If you plan to use the device in the bathroom or rooms with high humidity,

it must be installed so that the user could not touch the appliance, including

by accident. The device should not be exposed directly to water stream or

direct ingress of moisture on the instrument housing.

12.Never try to repair the heater yourself. This may inflict harm to your

health and affect the warranty service of the appliance.

13.Do not use this device in the place of permanent location of the animals

or plants.

14. It is prohibited to use a heater near inflammable, easily deformable

items and/or substances.

15.Exclude operation of the heater without grounding.

16.Do not leave the appliance unattended during its operation.

17.Throughout enable and use the heater with the removed elements of

the enclosure.

18. Do not operate any appliance with a damaged cord or plug. A

damaged power cord must be replaced by an authorized service center

for the manufacturer.

19.It is prohibited to use the heater in dusty rooms and during redecoration.

20.During operation of the device is forbidden to touch the case and its

protective grille.

21.Use the heater only as described in this Manual. Any other use not

recommended by the manufacturer may lead to fire, electric shock, or

injuries of people.

22.Never clean the heater, when it is connected to the electric mains, and

do not wipe the heater radiating boards with flammable liquids during its

operation.

23. For normal operation of the heater, the mains voltage should be

sufficient and the mains specifications should strictly correspond to the

technical parameters indicated on the appliance body. If necessary, clarify

the specifications of your mains from the electricity supplier.

24. Install and operate the heater with horizontal arrangement of a

longitudinal axis on the ceiling, ceiling constructions, wall. The thermal

resistance of the material shall be not less than 80 °C.

25.It is prohibited to install the appliance in immediate proximity to an electric

socket. This may result in its overheating causing an emergency situation.

26.The appliance is not designed for use by people (including children)

with limited physical, sensory, or mental capabilities and having insufficient

experience/knowledge, if they are not supervised and instructed on use of

the device by a person responsible for their safety.

It is necessary to watch that children do not play with the heater.

IMPORTANT!

The manufacturer considers this type of failure a non-

guaranteed event.

infliction of a significant damage to you and/or your property.

www.timberk.com • electric ceiling heater

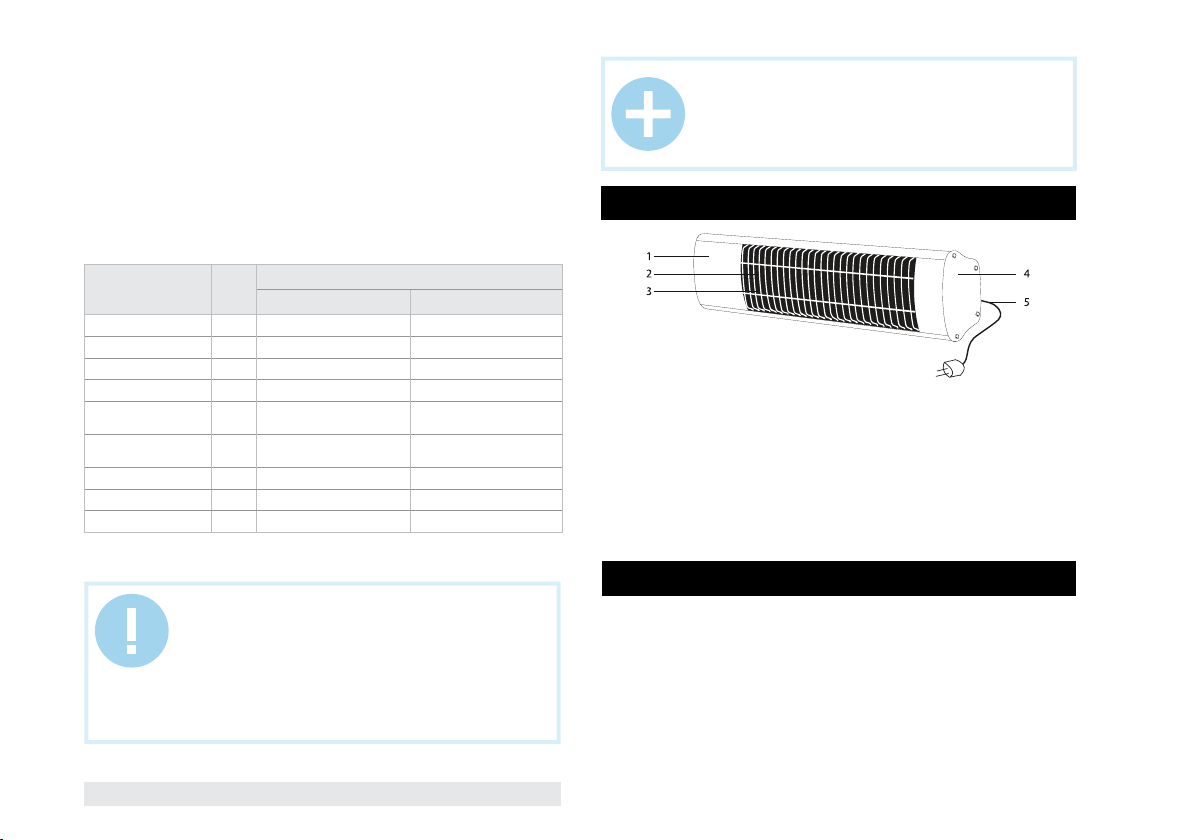

Infrared Heater description

1.Heater body

2.Protective grille

3.Heating element

4.Cover

5.Power cord and plug

1.Infrared heater – 1 pcs

2.Fasteners kit – 1 pcs

3.Operation manual – 1 pcs

4.Warranty certificate – 1 pcs

5.Package – 1 pcs

IMPORTANT!

The manufacturer reserves the right to change the set-list of the

device (including liquid and powder components) for different

supplies without prior notice. The changes either in no way influence

the basic technical parameters of the device or may improve them,

and also not violate the legislation or quality standards of the

countries of manufacture, transit and selling.

The changes in the set-list may result in changing of the weight

and dimensions of the device, but not more than by +\- 5-20%

(depending on the product category)

NOTE:

Heated area in the table is indicated for reference, since it depends

both on the heater power, and on room type, ceiling height, wall/

ceiling materials, number and area of glazing, presence of doors,

etc.

4. INFRARED HEATER DESCRIPTION

5. DELIVERY SET

Fig.1

Technical specifications

Table 1.

For more detailed description of technical parameters and specifications please refer to our

website www.timberk.com or ask from the official dealers of TIMBERK.

Parameter Meas.

units

Item

TIR HP1 1500 TIR HP1 1800

Rated power consumption W 1500 1800

Rated current A 6,8 8,2

Rated voltage V/Hz 220~/50 220~/50

Water protection class - IP65 IP65

Electric protection class -Class I Class I

Heating area m214-16 17-19

Rated suspension height m 2,0 2,2

Weight kg 2,4 2,6

Dimensions mm 133х558х88 133х658х88

environments with the most adverse conditions.

6.The possibility of using the device in a portable rack. (Portable stand

comes separately as accessory)

Area of application

Infrared heaters are designed for general, additional, and local heating of

industrial, production, utility, and similar rooms (flats, offices, trade enterprises,

exercise rooms, educational institutions, public catering enterprises, storage

facilities, hangars, agricultural facilities, etc.) and can be used outdoors.

www.timberk.com • electric ceiling heater 5

NOTE:

To improve the product quality, the design and technical

specifications of the infrared heater, as well as its delivery set can be

modified by the manufacturer without preliminary notification.

NOTE:

Depending on material and design of ceiling structural elements, the

heater is secured onto appropriate fasteners chosen on basis of the

strength condition. Strength of the ceiling or structural elements, to

which the heater is secured, should be sufficient to endure 5-fold

weight of the heater.

1.Expand the original packaging and carefully remove the heater

2.Remove the mounting kit

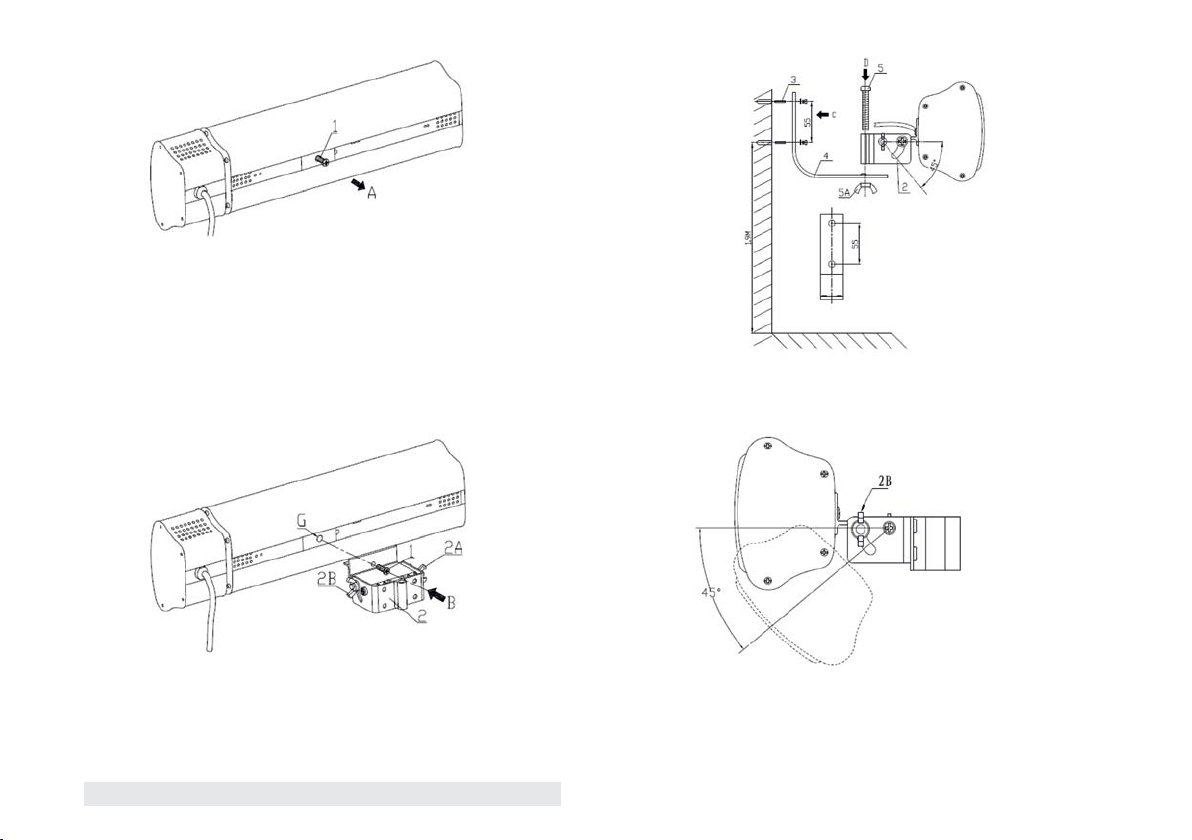

3.Collect the installation wall mount holes as shown in Fig. 2

4.Connect the hardware to the instructions shown in Fig. 3, 4, 5

5.Hang the heater on the smooth surface of the wall with the observance

of the distance specified in item 6.1. Make sure that the mounting screws

firmly fastened

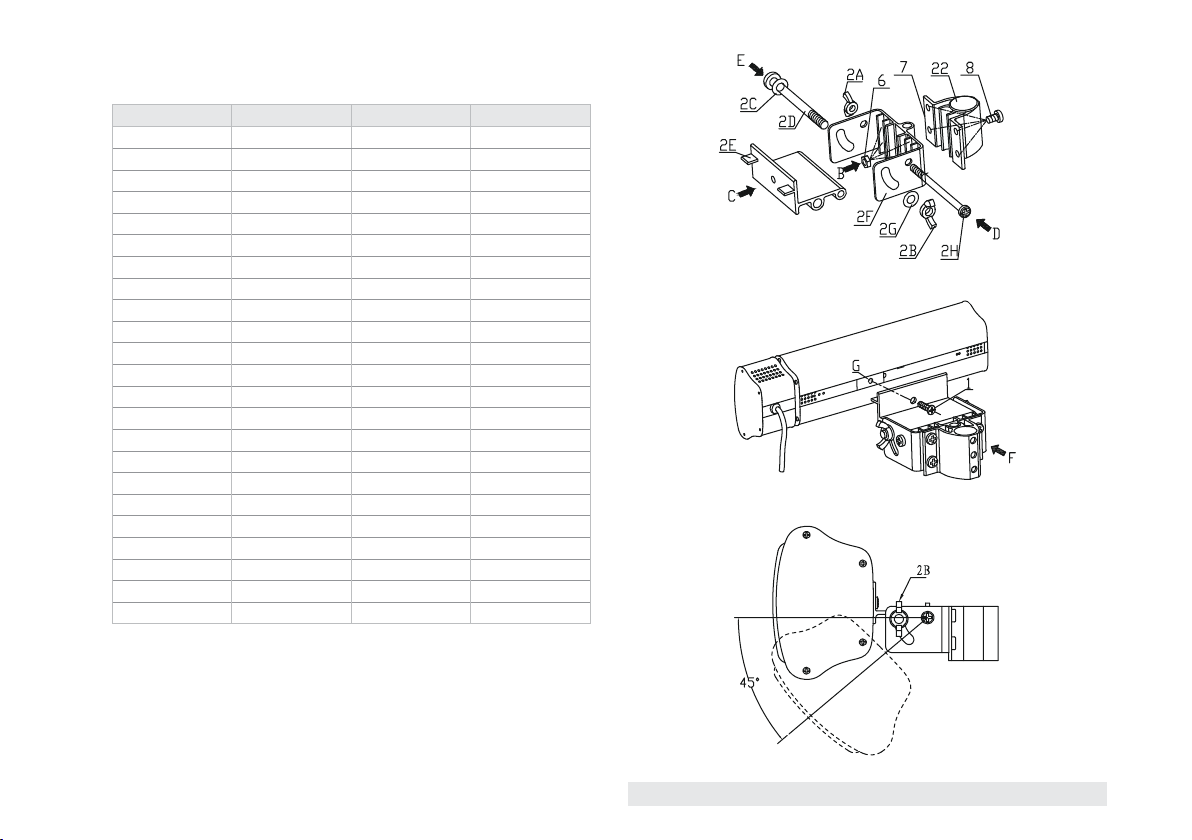

6.If necessary, install the heater, bracket, follow the instructions shown on

Fig. 6, 7, 8, 9 and specified in item 6.3

6.1Safe distances required for installation

1.Never install the unit on the surface of plastic, nylon, cardboard and

other

2.After installing the unit, the distance from the floor should not be less

than 1.8 meters

3.Distance from a wall to a device must be at least of 0.65 meters

4.The distance from the device to a ceiling should be no less than 0.3

meters

5.The distance from the protective grille device to easily flammable (cloth,

paper, plastic and other) and combustible materials must be at least 1.5-2

meters

6.The distance from the device to find the man should be not less than

1 meter

6.2Installation of the heater using the wall fasteners

Table 2.

On Fig. 2, 3, 4, 5 shows stepwise instructions on assembly and installation

of wall fasteners for infrared heater.

6. INSTALLATION

WARNING!

Mounting of the infrared heater and its connection to the

electric mains should be carried out only by qualified

specialists according to the Electrical Installation

Regulations and Power System Safety Standards.

№ Parts name Specification Qty

1 Screw M6x20 1

2 Bracket set Aluminum 1

3 Expansion bolt M6x60 2

4 Hanger STEEL 1

5 Bolt M8х60 1

5A Nut M8 1

www.timberk.com • electric ceiling heater

Fig. 2 Fig. 4

Fig. 3 Fig. 5

www.timberk.com • electric ceiling heater 7

Fig. 6

Fig. 7

Fig. 8

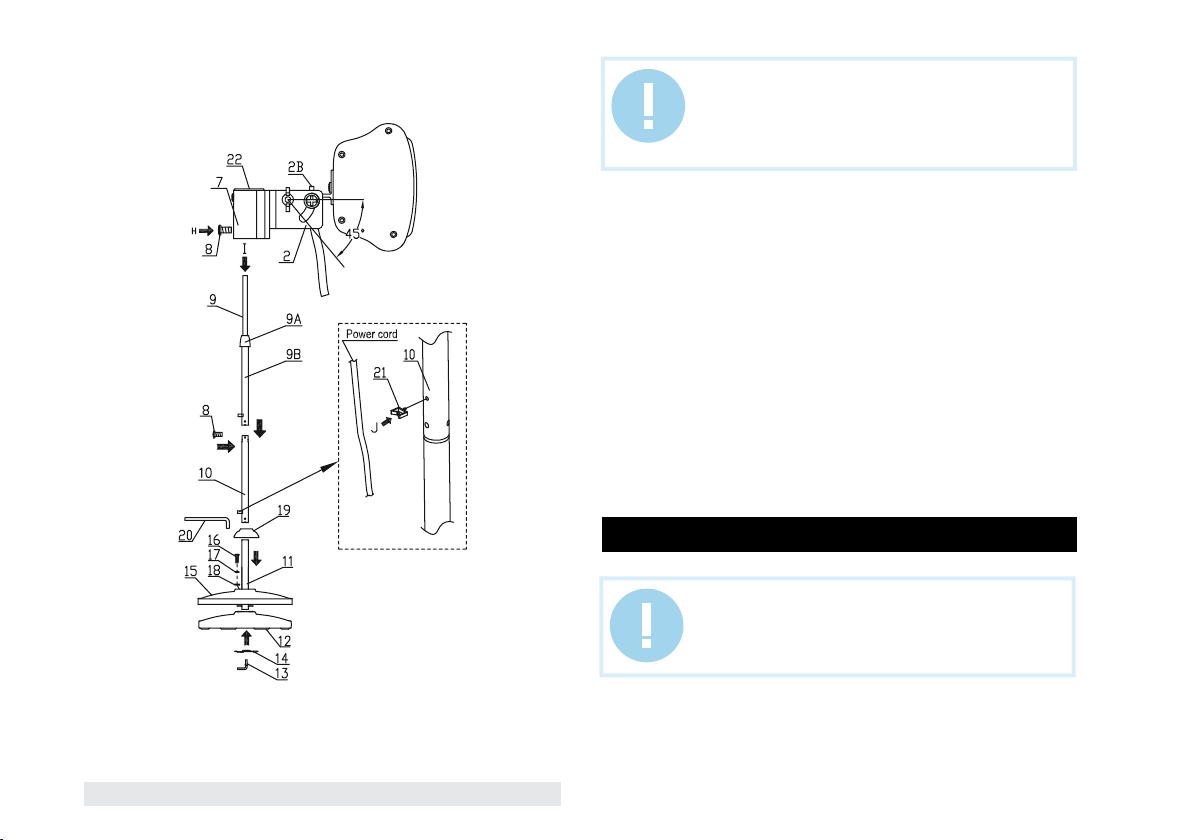

6.3Installing the infrared heater on a portable rack

Table 3.

On Fig. 6, 7, 8, 9 shows stepwise instructions on assembly and installation

of infrared heater on the mobile rack.

Series Parts name Specification Qty

1 Screw M6x20 1

2 Bracket set Aluminum 1

3 Expansion bolt M6x60 2

4 Hanger Steel 1

5 Bolt M8х60 1

5A Nut M8 1

6 Nut M6 4

7 Bracket 3 Aluminum 1

8 Bolt M6х10 12

9 Telescopic tube set Steel 1

10 Telescopic tube Steel 1

11 Telescopic tube Steel 1

12 Base Plastic 1

13 M8 bolt L shpae 1

14 Fixing plate Steel 1

15 Base cover Steel 1

16 Bolt M6x50 3

17 Spring washer Ф6.2хФ8.2х1 3

18 Washer Ф6.2хФ14х1 3

19 Decorative cover Steel 1

20 Hex wrench Steel 1

21 wire holder PA 2

22 Telescopic tube cover Silicone 1

www.timberk.com • electric ceiling heater

Fig. 9

WARNING!

After installation of the heater and before switching for

the first time, it is necessary to wipe the radiating board

with alcohol. After that, it is PROHIBITED to touch the

radiating board.

Connection to electric mains

1.The patio heater is designed to be connected to 220V~, 50Hz single-

phase voltage mains with a grounding circuit.

2.Prior to connection make sure that parameters of electric mains in the

place of connection comply with parameters, indicated on the identification

plate with technical data of the unit.

3.It is necessary to follow active electrical safety precautions, connecting

the convector to electric mains.

4. An electric outlet must be properly grounded. The outlet must be

designed for rated current not less than 16A for models with maximum

power up to 2000W. Electric outlet and plug must always stay dry to

prevent current leakage. Regularly check if the electric plug is tightly

connected to the outlet. It must be done in the following order: connect an

electric plug into an outlet, after half hour operation turn off the patio heater

and disconnect the plug from the outlet, check if the plug is heated by your

hand. If the plug heated over 50°C then replace the outlet by a new one

to prevent damages, incidents, fire as a result of bad electric contact. A

specialist must do the job.

1.Before switching on the heater, ensure that no moisture on the device

and on the heating element.

2.After the first turn the heater on may appear briefly burnt smell. This

7. OPERATION OF THE INFRARED HEATER

WARNING!

Warning! Please connect the cable with an industrial

plug rated 3P 230V~ 16A IP67 of IEC 60309-2

www.timberk.com • electric ceiling heater 9

1.During operation, it is necessary to periodically (once a year) check the

electric cable contacts and terminal connectors for good tightening.

2. If the body becomes dirty, wipe off dust with a towelette. Radiating

boards should be wiped in cold condition with alcohol.

8. MAINTENANCE

WARNING!

Slight crackles may be heard during operation at the

moment of heating or cooling, which disappear, when

the heater reaches the working mode.

Possible malfunctions and remedies for them:

If you are not able to remedy a malfunction according to the

recommendations or other malfunctions occur, contact the authorized

service center of Timberk.

10. TROUBLESHOOTING

Malfunction Cause Remedy

1. The heater

heats

poorly

1. The heating element is faulty 1. Contact the authorized service center of Timberk

2. Low voltage in the electric mains 2. Check voltage in the electric mains

2. The heater

does not

work

1. No voltage in the electric mains 1. Check presence of voltage in the electric mains

2. Breakdown of the electric cable 2. Check integrity of the electric cable and replace it if necessary

3. Breakdown in the heating element circuit 3. Contact the authorized service center of Timberk

is normal. If the smell persists for a long time, immediately disconnect

the heater from the electric power supply and contact your service

representative.

3.To exclude the appearance of burnt smell when using the heater in the

future it is recommended to keep it clean, preventing the accumulation of

dust on it.

4. Within several minutes after switching on the heater to the heating

element may appear black dots. This is normal and does not affect the

operation of the device.

5. Not recommended for long look at heater heating element, this can

cause deterioration and damage to health.

11. WIRING SCHEMATIC DIAGRAM

12. DISPOSAL

Fig.10

Upon completion of the service life, the infrared heater should be disposed

according to the effective local regulations, rules, and methods. For more

details on disposal of the infrared heater, please contact a representative

of the local authority.

220V~

9. TRANSPORTATIOM AND STORAGE

Temperature

requirements*

Humidity

requirements*

We are exploring new technologies and we constantly improving the quality

of our products. That’s why specifications, design and accessories are

subject to change without any specific notice.

Transportation and

storage

From -30°C to +50°C

From 15% to 85%

(without a condensate)

* This product must have storage in dry, well-ventilated space of warehouse

at the temperature not lower than -30°C.

www.timberk.com • electric ceiling heater

Уважаемый покупатель!

Благодарим Вас за удачный выбор и приобретение инфра-

красного обогревателя TIMBERK. Он прослужит вам долго.

Электрический инфракрасный обогреватель TIMBERK

предназначен для основного, дополнительного или локаль-

ного обогрева жилых и производственных помещений, а

также может использоваться на открытом воздухе. Обо-

греватель может быть установлен на потолке, потолочных

конструкциях, стене, крепежной стойке с горизонтальным

расположением продольной оси. В местах, где есть воз-

можность подключения к электропроводке с однофазным

электропитанием 220В~, 50Гц. Данный нагревательный при-

бор эффективен и экономичен в использовании в связи с

минимальными потерями электроэнергии.

Просим внимательно ознакомиться с руководством по эксплуатации

перед использованием инфракрасного обогревателя. В данном ру-

ководстве по эксплуатации содержится важная информация, касаю-

щаяся вашей безопасности, а также рекомендации по правильному

использованию прибора и уходу за ним.

Сохраните руководство по эксплуатации, вместе с гарантийным та-

лоном, кассовым чеком, и, по возможности, картонной упаковкой и

упаковочным материалом.

Приобретенный вами инфракрасный обогреватель может несколько

отличаться от описанного в руководстве, что не влияет на способы

его использования и эксплуатации.

Важные меры предосторожности и инструкции, содержащиеся в

данном руководстве, не включают всех возможных режимов и ситуа-

ций, которые могут встречаться. Необходимо понимать, что здравый

смысл, осторожность и тщательность являются факторами, которые

невозможно «встроить» ни в один продукт.

Эти факторы должен учитывать человек, который заинтересован в

надлежащей эксплуатации устройства. Изготовитель не несет ответ-

ственности в случае повреждения прибора или его отдельных частей

во время транспортировки, в результате неправильной установки, в

При использовании инфракрасного обогревателя, необходимо со-

блюдать ряд мер предосторожности. Неправильная эксплуатация в

силу игнорирования мер предосторожности может привести к причи-

нению вреда здоровью пользователя и других людей, а также нане-

сения ущерба их имуществу.

1. Прочитайте инструкцию перед использованием инфракрасного

обогревателя.

2.Температура защитной решетки и корпуса при работе обогревате-

ля может достигать очень высоких значений. Чтобы избежать ожо-

гов, не прикасайтесь руками и другими частями тела к поверхностям

прибора, а также предотвратите возможность прикосновения, в том

числе случайного, человека к обогревателю с помощью инструктажа

и размещением прибора в недоступном месте.

3. Обогреватель должен располагаться вдали от легковоспламеня-

ю-щихся и легкодеформируемых объектов.

4.Прибор не оснащен устройством для регулирования температуры в

помещении. Не используйте прибор в небольших помещениях, когда

в них находятся люди или животные, которые не могут покинуть по-

мещение самостоятельно.

5.Не допускайте касания шнуром электропитания и другими предме-

тами горячих поверхностей обогревателя.

6.Удостоверьтесь, что корпус обогревателя и его защитная решет-

ка остыла, прежде чем обогреватель будет демонтирован и уложен в

упаковку для длительного хранения.

7. При демонтаже обогревателя или его перемещении соблюдайте

особую осторожность, не допуская ударов прибора и его падения.

8.Когда обогреватель не используется долгое время, храните его в

сухом прохладном месте в заводской картонной упаковке.

9.НЕ НАКРЫВАЙТЕ обогреватель. Не сушите на нём одежду и любые

другие ткани и материалы. Это может привести к его перегреву, вы-

ходу из строя или причинить значительный ущерб Вам и/или вашему

имуществу.

1. ВАЖНАЯ ИНФОРМАЦИЯ

2. МЕРЫ ПРЕДОСТОРОЖНОСТИ

результате колебаний напряжения, а также в случае, если какая-либо

часть прибора была изменена или модифицирована покупателем.

Dieses Handbuch passt für folgende Modelle

Andere Timberk Heizung Handbücher

Timberk

Timberk TOR 51.1507 BTM Bedienungsanleitung

Timberk

Timberk T-FH1.2-B10MC-B Bedienungsanleitung

Timberk

Timberk T-EC1000-X2E-WF Bedienungsanleitung

Timberk

Timberk TFH T20MDR Bedienungsanleitung

Timberk

Timberk TFH T20MDX Bedienungsanleitung

Timberk

Timberk TEC.E15 M 1000 Bedienungsanleitung

Timberk

Timberk TOR 21.1507 NMN Bedienungsanleitung

Timberk

Timberk T-IR600-D10HU Bedienungsanleitung

Timberk

Timberk T-FH2000-H18MC-WF Bedienungsanleitung

Timberk

Timberk T-HG2-Q10T Bedienungsanleitung

Timberk

Timberk TFH S20PDO Bedienungsanleitung

Timberk

Timberk RE8 Series Bedienungsanleitung

Timberk

Timberk TEC.PF3 M 1000 IN Bedienungsanleitung

Timberk

Timberk TEF T12 TN1 Bedienungsanleitung

Timberk

Timberk Blanco Ext Series Bedienungsanleitung

Timberk

Timberk TOR 51.1507 BTQ Bedienungsanleitung

Timberk

Timberk TEC.PS1 M 500 IN Bedienungsanleitung

Timberk

Timberk TOR 21.1206 BC Bedienungsanleitung

Timberk

Timberk TFH S20QSS.G Bedienungsanleitung

Timberk

Timberk TCH Q1 800 Bedienungsanleitung

Timberk

Timberk Power Door Series Bedienungsanleitung

Timberk

Timberk TFH T05UFX Bedienungsanleitung

Timberk

Timberk TGH 4200 SM1 Bedienungsanleitung

Timberk

Timberk T-CH1.2-A11 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
