User Manual

CCPAD

Control Centre Numeric Keypad

Module with jog dial

Version 1.2

March 2021

Time Electronics Ltd

Unit 5, TON Business Park, 2-8 Morley Road,

Tonbridge, Kent, TN9 1RA, United Kingdom.

T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198

mail@timeelectronics.co.uk | www.timeelectronics.com

Nothing from this manual may be multiplied, or made public in any form or manner, either

electronically or hard copy, without prior written consent from Time Electronics Ltd.

This also applies to any schematics, drawings and diagrams contained herein.

This manual provides operating and safety instructions for the Time Electronics product.

To ensure correct operation and safety, please follow the instructions in this manual.

Time Electronics reserves the right to change the contents, specifications and other

information contained in this manual without notice.

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 3 of 12

Contents

1Introduction....................................................................................................................................4

2Controls..........................................................................................................................................5

3Operation Guide.............................................................................................................................6

3.1 Example of Manual Operation - Numeric Entry .....................................................................................6

3.2 Example of Operation with EasyCal Software .......................................................................................7

4Warranty and Servicing............................................................................................................... 11

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 4 of 12

1Introduction

The CCPAD is a module designed to accompany the CalBench control centre, for use with

the manual control programs and EasyCal calibration software. It’s specific purpose is to aid

users on the CalBench when using calibrators, gauges and multimeters via the control

centre. The CCPAD is recommended for use with the 7051 and 8060 modules (control

centre supplied as standard), enabling a convenient method of data entry, deviation and

navigation through the dedicated software applications used in testing work.

Features

•Jog dial and keypad module

•Ergonomic tactile buttons

•Situated next to control centre

•Convenient method of data entry

•Suitable for deviation control that enables the user to finely adjust calibrator outputs

•Used with EasyCal software and manual control programs of calibrators and multimeters

•Ideal for use with 7051, 7051+, 8060, and 8060+ modules

•Width: 82mm (primary or secondary console fitting)

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 5 of 12

2Controls

Numeric Key Pad

Jog Dial / Deviation

Cursor Left & Right

Cursor Up & Down

Escape / Back

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 6 of 12

3Operation Guide

The CCPAD can be used with modules that feature a control centre, such as the 7051 and

8060. These modules feature manual control applications and EasyCal Software for

automated test procedures. The CCPAD is designed for operation during testing runs to

allow users a quick method of input and control. It is not suitable for navigation between

EasyCal programs, procedure development or for use with PC programs.

3.1 Example of Manual Operation - Numeric Entry

Shown below is an example of the Control application for the 8060 Process Calibrator.

Select the output value by pressing the touch screen. The value will highlight.

Enter the value required on the keypad and press enter

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 7 of 12

3.2 Example of Operation with EasyCal Software

When working with EasyCal, the main application for use with the CCPAD is called CalRun

(see EasyCal user manual for further details).

CalRun is the interface that runs a calibration procedure.

Using the CCPAD you can quickly pass through the prompt and set up screens by pressing

the CCPAD enter button or alternatively press the jog dial.

Pressing the escape button will return the user to the Test Control screen.

In the CalRun application there are options to input data in several ways.

These include keyboard entry, deviation and spin box methods.

The CCPAD can be used for all these methods.

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 8 of 12

3.2.1 Keyboard Entry

Enter the numeric value via the keypad.

Use the enter button to capture the value.

To confirm the value and move on to the next test press the enter button again.

Note: The CE button will move the cursor to the beginning of the value entered. This is useful if the minus sign

has been omitted by mistake.

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 9 of 12

3.2.2 Deviation

In deviation mode the jog dial becomes active.

The output is then finely adjusted by rotating the dial.

To confirm the value press the enter button or alternatively press the jog dial.

Note: Pressing the enter button activates the highlighted button at the bottom of the test screen. If the left/right or

up/down buttons have been pressed the Enter button may not be highlighted.

Time Electronics User Manual

CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

CCPAD Control Centre Numeric Keypad Module with jog dial Page 10 of 12

3.2.3 Spin Box

As with deviation mode the jog dial becomes active.

The value is then finely adjusted by rotating the dial.

Inhaltsverzeichnis

Andere Time Electronics Prüfgeräte Handbücher

Time Electronics

Time Electronics 1044 Bedienungsanleitung

Time Electronics

Time Electronics 7000 Bedienungsanleitung

Time Electronics

Time Electronics 1024 Bedienungsanleitung

Time Electronics

Time Electronics 7040 Bedienungsanleitung

Time Electronics

Time Electronics 7005 Bedienungsanleitung

Time Electronics

Time Electronics 1017 Bedienungsanleitung

Time Electronics

Time Electronics 9814 Bedienungsanleitung

Time Electronics

Time Electronics 1048 Bedienungsanleitung

Time Electronics

Time Electronics 1010 Bedienungsanleitung

Time Electronics

Time Electronics 1010 Bedienungsanleitung

Time Electronics

Time Electronics 7161 Bedienungsanleitung

Time Electronics

Time Electronics 1030 MicroCal Bedienungsanleitung

Time Electronics

Time Electronics 1021 Bedienungsanleitung

Time Electronics

Time Electronics 1065 Bedienungsanleitung

Time Electronics

Time Electronics 1024 Bedienungsanleitung

Time Electronics

Time Electronics 5051 Plus Bedienungsanleitung

Time Electronics

Time Electronics 5068 Ins-Cal Bedienungsanleitung

Time Electronics

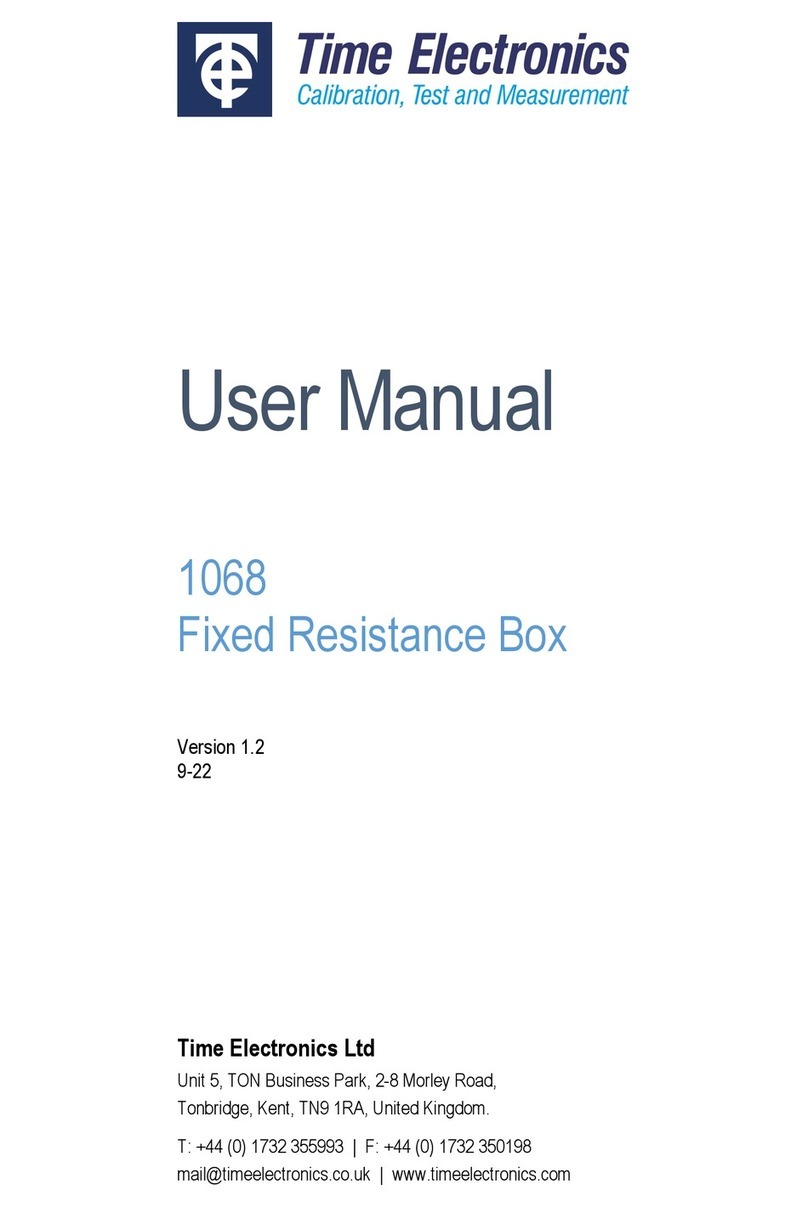

Time Electronics 1068 Bedienungsanleitung
