Tintometr Scuba+ Bedienungsanleitung
+
Scuba+
Bedienungsanleitung DE
Instruction Manual GB
Mode d’emploi FR
Istruzioni per l’uso IT
Instrucciones de uso ES
Gebruiksaanwijzing NL
Betjeningsvejledning DK
Bruksanvisning SE
Bruksanvisning NO
Käyttöohje FI
freies Chlor/ free Chlorine
Gesamtchlor/ total Chlorine
Brom/ Bromine
pH
Cyanursäure/ Cyanuric Acid
Alkalität/ Alkalinity
ENGLISH
ENGLISH
1ON/OFF
• Operation

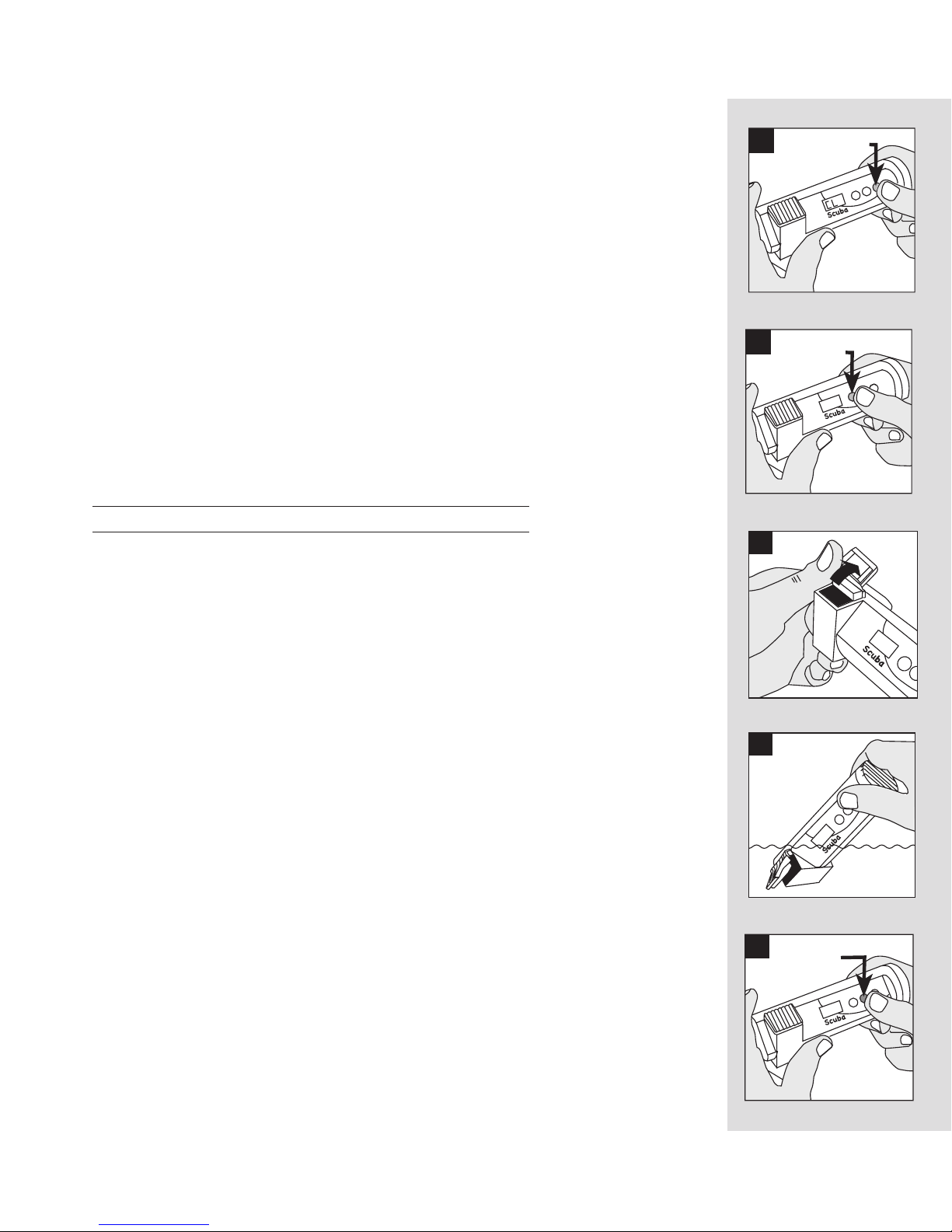

Switch the unit on using the ON/OFF key. The display shows
“CL F”.
Select the test required using the MODE key: CLF (free Chlo-
rine)→CLt(totalChlorine)→ Br→ PH→ CYS→ tA→ CLF...(Scroll).
The display shows the desired method.
Open the grey lid on the top of the sample chamber.
Swirl the instrument several times under the water surface
allowing to fill the sample chamber completely. Take the
instrument out of the water and close the grey lid. Hold the
lid firmly down.
Press the ZERO/TEST key. The method symbol flashes for
approx. 8 seconds. The display shows “0.0.0”.
Open the grey lid and add the approriate tablet:
Method appropriate tablet
Free chlorine DPD free
Total chlorine DPD total
pH value pH 6.5 - 8.4
Bromine DPD free
Cyanuric acid Stabilizer
Alkalinity Alkalinity

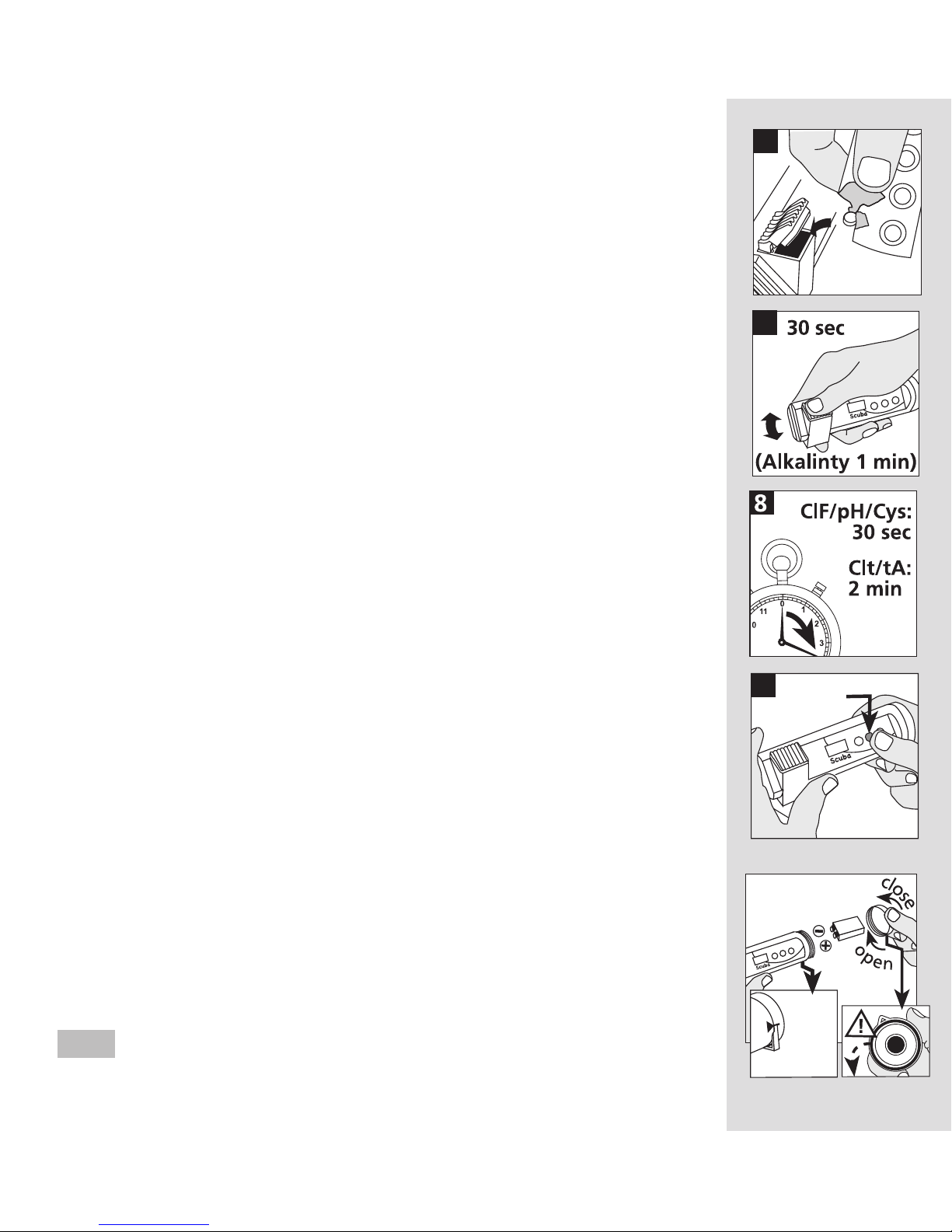

{Closethe lid andswirl the instrumentgently for approx.30
seconds (Alkalinity 1 min) holding the lid firmly down.
|Afterwards keep the instrument steady and wait for 30
seconds when testing CLF/pH/CYS and 2 minutes when
testing CLt/tA.
}Press the ZERO/TEST key. The method symbol flashes
for approx. 6 seconds. The result appears in the display.
Rinse the sample chamber and lid area thoroughly
after each test.
Itisnotpossibletorepeatthereadingbecausethemeasurement
value is correctly displayed only during the waiting period
stated above.
New zero calibration
Press the MODE key repeatedly until the desired method
symbol appears in the display again.
2
3
4
5ZERO
2MODE
ENGLISH
• Calculation
Combined Chlorine = Total Chlorine - Free Chlorine
Technical Data
Free chlorine: 0.05 - 6.0 mg/l Cl2
Total chlorine: 0.05 - 6.0 mg/l Cl2
(Accuracy Chlor: 0-1mg/l±0.2;1-2mg/l±0.3;2-3mg/l±0.4;3-6mg/l±0.5)
Bromine: 0.1 - 13.5 mg/l Br
(Accuracy: 0-2mg/l±0.5;2-4mg/l±0.7;4-7mg/l±0.9;7-13mg/l±1.2mg/l)
pH value: 6.5 - 8.4 pH (Accuracy ±0.2 pH)
Cyanuric Acid: 1 - 80 mg/l Cys (Accuracy ±15 mg/l)
Alkalinity: 10 - 500 mg/l CaCO3 (Accuracy ±50 mg/l)
Light source: LED, filter (λ= 528 nm)
Battery:
9 V-
block battery
(Life 600 tests).
Auto-OFF: Automaticswitchoff5minutesafterlastkeypress
Ambient
temperature:0–40°C,relativehumidity: 30 –90%,
conditions
: non-condensing
CE:
DIN EN 55 022, 61 000-4-2, 61 000-4-8,
50 082-2, 50 081-1, DIN V ENV 50 140, 50 204
•
Maintainance
1. Keep the instrument in a clean condition.
2. Nosolventorabrasivematerialsshouldbeusedtocleantheinstrument.
3. Let the instrument dry when not used, store under ambient
environmental conditions.
4. Remove battery if instrument is longer unused.
• Trouble shooting
1. Use only tablets in white foil.
2. Touching the tablets can cause contamination.
3. Close the grey lid on top of the sample chamber before
zeroing/reading.
4. Alwaysensure thatthesampleandthelidarethoroughlyrinsed
when changing from one test to the other.
• Fitting the battery (9 volts, 6LR61)
BAT Change the batteries with this display indication.
Check
position of the black O-Ring when opening/ closing the battery
chamber lid!
6
7
9TEST
water
tight
position
FRANÇAIS
E 20
E 70 - E 80
H
E 01 / E 03
L
Valeur de mesure trop élevéeUnderrange
Valeur de mesure trop basse
DEL hors service ou chambre de mesure
encrassée
Le couvercle de la chambre de mesure n’est
pas bien fermé DEL trop claire
Calibrage d’usine incorrect / effacé.
Instructions pour l‘utilisateur
ESPAGNOL ITALIANO
ENGLISH
User notes
E 20
E 70 - E 80
Overrange
Underrange
Cell chamber lid not closed, LED too bright
LED faulty or cell chamber dirty
Factory calibration not OK / deleted
H
E 01 / E 03
L
NEDERLANDS
DEUTSCH
Bediener-Hinweise
Messwert zu groß
Messwert zu klein
LED defekt oder Messschacht verschmutzt
Messschachtdeckel nicht richtig verschlossen,
LED zu hell
Fabrikationskalibrierung nicht in Ordnung /
gelöscht
E 20
E 70 - E 80
H
E 01 / E 03
L
Technical changes without notice
Printed in Germany 02/07
Update: www.tintometer.de
No.: 00386968
