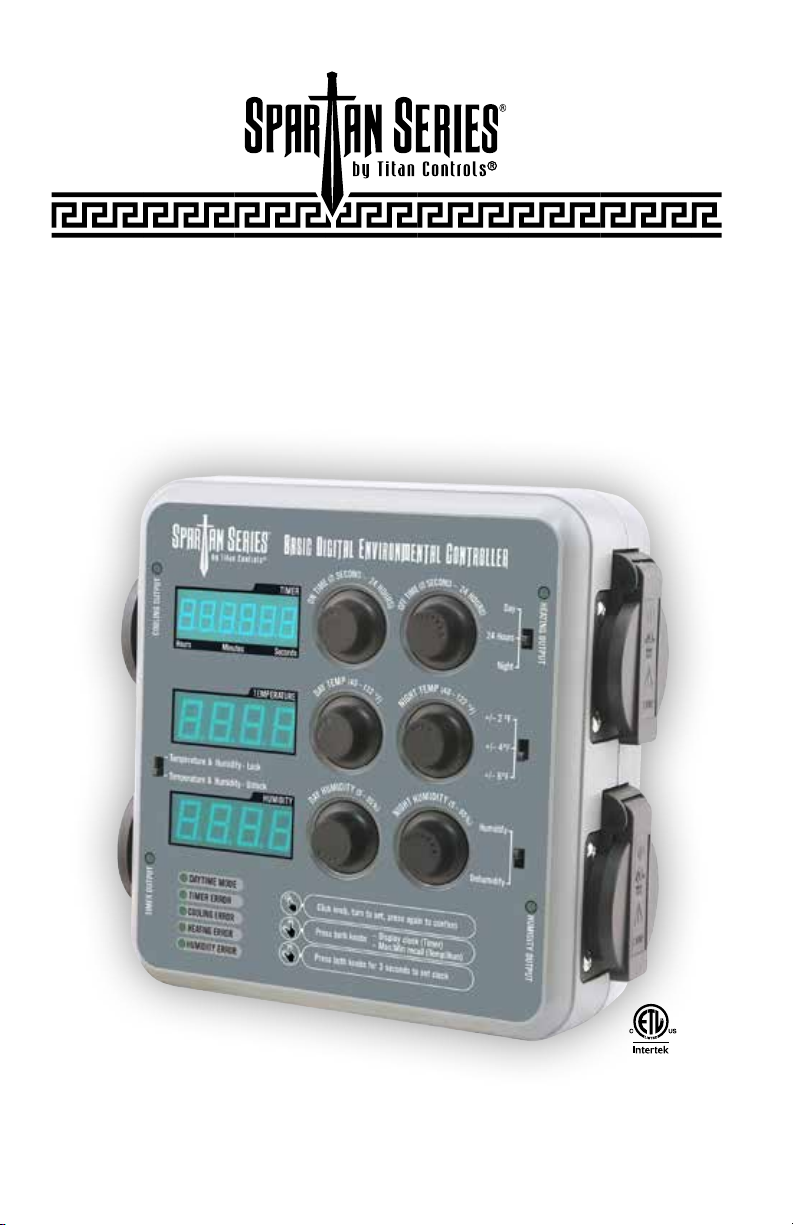

Titan Controls SPARTAN Series Bedienungsanleitung

Basic Digital

Environmental Controller

Instruction Manual

www.titancontrols.net

2 3

Basic Digital Environmental Controller

• Warnings and Cautions

• Factory Settings

• Basic Digital Environmental Controller (BDEC) Overview

• Instructions for Operation

• Error Codes

• Controller Speciﬁcations

• Installation Options

• Installation Example

• Warranty Information

• Service & Repair Program

Warnings & Cautions

• Read all instructions before operating controller.

• Do not put your controller in an area where it can get wet or sprayed.

• Mount your controller securely to the wall.

• When using “bug bombs” in area, cover controller completely to avoid corrosion.

• There are no serviceable parts in controller. Do not attempt to repair the unit.

• Breaking tamper proof seal will void your warranty.

• Do not put paper clips, tools, etc. into unit. Possible electrocution may occur.

• Plug controller into surge protector to avoid potential damage to the unit.

• Conﬁrm that your power source is 120 Volts/15 Amps prior to plugging controller into outlet.

• Check that all equipment that will be activated by this controller is the proper voltage(s).

• Verify that the equipment you are controlling does not exceed a total of 14.5 amps.

• This controller is designed for “inside use” only.

• Avoid placing the controller near heat generating sources such as a CO2Generator.

• Use caution if operating controller in extremely humid environments (90% and above).

• Do not use controller for purposes other than the unit was designed to function.

• Use controller within deﬁned environmental speciﬁcations.

• Ask your Dealer for tips and techniques regarding the use of this controller.

• Be conscientious when disposing of any products.

2 3

Factory Settings

• Temperature Day Settings

* Cool: 80° F

* Heat: 55° F

• Temperature Night Settings

* Cool: 70° F

* Heat: 55° F

• Temperature Dead-Band: 4° F Heat and Cool

• Humidity Settings: 50% rH

• Humidity Mode: Dehumidify

• Humidity Dead-Band: 5% rH

• Day On Time: 1 minute

• Day Off Time: 1 hour

• Night On Time: 1 minute

• Night Off Time: 2 hours

• Power Loss Mode: Continue

• Low Temperature Limit: 50° F

Basic Digital Environmental Controller

(BDEC) Overview

The Basic Digital Environmental Controller (BDEC) has four outlets: cooling device, heating

device, dehumidifying or humidifying device and a device controlled by the built in timer. The

BDEC has a 15 foot sensor cord attached to a high quality temperature and humidity sensor

which includes a photocell.

Instructions for Operation

Temperature Setting

Temperature Day Setting: There is a Day Cooling set point and a Day Heating set point. To set

the Day Cooling press the knob “DAY TEMP”, “COOL” will be displayed. To change setting turn

the knob and enter to accept new setting. Press the knob again for “HEAT” to be displayed. Turn

the knob to change the setting and press again to save.

4 5

Temperature Night Setting: There is a Night Cooling set point and a Night Heating set point. To

set the Night Cooling set point, press the knob “NIGHT TEMP”, “COOL” will be displayed. To

change setting turn the knob and enter to accept new setting. Press the knob again for “HEAT”

to be displayed. Turn the knob to change the setting and press again to save.

Low Temperature Protection: If the environmental temperature is lower than the limit, the BDEC

will stop the humidity output until the temperature rises to be 10° F above the low limit.

How to Set: For daytime, press “DAY TEMP” knob for 3 seconds, the screen will read “L” (for low

temperature). Turn the knob to change the value. Press again to save the low temperature setting

and return to the current temperature reading.

For night time, set up through the “NIGHT TEMP” knob using the same steps.

Temperature Min/Max Recall: Press both knobs to recall the min/max temp record. Press both

knobs again to return to current temperature.

Temperature Dead-Band: Choose between a 2°, 4° or 6° F dead-band.

EXAMPLE: When using Cooling, if the set-point is 75° F and the dead-band is 6° F, the Cooling

output will activate at or above 75° F and deactivate at 69° F. For Heating mode, if the set point

is 75°F, the output will activate at or below 75° F and turn off at 81° F.

Humidity Setting

Humidity Setting: Click each knob and turn to set the Day Humidity and Night Humidity, press

again to conﬁrm.

Humidity Mode

Humidify: Raises the rH% to a level above desired set point.

Dehumidify: Lowers the rH% to a level below desired set point.

Humidity Dead-Band: The humidity dead-band (hysteresis) is 5% rH.

EXAMPLE: When using Dehumidify, if the set-point is 45% rH and the dead-band is 5%, the

Humidity output will activate at or above 45% rH and deactivate at 40% rH. For Humidify mode, if

the set point is 45% rH, the output will activate at or below 45% rH and deactivate at 50% rH.

Humidity min/max recall: Press both knobs to recall the humidity min/max temp record. Press

both knobs again to show current humidity.

4 5

Humidity & Temperature Lock

Lock: If using a ventilation fans for cooling and removing humidity. The cooling output and

humidity outputs will both turn on when the sensor detects a rise above the setting in either the

humidity or temperature.

Unlock: If using a ventilating fan as a cooling device and a dehumidiﬁer to remove humidity or a

humidiﬁer to add humidity. Each device is controlled independently.

Timer Setting

ON TIME: Click the “ON TIME” knob. Turn to set hours setting, press to set minute and press

again for seconds. Conﬁrm the set-up by pressing the knob again.

OFF TIME: Click the “OFF TIME” knob. Turn to set hours setting, press to set minute and press

again for seconds. Conﬁrm the set-up by pressing the knob again.

Timer Mode

Day Mode: Timer only works when the photocell senses light.

Night Mode: Timer works only when the photocell senses darkness.

24 hours: Timer works during both day and night.

Error Codes

S_SR: Check the sensor connection and verify that it is clean and free of debris.

Error LEDs: There are four different error LEDs on the BDEC. Each one corresponds to an output

on the unit (Timing, Cooling, Heating and Humidity). These error lights are triggered when the

sensor doesn’t observe the set point being reached for the respective output in a 2 hour time

period. When this occurs, the affected output will be disabled. It will remain disabled until any

knob on the unit is pressed at which point it will return to normal operation.

6 7

Controller Speciﬁcations:

• Max amp: 14.5 amps @ 120V 60Hz

• Sensor Cord Length: 15 ft

• Temperature Setting Range: Adjustable 40°-122° F

• Temp Dead-Band (Hysteresis): Adjustable 2°/4°/6° F

• Temp Accuracy: +/-2° F

• Low Temperature Limit Range: 40° F-70° F

• Humidity Setting Range: 5% to 95% rH

• Humidity Dead-Band (Hysteresis): 5% rH

• Humidity Accuracy: +/-3% rH

• Timer Setting Range: 0 second to 24 hours

• Timer Mode: Day/Night/24 hours

• Weight: 3.5 lbs

• Dimensions: 8” x 7.5” x 3.3”

• Indoor Use Only

• Operating Temperature: 50° F to 95° F

• Maximum Relative Humidity: 95%

6 7

Installation Options

Option 1: Secure the unit to a wall.

Option 2: Screw the controller to the grow tent tube with a U bolt.

Installation Example

Light Controller

Exhaust Fan Heater

Humidiﬁer / Dehumidiﬁer

Remote Sensor

CO2 Regulator

-OR-

120 Volt

Circuit

(1) (2)(1)

(2) Installed inside the grow tent.

(3) Installed outside the grow tent.

(1)

8 9

Warranty Information

• Titan Controls®warrants the original purchase of this product against defects in material and

workmanship under normal use for one (1) year from the date of purchase.

• During the warranty period, Titan Controls®will, at our option, and without charge, repair or

replace this product if the controller or any of its components fail or malfunction.

• All returns or repairs must be accompanied by a Return Merchandise Authorization (RMA)

number prior to any service of the product.

• This warranty is expressly in lieu of all other warranties, expressed or implied, including the

warranties of merchantability and ﬁtness for use and of all other obligations or liabilities on the

part of the seller.

• This warranty shall not apply to this product or any part thereof which had been damaged by

accident, abuse, misuse, modiﬁcation, negligence, alteration or misapplication.

• Controllers with serial numbers or date tags that have been removed, altered or obliterated;

broken seals or that show evidence of tampering; mismatched board serial numbers or

nonconforming parts; are excluded from coverage.

• Titan Controls®makes no warranty whatsoever in respect to accessories or parts not supplied

by Titan Controls®.

• Monetary refunds of the warranty will not be given.

• The Buyer assumes all responsibility regarding the use & installation of this controller.

• All warranty service is provided through the factory or an authorized service representative.

• This warranty shall apply only to the United States, including Alaska, Hawaii and territories of

the United States and Canada.

• Defective controllers need to be returned with the “proof of purchase” receipt.

• For additional warranty information, contact a Titan Controls®Technical Service Representative

at 888-808-4826 or your Dealer. Our normal business hours are Monday – Friday, 8 a.m. to 5

p.m. Paciﬁc Standard Time. We are closed most major holidays.

• NOTE: Titan Controls®is a controller manufacturer. All sales offerings to the public are done through

a nationwide group of Dealers. No sales offerings will be made directly to the general public.

Service and Repair Program

• For all service and repairs please contact one of our Technical Service Representatives for a

Return Merchandise Authorization (RMA) number.

• All factory service & repairs will be completed within 48 hours of receipt of controller and after

authorization by customer for repairs.

• Titan Controls®will, at its discretion, repair or replace the controller.

• Factory calibration services are available for all Titan Controls®.

• Returning Units: Please contact your retail store for returns.

8 9

Include the following if returning directly to Titan Controls®

• Proof of purchase • This completed form • RMA # on the outside of the box

Return Merchandise Authorization Number (Required): ____________________________________________

Company Name: ____________________________________________________________________________________

Contact Name: _____________________________________________________________________________________

Address: __________________________________________________________________________________________

____________________________________________________________________________________________________

Phone #: ___________________________________________________________________________________________

Email address: _______________________________________________________________________________

What is the nature of the problem? ____________________________________________________________

_____________________________________________________________________________________________

Shipping address will be given when the RMA # is issued:

WARRANTY SERVICE: Please read warranty information ﬁrst

If after reviewing the troubleshooting tips the unit will still not work, you should return it to the

Dealer where you purchased it. They will be able to further evaluate the unit and test its various

components and quite possibly will be able to identify and/or ﬁx any problems. If the Dealer is

unable to ﬁx the unit, they will return it to us for factory repair.

If there are no Dealers in your area, you may contact us directly for technical support. If we cannot

help you resolve the problem over the phone, we will issue you a RMA # (return merchandise

authorization) authorizing you to return the unit to us for factory reconditioning (if the unit is under

warranty). Contact the number below for a RMA and shipping address. Complete the form below

and include it with your unit. Also please write the RMA # on the outside of the box.

Please package the unit in its original packaging. If it is damaged in shipment we cannot be

responsible.

Once we receive the unit back, we will repair it within 48 hours (business) and return it to you freight

prepaid via UPS ground shipment.

www.titancontrols.net

For technical assistance call us at 1-888-80-Titan or 1-888-808-4826.

Representative available Monday – Friday, 8 a.m. – 5 p.m. PST.

10 11

Notes:

_________________________________________________

________________________________________________

1 Square = ____ Foot / Feet

VANCOUVER, WASHINGTON U.S.A.

Revision H – 05/302017 LS © Titan Controls®

Andere Handbücher für SPARTAN Series

Inhaltsverzeichnis

Sprachen:

Andere Titan Controls Controller Handbücher

Titan Controls

Titan Controls ATLAS 9 Bedienungsanleitung

Titan Controls

Titan Controls Helios 6 Bedienungsanleitung

Titan Controls

Titan Controls Kronus 4 Bedienungsanleitung

Titan Controls

Titan Controls Helios 7 Bedienungsanleitung

Titan Controls

Titan Controls Helios 4 Produktinformationsblatt

Titan Controls

Titan Controls SOARTAN Series Bedienungsanleitung

Titan Controls

Titan Controls Helios 9 Bedienungsanleitung

Titan Controls

Titan Controls Helios 11 Bedienungsanleitung

Titan Controls

Titan Controls Hades 2 Bedienungsanleitung

Titan Controls

Titan Controls HyperioN 2 Bedienungsanleitung

Titan Controls

Titan Controls Atlas 3 Bedienungsanleitung

Titan Controls

Titan Controls Helios 3 Bedienungsanleitung

Titan Controls

Titan Controls Mercury 2 Produktinformationsblatt

Titan Controls

Titan Controls Mercury 3 Produktinformationsblatt

Titan Controls

Titan Controls SPARTAN Series Bedienungsanleitung

Titan Controls

Titan Controls Medusa 703380 Bedienungsanleitung

Titan Controls

Titan Controls 8 Light Controller Bedienungsanleitung

Titan Controls

Titan Controls CO2 Regulator Bedienungsanleitung

Titan Controls

Titan Controls Helios 16 Bedienungsanleitung

Titan Controls

Titan Controls Helios 14 Bedienungsanleitung

Titan Controls

Titan Controls Helios 10 Bedienungsanleitung

Titan Controls

Titan Controls Helios 13 Bedienungsanleitung

Titan Controls

Titan Controls ZEPHYR 3 Bedienungsanleitung

Titan Controls

Titan Controls Helios 3 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
