Titus EOS Installationshandbuch
1. Unpacking - Remove foam inserts from
face of diffuser for proper operation.
Do not move pattern controller by hand.
Damage to actuator mechanism may occur.
2. Caution - Do not place diffuser on the ground or
the floor with the solar cell facing down. Damage to
solar cell or holder may occur.
Installation Startup Procedure 731793 rev E 9-30-19
Titus terms and conditions apply. All prices are F.O.B. factory. Standard shipping and handling charges will be added.
All rights reserved. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage retrieval system without permission in writing from Air Distribution Technologies.
EOS/EOS-NT Startup Procedure

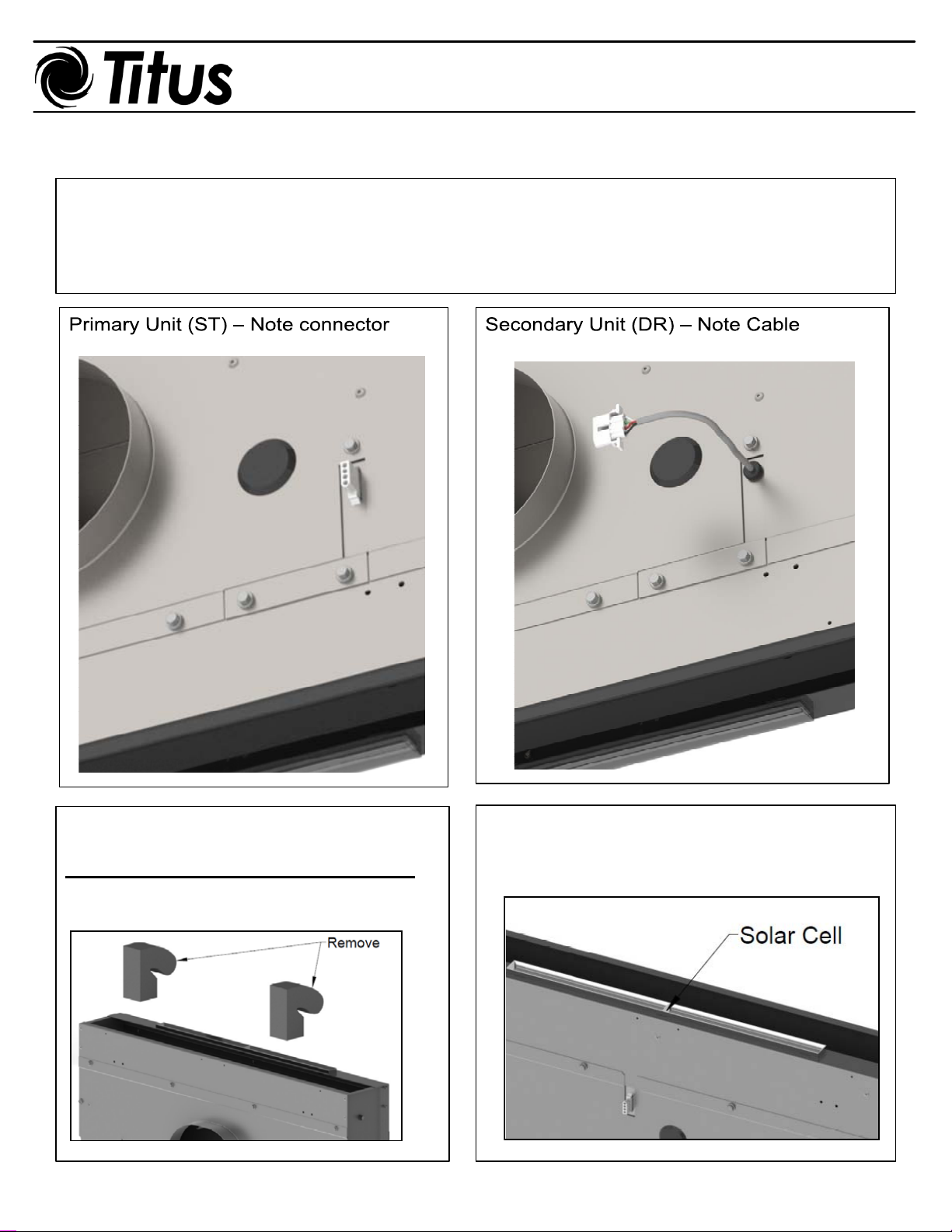

The EOS comes in 2 different configurations: Primary(ST) and Secondary (DR). Primary Units are designed
for stand-alone applications, but can also be used to control a Secondary Unit.
Primary Units have a wire harness connector. Secondary Units have a wire harness pigtail and can only
operate when connected to a Primary Unit.
4. The default set points for the diffuser are 71° F
cooling, and 78° F heating. The set point
temperatures can be adjusted using the dip switches
located on the control board under the plastic hole
plug opposite the inlet (Primary Units only)
5. To install a Secondary Unit, plug the pigtail harness
attached to Secondary Unit into the connector on the
back of the Primary Unit. Press the Primary Unit
reset button to force the Primary Unit to recognize the
Secondary Unit.
If the button is not pressed, the Primary Unit will
automatically detect the Secondary Unit after a
maximum of 3 days.
Installation Startup Procedure 31793 rev E 9-30-19
Titus terms and conditions apply. All prices are F.O.B. factory. Standard shipping and handling charges will be added.
All rights reserved. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage retrieval system without permission in writing from Air Distribution Technologies.
EOS Startup Procedure (Continued)
3. The diffuser is shipped un-charged. Expose solar cell to light to start the charging process. The diffuser will
become operational after 4 hours at 500 Lux (office desktop), and fully charged after 8 hrs. More light will
shorten charging times and less light will lengthen charging times.
Note: Secondary Units do not collect a charge until they are attached to a Primary Unit.
6. When an operating charge has been achieved, the EOS will check temperature every 10 minutes. Once the
pattern controller moves to the heating or cooling position, it cannot change again for a minimum of 30 minutes.
