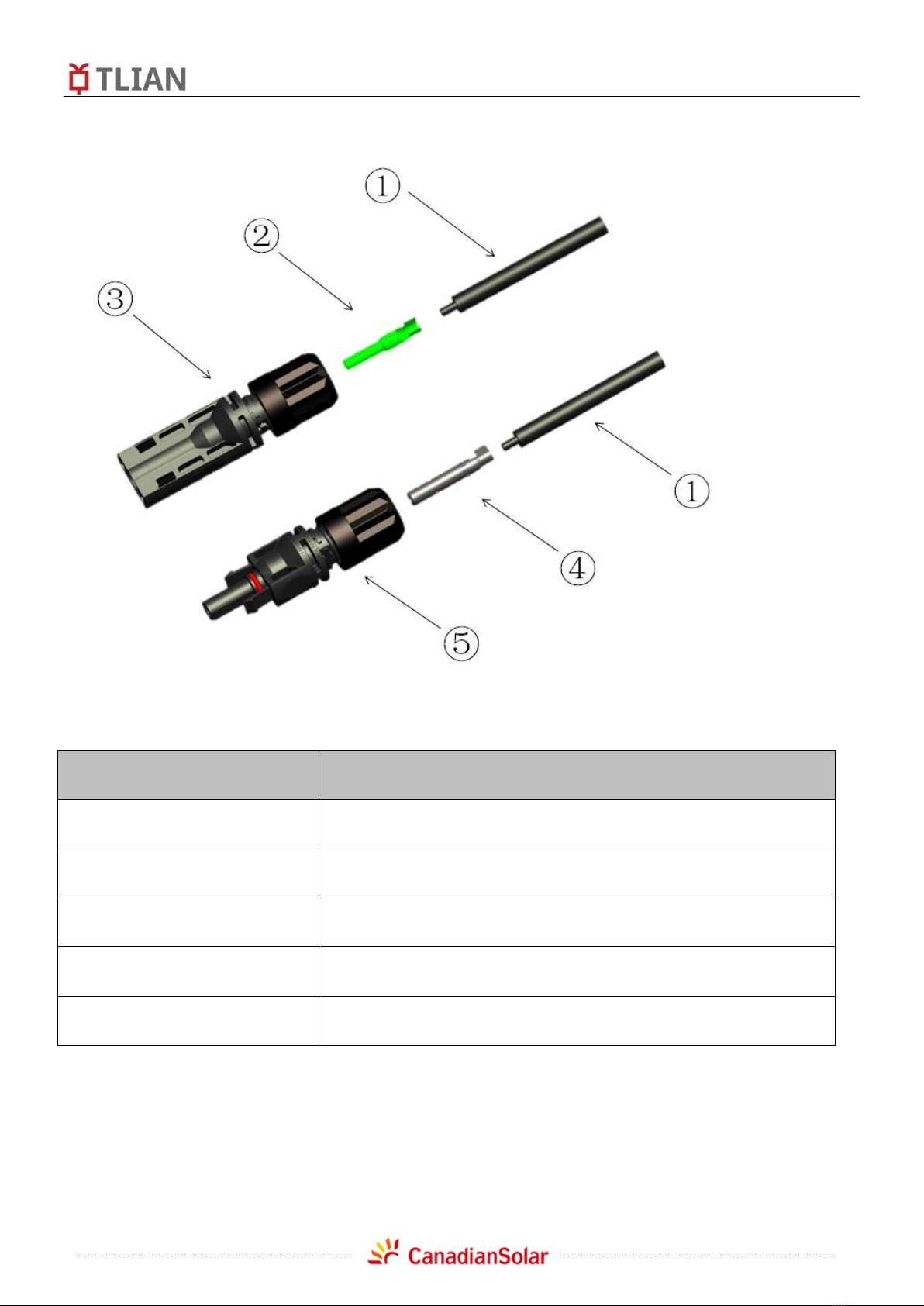

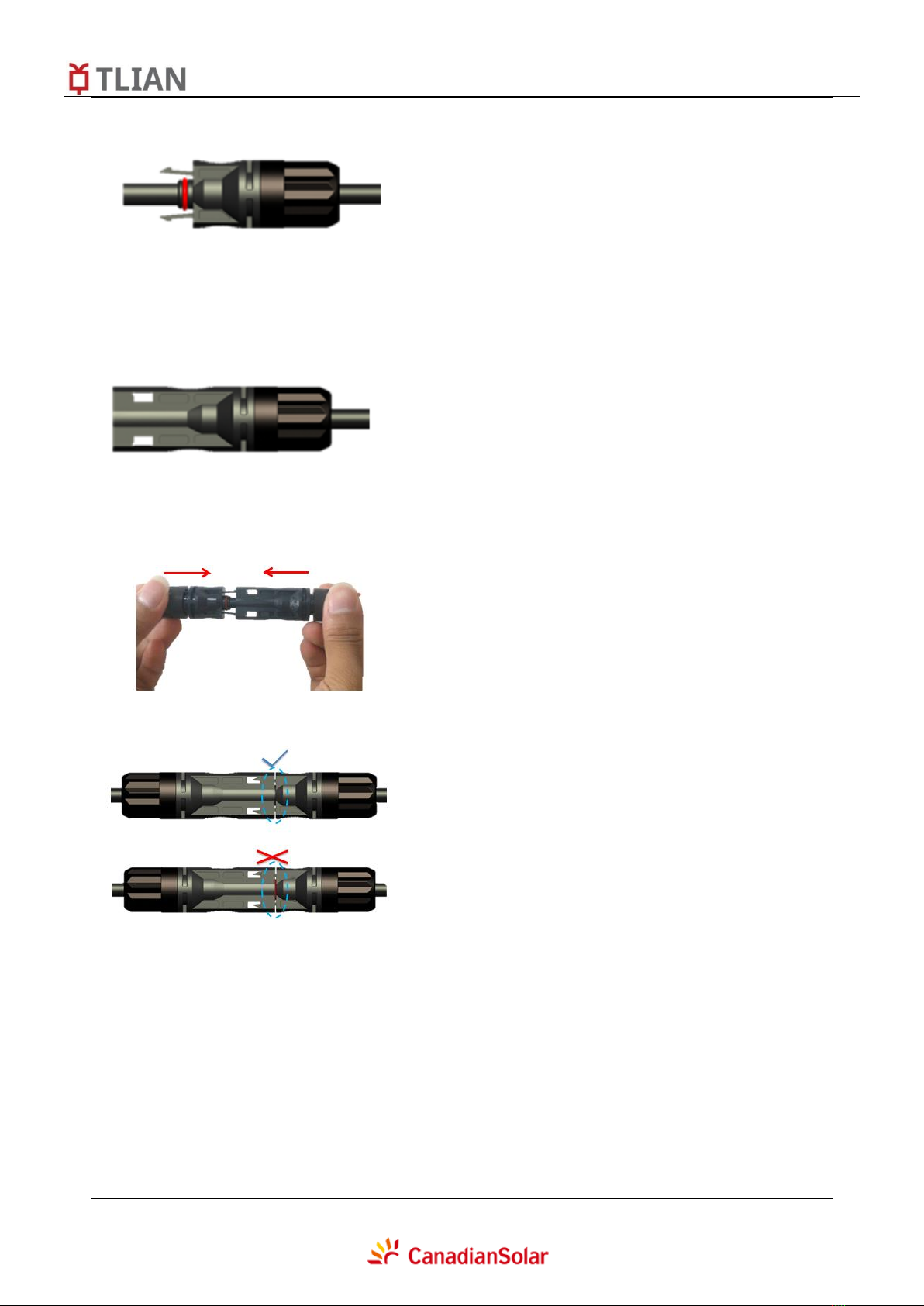

1. Positive connector appearance check
a. Seal ring should fit cleanly in the slot, not warped
or distorted.
b. The two plastic clasps should be intact.
c. Positive and negative connectors should not be
obstructed by foreign objects or water.
d. Plastic components should not be cracked.
e. Wire must not appear damaged.
2. Negative connector appearance check
a. Negative connector should not be obstructed by
foreign objects or water.
b. Plastic components should not be cracked.
c. Wire must not appear damaged.
3. Connection
To connect, attach the positive and negative
connectors to each other, until you hear a “click.”
Once connected, gently pull on them to insure a
secure connection.

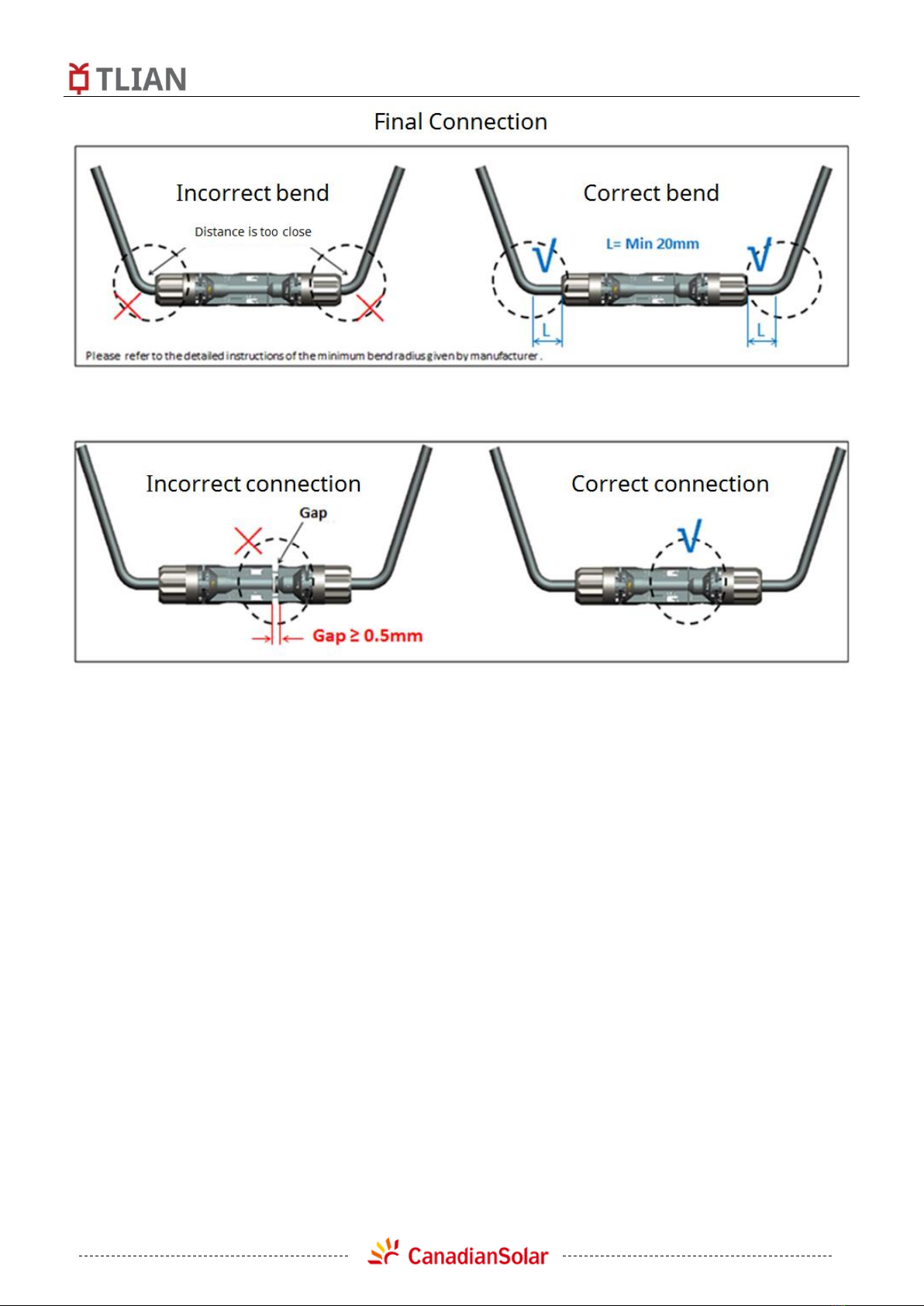

4. Check connection
To check the connection, insure that you cannot
see the seal ring. The gap between the connectors
should be less than 0.5mm.

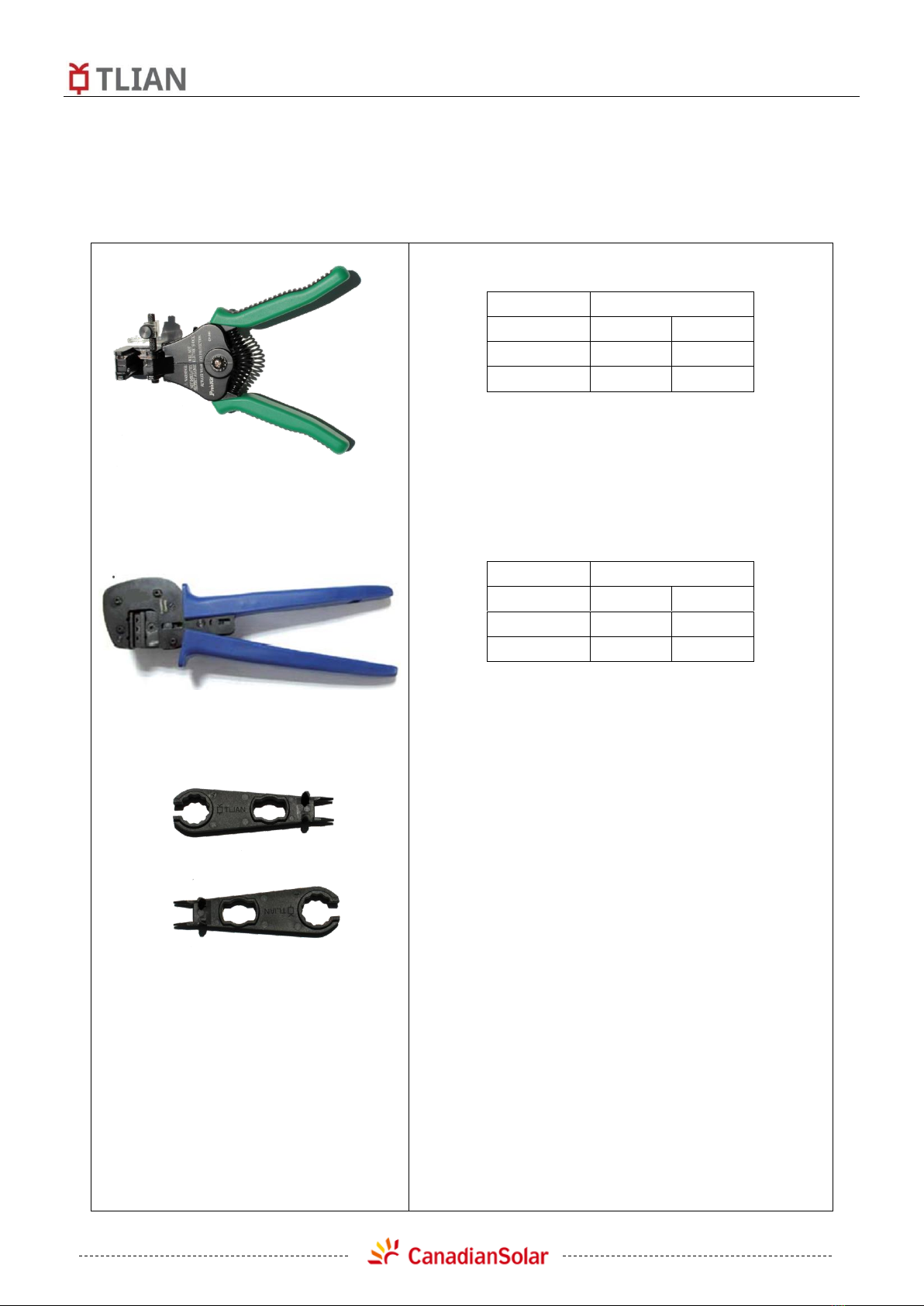

Wire Assembly steps:
