Tomahawk TR68H Bedienungsanleitung

Table of Contents

Safety Information

------------------------------------------------------------------------ 3

1.1

Safety Precautions

1.2

Operating Safety

------------------------------------------------------------------------------ 3

--------------------------------------------------------------------------------- 4

1.3

Operator Safety while using Internal Combustion Engines

---------------------------- 5

1.4

Service Safety

1.5

Label Locations

------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------------ 7

1.6

Safety Labels

--------------------------------------------------------------------------------------- 8

1.5 Operating Labels

---------------------------------------------------------------------------------- 10

Operation

2.1

Application

------------------------------------------------------------------------------------------ 11

2.2

Structure

-------------------------------------------------------------------------------------------- 11

2.3

Before Starting

------------------------------------------------------------------------------------ 11

2.4

To Start

2.5

Operation

--------------------------------------------------------------------------------------------- 12

-------------------------------------------------------------------------------------------- 12

2.6

To Stop

----------------------------------------------------------------------------------------------- 13

Maintenance

------------------------------------------------------------------------------------ 14

3.1

Periodic Maintenance Schedule

-------------------------------------------------------------- 14

3.2

Transporting

---------------------------------------------------------------------------------------- 15

3.3

Spark Plug

3.4

Air Cleaner

------------------------------------------------------------------------------------------ 15

------------------------------------------------------------------------------------------ 16

3.5

Storage ---------------------------------------------------------------------------------------- 16

3.6

Troubleshooting

Technical Data

---------------------------------------------------------------------------------- 17

---------------------------------------------------------------------------------- 19

Warranty

---------------------------------------------------------------------------------------------- 20

Maintenance Record

---------------------------------------------------------------------------- 21

This manual provides information and procedures to safely operate and maintain this

model. For your own safety and protection from injury, carefully read, understand and

observe the safety instructions described in this manual.

Keep this manual or a copy of it with the machine. If you lose this manual or need an

additional copy, please contact Tomahawk Power. This machine is built with user safety

in mind; however, it can present hazards if improperly operated and serviced. Follow

operating instructions carefully. If you have questions

about operating or servicing this

equipment, please contact Tomahawk Power.

The information contained in this manual is based on machines in production at the

time of publication. Tomahawk Power reserves the right to change any portion of this

information without notice. No part of this publication may be reproduced in any form or

by any means, electronic or mechanical, including photocopying, without express

writ

ten permission from Tomahawk Power.

Any type of reproduction or distribution not authorized by Tomahawk Power rep-

resents an infringement of valid copyrights and will be prosecuted. We expressly reserve

theright to make technical modifications, even without due notice, which aim at

improving our machines or their safety standards.

SAFETY INFORMATION

1.1

Safety Precautions

This manual contains DANGER, WARNING, CAUTION, and NOTE callouts which must be

followed to reduce the possibility of personal injury, damage to the equipment, or

improper service.

DANGER

WARNING

CAUTION

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that follow this symbol to avoid possible

injury or death.

DANGER indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury.

CAUTION: Used without the safety alert symbol, CAUTION indicates a potentially

hazard

ous situation which, if not avoided, may result in property damage.

1.2

Operating Safety

Familiarity and proper training are required for the safe operation of this equipment.

Equipment operated improperly or by untrained personnel can be dangerous! Read the

operating instructions and familiarize yourself with the location and proper use of all

instruments and controls. Inexperienced operators should receive instruction from

someone familiar with the equipment before being allowed to operate the rammer.

-NEVER operate rammer in applications for which it is not intended.

-NEVER allow improperly trained personnel to operate rammer.

-NEVER touch hot muffler, engine cylinders, or cooling fins.

-NEVER use accessories or attachments for the rammer, which are not recommended by

TOMAHAWK POWER. Damage to the rammer and/or injury to user may occur.

-NEVER leave a running machine unattended.

-NEVER run machine indoors or in an enclosed area such as a deep trench unless

adequate ventilation is provided. Exhaust gas from the engine contains poisonous

carbon monoxide gas; exposure to carbon monoxide can cause loss of consciousness

and may

lead to death.

-NEVER tamper with or disable the function of operating controls.

-NEVER use choke to stop the engine.

-NEVER operate the machine in areas where explosions may occur.

-ALWAYS remove or disconnect engine spark plug before servicing rammer, to avoid

accidental start-up.

-ALWAYS read, understand, and follow procedures in the Operation Manual before

attempting to operate equipment.

-ALWAYS be sure that all other persons are at a safe distance away from the rammer. Stop

the machine if people step into the working area of the machine.

-ALWAYS be sure the operator is familiar with proper safety precautions and operation

techniques before using rammer.

-ALWAYS wear protective clothing when operating rammer. Wear goggles or safety glass-

es, hearing protection, and safety shoes.

-ALWAYS keep hands, feet, and loose clothing away from the moving parts of rammer.

-ALWAYS use common sense and caution when operating rammer.

-ALWAYS be sure rammer will not tip over, roll slide, or fall when not being operated.

-ALWAYS turn engine OFF when rammer is not being operated.

-ALWAYS guide the rammer in such a way that the operator is not squeezed between the

rammer and solid objects. Special care is required when working on uneven ground or

when compacting coarse material. Make sure to stand firmly when operating the ma-

chine under such conditions.

-ALWAYS operate the rammer in such a way that there is no danger of it turning over or

falling in, when working near the edges of breaks, pits, slopes, trenches and platforms.

1.3

Operator Safety while using Internal Combustion Engines

-DO NOT smoke when refueling the engine or operating the machine.

-DO NOT refuel a hot or running engine.

-DO NOT refuel the engine near an open flame.

-DO NOT smoke while operating the rammer.

-DO NOT operate the rammer near open flames.

-ALWAYS refill fuel tank in a well-ventilated area.

-ALWAYS replace fuel tank cap after refueling.

-ALWAYS check fuel lines, fuel cap, and fuel tank for leaks and cracks before starting

engine. Do not run this machine if fuel leaks are present, or fuel cap or fuel lines are

loose.

-If fuel is spilled during refueling, wipe it off from the engine immediately and discard

the rag in a safe place. Do not operate the unit if fuel or oil leaks remain.

-NEVER operate any gas powered equipment in a poorly ventilated or enclosed area.

-NEVER perform any work on the unit while it is running. Before working on it, stop the

engine and disconnect the spark plug wire to prevent accidental starting.

-Avoid prolonged breathing of exhaust gases.

-Avoid contact with hot exhaust systems and engine parts.

-Allow engine to cool before performing any repairs or service.

-ALWAYS transport and handle fuel only when contained in approved safety containers.

-ALWAYS keep the area around the muffler free of debris such as leaves, paper, cartons,

etc. A hot muffler could ignite the debris and start a fire.

1.4

Service Safety

Poorly maintained equipment can become a safety hazard! In order for the equipment to

operate safely and properly over a long period of time, periodic maintenance and

occa

sional repairs are necessary.

-DO NOT attempt to clean or service rammer while it is running.

-DO NOT operate rammer with safety devices or guards removed or that are not in

work

ing order.

-DO NOT operate rammer without air cleaner.

-DO NOT remove air cleaner paper component, or air filter cover while

operating

rammer.

-DO NOT alter engine speeds. Run engine only at speeds specified in Technical Data

Section.

-ALWAYS replace safety devices and guards adhere to repairs and maintenance.

-ALWAYS keep area around muffler free of debris in order to reduce to chance of an

acci

dental fire.

-ALWAYS do Periodic Maintenance as recommended in Operation Manual.

-ALWAYS clean debris from engine cooling fins.

-ALWAYS replace worn or damaged components with spare parts designed and

recom

mended by TOMAHAWK POWER for servicing this rammer.

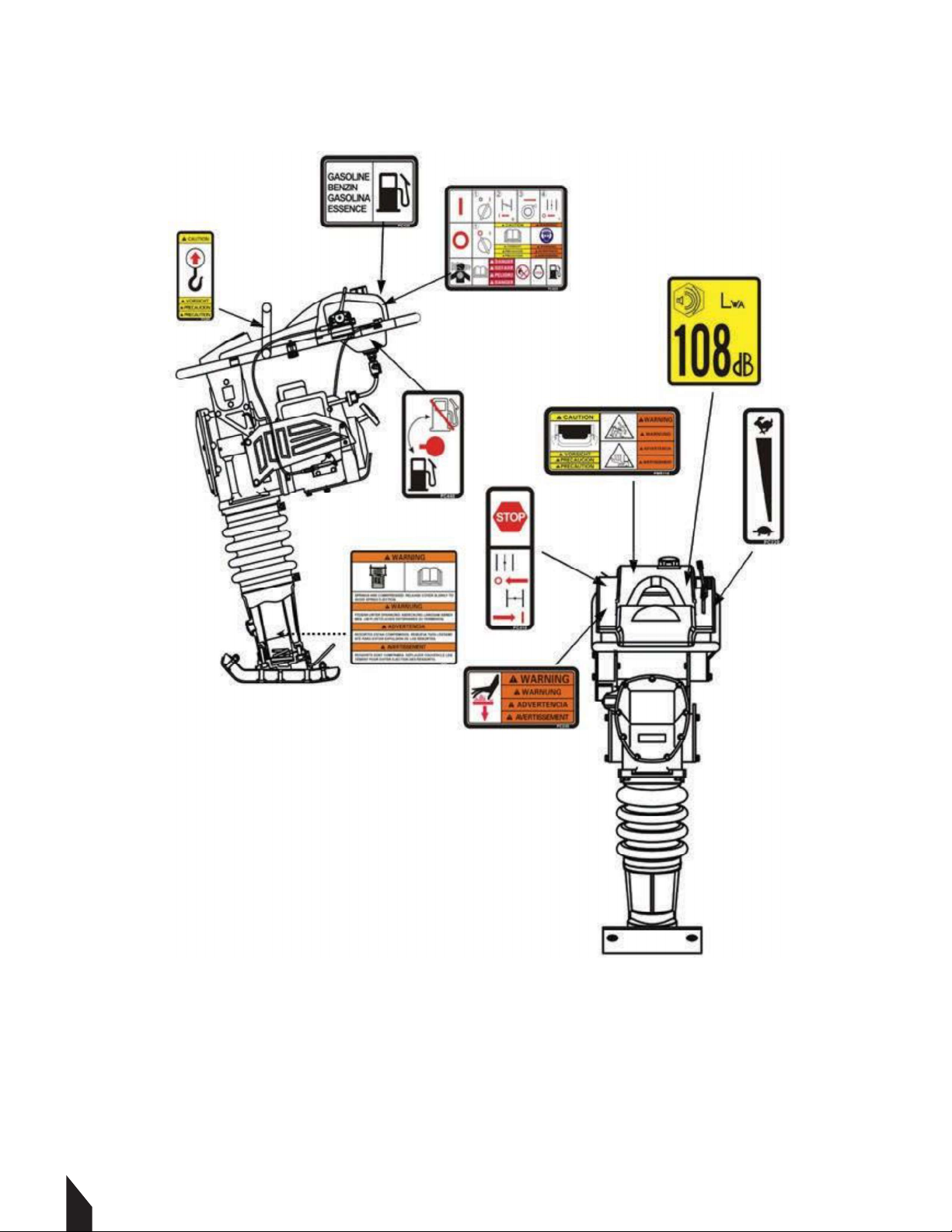

1.5

Label Locations

1.6

Safety Labels

Tomahawk & Jumping JX machines use international pictorial labels where

needed. These labels are

described below:

LABEL

MEANING

This label contains important safety and operating information.

If it becomes illegible, the cover must be replaced. Refer to the

Parts Manual for ordering information.

DANGER! Engines emit carbon monoxide; operate only in

well-ventilate area. Read the Operation Manual for machine

information. No sparks, flames, or burning objects should be

near the machine. Shut oG the engine before refueling. Use only

clean, filtered unleaded gasoline.

CAUTION!

Use only clean, filtered gasoline fuel.

CAUTION

Lihing point.

WARNING!

Hot surface!

CAUTION!

For optimal control, performance, and minimal hand/arm

vibration, grasp handle as shown.
