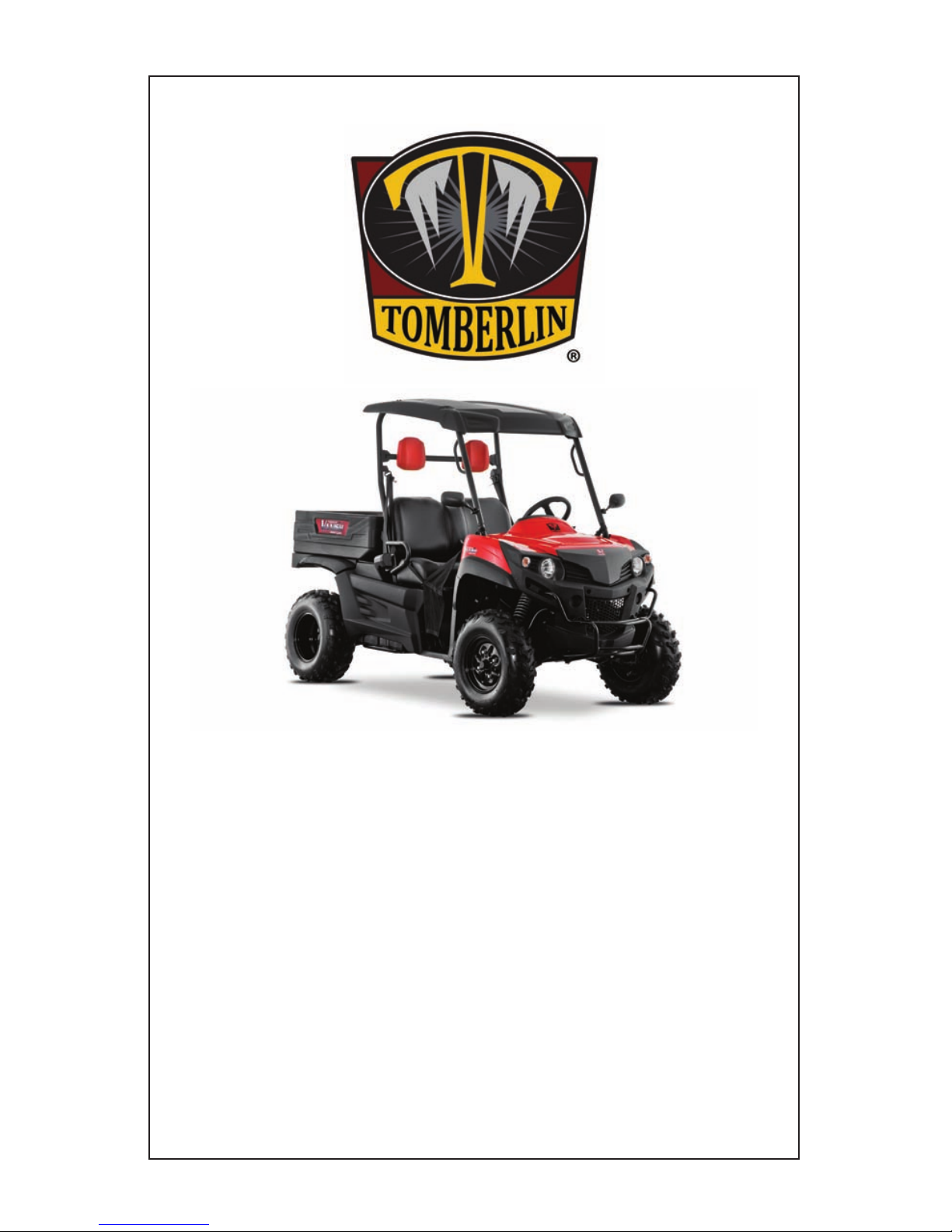

Tomberlin VANISH Bedienungsanleitung
VANISHTM
OPERATOR’S MANUAL
Electric 4x4
Low-Speed Vehicle
(LSV)
WARNING
• THE TOMBERLIN VANISH IS EQUIPPED TO OPERATE AT A
TOP SPEED OF 25 MPH (40KPH) AND IS INTENDED FOR
USE AS A LOW-SPEED-VEHICLE.
NEVER OPERATE THE VEHICLE ON ANY ROAD PUBLIC
OR PRIVATE WITH A POSTED SPEED LIMIT ABOVE
35 MPH.
WARNING
WHEN OPERATING VEHICLE ON PUBLIC ROADS
THIS VEHICLE OFFERS MUCH LESS CRASH
PROTECTION THAN A REGULAR CAR, VAN, OR
TRUCK. THIS MEANS A HIGHER RISK OF INJURY OR
DEATH IN COLLISIONS, EVEN AT LOW SPEEDS. THE
HIGHER THE SPEED OF THE TRAFFIC AROUND YOU,
THE HIGHER THE RISK OF INJURY.
To reduce these risks:
• Obey all trafc regulations.
• Avoid roads with regular trafc, even if the speed limit is low.
• Whenever possible, stay on roads and lanes limited to low
speed vehicles.
• Wear your safety belts at all times.
• Avoid operating vehicle at night, because your vehicle may be
hard for others to see.
• To reduce the chance of the vehicle tipping over, reduce
speed when turning and maneuvering thru curves and hills.
• Never drink and drive. Not only is drinking and driving unsafe,
but doing so may violate state and local laws.
WARNING
THIS PRODUCT CONTAINS OR EMITS CHEMICALS OR
SUBSTANCES THAT HAVE BEEN DETERMINED BY THE
STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM.
FOREWORD
Thank you for choosing the VANISH. Your satisfaction with
your new vehicle is important to all of us at Tomberlin. This
user manual was prepared with the comfort and safety of the
occupants in mind. It provides all the details necessary to safely
operate and maintain your vehicle. Carefully read the manual
before operating your VANISH.
If you have any questions regarding your VANISH, contact your
local TOMBERLIN dealer for assistance. Please take the time
to review this Operator’s Manual and abide by all safety and
operation warnings before allowing you or anyone to operate
your VANISH.
CONTENTS
• WELCOME 9
• VIN 10
• SPECIFICATIONS 11
• SAFETY / WARNING DECALS 14
• POTENTIAL HAZARDS 25
• GENERAL OPERATOR SAFETY 35
• FEATURES AND CONTROLS 57
• PRE-OPERATING INSPECTION 75
• OPERATING INSTRUCTIONS 77
• DRIVING CONDITIONS 85
• CHARGING THE VANISH / BATTERIES 95
• MAINTENANCE 105
• STORAGE AND CLEANING 132
• WARRANTY 135
VANISH Operator’s Manual Page 9
WELCOME
Welcome to our worldwide family of Tomberlin owners. We
proudly produce an exciting line of utility and recreational
products.
Low Speed Vehicles (LSV)
•
All-terrain vehicles (ATVs)•
Neighborhood vehicles•
Scooters•
We believe Tomberlin sets a standard of excellence for all
on-road, utility and recreational vehicles manufactured in
the world today. Many years of experience have gone into
the engineering, design, and development of your Tomberlin
vehicle. For safe and enjoyable operation of your vehicle, be
sure to follow the instructions and recommendations in this
owner’s manual.
Your manual contains instructions for minor maintenance, but
major repairs should be performed only by a factory certied
technician. Your Tomberlin dealer knows your vehicle best and
is interested in your total satisfaction. Be sure to return to your
dealership for all of your service needs during, and after, the
warranty period.
Familiarizing yourself with the Operator’s Manual and warnings
will help avoid possible personal injury and property loss.
We hope that you will consider this manual an indispensable
part of the vehicle. The information contained in this document
is subject to change without notice. Tomberlin reserves the right
to make design changes to vehicles without obligation to make
these changes on units previously sold.
Page 10 VANISH Operator’s Manual
VIN
Record your vehicle’s identication numbers and key number
in the spaces provided. Remove the spare key and store it in
a safe place. A key can be duplicated only by ordering a key
blank (using your key number) and mating it with one of your
existing keys. The key switch must be replaced if all keys are
lost.
Vehicle Model
Number VANISH 4x4 LSV 2010
Frame VIN
Motor Serial
Number
Key Number
Frame VIN is located on panel to left of brake pedal and •
also stamped into the vehicle frame to the upper left of the
front right side tire.
