ToolPRO 620696 Bedienungsanleitung
PLU: 620696
Product Manual
150KG
DIRT BIKE
SCISSOR LIFT
Page 1
WARRANTY
CAUTION
Our product is guaranteed to be free from quality and manufacturing defects for a period
of 36 months.
If your product becomes defective during this period, SRGS PTY LTD will offer you either a
replacement, credit or refund where a product is faulty; wrongly described; different from
the sample shown to you or do not do what they are supposed to do.
This warranty will not cover substantially modified product; misuse or abuse of the product
contrary to user instructions or packaging label; change of mind and normal wear and tear.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and failure does
not amount to a major failure.
To claim the warranty, take the product to the front Service Desk of your nearest store of
purchase. You will need to show receipt or other proof of purchase. Additional information
may be required to process your claim. Should you not be able to provide proof of
purchase with a receipt or bank statement, identification showing name, address and
signature may be required to process your claim.
Any expenses relating to the return of your product to the store will normally have to be
paid by you. For online store purchases, SRGS PTY LTD will pay for the return freight for
any product assessed as having a major failure.
The benefits to the customer given by this warranty are in addition to other rights and
remedies of the Australian Consumer Law in relation to the goods or services to which this
warranty relates.
This warranty is provided by SRGS PTY LTD, 6 Coulthards Avenue, Strathpine QLD
4500, Australia. Phone: 1300 175 010.
150KG DIRT BIKE SCISSOR LIFT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Use on a hard level surface (e.g. concrete garage/workshop floor).
Conduct a pre-operational check of the unit.
Do not operate this unit while the motorcycle is mounted. Do not mount the motorcycle
while the unit is extended.
Centrally locate the load to the middle of the Dirt Bike Scissor Lift.
Use a strong point of the motorcycle. Consult the vehicle manufacturers owner’s manual
for guidance.
Ensure the motorcycle being lifted is firmly secured to the Dirt Bike Scissor Lift by
using the supplied mounting points.
Once the desired height is reached, fully engage the locking mechanism.
Do not extend the height of the lift/stand beyond its maximum working height.
Do not use any spacers/shims to extend height (e.g. bricks, timber).
Do not lay or sit under motorcycle while Dirt Bike Scissor Lift is in use.
Do not modify or add accessories to this Dirt Bike Scissor Lift.
Page 2
PREPARATION
SPECIFICATIONS
ASSEMBLY INSTRUCTIONS
Ensure that all parts are present before assembling the 150kg Dirt Bike Scissor Lift.
Do not attempt to assemble or use the product if any parts are missing or damaged.
Maximum Safe Working Capacity: 150kg
Minimum Working Height: 310mm
Maximum Working Height: 800mm
Platform Size: 380 x 280mm
Ref #
4
5
6
13
15
17
26
27
Lifting Foot Pedal
Description
J-Hook
Washer
Threaded Knob
Safety Locking Bar
R Pin
M8 Nut
U Bolt with Chain
Qty
2
2
2
1
1
1
8
2
Figure 1
Figure 2 Figure 3
1. Install 8 x M8 Nut (26) and 2 x U Bolt with Chain (27) onto both sides of Platform
Plate (25) as shown in Figure 1. Ensure that the M8 Nut (26) are tighten enough.
2.
3.
Tip: There is a cable tie be tied surrounding the piston lever and the base of hydraulic
pump for easier to install the Lifting Foot Pedal (13). Remember to cut and remove this
cable tie once the Lifting Foot Pedal (13) is installed completely.
The is now ready to use.150kg Dirt Bike Scissor Lift
Install the Lifting Foot Pedal (13) to the Hydraulic Pump (20) as shown in Figure 2.
Screw in the M8 Bolt (7) as shown in Figure 3. Ensure it is tighten enough.
7.
8.
9.
Slowly raise the motorcycle by pumping the lifting foot pedal. Recheck stability once the
motorcycle is off ground.
Once the desired height is reached, fully engage the locking mechanism [the Safety
Locking Bar (15) and the R Pin (17)]. Do not extend the height of the
beyond its maximum working height.
Dirt Bike Scissor
Lift
TO LOWER: Remove the
R Pin (17)], depressing the Release Pedal (29) until the is
locking mechanism [the Safety Locking Bar (15) and the
Dirt Bike Scissor Lift in the
fully lowered position.
TO ADD OIL
MAINTENANCE
Place the Dirt Bike Scissor Lift with the oil filler plug be horizontally then remove the oil
filler plug. Fill until oil is level with the filler plug hole. It is recommended to use a good
grade Hydraulic Fluid (ISO 10-15 or equivalent).
Page 3
150KG DIRT BIKE SCISSOR LIFT
OPERATING INSTRUCTIONS
1.
2.
1.
2.
3.
4.
3.
4.
5.
6.
This Dirt Bike Scissor Lift should be used for lifting and lowering only.
BEFORE INITIAL USE: Lubricate all pivoting and moving points with lubricating oil and
after every 50 lifting/lowering cycles or 3 months (whichever occurs first).
Keep the Dirt Bike Scissor Lift clean and well lubricated.
Lubricate all pivoting and moving points with lubricating oil and after every 50
lifting/lowering cycles or 3 months (whichever occurs first).
When not in use, always leave the in the fully lowered position.Dirt Bike Scissor Lift
The should be inspected for any abnormal conditions such as
cracks in the welds and damaged, bent or missing parts before each use. The
showing any signs of not being in full operating condition should not
be used.
Dirt Bike Scissor Lift
Dirt
Bike Scissor Lift
Place the motorcycle in a suitable area, checking that the surface on which the Dirt
Bike Scissor Lift is solid and flat.
Place the Dirt Bike Scissor Lift under the motorcycle, ensure that the centre of gravity
of the motorcycle is centrally located to the middle of the lift/stand’s platform.
Pump the lifting foot pedal to raise the platform until it makes contact with the
underside of the motorcycle.
Ensure the motorcycle being lifted is firmly secured to the Dirt Bike Scissor Lift by:
a) Hooking on the J-Hooks (4) to the Chains of the assembled U Bolt with Chains (27),
they are the supplied mounting points of Dirt Bike Scissor Lift.
b) Using the strong points of the motorcycle. Consult the vehicle manufacturers owner’s
manual for guidance.
c) Passing through the J-Hooks (4) into the strong points of motorcycle, place the
Washers (5) into the end of J-Hooks (4), screw in the Threaded Knobs (6) until they
are tighten enough.
a)
b)
c)
c)
150KG DIRT BIKE SCISSOR LIFT
Page 4

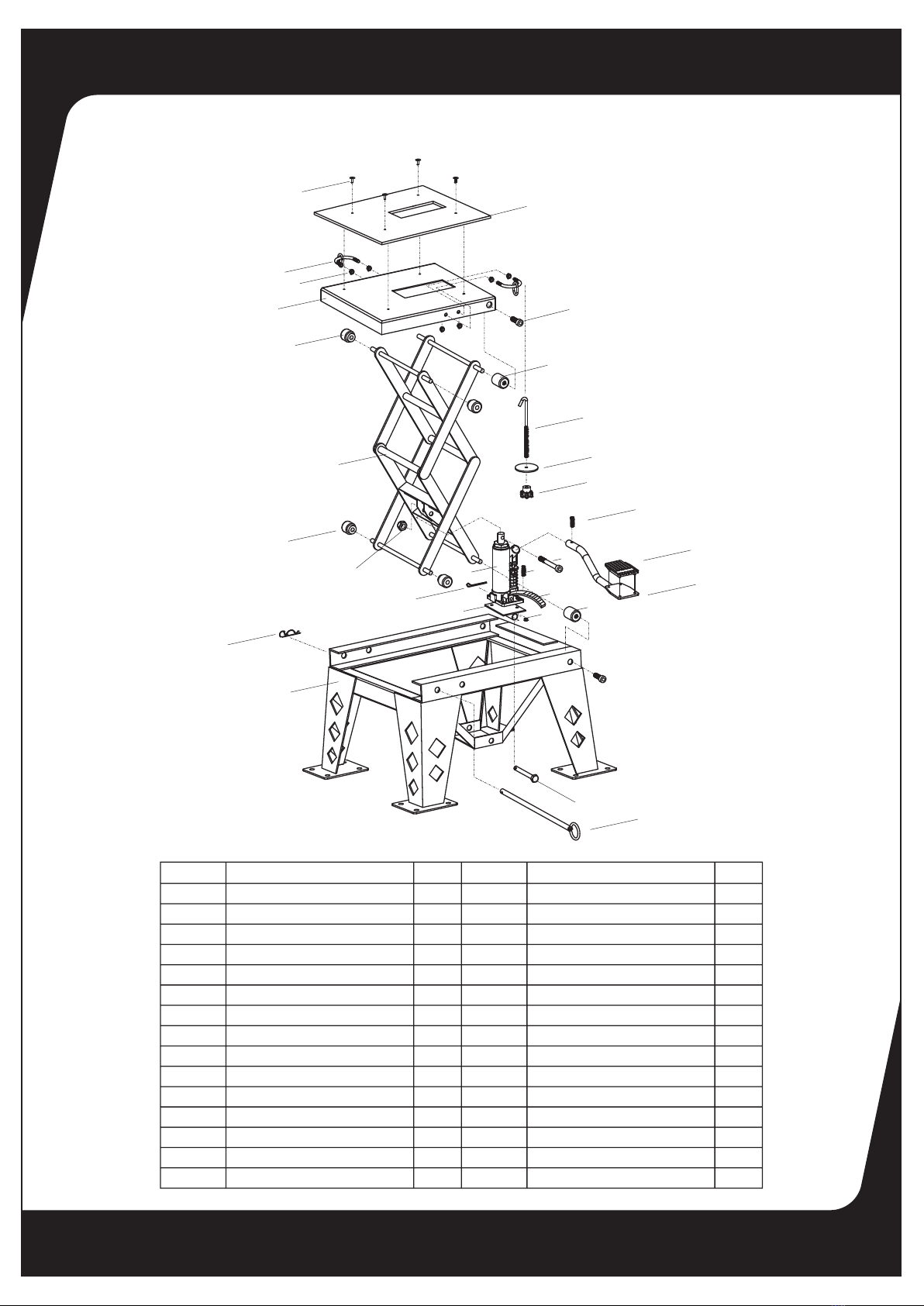

PARTS LIST AND EXPLODED DIAGRAM
Ref #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Ref #
16
17
18
19
20
21
22
23
24
25
26
27
28
29
M10 Inner Hex Bolt
Upper Fixed Roller
Lifting Foot Pedal
Description
Rubber Pad
J-Hook
Washer
Threaded Knob
M8 Bolt
M10 Bolt
M8 Bolt
Lower Fixed Roller
M8 Nut
Foot Pedal Pad
Base Plate Pin Ø20 x 150
Safety Locking Bar
Lower Removable Roller
Description
Base Frame
R Pin
Base Plate
Split Pin
Hydraulic Pump
M10 Nut
Assembled Lifting Arm
Upper Removable Roller
Platform Plate
M8 Nut
U Bolt with Chain
Rivet
Release Pedal
Qty
1
4
2
2
2
2
1
1
2
2
1
2
1
1
1
Qty
1
1
1
2
1
1
2
1
2
1
8
2
4
1
28
1
2
3
4
5
6
7
12
13
2726
25
24
23
22
21
19
20 8
9
29 10
18
17
16
14
15
11
PLU: 620696
CODE: JL-M02301
Manufactured and packaged for
SRGS PTY LTD.
ABN 23 113 230 050
6 Coulthards Avenue, Strathpine,
Queensland 4500, Australia.
MADE IN CHINA.
