TE-F360 User Manual

Using This Manual

Legend

Read Before the First Flight

Read the following documents before using the TOPE TE-F360:

TE-F360 Quick Start Guide

TE-F360 Disclaimer and Safety Guidelines

TE-F360 Intelligent Flight Battery Safety Guidelines

We recommend that you watch all tutorial videos and read the Disclaimer and Safety Guidelines before you

fly. Prepare for your first flight by reviewing the

Quick Start Guide and refer to TE-F360 User Manual for

moredetails.

Download the TOPEUAV App

Scan to download TOPEUAV APP

TOPEUAV APP supports IOS 9.0 and Android 4.4, or later versions.

Video Tutorials

Please go to the TOPEUAV App to watch the tutorial videos, which demonstrate how to

use the aircraft safely and correctly

Product Profile

TE-F360 User Manual

Introduction

TOPE TE-F360 Aircraft is foldable, handy & convenient with dual-mode GPS, Pneumatic sensor system,

gyroscope sensor system for superior axis control, intelligent follow feature, waypoint flight, and more. Supports

gestures photo, automatic return, stably hover and flight indoors and outdoors. Records 1080P HD video and

takes HD photos with double anti-shock structure camera. Flying time is about 25 minutes.

The next-generation flight controller has been updated to provide a safer, more reliable flight experience. The

aircraftisabletoautomaticallyreturntoitsHomePointwhentheremotecontrol

signalis lostorthe batterylevelis

low. As well as being able to hover indoors at low altitudes, the aircraft can sense and avoid obstacles

on its route, enhancingsafety.

*The flying time is tested in windless conditions in hovering mode.

Aircraft

Name of Parts

TE-F360 User Manual

Number

Name

Propellers

Aircraft Status Indicator

Intelligent Flight Battery

Battery Clip

Micro USB Port

Micro SD Card Slot

Camera

Front LED Indicator

Motor

10.

Quadcopter Arm Indicator

11.

Power Indicator

12.

Battery Switch

Battery Preparation

Please charge to activate

intelligent flight battery before using for the first time.

Activate the Intelligent Flight Battery

Use the provided charger to charge and activate the battery for the first time. It is recommended to fully

charge the battery before each flight.

The TE-F360 aircraft contains a flight controller, video downlink system, propulsion system, and an Intelligent Flight

Battery. Refer to the aircraft diagram in the Product Profile section.

TE-F360 User Manual

Flight Modes

The following flight modes are available for TE-F360:

A mode (Altitude): The GPS and Vision Positioning System are NOT used for positioning. The aircraft only uses

its barometer to maintain altitude. Supports head - free function, does not support following, flying around a

point, and return function.

P mode (Positioning): P mode works best when the GPS signal is strong. There are three different states of P

mode.

One button to return home mode: Once selected, the aircraft will rise to the factory set height and then return to

the takeoff pointin a straight line. If the current altitude of the aircraft is higher than theset height, the aircraft will

return to the current altitude. The return journeyensures that the return route has no obstacles.

When using GPS satellite signal or compass, the aircraft is vulnerable to external interference. If interference occurs,

please use the manual mode to control the aircraft or land as soon as possible in a safe location to avoid accidents.

At the same time, when using GPS satellite signal, avoid narrow flight areas or areas with obstacles to avoid flight

accidents.

Aircraft LEDs and Status Indicator

The TE-F360 has Aircraft Arm Indicators and a Front LED Indicator as shown in the figure below:

The Front LEDs show the orientation oftheaircraft andthe status ofsome ofthe functions (refer to

the function

sections for more details). The Front LEDs glow solid red when the aircraft is turned on to

indicate the front of the

aircraft.

The Aircraft Status Indicator communicates the statuses of the aircraft’s flight control system and Intelligent

Flight Battery. Refer to the table below for more information about the aircraft states indicated by the Aircraft

Status Indicator.

TE-F360 User Manual

Aircraft Status Indicator States

Return to Home

TheReturntoHome(RTH)functionbringstheaircraftbacktothelastrecordedHomePoint.Thereare threetypesof

RTH:SmartRTH,LowBatteryRTH,andFailsafeRTH.Thissectiondescribesthesethree

scenarios in detail.

GPS

Description

Home Point

If a strong GPS signal was acquired before takeoff, the Home Point is the

location from which the aircraft launched.The GPS signal strength is indicated by

the GPS icon (

). The Aircraft Status Indicator will blink

green quickly when the Home Point is recorded.

Smart RTH

1. IftheGPSsignalissufficientlystrong,SmartRTHcanbeusedtobringtheaircraftbacktotheHome

Point.

Smart RTHisinitiated either by tapping

intheTOPEUAV App

2. SmartRTHcanbe usedby

pressingtheRTHbuttononthe remote controller.

Exit Smart RTH

Remote controller can exit Smart RTH with the following operations:

Push to lowest grade if the switch on controller is not in lowest grade, then push to middle or highest

grade, user can re-control the aircraft once exiting Smart RTH. Users can also use left/right joystick

to control, which indicates Smart RTH exit.

Low Battery RTH

LowBatteryRTHistriggeredwhentheIntelligentFlightBatteryisdepletedtoapointthatmayaffectthe safereturnof

the aircraft.Return home immediately or land the aircraftwhen prompted.TE-F360

will display a warning when a

low battery level warning is triggered. The aircraft will automatically return to the Home Point with fast red

indicator flashing. The user can cancel the RTH procedure bypressing the RTH button or Flight Pause button

ontheremotecontroller,

which indicates Smart RTH exit.

Once low battery warning light flashes, the aircraft will land automatically, which can’t cancelled. During

the landing, it is supported to control aircraft flight with remote controller.

TE-F360 User Manual

When the aircraft descends automatically, user can control the aircraft to land in appropriate location.

Failsafe RTH

If the Home Point was successfully recorded, GPS signal is strong and the compass is functioning

normally, Failsafe RTH will be automatically activated if the wireless signal is lost. The user may cancel

Failsafe RTH to regain control when the wireless signal connection is reestablished

RTH Procedure

1. Home Point is recorded automatically.

2. RTH procedure is triggered.

3. Home Point is confirmed and the aircraft adjusts its orientation.

4. The aircraft rises to the RTH altitude when RTH procedure starts. If the current altitude is higher

than the RTH altitude, the aircraft maintains current altitude to returns directly.

RTH Procedure as following:

Precision Landing

During RTH, Theaircraft will descend slowly once reaching the

HomePointterrain.

Propellers

TE-F360 use fast-release propellers. Pitted and un-pitted propellers indicate in which direction they

TE-F360 User Manual

should spin.

Attaching the Propellers

Attach the propellers with pitted marks to the motors with pit marks. Attach un-pitted propellers to

the motors

withou

t pitted m

arks.

Press each propeller down onto the mounting plate and rotate in the lock direction until it is

secured.

Detaching the Propellers

Press the propellers down into the mounting plate and rotate them in the unlock direction.

Propeller blades are sharp –handle with care.

Only use original TOPE propellers and do not mix propeller types.

Match blades with the same marks. For example, the forward-rotating propellers include two

pieces of type 8330R-A or two pieces of 8330R-B blades. The reverse propellers include two

pieces of 8330L-A or two pieces of 8330L-B blades.

The propellers are consumable items. Please purchase separately if necessary

Ensurethatthepropellersandmotorsareinstalledfirmlyandcorrectlybeforeeachflight.

surethatallpropellersareingoodconditionbeforeeachflight.Donotuseifaged,chipped,

or broken

Toavoid injury, stand clear of and donot touchpropellers ormotors when they are spinning

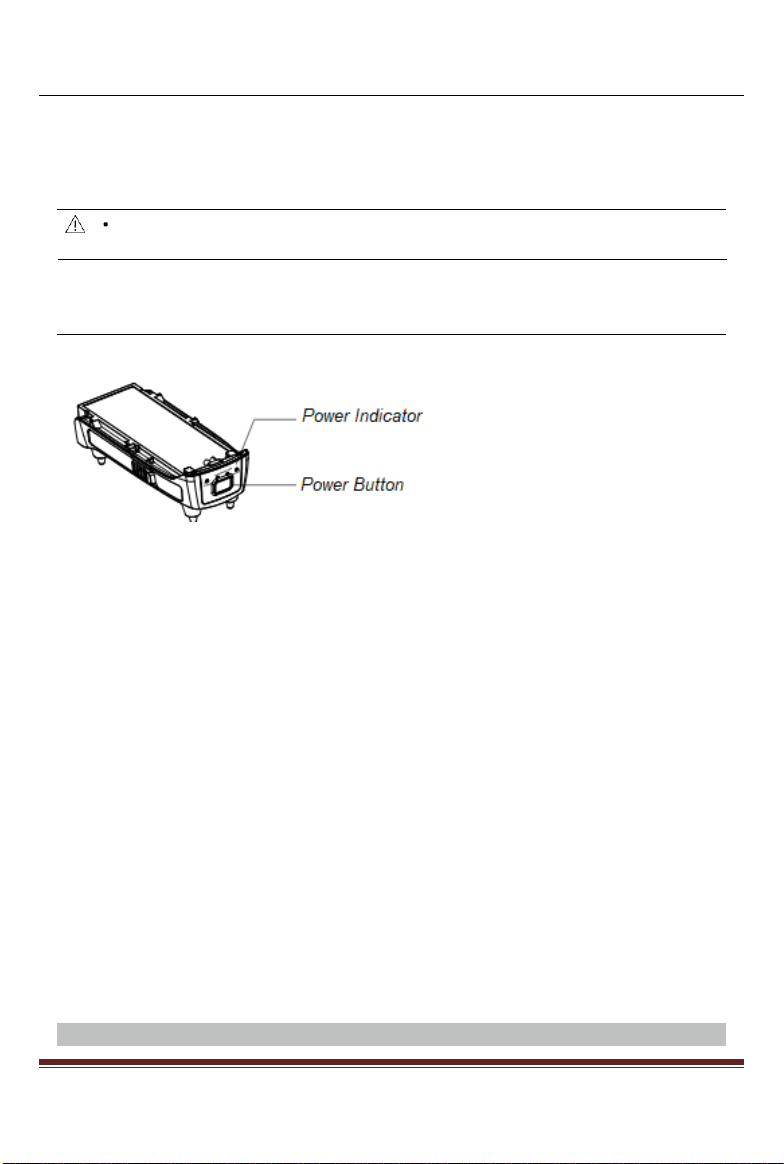

Intelligent Flight Battery

The TE-F360 Intelligent Flight Battery is a 4000 mAh battery with smart charging/discharging functionality. It

should only be charged using an appropriate TOPE approved AC power adapter.

Battery Features

TE-F360 User Manual

Battery Level Display: The LED indicatorsdisplaythecurrentbatterylevel.

Balanced Charging: Thevoltages ofthe battery cells areautomatically balanced duringcharging.

Overcharge Protection: Charging automatically stops when the battery is fully charged.

Over-discharge Protection: Discharging stops automatically to prevent excessive discharge.

Refer to the TOPE Intelligent Flight Battery Safety Guidelines before use. Users take full

responsibility for all operations and usage.

Using the Battery

Press the Power button once, then press again and hold for 3 seconds to turn the battery on or off.

Low Temperature Notice

Battery capacity is significantly reduced when flying in low temperature (0°to 5°C) environments.

Batteries cannot be used in extremely low temperature (0° C) environments.

To ensure optimal performance of the battery, keep the battery temperature above 5°C, 20°C is

recommended.

Checking Battery Level

ThebatterylevelLEDsonthebatterydisplayhowmuchchargeremains.Ifthebatteryisturnedoff,press

thePowerbutton

onceandthebatterylevelLEDswilllightuptodisplaythecurrentbatterylevel.

Charging the Battery

The Intelligent Flight Battery must be fully charged before using it for the first time:

ConnecttheUSBpoweradaptertoapowersource(DC5V 2~4A), at this moment, charger indicator

will flash.

AttachtheIntelligentFlightBatterytotheUSB poweradapter

The battery level LEDs light up solid during charging.

The Intelligent Flight Battery

is fully charged when the battery level LEDs will flash, which takes about 3-5

hours. Detach the AC poweradapterwhenthe battery is full charged.

Detaching the Battery

Pull the battery buckles and remove the battery from the aircraft

Camera

Andere Handbücher für TE-F360

Inhaltsverzeichnis

Andere TOPE Drohne Handbücher

TOPE

TOPE TE-F360 Bedienungsanleitung

Beliebte Drohne Handbücher anderer Marken

Ryze

Ryze Tello Bedienungsanleitung

PowerVision

PowerVision PowerRay Bedienungsanleitung

Force1

Force1 rogue F72 Bedienungsanleitung

Zerotech

Zerotech DOBBY Bedienungsanleitung

Protocol

Protocol VIDEODRONE AP Bedienungsanleitung

dji

dji Matrice M210 Bedienungsanleitung

MAKE

MAKE Terry Kilby Bedienungsanleitung

SYMA

SYMA X440 Bedienungsanleitung

RUKO

RUKO F11 Bedienungsanleitung

SYMA

SYMA X5UW(720P) Bedienungsanleitung

Dynali

Dynali 25 H Leitfaden

dji

dji PHANTOM 4 Bedienungsanleitung

Atlas

Atlas AtlasPRO Bedienungsanleitung

Twodots

Twodots TVVIN BOARD Bedienungsanleitung

GDU

GDU SAGA Bedienungsanleitung

Ares

Ares ETHOS QX 130 Bedienungsanleitung

Walkera

Walkera ZHUN Bedienungsanleitung

dji

dji WIND-4 Bedienungsanleitung
