Toptech Technology series Bedienungsanleitung
1
213906-00 Rev. 3A 6/14
This manual covers the following models:
• TT-MAC-1625
• TT-MAC-2020
• TT-MAC-2025
• TT-MAC-1429
• TT-MAC-1729
• TT-MAC-2129
• TT-MAC-2429
• TT-MAC-1722
• TT-MAC-2122
• TT-MAC-2522
INSTALLATION MANUAL
A trained, experienced technician
must install this product.
Carefully read these instructions. You
could damage this product or cause a
hazardous condition if you fail to follow
these instructions.
Need Help?
For assistance with this product please
visit http://www.toptechparts.com or call
customer care at 1-866-239-4440 during
normal business hours.
Table of Contents: Page
Features and Specications 2
Installation 3
Installation (continued) 4
Pressure Drop Data 5
Final Check and Contact Info 6
High performance media air cleaner. Air
cleaner cabinet is fully insulated.
IMPORTANT
Carefully read these instructions.
You could damage this product
or cause a hazardous condition
if you fail to follow these
instructions.
!
by
2
213906-00 Rev. 3A 6/14
FEATURES AND SPECIFICATIONS
Features
Easy to maintain, high efciency media
designed to capture small, medium, and
large airborne particles.
Applicable to forced warm air furnaces, heat
pumps, electric heat, and cooling systems
up to 5 tons (2000 CFM).
Designed to easily support weight of a
residential air handler, furnace, and a
residential evaporator coil.
No electricity is consumed.
Quick and easy lter media replacement.
Fully insulated cabinet
Positive seal gasket material included.
Two-stage lter seal on cabinet door.
Minimal air leakage design.
Specications
Unit Dimensions:
#TT-MAC-1625: 27.75"D x 14.25"H x 6"W
(Repl. Media: #TT-FM-1625 / #TT-FM15-1625)
#TT-MAC-2020: 22.125"D x 21"H x 6"W
(Repl. Media: #TT-FM-2020 / #TT-FM15-2020)
#TT-MAC-2025: 27.125"D x 21"H x 6"W
(Repl. Media: #TT-FM-20625 / #TT-FM15-2025)
#TT-MAC-1429: 27.75"D x 14.25"W x 6"H
(Repl. Media: #TT-FM-1425 / #TT-FM15-1425)
#TT-MAC-1729: 29"D x 17.25"W x 6"H
(Repl. Media: #TT-FM-1625 / #TT-FM15-1625)
#TT-MAC-2129: 29"D x 21.25"W x 6"H
(Repl. Media: #TT-FM-2025 / #TT-FM15-2025)
#TT-MAC-2429: 29"D x 24.25"W x 6"H
(Repl. Media: #TT-FM-2424 / #TT-FM15-2424)
#TT-MAC-1722: 22.125"D x 17"W x 6"H
(Repl. Media: #TT-FM-1620 / #TT-FM15-1620)
#TT-MAC-2122: 22.125"D x 21"W x 6"H
(Repl. Media: #TT-FM-2020 / #TT-FM15-2020)
#TT-MAC-2522: 22.125"D x 26"W x 6"H
(Repl. Media: #TT-FM-2025 / #TT-FM15-2025)
Filter Media:
MERV 11 and MERV 15 options. Our
pleated design has greater media capacity
than non-pleated lters.
Temperature Rating:
-40° to 140° F (-40° to +60° C).
Replacement Media Dimensions:
MERV 11
#TT-FM-1620: 16"D x 20"H x 4"W
#TT-FM-1625: 16"D x 25"H x 4"W
#TT-FM-2020: 20"D x 20"H x 4"W
#TT-FM-2025: 20"D x 25"H x 4"W
#TT-FM-1425: 14"D x 25"H x 4"W
#TT-FM-2424: 24"D x 24"H x 4"W
MERV 15
#TT-FM15-1620: 16"D x 20"H x 4"W
#TT-FM15-1625: 16"D x 25"H x 4"W
#TT-FM15-2020: 20"D x 20"H x 4"W
#TT-FM15-2025: 20"D x 25"H x 4"W
#TT-FM15-1425: 14"D x 25"H x 4"W
#TT-FM15-2424: 24"D x 24"H x 4"W
3
213906-00 Rev. 3A 6/14
Application
The TechPure media air cleaner cabinet is designed
to capture a signicant amount of airborne particles.
The cabinets are sold with MERV 11 or MERV 15
lter media. TechPure media lter cabinets can be
installed in all forced warm air furnaces and cooling
systems up to 5 tons (2000 CFM).
TechPure MAC Tip
Choose a mounting location that
is upstream of the furnace and/
or evaporator coil. This will keep
the furnace and/or evaporator coil
clean.
TechPure Install Tip
When installing the TechPure
media air cleaner with a humidier,
choose a mounting location that
will not allow the water mist to
come in contact with the lter
media.
Mounting Positions
The TechPure media air cleaner cabinet can be
mounted in any position.
Installation
1. Plan the installation:
The TechPure media air cleaner cabinet is designed
to support the weight of a residential furnace and
residential evaporator coil. This media air cleaner
can be mounted in any position in the return air duct.
Typically, the media air cleaner is mounted next to
the furnace blower compartment.
The media air cleaner cabinet is designed to be
installed in the return air duct. Do not mount the
media air cleaner cabinet in the supply duct.
Install the media air cleaner cabinet in a manner
that spreads airow evenly across the lter media.
Gradual transitions are required if the duct is a
different size than the media air cleaner cabinet.
To prevent turbulence, the maximum amount of
expansion on each side of the transition is 20
degrees.
Turning vanes are required if the duct turns sharply
just before attaching to the media air cleaner cabinet.
For example, turning vanes would be required if
there is an abrupt 90 degree elbow in the duct
directly next to the media air lter cabinet.
Install the media air cleaner cabinet in an area that
allows for at least 27" of clearance in front of the
cabinet door for easy replacement of the lter media.

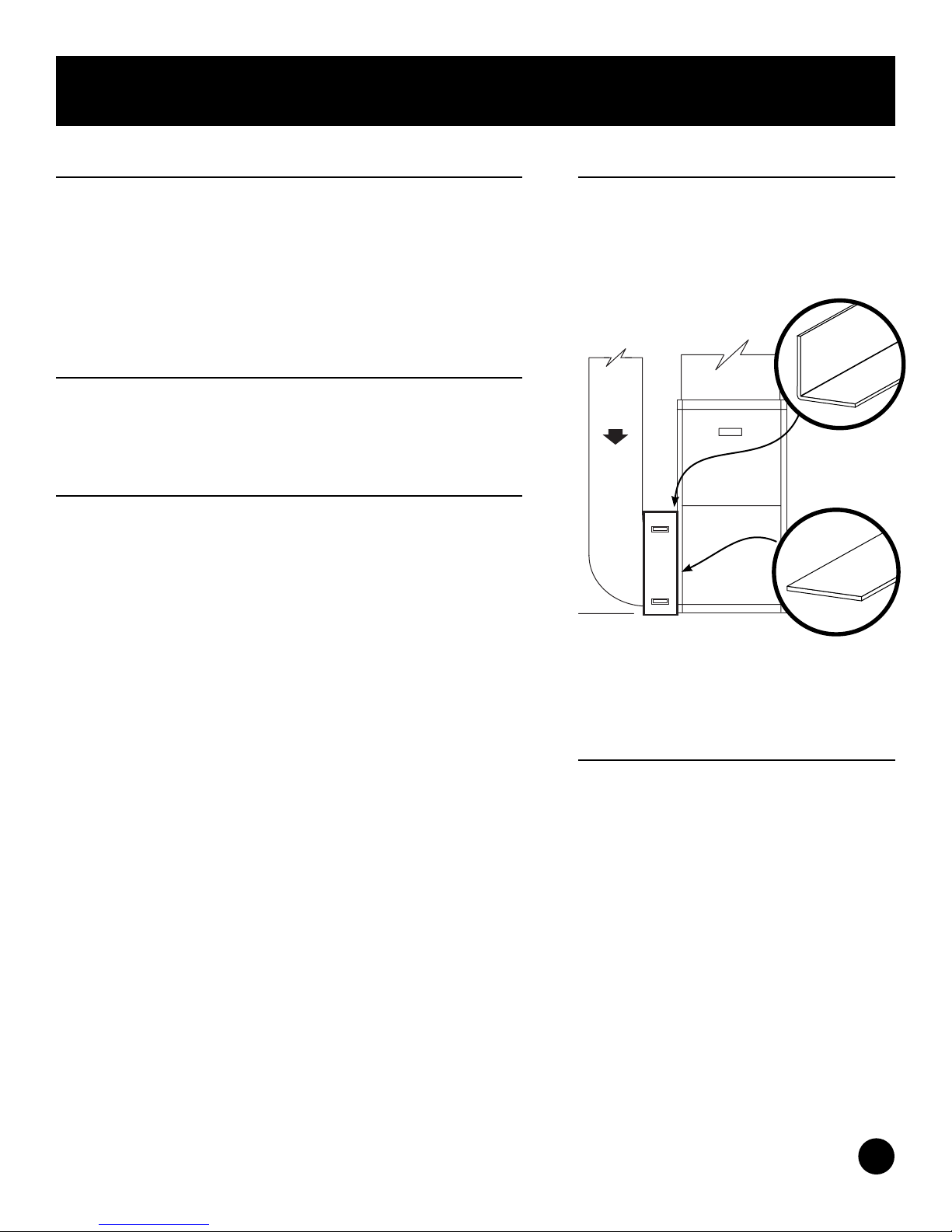

INSTALLATION
Secure angled bracket
front to back with 8x1/2
self-tapping screws.
Secure flat bracket to
bottom or back with 8x1/2
self-tapping screws.
4
213906-00 Rev. 3A 6/14
INSTALLATION
Energy Star Home Certication
If installing the media air cleaner into an application
that is going to have the ducts leakage tested
for compliance with 2011 Energy Star Home
Certication, Energy Efcient Mortgage (EEM),
or Energy Improvement Mortgage (EMI) rating
requirements, then cut the provided roll of gasket
material to length and apply to the inner door anges
that meet up with the front access panel of the media
air cleaner to reduce the air leakage between the
door and the air cleaner.
More information about the Energy Star Home
Certication, EEM, and EMI requirements can be
found at http://www.texenergyaudit.org/facts.htm
Installing the Filter media
The arrow on the lter media must point in the
direction of the air ow. If the media cabinet is
installed in the return air side of the duct work,
the arrow will typically point toward the blower
compartment.
Installation (continued)
2. Fasten the media cabinet to the furnace
Carefully create or use opening in the furnace or air
handler to match the lter media cabinet opening.
Place enclosed gasket material on the side of the air
cleaner that joins up with furnace or air handler. You
can attach the media cleaner cabinet directly to the
furnace or air handler, or t a starting collar in the
furnace opening. Drill holes and secure the cabinet
to the furnace with sheet metal screws. (Rivets or
slip joints are also suitable.)
3. Fasten media cabinet to the return duct
Secure the cabinet in place by using locking pliers.
Drill holes and secure the cabinet to the furnace with
sheet metal screws. (Rivets or slip joints are also
suitable.)
4. Seal joints to prevent leaks
Ensure all joints are sealed.
Secure flat bracket front
to back with 8x1/2 self-
tapping screws.
Secure flat bracket front
to back with 8x1/2 self-
tapping screws.
Apply gasket material to
inner door flanges that
meet up with the front
access panel of the media
air cleaner.
5
213906-00 Rev. 3A 6/14
PRESSURE DROP DATA
Pressure Drop
Flow Rate
(CFM
Velocity
(FPM)
dP
(mm H2O)
Pressure Drop
(“H2O)
% of Rated
Airow Dust Fed Pressure Drop
0 0 0.00 0.000 0% 0.00 0.181
427 123 0.70 0.028 25% 21.50 0.221
854 246 1.65 0.065 50% 73.30 0.386
1281 369 2.80 0.110 75% 106.30 0.591
1708 492 4.60 0.181 100% 132.70 0.795
2135 615 6.95 0.274 125% 152.70 1.000
DP ("H2O) 0.181in. 0.221in. 0.386in. 0.591in. 0.795in. 1.000in. *CME
Size Range
(mm) Fractional Efciency (%)
0.3-0.4 15.7 15.1 21.2 26.3 34.2 38.5 15.1
0.4-0.55 19.9 19.5 25.9 36.3 42.9 51.2 19.5
0.55-0.7 28.0 30.6 39.8 52.3 57.6 65.8 28.6
0.7-1.0 42.0 45.3 52.6 65.9 71.2 79.3 43.0
1.0-1.3 53.4 57.8 63.7 74.8 81.4 86.6 53.4
1.3-1.6 61.5 65.9 72.0 81.5 85.9 91.3 61.5
1.6-2.2 69.1 74.8 80.3 86.9 90.9 95.0 69.1
2.2-3.0 77.0 82.9 88.2 93.2 95.0 97.2 77.0
3.0-4.0 81.7 88.0 92.2 95.7 96.8 98.2 81.7
4.0-5.5 85.1 90.8 95.1 97.0 97.8 99.0 85.1
5.5-7.0 86.5 92.6 96.5 98.0 98.3 99.5 86.5
7.0-10.0 87.2 93.5 97.2 98.6 99.0 99.8 87.2
*Test data performed on a 20x25x4 MERV 11 lter / 1708 CFM / 492 FPM, by LMS technologies
6
213906-00 Rev. 3A 6/14
FINAL CHECKS AND CONTACT INFO
Replacement Schedule
It is very important for optimal heating and cooling system efciency to replace the lter media
as recommended by your heating and cooling technician. The climate in which you live and
the particulate count in your indoor environment will be considered when your heating and
cooling technician personalizes a replacement schedule for your particular application. In many
climates, it is best to replace the lter at least before the heating season and before the cooling
season. The lter should always be replaced at least once a year in all circumstances.
Final Checks
Check installation:
1. TechPure air cleaner cabinet is installed securely on the return side of the system.
2. The arrow on the lter media points in the direction of the air ow.
3. If used, turning vanes and transitions are installed properly.
4. All joints in ductwork and between TechPure air cleaner and furnace/air handler are properly
sealed to prevent leaks.
5. Blower compartment is cleaned and the original lter has been removed.
6. Use enclosed cleaning cloth to wipe down access door.
Contact Info
TopTech
2000 Parks Oaks Ave
Orlando, FL 32808
Phone: 866-239-4440
Web: http://www.TopTechParts.com
Hours of operation: Mon-Fri (8am-5pm EST)
Disclaimer:
*This product is manufactured by a third party for Carrier Enterprises, LLC. under the TechPure brand.
