PADO-H20 USER MANUAL

CONTROL BUTTONS:

 Percussion

 Vibration

 Speed increase (+)

 Speed decrease (-)

LED COLOR:

BATTERY INDICAT R

LED color – White for 4 sections

M DE INDICAT R

LED color – White for Percussion mode

LED color – White for Vibration mode

SPEED INDICAT R

LED color – White for all 7 sections

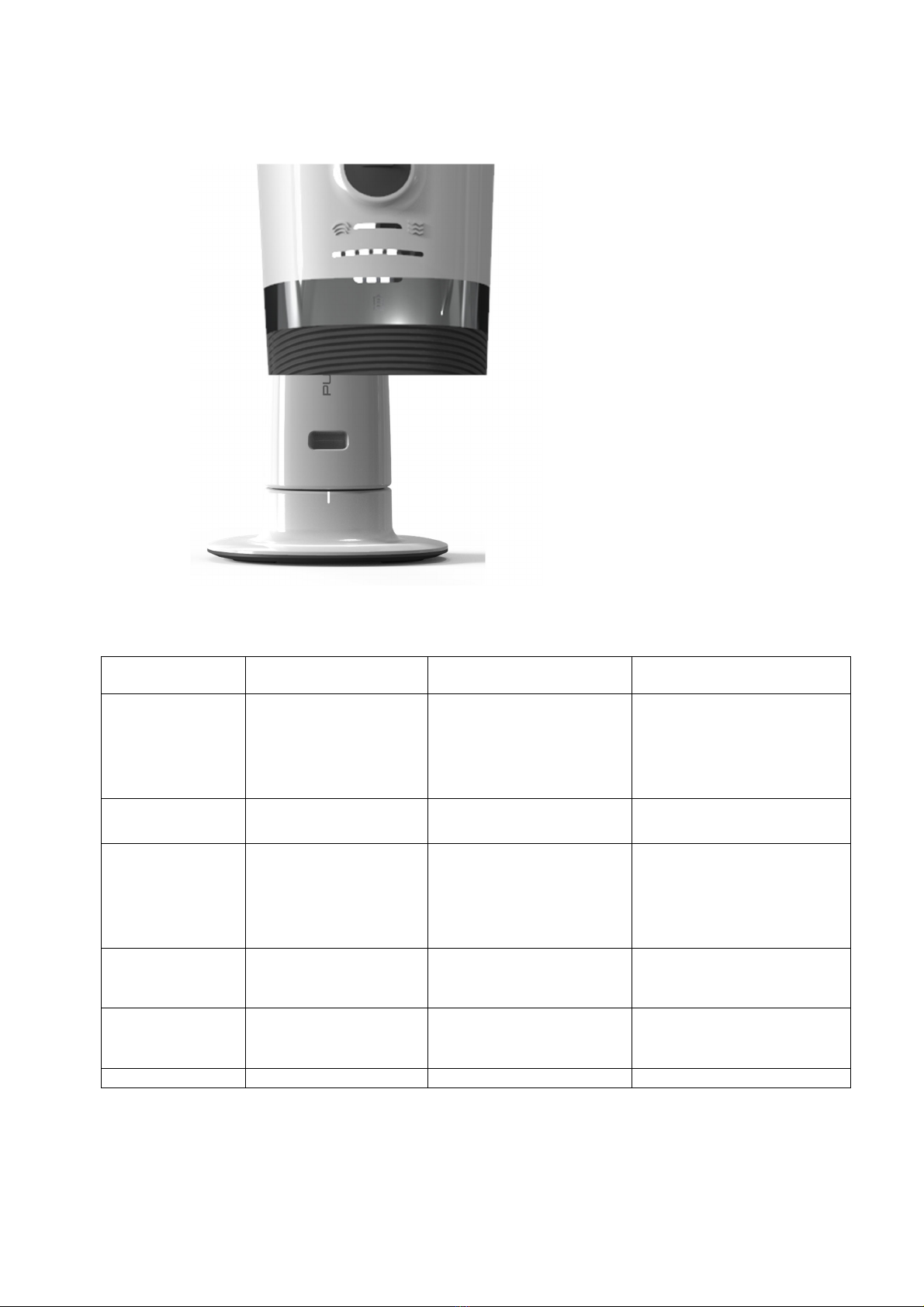

CHARGING CRADLE

LED color – White

Product name: Purewave Hydro

CONTROLLING THE UNIT

Current State /

Desired state

Action Next State Notes

Power is off

How to turn On unit?

1 second press of either the

Percussion or Vibration

mode button

Unit powers on and goes to

lowest speed setting on either

Vibration or Percussion mode.

Animation

–

At power N, speed

indicator bar should animate by

illuminating the 1

section

followed by the 2

, 3

, 4

, 5

, 6

& 7

. After all sections remain lit

for 1 second, only the 1

section

should remain lit.

Power is on

How to turn Off unit?

1 second press of selected

mode button

Unit powers off

Power is on

How to switch

m des?

1 second press of

unselected mode button

Motor

Turns FF

Unit changes to the selected

mode at Speed 1

Animation

–

At power N, speed

indicator bar should animate by

illuminating segment 1 followed

by the 2

, 3

, 4

, 5

, 6

& 7

After all segments remain lit for 1

second, only the 1

segment

should remain lit.

Power is on to unit

How to INCREASE

speed?

Momentary press of speed

increase button

Speed increases to next higher

speed. If speed is maximum,

then no action taken

Power is on to unit

How to DECREASE

speed

Momentary press

of speed

decrease button

Speed decreases to next lower

speed. If speed is minimum,

then no action taken.

BATTERY STATUS

Massager CHARGING Status

D ck CHARGING Status

Current State Action Next State Notes

At Power N Pressing either the

Vibration or

Percussion Mode

Animation – Battery status indicator lights up LED

segments representing battery charge% (25 / 50 / 75 /

100)

Battery status LEDs remain on for 5 seconds after

power on then turns off.

Unit is already N

Battery status LEDs remain on for 5 seconds after any

button is pressed, then turns off

Battery low (<10%)

Animation

–

If battery is <10%, 1

LED section of the

battery status indicator will blink to let user know unit is

low on battery & needs to be charged.

Unit is N and

battery is at 6V

Motor will turn off.

After 5 seconds, unit

will completely shut

down.

Animation

–

LED segment of the battery status

indicator will blink for about 5 sec nds to let user

know battery is too low and needs to be charged.

Unit is FF and

battery is at 6V

Press and hold

either Mode button

to turn on unit.

Motor does not turn

on.

Animation

–

LED segment of the battery status

indicator will blink for about 5 sec nds to let user

know battery is too low and needs to be charged.

Current State /

Desired state

Action Next State Notes

Power

on the

Massager is OFF

Dock unit on

charger while unit is

Charger begins to

charge unit.

Animation

–

LED Segment 1 shall flash while battery is

25% or less, Segment 1 shall be solid and Segment 2

shall flash when battery voltage is greater than 25%

but less than 50%. Segment 1 & 2 shall be solid and

Segment 3 flashing while the battery voltage is less

than 75% and greater than 50%. Segment 1, 2 and 3

shall be solid and Segment 4 will flash when the

battery voltage is greater than 75% but less than

100%. All Segment shall be solid when the battery is

8.4V

Fully Charged

Check LED indicator

on charger

Animation – Segment 1-4 solid

Power is

OFF

Massager is

charging

Press

Vibration or

Percussion Mode

No action

Current State /

Desired state

Action Next State Notes

Docking the

massager

Dock unit on

charger while

massager is FF

Charger begins to

charge unit.

Animation

–

LED on charger should

flash

Massager Docked

and fully charged

Massager is docked

and FF

If unit is fully charged,

LED indicator on

charger should

remain solid

Animation

–

LED should remain solid

FAULTS STATUS ON UNIT

FCC regulatory conformance

：

This device complies with Part 15 of the FCC Rules. Operation is sub ect to the following two

conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause

undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. Such modifications could void the user’s authority to operate the

equipment.

RF Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20

cm between the radiator and your body. This transmitter must not be co-located or operating

in con unction with any other antenna or transmitter.

IC regulatory conformance

This device complies with CAN ICES-003 (B)/NMB-003(B) and CAN RSS-216 / CNR-216.

Current State Action Next State Notes

verheated while

unit is N

Motor Turns FF

LEDS animate to let user know a

fault has occurred.

Animation

–

ALL LEDs flash at 1Hz

rep rate for 5 seconds and turn

verheated & unit is

Motor Does N T turn on

when pressing Percussion or

Vibration Mode

LEDS animate to let user know a

fault has occurred.

Animation – ALL LEDs flash at 1Hz

rep rate for 5 seconds and turn

No Fault

Massager operates normally

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and

Economic Development Canada's licence-exempt RSS(s). Operation is sub ect to the following two

conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation

of the device.

Cet appareil est conforme à la norme CAN ICES-003 (B)/NMB-003 (B) et CAN RSS-216 / CNR-216.

Cet appareil contient des émetteurs / récepteurs exempt (s) de licence qui sont conformes

aux RSS exemptes de licence d'Innovation, Sciences et Développement économique

Canada. Son fonctionnement est soumis aux deux conditions suivantes:

(1) Cet appareil ne doit pas provoquer d'interférences.

(2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de

provoquer un fonctionnement indésirable de l'appareil.

RF Exposure

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20

cm between the radiator and your body. This transmitter must not be co-located or operating

in con unction with any other antenna or transmitter.

Cet équipement est conforme aux limites d’ exposition aux rayonnements de la IC établies pour

unenvironnement non contrôé. Cet équipement doit être installé et fonctionner à au moins 20cm de

distance d

’

un radiateur ou de votre corps.
