Toro Flex-Force Power System 81802 Bedienungsanleitung
FormNo.3432-868RevC
Flex-ForcePowerSystem™
60VMAXBatteryCharger
ModelNo.81802—SerialNo.319000001andUp
ModelNo.81805—SerialNo.320000001andUp
ModelNo.81825—SerialNo.319000001andUp
ModelNo.81850—SerialNo.320000001andUp
ModelNo.81860—SerialNo.319000001andUp
ModelNo.81875—SerialNo.319000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3432-868*
Introduction
Thisbatterypack/chargerisintendedtobeusedbyresidential
homeowners.BatterychargersModel81802andModel81805are
designedtochargelithium-ionbatterypackModels81825,81850,81860,
and81875.Theyarenotdesignedtochargeanyotherbatteries.Using
theseproductsforpurposesotherthantheirintendedusecouldprove
dangeroustoyouandbystanders.
BatterypackModels81825,81850,81860,and81875aredesigned
primarilyforuseinmostFlex-ForcePowerSystem™products.
Readthisinformationcarefullytolearnhowtooperateandmaintain
yourproductproperlyandtoavoidinjuryandproductdamage.Youare
responsibleforoperatingtheproductproperlyandsafely.
Visitwww.Toro.comformoreinformation,includingsafetytips,training
materials,accessoryinformation,helpndingadealer,ortoregisteryour
product.
Safety
IMPORTANTSAFETYINSTRUCTIONS
1.SAVETHESEINSTRUCTIONS—Thismanualcontainsimportant
safetyandoperatinginstructionsforbatterypackModels81825,
81850,81860,and81875andbatterychargersModel81802and
Model81805.
2.Beforeusingthebatterycharger,readalltheinstructionsand
cautionarymarkingsonthebatterycharger,batterypack,and
productusingthebatterypack.
3.CAUTION—Toreduceriskofinjury,chargebatterypackModels
81825,81850,81860,and81875withbatterychargersModel81802
andModel81805only.Otherbrandsofbatterypacksmayburst,
causingpersonalinjuryanddamage.
©2020—TheToro®
Company
8111LyndaleAvenue
South
Bloomington,MN
55420
Registerat
www.Toro.com.
OriginalInstructions
(EN)
PrintedinChina
AllRightsReserved*3432-868*
4.WARNING—Pluggingthebatterychargerintoanoutletthatisnot
100to240Vcancauseareorelectricshock.Donotplugthe
batterychargerintoanoutletotherthan100to240V.Foradifferent
styleofconnection,useanattachmentplugadapteroftheproper
congurationforthepoweroutletifneeded.
5.CAUTION—Amistreatedbatterypackmaypresentariskofreor
chemicalburn.Donotdisassemblethebatterypack.Donotheat
thebatterypackabove68°C(154°F)orincinerateit.Replacethe
batterypackwithagenuineT orobatterypackonly;usinganother
typeofbatterypackmaycauseareorexplosion.Keepbattery
packsoutofthereachofchildrenandintheoriginalpackaginguntil
youarereadytousethem.
6.ThesedevicescomplywithPart15oftheFCCrules.Operationis
subjecttothefollowing2conditions:(1)Thesedevicesmaynot
causeharmfulinterference;and(2)thesedevicesmustaccept
anyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
I.Training
1.Donotallowpeoplewithreducedphysical,sensory,ormental
capabilitiesorwithoutexperienceandknowledgetousethebattery
chargerunlesstheyhavereceivedinstructionorsupervisionon
usingitsafelyandunderstandthehazardsinvolvedwhileusingit.
2.Donotallowchildrentouseorplaywiththebatterypackorbattery
charger;localregulationsmayrestricttheageoftheoperator.
II.Preparation
1.Useappliancesonlywithspecicallydesignatedbatterypacks.
Usingothertypesofbatterypacksmaycreateariskofinjuryand/or
re.
2.Donotuseadamagedormodiedbatterypackorbatterycharger.
Itmayexhibitunpredictablebehavior,resultinginre,explosion,
orriskofinjury.
3.Ifthesupplycordtothebatterychargerisdamaged,contactan
AuthorizedServiceDealertoreplaceit.
III.Operation
1.Donotusenon-rechargeablebatteries.
2.Chargethebatterypackwithonlythebatterychargerspeciedby
Toro.Achargersuitablefor1typeofbatterypackmaycreatearisk
ofrewhenusedwithanotherbatterypack.
3.Chargethebatterypackinawell-ventilatedareaonly.
3
4.Donotexposeabatterypackorbatterychargertoreorto
temperatureshigherthan100°C(212°F).
5.Followallcharginginstructionsanddonotchargethebatterypack
outsideofthetemperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypackandincreasetherisk
ofre.
6.Underabusiveconditions,thebatterypackmayejectliquid;avoid
contact.Ifyouaccidentlycomeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seekmedicalhelp.Liquid
ejectedfromthebatterypackmaycauseirritationorburns.
IV.MaintenanceandStorage
1.Donotallowchildrentocleanormaintainthebatterychargerwithout
supervision.
2.Whenthebatterypackisnotinuse,keepitawayfrommetalobjects
suchaspaperclips,coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shortingthebatteryterminals
maycauseburnsorare.
3.Donotattempttorepairthebatterypackorbatterycharger.Have
anAuthorizedServiceDealerperformserviceonthebatterypack
orbatterychargerusingidenticalreplacementpartstoensurethat
theproductissafelymaintained.
4.Donotdisposeofthebatteryinare.Thecellmayexplode.Check
withlocalcodesforpossiblespecialdisposalinstructions.
SAVETHESEINSTRUCTIONS
4
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletothe
operatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal137-9496
137-9496
1.Thebatterypackischarging.3.Thebatterypackisoverorunderthe
appropriatetemperaturerange.
2.Thebatterypackisfullycharged.4.Batterypackchargingfault
decal137-9495
137-9495
1.ReadtheOperator’sManual.3.Forindooruse.
2.Donotdiscard.4.Doubleinsulated
5
decal140-8472
140-8472
1.Readthe
Operator’s
Manual.
3.Residential
2.Donotdiscard.4.Double
insulated
decal137-9487
137-9487
1.Readthe
Operator’s
Manual.
4.Keepaway
fromopen
ames.
2.Recycle5.Donotexpose
torain.
3.Contains
lithiumions;
donotdiscard.
decal137-9489
137-9489
1.Readthe
Operator’s
Manual.
4.Keepaway
fromopen
ames.
2.Recycle5.Donotexpose
torain.
3.Contains
lithiumions;
donotdiscard.
6
decal137-9490
137-9490
1.Readthe
Operator’s
Manual.
4.Keepaway
fromopen
ames.
2.Recycle5.Donotexpose
torain.
3.Contains
lithiumions;
donotdiscard.
decal137-9461
137-9461
1.Batterychargestatus
decal140-2158
140-2158
1.Readthe
Operator’s
Manual.
4.Donotexpose
toame.
2.Recycle
thebattery
properly.
5.Donotexpose
torain.
3.Donotdiscard.
7
Setup
MountingtheBatteryCharger(Optional)
Ifdesired,mountthebatterychargersecurelyonawallusingthe
wall-mountkeyholesonthebackofthecharger.
Mountitindoors(suchasagarageorotherdryplace),nearapower
outlet,andoutofthereachofchildren.
RefertoFigure1forassistanceinmountingthecharger.
Slidethechargerovertheappropriatelypositionedhardwaretosecurethe
chargerinplace(hardwarenotincluded).
g290534
Figure1
8
ProductOverview
Specications
BatteryCharger
Model8180281805
Type60VMAXLithium-Ion
BatteryCharger
60VMAXLithium-Ion
BatteryRapidCharger
Input100to240VAC50/60Hz
Max2.0A
100to240VAC50/60Hz
Max5.0A
Output60VMAXDC2.0A60VMAXDC5.5A
BatteryPack
Model81825818508186081875
2.5Ah4.0Ah6.0Ah7.5Ah
Batterypack
capacity135Wh216Wh324Wh405Wh
Batterymanufacturerrating=60Vmaximumand54Vnominal.Actualvoltagevaries
withload.
AppropriateTemperatureRanges
Chargebatterypackat5°C(41°F)to40°C(104°F)*
Usebatterypackat-30°C(-22°F)to49°C(120°F)
Storebatterypack/chargerat5°C(41°F)to40°C(104°F)*
*Chargingtimewillincreaseifyoudonotchargethebatterywithinthis
range.Storethetool,batterypack,andbatterychargerinanenclosed
clean,dryarea.
9
Operation
ChargingtheBatteryPack
Important:Thebatterypackisnotfullychargedwhenyoupurchase
it.Beforeusingthetoolforthersttime,placethebatterypackin
thechargerandchargeituntiltheLEDdisplayindicatesthebattery
packisfullycharged.Readallsafetyprecautions.
Important:Chargethebatterypackonlyintemperaturesthatare
withintheappropriaterange;refertoSpecications(page9).
Note:Atanytime,pressthebattery-charge-indicatorbuttononthe
batterypacktodisplaythecurrentcharge(LEDindicators).
1.Ensurethattheventsonthebatteryandchargerareclearofany
dustanddebris.

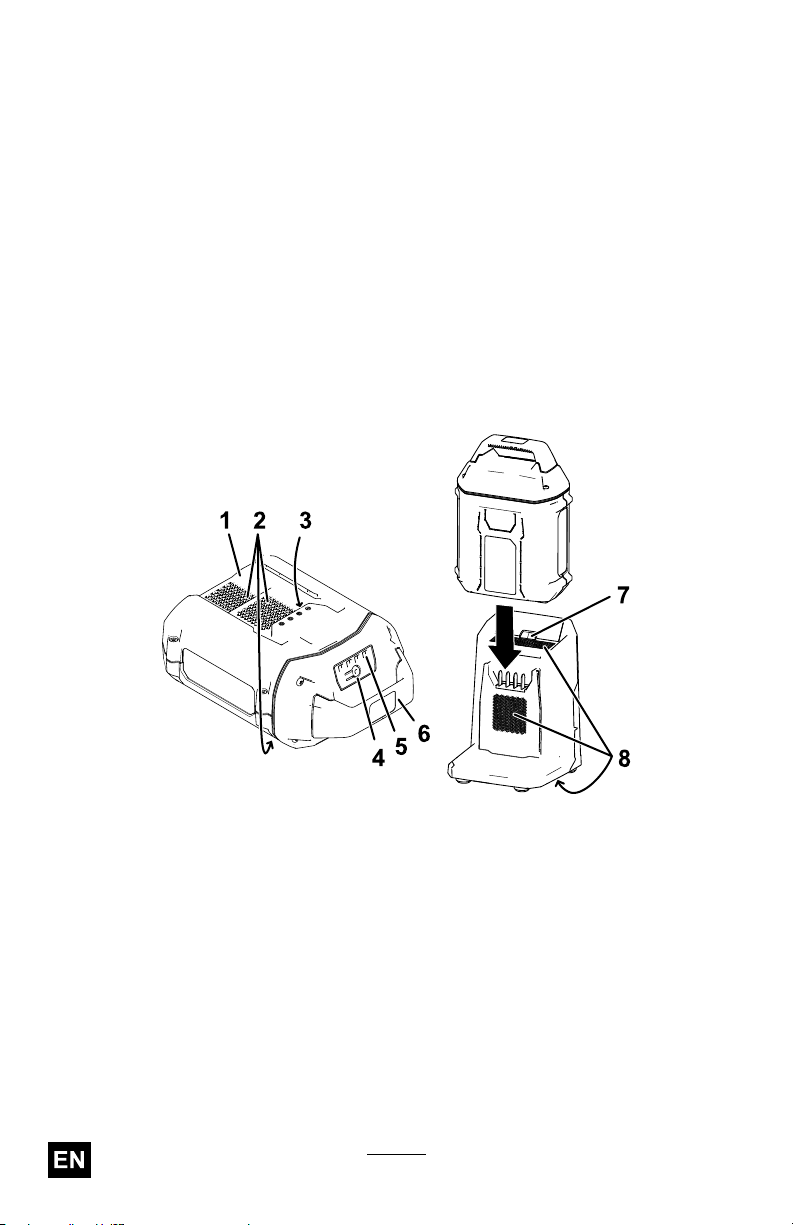

g290533
Figure2
1.Batterypackcavity5.LEDindicators(currentcharge)
2.Batterypackventingareas6.Handle
3.Batterypackterminals7.ChargerLEDindicatorlight
4.Battery-charge-indicatorbutton8.Chargerventingareas
2.Lineupthecavityinthebatterypack(Figure2)withthetongueon
thecharger.
3.Slidethebatterypackintothechargeruntilitisfullyseated(Figure2).
4.Toremovethebatterypack,slidethebatterybackwardoutofthe
charger.
10
