Controls Overview

Traction control Loader arm/attachment tilt lever

Parking brake

lever

Auxiliary hydraulics lever

(Attachment operation

lever)

Throttle lever

Choke lever Key switch

Fuel gauge Hour meter

Oil warning light

(TX425 only)

Reference bar

Loader arm lock

Part No. 106–5713

Starting the Engine

1. Move the throttle

lever between Fast and

Slow.

2. Move the Choke

lever to On.

3. Turn the

ignition key

to Start until

the engine

starts.

4. Gradually move

the choke lever to

Off.

5. Adjust the throttle

lever as desired.

Driving

m–7019

Forward Reverse

Neutral/Stop

Turn Right Turn Left

Stopping the Engine

1. Move the throttle

lever to Slow. 2. Lower the loader

arms.

3. Turn the ignition

key to Stop. 4. Remove the ignition

key.

m–6564/6569/6568

Operating Tips

m–7040

Carry loads as low as possible.

On slopes or when loading onto a

trailer, keep the heavy end uphill. With

no attachment, an empty bucket, or

another light attachment the back is

the heavy end; with a full bucket or a

hydraulic attachment, the front is the

heavy end.

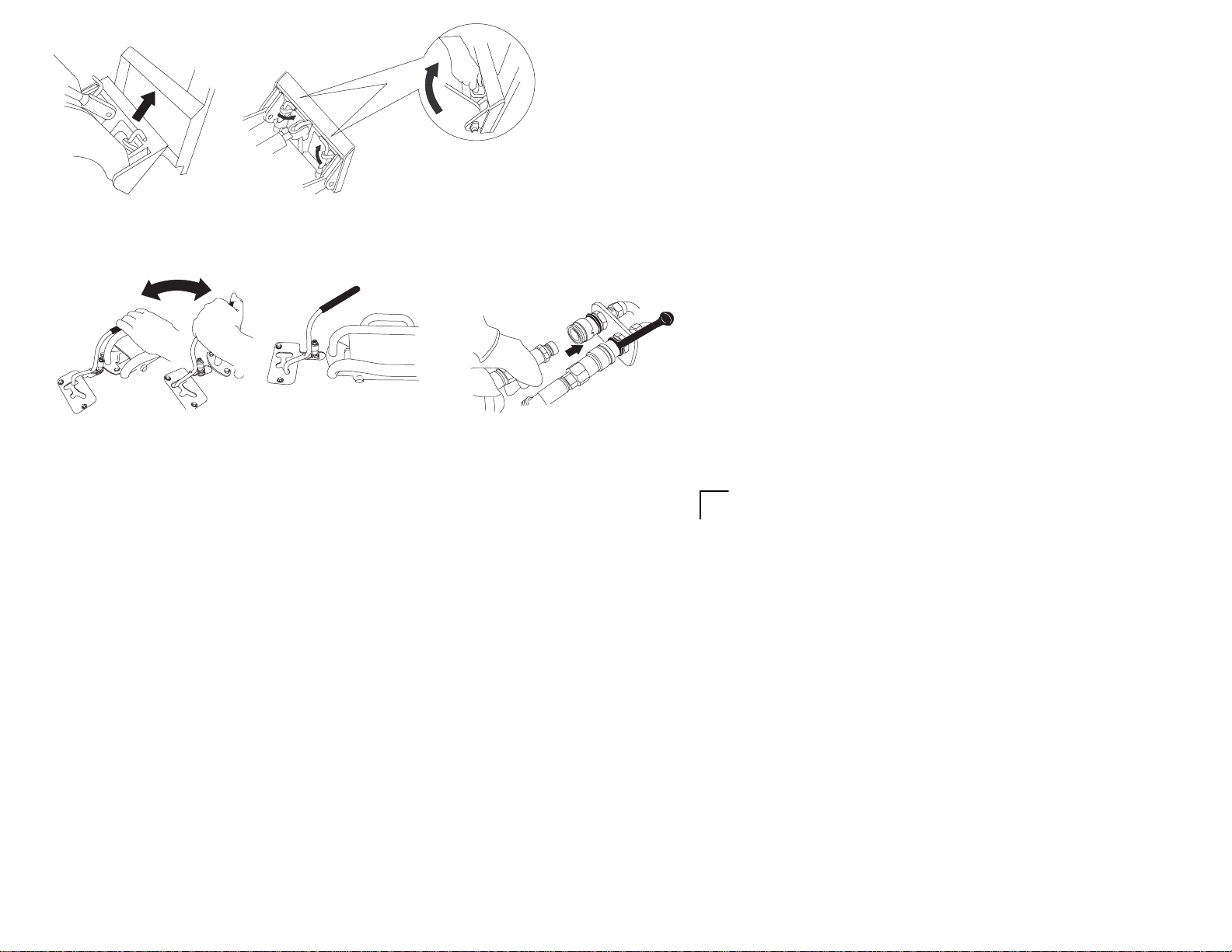

Connecting an Attachment

m–6571

1. 2.

Connecting Hydraulics

1. Stop the

engine. 2. Slowly cycle the

hydraulics lever 3 times. 3. Release the

hydraulics lever into

Neutral.

4. Clean the couplers and then

push the attachment hydraulic

couplers into the couplers on the

traction unit.

3. Ensure that

the pins are

engaged in the

holes in the

attachment

mounting

plate.

Operating the Hydraulics

Disconnecting Hydraulics

m–6566/6570

1. Stop the

engine. 2. Slowly cycle

the hydraulics

lever

3 times.

3. Release

the hydraulics

lever into

Neutral.

4. Pull back the collar on the female hydraulic

couplers and pull the attachment couplers from

the traction unit couplers.

Place the caps

over the traction

unit couplers.

Forward

Reverse

Neutral

Loading the Traction Unit on a Trailer

m–6573

1. Load the traction unit onto the trailer with the

heavy end uphill.

3. Secure the

traction unit

with chains or

straps.

2. Set the parking brake.
