Totally Wicked Tornado NX Bedienungsanleitung

USER MANUAL / BEDIENUNGSANLEITUNG

Congratulations on Purchasing your

Totally Wicked Tornado NX Electronic Cigarette.

The Totally Wicked Tornado NX is a unique high quality starter kit that can equally be used

by experienced vapers who prefer a slightly tighter but still adjustable draw. Combining

ﬂawless performance with exceptional styling and ergonomics, the Tornado NX provides

everything that is required to begin vaping. What’s more, top ﬁlling capability ensures that

the device can be reﬁlled conveniently, simply by unscrewing the mouthpiece. The Tornado

NX provides a direct output from its substantial 900mAh battery, which is sure to provide a

full day of vaping for the majority of its users. Adjustable airﬂow means that users are able to

tune their vaping experience to suit their taste.

Mouthpiece

Tank

Atomizer Head

Atomizer Base Power Button

Airﬂow Ring Battery

Using your Tornado NX

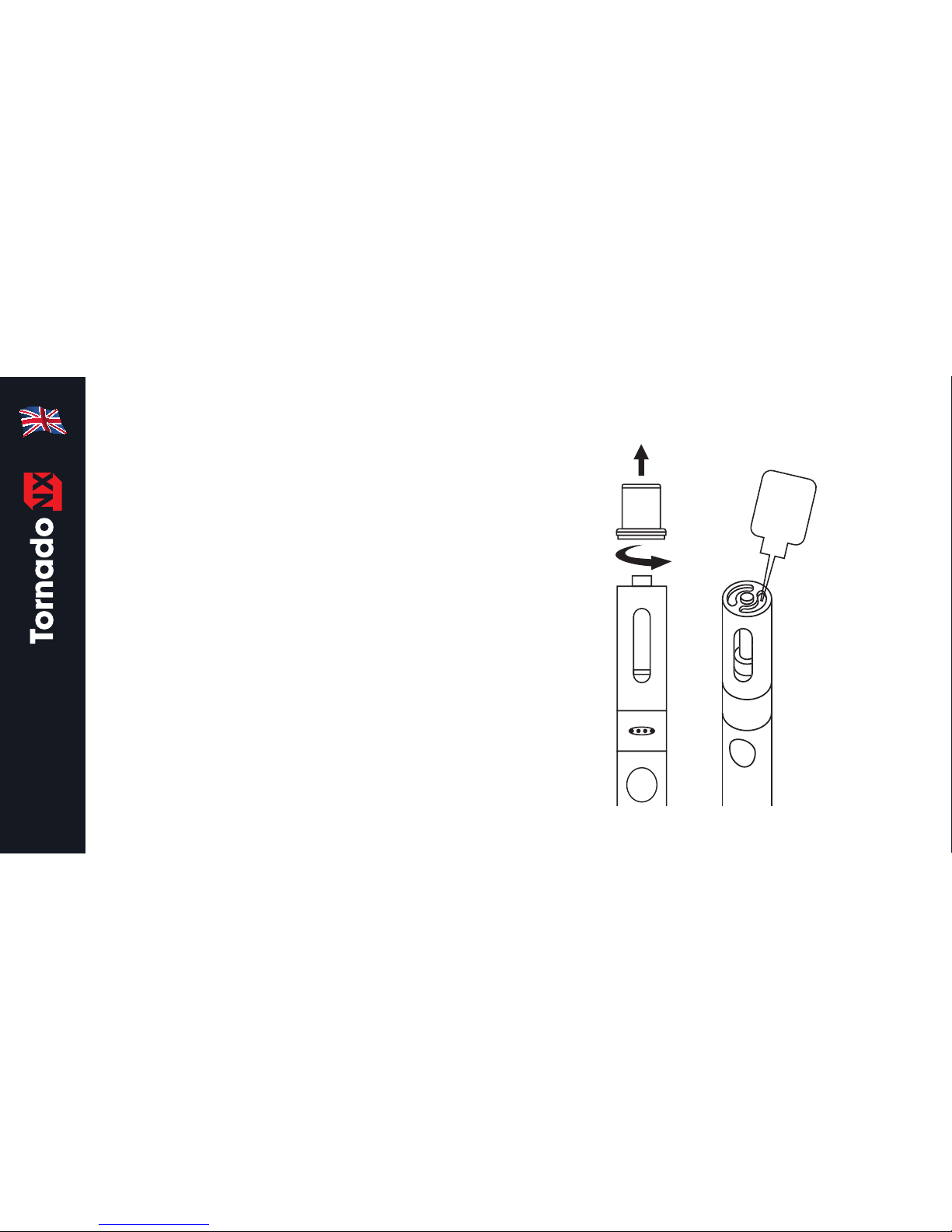

E-liquid Filling:

To ﬁll the tank with e-liquid, turn the

mouthpiece in the anticlockwise direction

until fully removed from the tank tube.

Insert the ﬁlling nozzle into one of the 2

slots to the side of the central tube and ﬁll

the tank, being careful not to ﬁll above the

top of the window.

Power On and Off:

The Tornado NX uses a 5-click on/off

function. To switch the device on, quickly

press the power button 5 times. The LEDs

surrounding the power button will ﬂash

quickly 5 times, signifying that the device

is powered on. Once the Tornado NX is

powered, press the button 5 times to switch

the device off. The LEDs will again ﬂash

quickly 5 times, showing the device has

turned off.

Vaping:

Simply press the power button as you

inhale from the mouthpiece. The button

LED will illuminate while vaping.

Using your Tornado NX

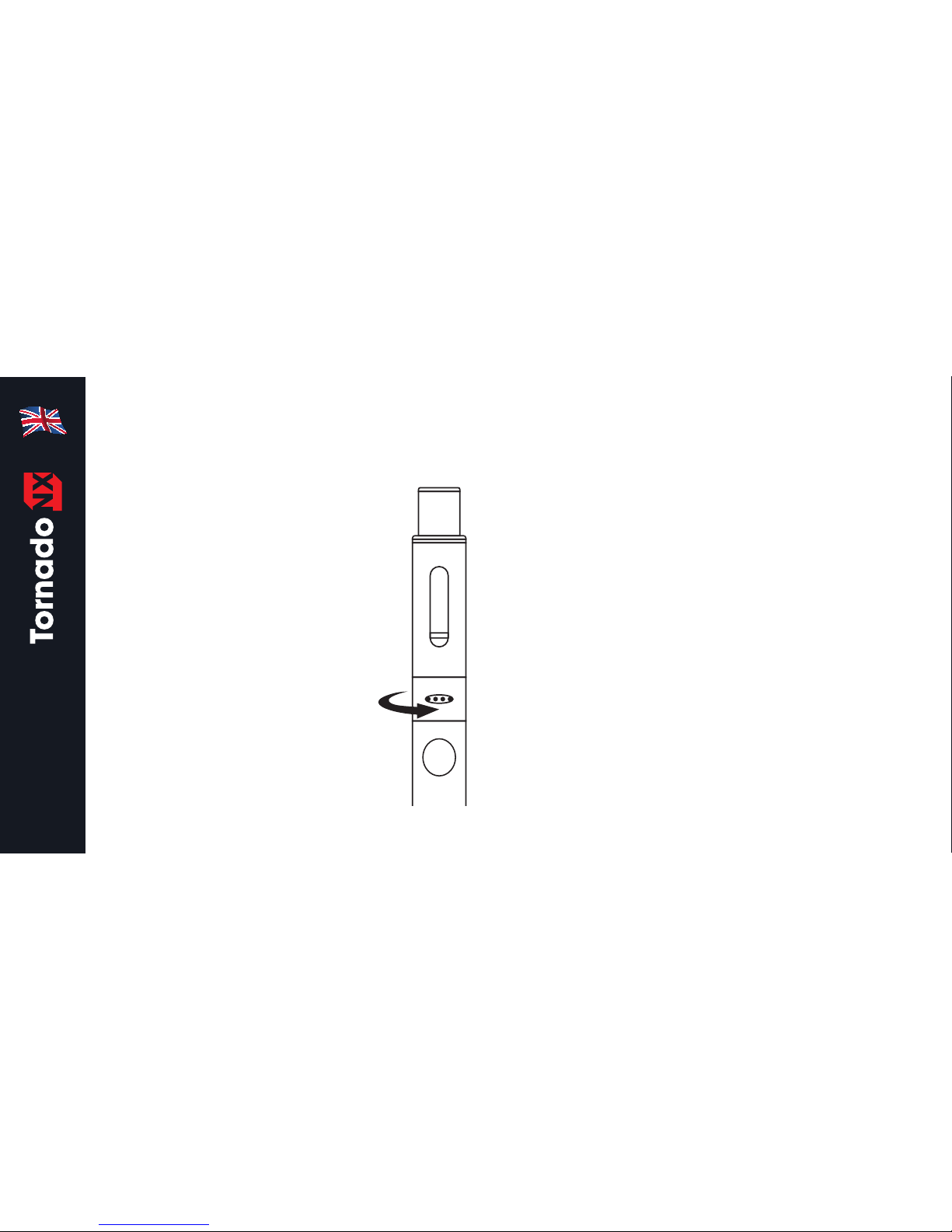

Airﬂow Adjustment:

To adjust the airﬂow, rotate

the airﬂow ring clockwise or

anticlockwise to expose the

airﬂow holes and ﬁnd a setting

which provides the desired

vaping experience.

Charging the Battery:

Simply charge the Tornado NX via a USB

cable when connected to a powered

USB port or suitable wall adapter. When

charging, the button LED will illuminate red.

The LED will power off when the device is

fully charged.

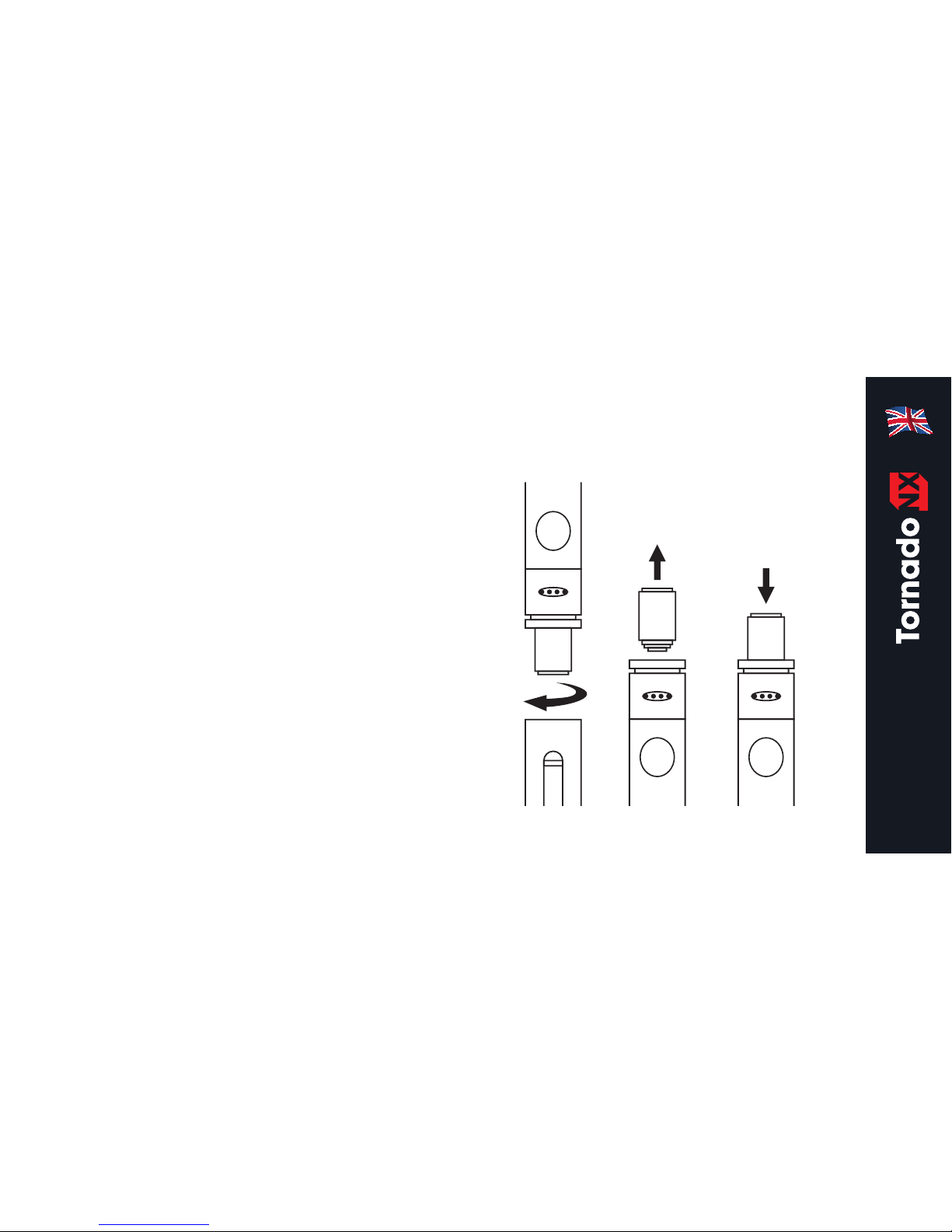

New Atomizer Head Installation:

To replace the atomizer head, invert the

device and rotate the tank tube in the

anticlockwise direction until fully removed

from the battery. Pull the atomizer head

out from the atomizer base and insert a

new atomizer head in its place, rotating the

atomizer on entry can aid this process.

Note: When installing a new atomizer

head, drip a few drops of e-liquid into the

wicking material, this will ensure optimum

performance.

Using your Tornado NX

Battery Level Indication:

The battery level is indicated by the

illumination of the button LED shortly after

the device’s button has been pressed.

The battery levels and corresponding light

conditions are detailed in the table.

Short Circuit Protection:

If a short circuit occurs or the resistance is

too low, the button LED will ﬂash 5 times

consecutively and the device will not power.

If the short circuit warning is displayed,

replace the atomizer head.

Low Voltage Protection:

When the battery voltage drops below

3.3V, the button LED will ﬂash 40 times

consecutively and the device will power off.

Recharge the device to continue vaping.

Battery Level Light Condition

60%-100% Stays lit

30%-59% Flashes Slowly

10%-29% Flashes Moderately

0-9% Flashes Quickly

Using your Tornado NX

Incompatible Resistance Indication:

If an atomizer head above 5ohm is

installed, the button LED will ﬂash slowly,

indicating that the resistance is too high.

If an atomizer head below 0.2ohm is

installed, the button LED will ﬂash 5 times

consecutively, indicating that the resistance

is too low. If the incompatible resistance

warning is displayed, ensure the atomizer

head is properly ﬁtted. If it is and the

warning continues, replace the atomizer

head.

Tornado NX Dimensions:

169mm (l) x 14mm (d)

Battery Capacity: 900mAh

Battery Type: Lithium - Integrated

Tank Capacity: 2ml

Voltage Output: 4.2V – 3.3V (Direct)

Battery Voltage: 3.7V (Nominal)

Resistance Range: 0.2ohm – 5ohm

Maximum Filling Nozzle Diameter: 2.8mm

Using your Tornado NX Specications

Product Storage and Battery Precautions

• Store the Tornado NX and its accessories away from children when not in use.

• Ensure the Tornado NX is powered off when not in use.

• Avoid accidentally pressing the Tornado NX power button when not in use.

• Please only use the charging cable provided.

• Please dispose of dead batteries in accordance with your country’s appropriate legislation.

• Do not charge the batteries in a damp environment.

• Do not use the device when temperatures are outside the range -10 - 60°C.

• Do not charge the battery when temperatures are outside the range 0 - 45°C.

• Do not attempt to repair a faulty Tornado NX as these are sealed units with no serviceable

parts. Attempted repairs will void the warranty.
