LCD-2001VB

Sunlight Readable 20.1" LCD Display

(1st Edition 11/25/2004 )

All information is subject to change without notice.

○

1319 Dexter Avenue N.#020,

Seattle,WA98109

TEL：206-623-6000

FAX：206-623-6609

Page 2

Content

Introduction...........................................................................................................3

Hardware Installation............................................................................................3

The Display Timing............................................................................................... 5

The Display Outline Dimensions..........................................................................6

The Display Controls............................................................................................ 7

The Screen Adjustment........................................................................................ 8

Quick Installation &Troubleshooting Tips...........................................................19

Specification........................................................................................................20

Product Safety Precautions................................................................................2221

Page 3

Introduction

Welcome to enjoy the fantastic sightseeing world. This new technology will bring you the whole

new feeling about the “monitor”. We show here some of the major advantages of the LCD

monitor. You will really find some other advantages when you use it.

Hardware Installation

This chapter will guide you the correct installation procedures of your LCD monitor.

Unpacking

After you unpack your LCD Monitor, please make sure that the following items are included in the

carton and in good condition. If you find that any of these items are damaged or missing, please

contact your dealer immediately.

One LCD Monitor

15-pin D-sub VGA cable

AC/DC adapter with 12V DC output & AC power cord

Remote Control

TV Tuner (Option)

Installation

This analog LCD display does not require any special drivers. Necessary drivers are supplied

by the video card manufacturer and may be found on the diskettes supplied with the video card

that came with your computer. Windows 98/2000/XP drivers for both the display and the video

card are supplied on the Windows 98/2000/XP CD or diskettes. Unfortunately, Microsoft did not

provide a complete listing of the displays on the initial retail release. You may use the standard

XGA (1024x768) as the display type. The video card must also be set up correctly in Windows

98/2000/XP and make sure the video output of the VGA card is on list in Section 6.1 or check your

Video Card manual or Windows 98/2000/XP Read me file for further information on Video Card.

After the question listed above is solved, we continue the setup procedure as below.

1. Turn power off both Computer and Display before making any connection.

2. Install Display on the solid horizontal surface such as a table or desk.

3. Connect the power cable and the AC/DC adapter, then connect adapter toe the back of the

LCD monitor.

4. The LCD monitor comes with a 15-pin video cable; you may use this cable for both IBM PC’s

& compatibles and Macintosh.

5. Tighten the screws of the Display cable until the connectors are fastened securely.

6. Switch on power to the Computer system, then to the monitor.

DC Power in

Audio in

AV Audio in

AV in

S-video

VGA

TV Tuner

Page 4

The following picture provides the connection outline

VGA Input Pin Assignment

This section describes the pin assignment of the LCD’s VGA connector. It is called 15pin Mini

D-sub connector.

110 6

Pin No. Signal Connector

1Red Video Signal

2Green Video Signal

3Blue Video Signal

4N.C.

5Ground

6Ground for red video signal

7Ground for green video signal

8Ground for blue video signal

9N.C.

10 Ground

11 N.C.

12 DDC data

13 Horizontal sync signal

14 Vertical sync signal

15 DDC clock

Page 5

The Display Timing

Applicable video timing

The following table lists the better display quality modes that the LCD monitor provides. If the

other video modes are input, the monitor will stop working or display unsatisfactory picture quality.

VESA Modes

Mode

Resolution Total Nominal

Frequency

±0.5KHz

Nominal

Frequency

±0.5KHz

Nominal

Pixel Clock

(MHz)

DOS 720x400@70Hz 900x449 31.469 70.087 28.322

640x480@60Hz 800x525 31.469 59.940 25.175

640x480@72Hz 832x520 37.861 72.809 31.500

VGA

640x480@75Hz 840x500 37.500 75.000 31.500

800x600@56Hz 1024x625

35.156 56.250 36.000

800x600@60Hz 1056x628

37.879 60.017 40.000

800x600@72Hz 1040x666

48.077 72.188 50.000

SVGA

800x600@75Hz 1056x625

46.875 75.000 49.500

1024x768@60Hz

1344x804

48.363 60.004 65.000

1024x768@70Hz

1328x806

56.476 70.069 75.000

XGA

1024x768@75Hz

1312x800

60.023 75.029 78.750

IBM Modes

EGA 640x350@70Hz 800x449 31.469 70.086 25.175

DOS 720x400@70Hz 900x449 31.469 70.087 28.322

VGA 640x480@60Hz 800x525 31.469 75.000 31.500

XGA 1024x768@72Hz

1304x798

57.515 72.100 75.000

MAC Modes

VGA 640x480@60Hz 800x525 31.469 59.940 25.175

SVGA

832x624@75Hz 1152x667

49.725 74.551 57.2832

XGA 1024x768@75Hz

1328x804

60.927 74.927 80.000

Page 6

The Display Outline Dimensions

Unit: mm

Page 7

The Display Controls

Control Function

•

‘

’

Power

Power LED :

UpKey:

Menu Key :

Down Key :

Select Key :

Source

Key :

Channel Up Key:

Channel Down Key :

Power ON/Off.

Power ON-Green / Power Off-No.

Enter the mainmenu of the on-screen display (OSD).

Decrease volume gain when OSD is off.

Input source select (PC,AV, S-Video, TV, Component).

Increase TV channel number.

Decrease TVchannel number.

Increase itemnumber or value of theselecteditem when.

Increase volume gain whenOSD is off.

Decrease itemnumber or item vallue when OSD is on.

Activate the selected icon or function.

“

”

Side Membrane Control Button

Toprevent unauthorized adjustment on OSD menu, LD2011 has a special key lock function.

1. Press"volumeup"&"volumedown" keys simultaneouslyfor 3seconds,the power led

should turn into orange color andblinking for 3 times. The OSD has been locked.

2. Do thesame procedureagain to release the lock.

3. While OSDis locked,youshouldstill be able to change theOSD with yourremotecontroller.

OSD KeyLock Function

Page 8

The Screen Adjustment

Main Menu

You can adjust the brightness, contrast, display colors, the horizontal and vertical position of the

display and OSD menu, etc. through the main menu display.

The Down Key < and Up Key >are used to scroll through items within the menu. The selected

item is highlighted as the scrolling move along. The SELECT key is used to activate the

highlighted item. During this state, MENU key is used to close the OSD menu from the screen.

OSD Control Key

Power key :Power ON/OFF.

Menu key :Enter the main menu of the on-screen display (OSD).

Down key :Decrease item number or item value when OSD is on.

Decrease volume gain when OSD is off.

Up key :Increase item number or value of the selected item when .

Increase volume gain when OSD is off.

Select key :Activate the selected icon or function.

Source key :Input source select (PC, AV, S-Video ,TV, Component).

Channel up key :Increase TV channel number.

Channel down key :Decrease TV channel number.

Page 9

The Screen Adjustment

OSD Control Function List

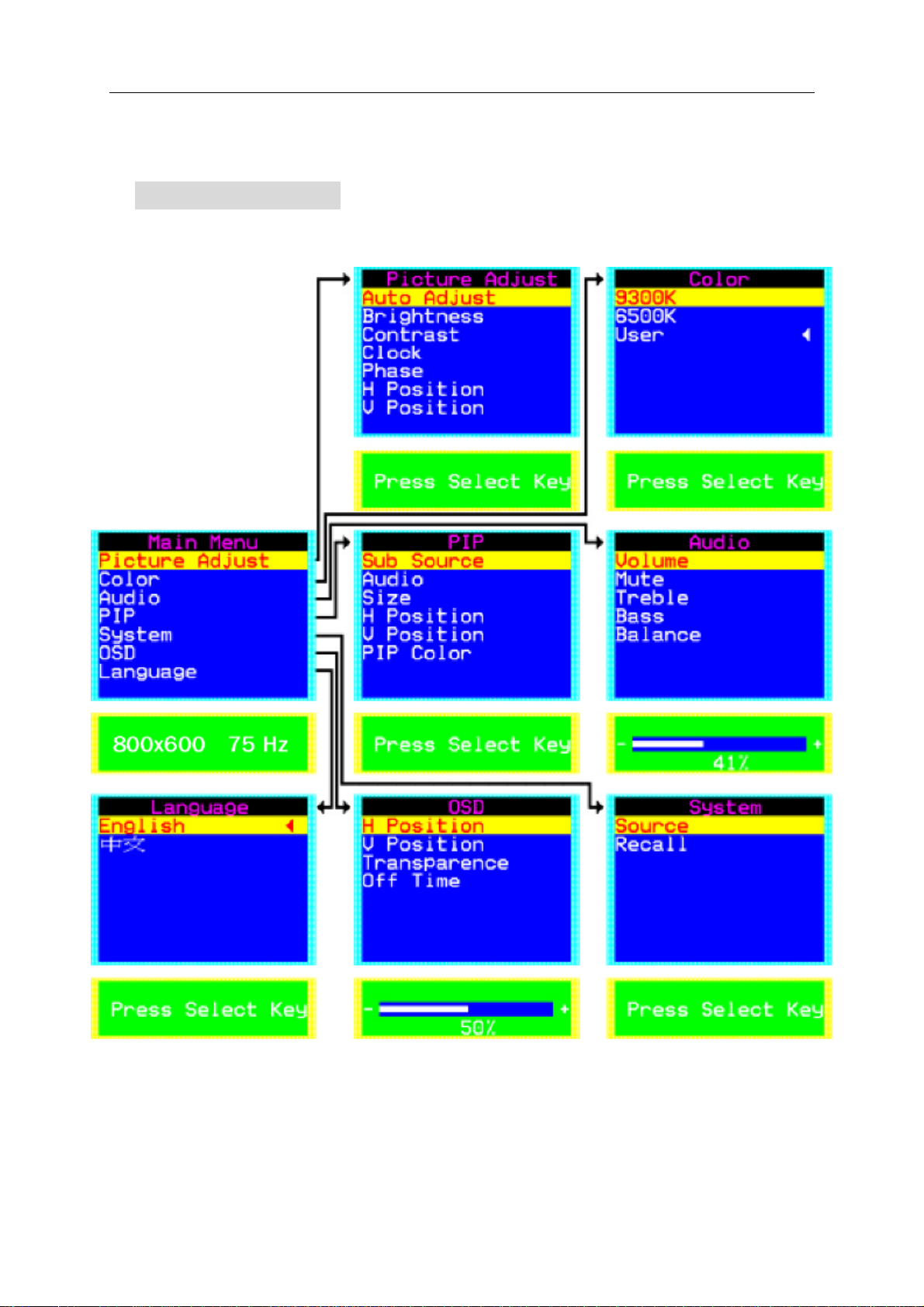

◆OSD For PC input

Page 10

The Screen Adjustment
