TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
MQSA Quality Control Manual
for
Monochrome Monitors for Mammography
Foreword
Purpose of this Document
This document is for Monochrome Monitors for Mammography, diagnostic display
monitors to perform the Quality Control (QC) tests to meet the guidelines / regulations
of Mammography Quality Standards Act (MQSA) for the reading of the digital
mammographic images. This document describes the procedure for performing the
Quality Control (QC) tests for Monochrome Monitors for Mammography, diagnostic
display monitors based on the guidelines / regulations of Mammography Quality
Standards Act (MQSA).
Scope of this Manual
This document is referenced when conducting the Quality Control (QC) tests to
Monochrome Monitors for Mammography, diagnostic display monitors based on the
guidelines / regulations of Mammography Quality Standards Act (MQSA) for the reading
of the digital mammographic images through the full-eld digital mammography (FFDAM)
system.
Regulatory Considerations
For the facilities under the MQSA regulations, application of this manual is MANDATORY.
Failure to follow these quality assurance procedures can result in loss of MQSA
certication at facilities subject to the MQSA regulations. For the facilities under the
MQSA guidelines, application of this manual is RECOMMENDED. Otherwise, the
facilities may identify other ways of meeting MQSA requirements.
Applicable Models
ME511L, ME551i2, MS31i2, MS33i2, MS51i2, MS53i2
- 3 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
Contents
Foreword .............................................................................................................2
Contents ..............................................................................................................3
Installation...........................................................................................................5
Chapter 1: QC TESTS FOR THE RADIOLOGIC TECHNOLOGIST
1 Introduction.....................................................................................................6
2 Intervals for Procedures ................................................................................6
3 Cleaning Display.............................................................................................7
3.1 Objective....................................................................................................7
3.2 Frequency..................................................................................................7
3.3 Required Equipment..................................................................................7
3.4 Procedure ..................................................................................................7
4 Viewing Conditions Check.............................................................................8
4.1 Objective....................................................................................................8
4.2 Frequency..................................................................................................8
4.3 Required Equipment..................................................................................8
4.4 Procedure ..................................................................................................8
Form 1: Daily Test .............................................................................................9
5 Image Quality Check - SMPTE pattern........................................................10
5.1 Objective..................................................................................................10
5.2 Frequency................................................................................................10
5.3 Required Equipment................................................................................10
5.4 Procedure ................................................................................................10
Form 2: SMPTE Pattern..................................................................................12
Chapter 2: QC TESTS FOR THE MEDICAL PHYSICIST
1 Introduction...................................................................................................13
2 Intervals for Procedures ..............................................................................13
3 Viewing Conditions Check and Setting......................................................14
3.1 Objective..................................................................................................14
3.2 Frequency................................................................................................14
3.3 Required Equipment................................................................................14
3.4 Procedure ................................................................................................14
Form 3: Viewing Condition Check and Setting ...............................................15
4 Display Calibration ......................................................................................16
4.1 Objective .................................................................................................16
4.2 Frequency ...............................................................................................16
4.3 Required Equipment ...............................................................................16
4.4 Procedure ...............................................................................................16
Form 4: Display Calibration.............................................................................20
http://www.totoku.com/display/
Copyright (C) 2000-2012 TOTOKU Electric Co., Ltd. All rights reserved.
MQSA Quality Control Manual
- 4 -
TOTOKU ELECTRIC CO., LTD.
5 Image Quality Check – SMPTE pattern.......................................................21
5.1 Objective..................................................................................................21
5.2 Frequency................................................................................................21
5.3 Required Equipment................................................................................21
5.4 Procedure ...............................................................................................21
Form 5: SMPTE Pattern..................................................................................25
Denition ...........................................................................................................26
- 5 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
INSTALLATION
Connecting the cables
Follow the instructions in the display manual to properly connect the communication
cable supplied with the display.
Installing calibration software and sensor driver
Install the calibration software “Medivisor Nx” and sensor driver into the workstation.
- 6 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
Chapter 1: QC TESTS FOR THE RADIOLOGIC
TECHNOLOGIST
1 INTRODUCTION
QC tests that are listed in this section are to provide the procedure for maintaining
Monochrome Monitors for Mammography, diagnostic display monitors in its designed
optimal quality conditions by keeping the display monitors free of any image quality
deterioration and by performing the regular viewing conditions and image quality checks.
QC tests for the diagnostic display are described in the following sections:
• Section 3: Cleaning Display
• Section 4: Viewing Conditions Check
• Section 5: Image Quality Check - SMPTE pattern
2 INTERVALS FOR PROCEDURES
The table below shows intervals for each procedure described in this manual.
Procedure Interval
Cleaning Display Daily
Viewing Conditions Check Daily
Image Quality Check - SMPTE pattern Daily
- 7 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
3 CLEANING DISPLAY
3.1 Objective
To maintain the screen, clean by keeping the display screen free from any
objects (dust, nger print, etc.) of the display monitor of Monochrome Monitors for
Mammography
3.2 Frequency
Daily
3.3 Required Equipment
Cleaning kit (soft cloth and liquid)
3.4 Procedure
Note: The cabinet is made of plastic and coated metal plate. Do not apply thinner,
benzene, or alcohol. It could damage the plastic and/or the coating could
come off. An optional cleaning kit is recommended to clean the panel surface
(protective lter).
1. When cleaning the display monitor, remove the AC adaptor from the display
monitor and the wall outlet for your safety.
2. Dampen the cleaning cloth with the agent and remove the dust gently. Finish up
by wiping with the dry cloth.
3. Clean the LCD panel (protective lter) and the surface periodically with a
dampened soft cloth.
4. Record the result on the form 1 in this manual.
Note: Be careful when handling the LCD panel (protective lter). Do not rub or
hit with sharp or hard objects. Do not press on the panel. It could cause
unevenness in luminance or damage the panel.
- 8 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
4 VIEWING CONDITIONS CHECK
4.1 Objective
To keep and maintain the optimal viewing conditions on Monochrome Monitors for
Mammography
4.2 Frequency
Daily
4.3 Required Equipment
Monochrome Monitors for Mammography, display monitor
Serial cable for communicating between PC and display monitor (for ME511L)
USB cable for communicating between PC and display monitor (for other models)
4.4 Procedure
1. Review the data form “Form 3: Viewing Conditions Check and Setting” on P15
(completed by the Medical Physicist during the most recent evaluation) posted in
the reading room. Refer this form as optimal during your future evaluation.
2. Match the room conguration where each display monitor is located to the one
specied in the data form.
3. Adjust the room conguration if the current reading room conguration differs
from the one established as optimal in the data form. (For example, if desk lights
were specied to be turned off, turn them off, or, if curtains were specied to be
closed, close them.)
4. Complete the record of the check on the form 1 in this manual.
- 9 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
Form 1: Daily Test
Daily
Facility:
Room:
Checked by:
Year Month
Date 1234567891011 12 13 14 15 16
Initial
Cleaning
Display
Viewing
Conditions
Date 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Initial
Cleaning
Display
Viewing
Conditions
Monitor Serial #1:
Monitor Serial #2:
- 10 -
TOTOKU ELECTRIC CO., LTD.
MQSA Quality Control Manual
5 IMAGE QUALITY CHECK - SMPTE PATTERN
5.1 Objective
To calibrate the display monitors as accurate as possible for the reading of
mammographic images on Monochrome Monitors for Mammography
5.2 Frequency
Daily
5.3 Required Equipment
Monochrome Monitors for Mammography, display monitor
Serial cable for communicating between PC and display monitor (for ME511L)
USB cable for communicating between PC and display monitor (for other models)
Calibration software (Medivisor Nx)
5.4 Procedure
1. Select “TOTOKU Medivisor Nx”>”Medivisor Nx” from the Start menu to start this
software application.

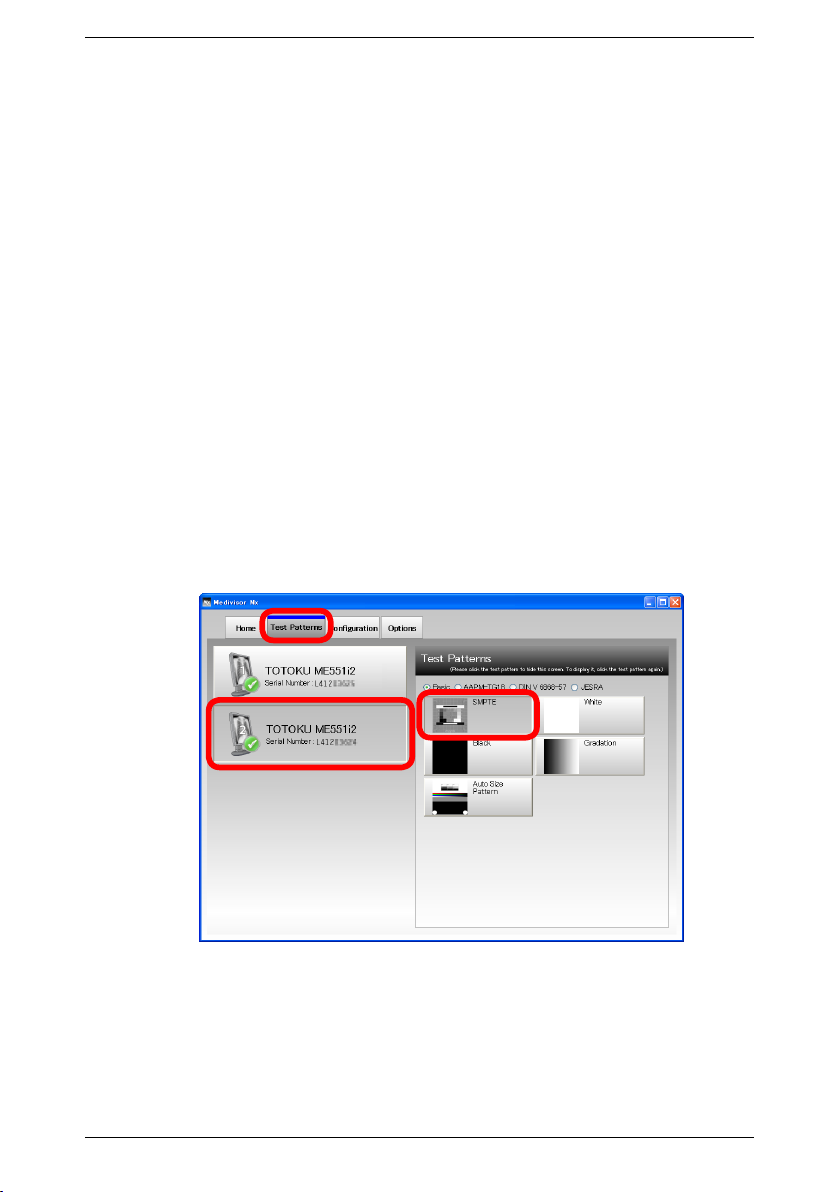

2. Select the “Test Pattern” Tab. Click the display monitor icon to choose the
monitor to test and click the “SMPTE” pattern.
