Toyota FJ CRUISER - DATASHEET 2011 Bedienungsanleitung

QUICK REFERENCE

GUIDE

FJ CRUISER

2011

414844M1.indd 1414844M1.indd 1 11/3/10 6:16 AM11/3/10 6:16 AM

2011

FJ Cruiser

!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for

the Owner’s Manual located in your vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and

supplementary manuals so you will have a better understanding

of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,

U.S.A., Inc. wish you many years of satisfied driving in your

new FJ Cruiser.

This Quick Reference Guide is not a full description of FJ

Cruiser operations. Every FJ Cruiser owner should review the

Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

Text_414844M2.qxd 11/2/10 4:13 PM Page COV2

INDEX

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16

Accessory meter 13

Air Conditioning/Heating 16

Audio 14-15

Automatic Transmission 8

Bottle holders-Rear seat 19

Clock 15

Cruise control 17

Cup holders 19

Door-Back 13

Four-wheel drive 9

Intuitive parking assist 16

Light control-Instrument panel 19

Lights1& turn signals 12

Parking brake 10

Power outlet-12V DC 18

Power outlet-115V AC 18

Seat adjustments-Front 10

Seats-Folding rear seats 11

Seats-Head restraints 10

Seats-Removing rear seats 11

Telephone controls (Bluetooth®)17

Tilt steering wheel 8

VSC OFF button 18

Windows 13

Windshield wipers & washers 12

Door locks 20

Seat belts 20

Seat belts-Shoulder belt anchor 20

Spare tire & tools 21

Tire Pressure Monitoring (warning) System 20

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

1Visit your Toyota dealer for information on this and other customizable

options.

Text_414844M2.qxd 11/2/10 4:11 PM Page 1

OVERVIEW

Instrument panel

Instrument panel light control

Power outside rearview mirror controls1

Clutch start cancel switch1

Roll Sensing of Curtain shield Airbag OFF switch

Tilt steering lock release

Headlight and turn signal control

Wiper and washer controls

Ignition switch

Emergency flasher button

Clock

Front passenger seat belt reminder light

Audio system

Engine immobilizer indicator

Air Conditioning controls

Rear window defogger button

VSC OFF switch1

Steering wheel controls

Text_414844M2.qxd 11/2/10 4:11 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Rear differential lock button1

Active traction control switch1

Power outlet

AUX or USB/AUX port

Intuitive parking assist switch1

Power outlet main switch1

Cruise control1

Hood release

Volume control switch (for audio)

“ ” button (for audio)

“MODE” button (for audio)

Telephone controls

Voice command button

1 If equipped

2For details, refer to the “Navigation System Owner’s Manual.”

Text_414844M2.qxd 11/2/10 4:11 PM Page 3

OVERVIEW

Indicator symbols

Instrument cluster

Tachometer

Service indicators

Speedometer

Voltmeter

Automatic Transmission indicator

Engine coolant temperature

Fuel gauge

Trip meter reset knob

Odometer and two trip meters

Battery warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Maintenance/Service required indicator1

Driver/Front passenger seat belt reminder1

(alarm will sound if speed is over 12 mph)

Open door warning1

1For details, refer to “If a warning light turns on or a warning buzzer sounds” Section

5-2, 2011 Owner’s Manual.

2 For details, see “Rear differential lock system,” Section 2-4, 2011 Owner’s Manual.

Low fuel level warning1

Text_414844M2.qxd 11/2/10 4:11 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Automatic Transmission indicator

Front passenger occupant classification indicator

Turn signal indicator

Four-wheel drive indicator3

Rear differential lock indicator2

Center differential lock indicator3

Slip indicator1

Vehicle Stability Control OFF indicator

Active traction control system indicator

AUTO Limited Slip Differential indicator

Cruise control indicator4

Automatic Transmission fluid temperature warning1

Unengaged Park warning1

Airbag SRS warning1

Headlight high beam indicator

Anti-lock Brake System warning1

3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2011 Owner’s

Manual.

4If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.

Low Tire Pressure Warning1

Engine immobilizer system indicator

Roll Sensing of Curtain shield Airbag OFF indicator

Traction Control/OFF indicator

Text_414844M2.qxd 11/2/10 4:11 PM Page 5

OVERVIEW

Fuel tank door release and cap

Pull

Turn to open NOTE: Tighten

until one click is

heard. If the cap is

not tightened

enough, Check

Engine “ ”

indicator may

illuminate.

Keyless entry (if equipped)

Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for

more details.

NOTE: If a door is not opened

within 60 seconds of unlocking, all

doors will relock for safety.

Panic button

KCO

Locking operation Unlocking operation

Push

Push and hold

Push ONCE: Driver door

TWICE: All doors

Text_414844M2.qxd 11/2/10 4:11 PM Page 6

Hood release

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Pull up latch and raise hood

Windshield washer fluid tank

Power steering fluid reservoir

Engine oil level dipstick

Engine coolant reservoir

Engine oil filler cap

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.

Please refer to the “Warranty Maintenance Guide.”

Engine maintenance

Pull

Text_414844M2.qxd 11/2/10 4:11 PM Page 7

FEATURES/OPERATIONS

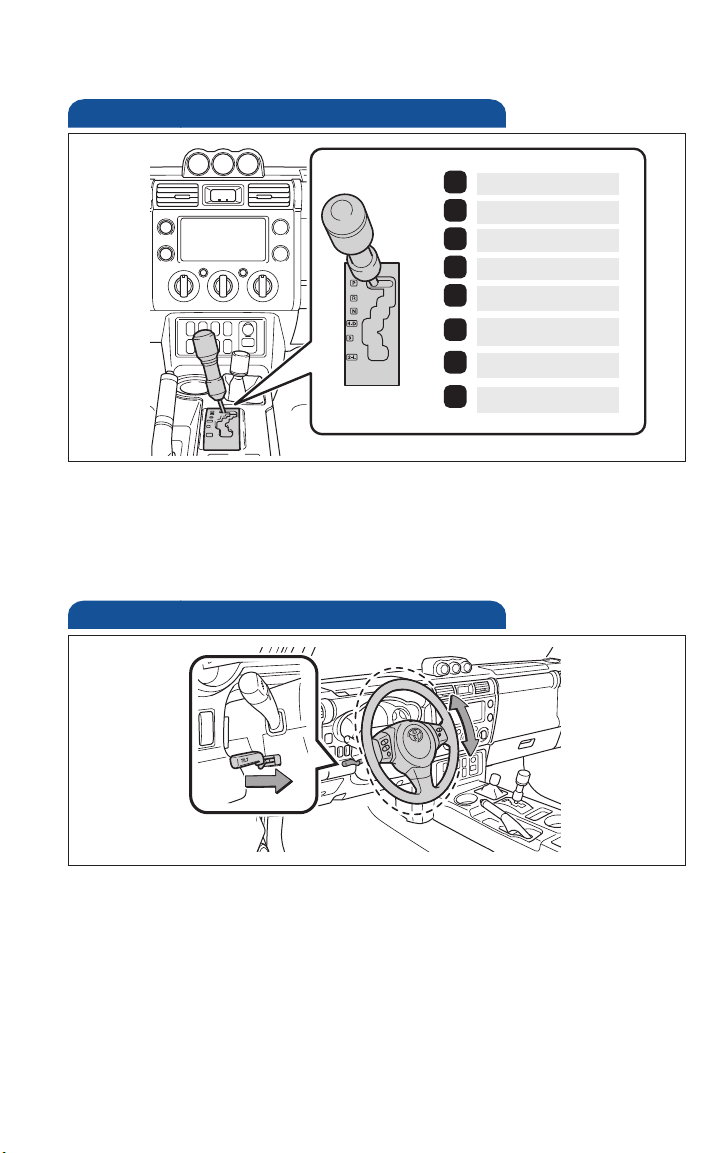

Automatic Transmission (if equipped)

Downshifting increases power going uphill, or provides engine braking

downhill. For best fuel economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear

Tilt steering wheel

Hold the steering wheel, pull the lock release lever, tilt to the desired

angle and release the lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

* The key must be in the “ON” position and the brake pedal depressed

to shift from Park.

Text_414844M2.qxd 11/2/10 4:11 PM Page 8
