TP-Link JetStream TL-SL3452 Bedienungsanleitung

Installation Guide

L2 Managed Switch

TL-SL3428/TL-SL3452

Enterprise Networking Solution



Specifications are subject to change without notice. is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such

as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause undesired operation.2)

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.



This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the

user may be required to take adequate measures.

Related Document



The User Guide and CLI Reference Guide of the product are provided on the resource

CD.

To obtain the latest product information, please visit the official website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods and

the points that should be attended to during installation.

This Installation Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of the

Switch.

Chapter 2 Installation. This chapter illustrates how to install the Switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent lightning

damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connection of

the Switch.

Chapter 5 Configuration. This chapter instructs you to configure the Switch via Web

Interface and CLI commands.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.

III



This Installation Guide is for:

Network Engineer

Network Administrator



Due to the similarity in structure of the L2 managed Switch series, in this Installation

Guide we take TL-SL3428 as an example to illustrate Chapter 2 Installation, Chapter 3

Lighting Protection, Chapter 4 Connection and Chapter 5 Configuration.

This guide uses the specific formats to highlight special messages. The following table

lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may

result in device damage.

Remind to take notice. The note contains the helpful

information for a better use of the product.

Audience



Contents

Chapter 1 Introduction ———————————— 01

1.1 Product Overview.........................................01

1.2 Appearance .................................................01

Chapter 2 Installation ————————————— 04

2.1 Package Contents.........................................04

2.2 Safety Precautions........................................04

2.3 Installation Tools..........................................06

2.4 Product Installation ......................................06

Chapter 3 Lightning Protection ———————— 08

3.1 Cabling Reasonably ......................................08

3.2 Connect to Ground .......................................10

3.3 Equipotential Bonding...................................11

3.4 Use Lightning Arrester ..................................12

Chapter 4 Connection ————————————— 13

4.1 Ethernet Port ...............................................13

4.2 SFP Port ......................................................13

4.3 Console Port ................................................14

4.4 Verify Installation .........................................14

4.5 Power On ..................................................14

4.6 Initialization.................................................15

Chapter 5 Conguration———————————— 16

5.1 Congure the Switch via GUI ........................16

5.2 Congure the Switch Using CLI .....................17

Appendix A Troubleshooting—————————— 22

Appendix B Hardware Specications —————— 23

Appendix C Technical Support ————————— 24

L2 Managed Switch





TP-LINK JetStreamTM L2 Managed Switch, designed for workgroups and departments,

provides wire-speed performance and abundant layer 2 management features. It

provides a variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection

provide robust security strategies. QoS and IGMP snooping/filtering optimize voice and

video application. Link aggregation (LACP) increases aggregated bandwidth, optimizing

the transport of business critical data. SNMP, RMON, WEB/CLI/Telnet Log-in bring

abundant management policies. TP-LINK JetStreamTM L2 Managed Switch integrates

multiple functions with excellent performance, and is friendly to manage, which can

fully meet the need of the users demanding higher networking performance.



Front Panel

■

The front panel of TL-SL3428 is shown as the following figure.

Front Panel of TL-SL3428Figure 1-1

The front panel of TL-SL3452 is shown as the following figure.

Front Panel of TL-SL3452Figure 1-2

Introduction

L2 Managed Switch

TL-SL3428

LEDs

Console Port

10/100/1000Mbps RJ45 Port

SFP Port

10/100Mbps RJ45 Port

30 32 34 36 38 40 42 44 46 48

246810 12 14 16 18 20 22 24 26 28 29 31 33

37 39 41 43 45 47

25 271 3579

11 13 15 17 19 21 23

Console

PWR

SYS

51 52

5-4-

100Mbps

10Mbps

1000Mbps

10/100Mbps

1000Base-X

LEDs

Console Port

10/100/1000Mbps RJ45 Port

SFP Port

10/100Mbps RJ45 Port

L2 Managed Switch

LEDs

LED Status Indication

PWR

On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

SYS Flashing The Switch works properly

On/Off The Switch works improperly

10/100Mbps

On A device is linked to the corresponding port, but no activity

Flashing Data is being transmitted or received

Green A 100Mbps device is connected to the corresponding port

Yellow A 10Mbps device is connected to the corresponding port

Off No device is connected to the corresponding port

1000Mbps

On A device is linked to the corresponding port, but no activity

Flashing Data is being transmitted or received

Green A 1000Mbps device is connected to the corresponding port

Yellow A 10/100Mbps device is connected to the corresponding port

Off No device is connected to the corresponding port

Note: TL-SL3428 features some “Combo”ports. A “Combo”port consists of a RJ45

port and a SFP port, and the two ports share the same LED.

Port Feature

Model 10/100Mbps RJ45

Port

10/100/1000Mbps

RJ45 Port SFP Port Console Port

TL-SL3428 24 4 2 1

TL-SL3452 48 2 2 1

10/100Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps. Each

has a corresponding 10/100Mbps LED.

10/100/1000Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port

Designed to install the SFP module.

TL-SL3428 features some SFP transceiver slots that are shared with the associated

RJ45 ports. The associated two ports are referred as a “Combo” port, which means

they cannot be used simultaneously, otherwise only SFP port works.

Console Port

Designed to connect with the serial port of a computer or terminal for monitoring

and configuring the Switch.

Introduction

L2 Managed Switch

Note:

For TL-SL3428, when using the SFP port with a 100Mbps module or a gigabit module,

■

you need log on to the GUI (Graphical User Interface) of the Switch and configure its

corresponding Speed and Duplex mode on Switching→Port→Port Config page.

For 100Mbps module, please select 100MFD while select 1000MFD for gigabit module.

By default, the Speed and Duplex mode of SFP port is 1000MFD.

For TL-SL3452, the SFP port can be only used with a gigabit module.

■

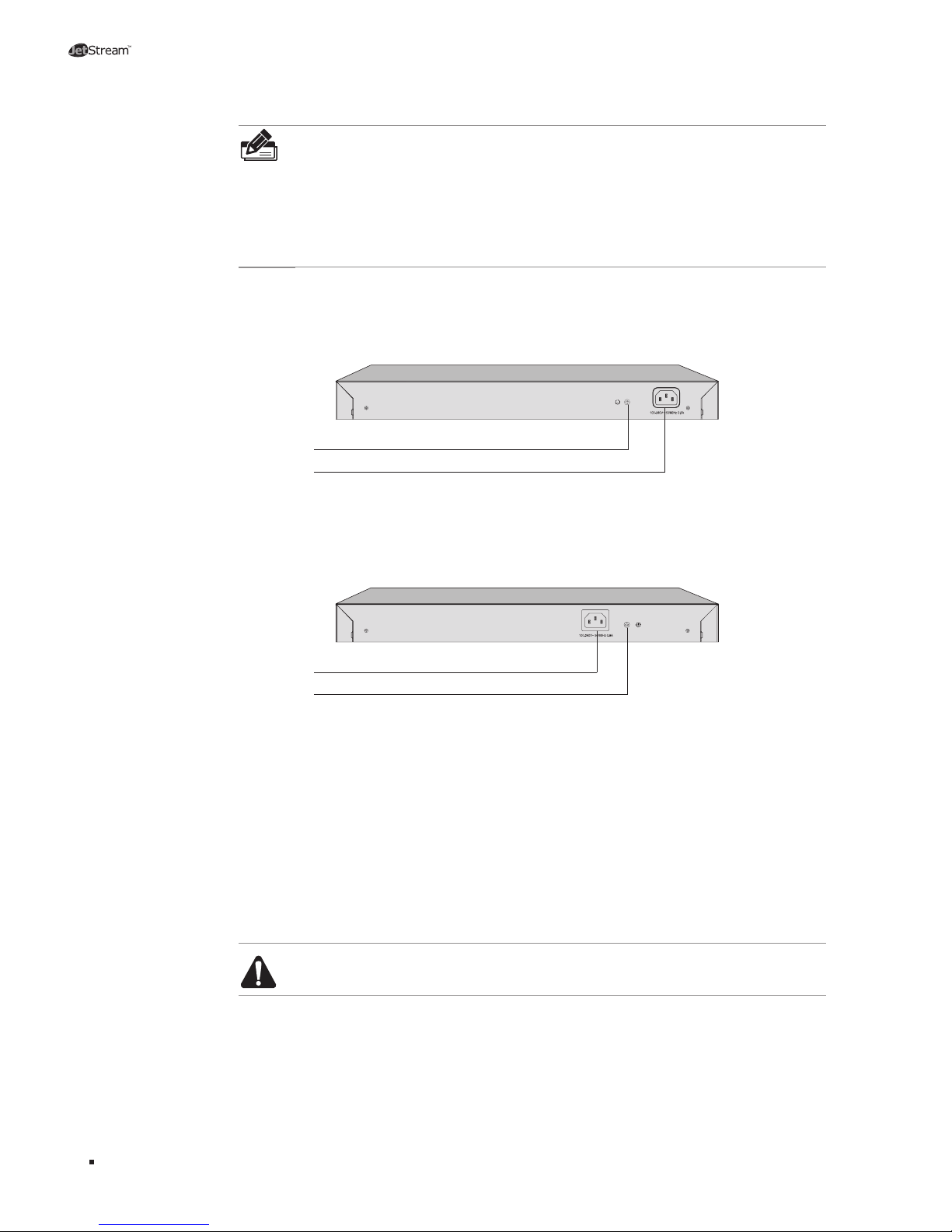

Rear Panel

■

The rear panel of TL-SL3428 is shown as the following figure.

Grounding Terminal

Power Socket

Rear Panel of TL-SFigure 1-3 L3428

The rear panel of TL-SL3452 is shown as the following figure.

Grounding Terminal

Power Socket

Rear Panel of TL-SL3452Figure 1-4

Grounding Terminal

The Switch already comes with lightning protection mechanism. You can also ground

the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Caution: Please use the provided power cord.

Introduction

L2 Managed Switch





Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Switch One Power Cord, one Console

Cable and one Ground Cable

This Installation Guide

Two mounting brackets and

the ttings

L2Managed Swi tch

TL-SL3428



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

■

skin contact and is well grounded.

Use only the power cord provided with the Switch.

■

Make sure that the supply voltage matches the specifications indicated on the rear

■

panel of the Switch.

Ensure the vent hole is well ventilated and unblocked.

■

Do not open or remove the cover of the Switch.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

■

cloth, and never use any other liquid cleaning method.

Site Requirements

■

To ensure normal operation and long service life of the device, please install it in an

environment that meets the requirements described in the following subsection.

Temperature/Humidity

ȭ

ȭ

L2Managed Switc h

TL-SL3428

Installation

L2 Managed Switch

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

L2 Managed Switch

TL-SL3428

The dust accumulated on the Switch can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the Switch, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.

■

Keep the device well grounded and ensure static electricity has been transferred.

■

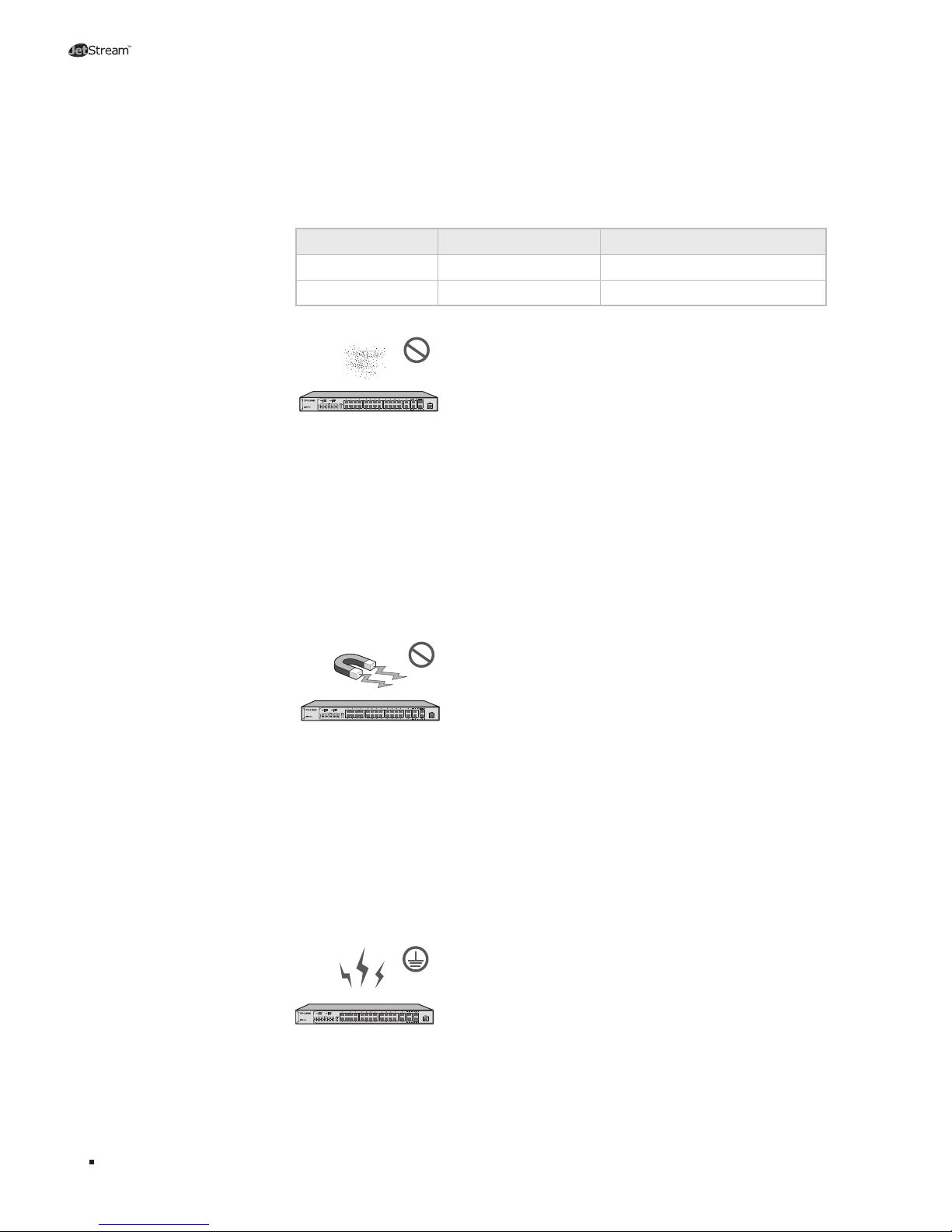

Electromagnetic Interference

L2 Managed Switch

TL-SL3428

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.

■

Keep the device far from high-frequency, strong-current devices, such as radio

■

transmitting station.

Use electromagnetic shielding when necessary.

■

Lightening Protection

L2 Managed Switch

TL-SL3428

Extremely high voltage currents can be produced instantly when lightning occurs and

the air in the electric discharge path can be instantly heated up to 20,000℃. As this

instant current is strong enough to damage electronic devices, more effective lightning

Installation

Andere Handbücher für JetStream TL-SL3452

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TP-Link Schalten Handbücher

TP-Link

TP-Link TL-SG108PE Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SG2008 Bedienungsanleitung

TP-Link

TP-Link TL-SG1210MP Bedienungsanleitung

TP-Link

TP-Link TL-SG1005D Bedienungsanleitung

TP-Link

TP-Link JetStream T2600G-28TS Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SL3428 Bedienungsanleitung

TP-Link

TP-Link JetStream T1600G-28TS Bedienungsanleitung

TP-Link

TP-Link HS220 Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SL3452 Bedienungsanleitung

TP-Link

TP-Link TL-SG108PE Bedienungsanleitung

TP-Link

TP-Link UH700 Bedienungsanleitung

TP-Link

TP-Link kasa smart KS200 Bedienungsanleitung

TP-Link

TP-Link Kasa KS200M Bedienungsanleitung

TP-Link

TP-Link TL-SG108PE Bedienungsanleitung

TP-Link

TP-Link JetStream T3700G-52TQ Bedienungsanleitung

TP-Link

TP-Link UH400 Bedienungsanleitung

TP-Link

TP-Link TL-SF1005D Bedienungsanleitung

TP-Link

TP-Link TL-SF1005P Bedienungsanleitung

TP-Link

TP-Link HS210 KIT Bedienungsanleitung

TP-Link

TP-Link TL-SL2210WEB Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SG3424 Bedienungsanleitung

TP-Link

TP-Link UH720 Bedienungsanleitung

TP-Link

TP-Link TL-SG1016DE Bedienungsanleitung

TP-Link

TP-Link TL-SX105 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
