Installation Guide

Unmanaged/Easy Smart Rackmountable Switches

Business Networking Solution

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• When using this guide, notice that features available in JetStream series products may vary by

model and software version. Availability of JetStream series products may also vary by region or

ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your

actual experience. Some models featured in this guide may be unavailable in your country or

region. For local sales information, visit https://www.tp-link.com.

• The speed of the ports in Extend Mode will downgrade to 10 Mbps. The actual transmissio

distance may vary due to power consumption of PoE-powered devices or the cable quality and

type.

• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not

guaranteed and will vary as a result of client limitations and environmental factors.

• This guide uses the specific formats to highlight special messages. The following table lists the

notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and product information, visit the official website: https://www.tp-link.com.

Contents

Chapter 1 Introduction ––––––––––––––––––––––– 1

1.1 Product Overview............................................................. 1

1.2 Appearance ........................................................................ 1

Chapter 2 Installation –––––––––––––––––––––––– 9

2.1 Package Contents............................................................ 9

2.2 Safety Precautions........................................................... 9

2.3 Installation Tools ............................................................... 11

2.4 Product Installation.......................................................... 11

Chapter 3 Connection–––––––––––––––––––––––– 13

3.1 Ethernet Port...................................................................... 13

3.2 SFP Port ............................................................................... 13

3.3 Verify Installation .............................................................. 13

3.4 Power On ............................................................................. 14

3.5 Initialization ......................................................................... 14

3.6 Accessing the Switch ..................................................... 14

Appendix A Troubleshooting –––––––––––––––––– 16

Appendix B Specications –––––––––––––––––––– 17

Unmanaged/Easy Smart Rackmountable Switches

Introduction

Chapter 1 Introduction

1.1 Product Overview

The Unmanaged/Easy Smart Switch provides you with a low-cost, easy-to-use, high-performance,

seamless, and standard upgrade to improve your network to 100 Mbps or 1000 Mbps.

TL-SG1008MP/TL-SG1016PE/TL-SG1218MP/TL-SG1218MPE/TL-SG1428PE is also a Power Sourcing

Equipment (PSE*). The RJ45 port 1–8 on TL-SG1008MP and TL-SG1016PE, 10/100/1000 Mbps

RJ45 port 1–16 on TL-SG1218MP and TL-SG1218MPE, and 10/100/1000 Mbps RJ45 port 1–24 on

TL-SG1428PE support the Power over Ethernet (PoE*) function, which can automatically detect and

supply power to those powered devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at.

Note:

■*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.

■*PoE is a technology that describes a system to transmit electrical power, along with data, to

remote devices over standard twisted-pair cable in an Ethernet network.

■*PD is a device powered by a PSE and thus consumes energy. Examples include powering

IP telephones, wireless LAN access points, network cameras, network hubs, embedded

computers, and so on.

1.2 Appearance

■Front Panel

The front panel of TL-SG1008 is shown as the following figure.

Figure 1-1 Front Panel of TL-SG1008

Power

123456 7 8

Link

Act

1000Mbps

TL-SG1008 8-Port Gigabit Switch

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1008MP is shown as the following figure.

Figure 1-2 Front Panel of TL-SG1008MP

10/100/1000 Mbps RJ45 PortLEDs

Unmanaged/Easy Smart Rackmountable Switches

Introduction

The front panel of TL-SF1016 is shown as the following figure.

Figure 1-3 Front Panel of TL-SF1016

10/100 Mbps

RJ45 Port

LEDs

The front panel of TL-SF1016DS is shown as the following figure.

Figure 1-4 Front Panel of TL-SF1016DS

10/100 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1016 is shown as the following figure.

Figure 1-5 Front Panel of TL-SG1016

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1016D is shown as the following figure.

Figure 1-6 Front Panel of TL-SG1016D

10/100/1000 Mbps

RJ45 Port

LEDs

Unmanaged/Easy Smart Rackmountable Switches

Introduction

The front panel of TL-SG1016S is shown as the following figure.

Figure 1-7 Front Panel of TL-SG1016S

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1016DE is shown as the following figure.

Figure 1-8 Front Panel of TL-SG1016DE

Reset 10/100/1000 Mbps RJ45 Port

LEDs

The front panel of TL-SG1016PE is shown as the following figure.

Figure 1-9 Front Panel of TL-SG1016PE

Reset 10/100/1000 Mbps RJ45 PortLEDs

The front panel of TL-SF1024 is shown as the following figure.

Figure 1-10 Front Panel of TL-SF1024

10/100 Mbps

RJ45 Port

LEDs

Unmanaged/Easy Smart Rackmountable Switches

Introduction

The front panel of TL-SF1024D is shown as the following figure.

Figure 1-11 Front Panel of TL-SF1024D

10/100 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1024 is shown as the following figure.

Figure 1-12 Front Panel of TL-SG1024

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1024D is shown as the following figure.

Figure 1-13 Front Panel of TL-SG1024D

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1024S is shown as the following figure.

Figure 1-14 Front Panel of TL-SG1024S

10/100/1000 Mbps

RJ45 Port

LEDs

Unmanaged/Easy Smart Rackmountable Switches

Introduction

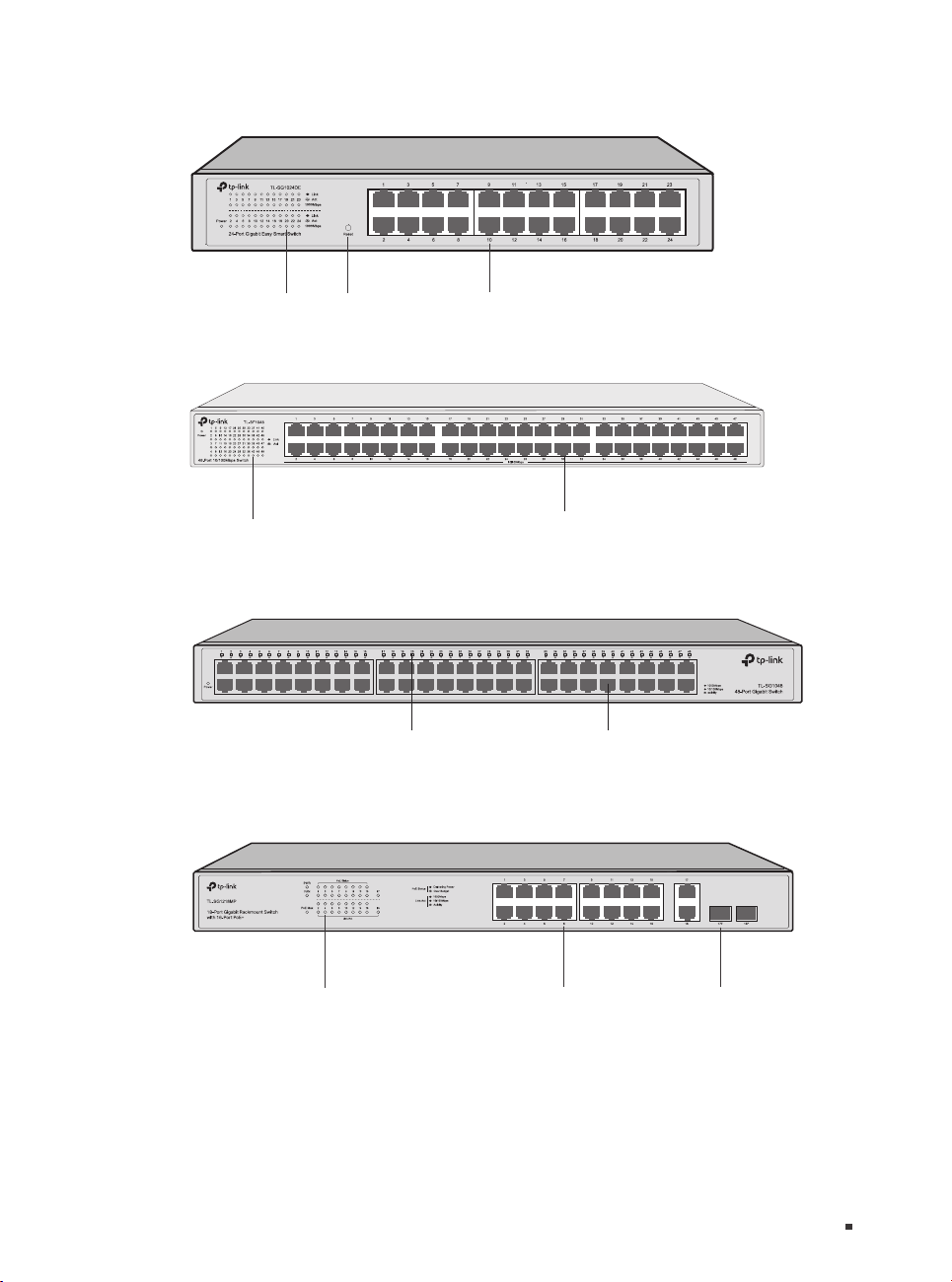

The front panel of TL-SG1024DE is shown as the following figure.

Figure 1-15 Front Panel of TL-SG1024DE

Reset 10/100/1000 Mbps RJ45 PortLEDs

The front panel of TL-SF1048 is shown as the following figure.

Figure 1-16 Front Panel of TL-SF1048

10/100 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1048 is shown as the following figure.

Figure 1-17 Front Panel of TL-SG1048

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of TL-SG1218MP is shown as the following figure.

Figure 1-18 Front Panel of TL-SG1218MP

10/100/1000 Mbps

RJ45 Port

LEDs SFP Port

Unmanaged/Easy Smart Rackmountable Switches

Introduction

The front panel of TL-SG1218MPE is shown as the following figure.

Figure 1-19 Front Panel of TL-SG1218MPE

10/100/1000 Mbps

RJ45 Port

ResetLEDs SFP Port

The front panel of TL-SG1428PE is shown as the following figure.

Figure 1-20 Front Panel of TL-SG1428PE

LEDs Reset SFP Port10/100/1000 Mbps RJ45 Port

LED Indication

Power

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

Note: PWR for TL-SG1016PE/TL-SF1024/TL-SG1218MP/TL-SG1218MPE/TL-SG1428PE;

Power for other switches.

1000Mbps

On: Running at 1000 Mbps.

Off: Running at 10/100 Mbps or no device is linked to the corresponding port.

Note: For TL-SG1008/TL-SG1008MP/TL-SG1016/TL-SG1016D/TL-SG1016S/

TL-SG1016DE/TL-SG1024/TL-SG1024D/TL-SG1024S/TL-SG1024DE.

Link/Act

On: A device is linked to the corresponding port and running properly.

Flashing: Transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: For TL-SG1008/TL-SG1008MP/TL-SF1016/TL-SG1016/TL-SG1016D/TL-SG1016S/

TL-SF1016DS/TL-SG1016DE/TL-SF1024/TL-SF1024D/TL-SG1024/TL-SG1024D/

TL-SG1024S/TL-SG1024DE/TL-SF1048.

Green On: Running at 1000 Mbps but no activity.

Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.

Yellow on: Running at 100/10 Mbps but no activity.

Yellow Flashing: Running at 100/10 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: For TL-SG1048, port 1–18 of TL-SG1218MP/TL-SG1218MPE, and port 1–26 of

TL-SG1428PE.

Port 17F–18F of TL-SG1218MP/TL-SG1218MPE, and port 27–28 of TL-SG1428PE only

support 1000M SFP module connection, and they just have Green On/Green Flashing/

Off LED indications
