TP-Link TL-SL1226 Bedienungsanleitung

User Guide

TL-SL1210

8-Port 10/100Mbps + 2-Port Gigabit Switch

TL-SL1117

16-Port 10/100Mbps + 1-Port Gigabit Switch

TL-SL1226

24-Port 10/100Mbps + 2-Port Gigabit Switch

TL-SL1351

48-Port 10/100Mbps + 3-Port Gigabit Switch

Rev: 2.0.0

7106503252

Specifications are subject to change without notice. is a

registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and

product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or

used to make any derivative such as translation, transformation, or adaptation

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that

may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

EC DECLARATION OF CONFORMITY (EUROPE)

In compliance with the EMC Directive 89/336/EEC, Low Voltage Directive 73/23/

EEC, this product meets the requirements of the following standards:

¾EN55022

¾EN55024

¾EN60950

CE MARK WARNING

This is a class A product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

SAFETY NOTICES

Cautions:

Do not use this product near water, for example, in a wet basement or near a

swimming pool.

Avoid using this product during an electrical storm. There may be a remote risk of

electric shock from lightning.

CONTENTS

Package Contents:.............................................................................1

Chapter 1 Introduction of the Product .........................................1

1.1 Overview of the product .................................................................... 1

1.2 Features ............................................................................................ 2

Chapter 2 Installation.....................................................................2

2.1 Mounting the Switch on a Desk ......................................................... 2

2.2 Mounting the Switch in a Rack .......................................................... 3

2.3 Mounting the SFP Module (for TL-SL1351 Only) .............................. 4

2.4 Power on ........................................................................................... 4

Chapter 3 Identifying External Components................................4

3.1 Front Panel........................................................................................ 4

3.2 Rear Panel ........................................................................................ 5

Appendix A: Specifications...............................................................6

Package Contents

The following items should be found in your box:

¾One Switch

¾One power cord

¾This User's Guide

¾Rubber footpads for Desk-mount

¾Rack-mount kit for installing the switch in a 19-inch rack

Note:

Make sure that the package contains the above items. If any of the listed items are

damaged or missing, please contact with your distributor.

Chapter 1 Introduction of the Product

This chapter describes the features of the TL-SL1210 / TL-SL1117 / TL-SL1226 /

TL-SL1351 Gigabit Switch. TL-SL1210, TL-SL1117, TL-SL1226 and TL-SL1351

just differ in the number of LED indicators and ports, and all figures in this user

guide are of TL-SL1351.

1.1 Overview of the product

The TL-SL1210/TL-SL1117/TL-SL1226/TL-SL1351 Gigabit Switch provides you

with a high-performance, low-cost, easy-to-use, seamless and standard upgrade

to boost your old network to 1000Mbps. Increase the speed of your network server

and backbone connections, make Gigabit connection to a server or uplink a

network necessarily.

The TP-LINK TL-SL1210/TL-SL1117/TL-SL1226/TL-SL1351 features a non-

blocking switching architecture that forwards and filters packets at full wire-speed

for maximum throughput. MAC address auto-learning and auto-aging, IEEE802.3x

flow control for Full Duplex mode and backpressure for Half Duplex mode. It is

compatible with all 10,100, and 1000Mbps Ethernet devices because it is

standard-based.

The TL-SL1210/TL-SL1117/TL-SL1226/TL-SL1351 is plug-and-play and no

configuration is required. Auto MDI/MDIX cable detection on all ports eliminate the

need for crossover cable or Uplink port. Each port can be used as general ports or

Uplink ports, and any port can be simply plugged into a server, a hub, a router or a

switch, using the straight cable or crossover cable. Diagnostic LEDs which display

link status and activity, allowing you to quickly detect and correct problems on the

network.

1.2 Features

¾Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z (for TL-

SL1351 only) standards

¾8/16/24/48 10/100Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX

¾2/1/2/2 10/100/1000Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX

¾1 SFP(Small Form Pluggable) module interface (For TL-SL1351 only)

¾Supports Auto MDI / MDIX cable detection on all ports eliminate the need for

crossover cable or Uplink port

¾Non-blocking switching architecture that forwards and filters packets at full

wire -speed for maximum throughput

¾Supports MAC address auto-learning and auto-aging

¾Supports IEEE802.3x flow control for full-duplex model and backpressure for

half-duplex transfer model

¾LED indicators for monitoring power, link, activity, speed

¾Internal power supply

Chapter 2 Installation

2.1 Mounting the Switch on a Desk

Before place the Switch on a desk, attach four rubber footpads to the flutes on the

Switch bottom, then lay the Switch on the desktop, where can be have as much as

5kg placed on top.

Note:

Make sure there is a grounded AC outlet within 1.5 meters, and working well.

Make sure there is free space for radiating heat and air. Make sure not to place

anything too heavy on top of the switch.

2.2 Mounting the Switch in a Rack

The dimension of TL-SL1210/TL-SL1117/TL-SL1226/TL-SL1351 is designed

according to the standard 19'' rack- mountable steel case of Electronic Industries

Association.

Turn off all the equipment connected to the Switch before mounting it in the rack,

then rivet the two “L” brackets onto each side of the Switch, fasten it with screws in

the rack.

Note:

For TL-SL1210, the “L” brackets will differ in size.

Figure 2-1 Rivet the ‘L’brackets onto the Switch

Figure 2-2 Fasten the Switch in the rack

2.3 Mounting the SFP Module (for TL-SL1351 Only)

The front panel of the TL-SL1351 consists of a SFP module, which support The

Hot Plug- And- Draw. Should fixed the SFP into SFP pluggable when use the SFP

module. The switch could identify and configure the SFP module automatically.

2.4 Power on

TL-SL1210/TL-SL1117/TL-SL1226/TL-SL1351 Gigabit Switch is powered by AC

power supply. Powering on the Switch, it will automatically initialize and its LED

indicators should respond as follows:

1) All of the LED indicators will flash momentarily for one second, which

represents a resetting of the system.

2) The power LED indicator will remain ON.

Chapter 3 Identifying External Components

This Chapter describes the front panel, rear panel and LED indicators of the

Switch (here takes TL-SL1351 for example).

3.1 Front Panel

The front panel of TL-SL1351 consists of switch LED indicators, 48 10/100Mbps

RJ-45 ports, 2 10/100/1000Mbps RJ-45 ports and 1 SFP module.

Note:

The SFP module is only for TL-SL3151.

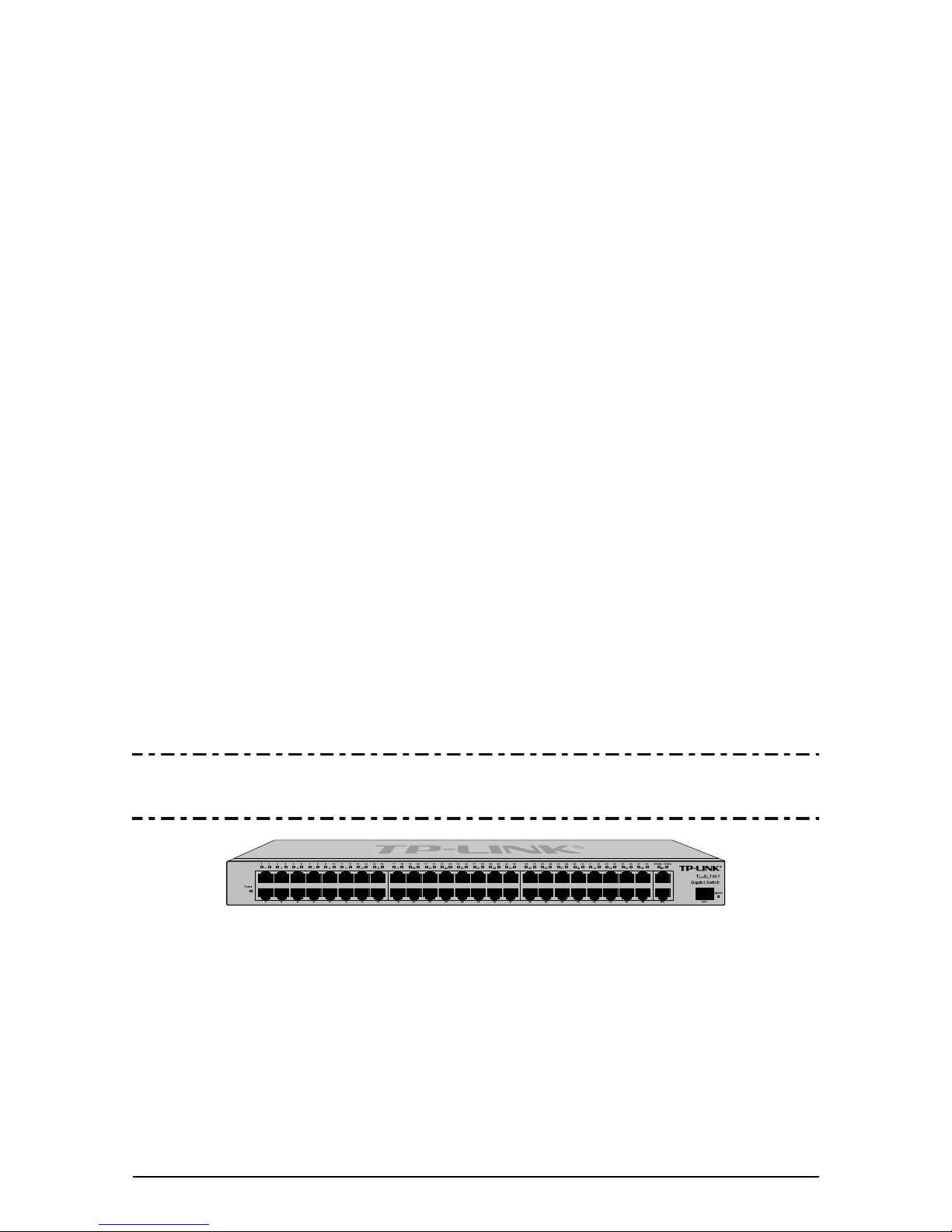

Figure 3-1 TL-SL1351 Switch Front Panel sketch

The LED indicators include Power, Link/Act, 1000Mbps and 100Mbps LED

indicators, which are used for monitoring and pre-troubleshooting of the Switch.

The following section explains the status of LED indicators for the Switch along

with an explanation of each indicator.

¾Power LED: This indicator will light solid red when the Switch powers up. If

the LED is not lit, please check the power supply and connection.

¾1000M LED: The corresponding gigabit port LED indicator will light solid

green when the gigabit port connected to a 1000Mbps device. It flashes green

when data is being transmitted or received on the working connection.

¾100M LED: The corresponding 100M port LED indicator will light solid green

when the 10/100M port connected to a 100Mbps device. It flashes green

when data is being transmitted or received on the working connection.

¾Link/Act LED: This indicator will light solid green when the corresponding

port is connected correctly. It flashes green when data is being transmitted or

received on the working connection.

3.2 Rear Panel

The rear panel of the TL-SL1351 features a power receptacle, which is an AC

power receptacle. Connect the female of the power cord head here, and the male

head to the AC power outlet.

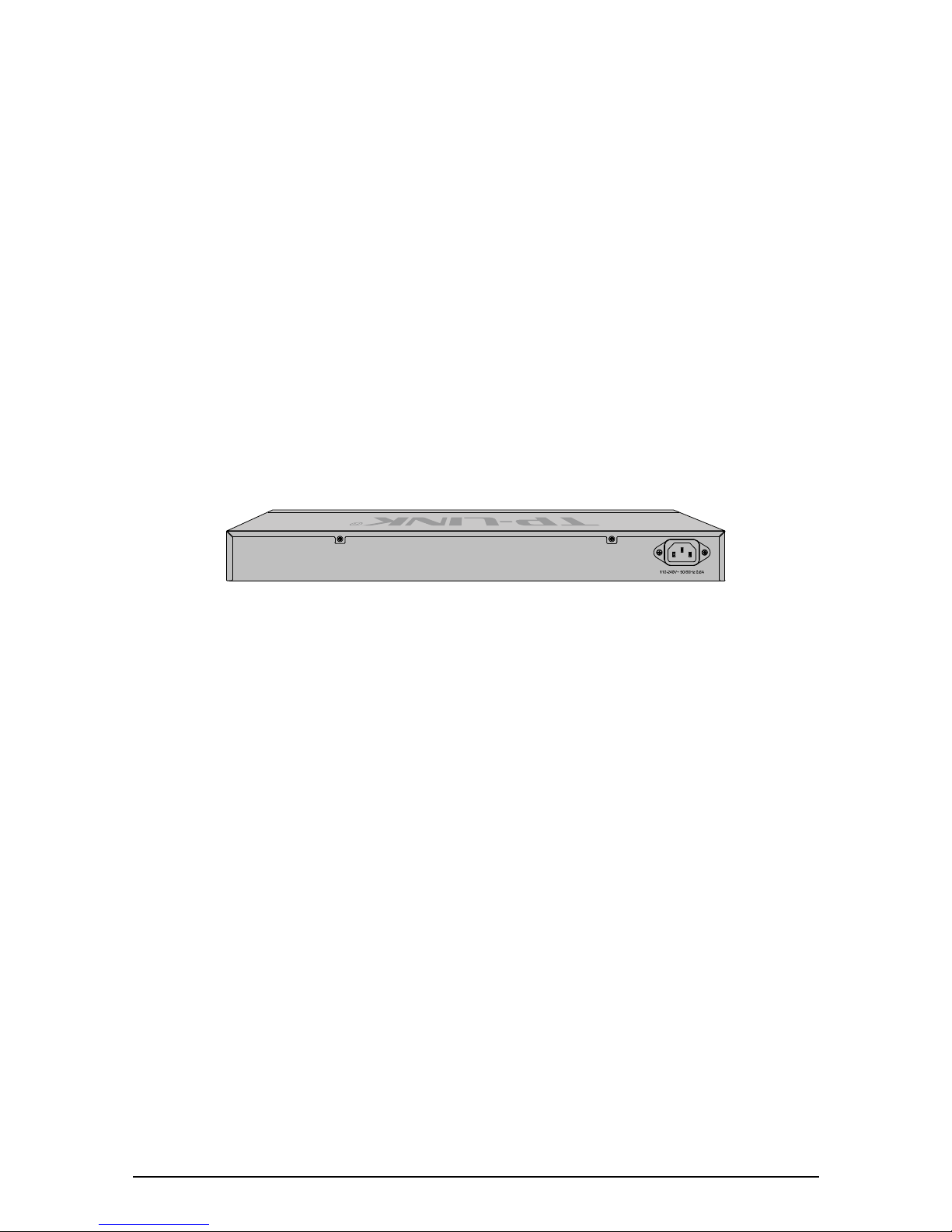

Figure 3-2 TL-SL1351 Switch Rear Panel sketch

Appendix A: Specifications

General

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X (for TL-SL1351 only)

Standards

ANSI/IEEE Std 802.3 Nway

IEEE802.3x

Protocol CSMA/CD

Ethernet: 10Mbps (Half Duplex), 20Mbps (FullDuplex)

Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)

Data

Transfer

Rate Gigabit Ethernet: 2000Mbps (Full Duplex)

Topology Star

UTP category 3, 4, 5 cable (maximum 100m)

10Base-T:

EIA/TIA-568 100ΩSTP (maximum 100m)

UTP category 5, 5e cable (maximum 100m)

100Base-TX:

EIA/TIA-568 100ΩSTP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

62.5 u m multi mode fiber (maximum 275m)

1000Base-SX (for

TL-SL3151 only): 50 u m multi mode fiber (maximum 550m)

62.5 u m multi mode fiber (maximum 550m)

50 u m multi mode fiber (maximum 550m)

Network

Media

(Cable)

1000Base-LX (for

TL-SL3151 only): 9 u m/10 u m single mode fiber (maximum

5km)

8/16/24/48 10/100Mbps Auto-Negotiation RJ-45 ports

2/1/2/2 10/100/1000Mbps Auto-Negotiation RJ-45 ports

Number of

Ports

1 SFP module Interface (for TL-SL1351 only)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TP-Link Schalten Handbücher

TP-Link

TP-Link JetStream TL-SG5412F Bedienungsanleitung

TP-Link

TP-Link TL-SG2424P Bedienungsanleitung

TP-Link

TP-Link TL-SL2210WEB Bedienungsanleitung

TP-Link

TP-Link TL-SG105PP-M2 Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SL3452 Bedienungsanleitung

TP-Link

TP-Link JetStream T2600G-18TS Bedienungsanleitung

TP-Link

TP-Link SG6654X Bedienungsanleitung

TP-Link

TP-Link TL-SG1008P Bedienungsanleitung

TP-Link

TP-Link TL-SG2216 Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SL5428E Bedienungsanleitung

TP-Link

TP-Link Tapo S200D Bedienungsanleitung

TP-Link

TP-Link kasa smart KS200 Bedienungsanleitung

TP-Link

TP-Link TL-SX1008 V1 Bedienungsanleitung

TP-Link

TP-Link TL-SX105 Bedienungsanleitung

TP-Link

TP-Link Jetstream Series Bedienungsanleitung

TP-Link

TP-Link TL-SX3206HPP Bedienungsanleitung

TP-Link

TP-Link Tapo S200D Bedienungsanleitung

TP-Link

TP-Link TL-SG1008PE Bedienungsanleitung

TP-Link

TP-Link TL-SG108PE Bedienungsanleitung

TP-Link

TP-Link TL-SF1008P Bedienungsanleitung

TP-Link

TP-Link TL-SG2216 Bedienungsanleitung

TP-Link

TP-Link TL-SF1008P Bedienungsanleitung

TP-Link

TP-Link TL-SL2428 Bedienungsanleitung

TP-Link

TP-Link tapo S505 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
