TPL VISION BLBAR+ Bedienungsanleitung

Preamble

rISk claSS

Colour Class Risk

White WHI, Green 525 nm, Red 630 nm 0none

UV 405 nm, Blue 470 nm, IR 850 nm 1low

UV 365 nm 2moderate

UV 385 nm 3high

In all cases, TPL Vision recommends

the use of the protection glasses

that are listed in its catalog.

For more information about photo-

biological risks, do not hesitate to

USer gUIde

BEWARE to the infrared light, invisible to the eyes.

To know if the light is on, please refer to the LED indicators.

The EN-62471 norm about lighting uxes enables the classication of led lightings in 4 distinct groups, according

to their hazardousness degree. Please nd below an indicative table, recapitulating the classes of risk for our

standard products.

This Technical User Guide contains warnings and guidance for correct and safe operation of the product.

These instructions must be followed at all times. TPL Vision will not be held responsible for problems caused

by using the product contrary to these instructions and the Warranty will be deemed invalid.

TPL Vision can provide guidance notes about the nominal distance to minimize eye risks.

UnPackIng

Products are packed in our factory, using suitable materials for a safe transport through the usual means of trans-

portation, in France and internationally. However, a damaged package must be reported to the carrier on delivery.

Hand-written reservations must be indicated on the delivery order. Moreover, please send a letter or an email to

TPL Vision as soon as possible (up to 24 hours after the delivery). If the transportation damage has not been stipu-

lated on the delivery order and reported to TPL Vision in time, the package will not be taken back nor exchanged.

To open the package, do not use any cutting blade to avoid damaging the product(s). Please use the delivered

accessories, if needed (do not use any other products or equivalents to replace the delivered accessories).

USer gUIde P2/8

* Total length, without connector.

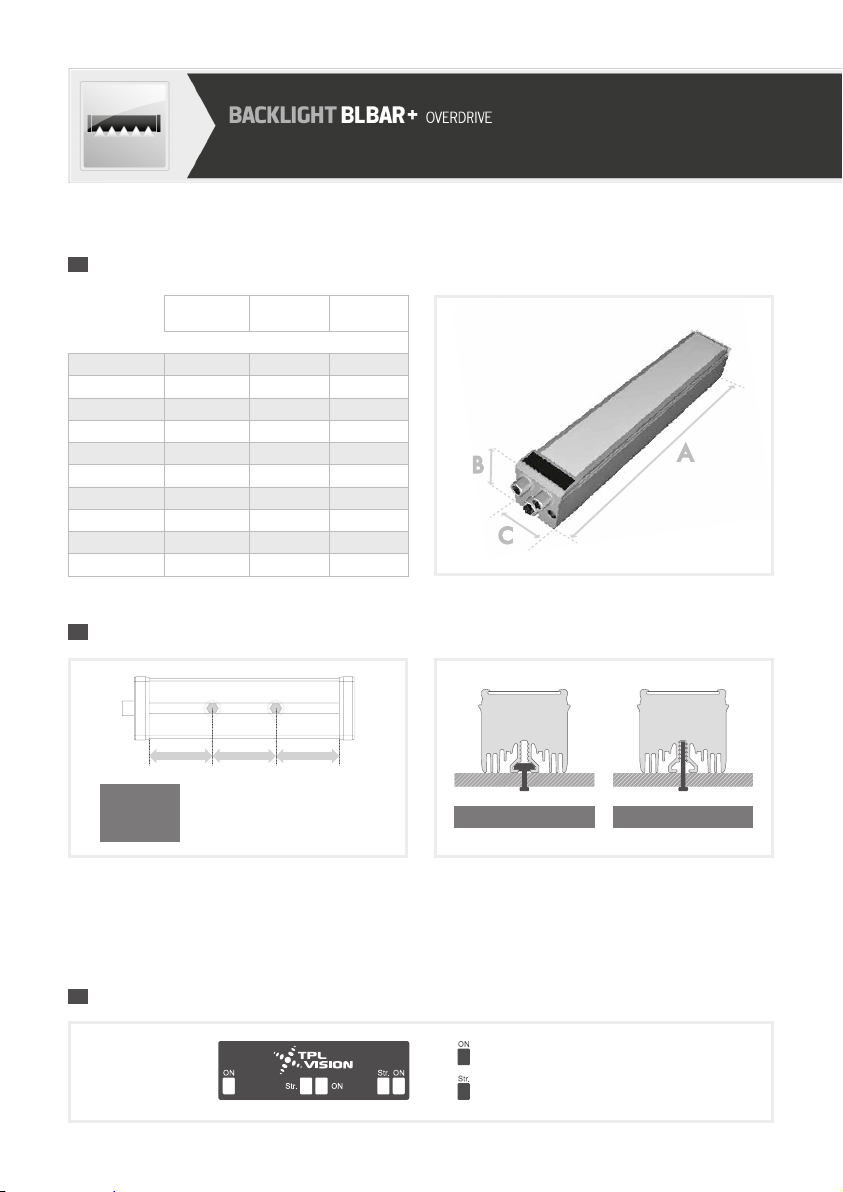

dImenSIonS

Length

(mm)

Height

(mm)

Width

(mm)

A B C

BLBAR+125 158 45 47.6

BLBAR+250 283 45 47.6

BLBAR+375 408 45 47.6

BLBAR+500 533 45 47.6

BLBAR+625 658 45 47.6

BLBAR+750 783 45 47.6

BLBAR+875 908 45 47.6

BLBAR+1000 1033 45 47.6

BLBAR+1125 1158 45 47.6

BLBAR+1250 1283 45 47.6

fIxIng

led IndIcatorS

: Strobe LED indicator

: Power LED indicator

SET AT

EQUAL

DISTANCE

nLength (Lg) < 600 mm : 2 M4 nuts

n600 mm < Lg < 1250 mm : 3 M4 nuts Nuts M4 – supplied Screws M4 – not supplied

During the set up, the light has to be switched off and unplugged. Please use the delivered nuts and insert them

in the groove located in the back of the light. The light will be better xed if you spread the attachment points as

indicated on the scheme above. You can also use M4 screws (not supplied) with a tightening torque from 0.5 to

1.5Nm. We also recommend the use of a threadlocker (not supplied) to avoid any risk of loosening.

P3/8

WIrIng

daISy chaIn

LIGHT N°1

LIGHT N°2

24V

24V Drive

Linking

cable

24V

:signal

:power

M12

4 male

points

T coding

M12

5 male

points

M12

5 female

points

M12

4 male

points

T coding

M12

5 male

points

M12

5 female

points

24V

Use an extension cable male-female M12-M12 5 x 0,342

Front view Top view

M12

5 FEMALE

POINTS

M12

5 MALE

POINTS

M12

4 MALE

POINTS

T CODING

USer gUIde P4/8

connectIon

M12 Connector

5 male points - DRIVE

PNP PNP + dimming NPN NPN + dimming

3NA

5DIM 0-10V

STROBE

NPN

STROBE

PNP

black

brown

blue

grey

white

Light will be in continuous mode by leaving signal on strobe input active.

24 VDC

Dim

0-10V

GND

Dim

0-10V

GND

24 VDC

M12 Connector

4 male points - POWER

+ 24 V

Ground

CONNECTION

POWER CONNECTOR – T CODING

2white

4black

brown

+ 24 V

3GND

GND

blue

The M12 male connector 5 points is COMPLIANT with the M12 female connector 4 points.

In that case, the dimming option is not available.

VOLTAGE DROP

Dimensions 125 250 375 500 625 750 875 1000 1125 1250

Max voltage drop in the bar (V) 0.01 0.03 0.06 0.12 0.18 0.26 0.35 0.46 0.58 0.72

Power supply cable : 4x1,5² max length

for acceptable voltage drop (m)* >150 >150 >150 >150 138 112 94 80 68 59

Linking cable : 5x0,34² max length

for acceptable voltage drop (m)

No restriction if each bar has its own power supply cable

please contact us for other conguration

* For longer power supply cable, increase the section of the copper wire.

P5/8

control

The product is optimised for a lifespan >50kh in a 40°C atmosphere.

In strobe mode, the strobing time is directly equivalent to the time during which the strobe entry is activated.

Strobe PnP & nPn

PNP : from 5 to 24V for 100% ON. From 0 to 1V for 100% OFF.

NPN : less than 1V for 100% ON. Above 2V for 100% OFF. Max 20V.

Strobe mode

STROBE INPUT

>2 ms

2 ms

15 µs 15 µs 15 µs 15 µs

LIGHT

30%

100%

Triggering input >2 ms Triggering input <2 ms

1 ms

Strobe mode: LED are supplied in Overdrive.

Continuous mode: after 2ms in Overdrive, LED are supplied at a safe level for use in continuous mode.

D max (%) t max f max

CW 100% CW N/A

Strobe 5% 2 ms 750 Hz

D : Duty Cycle

t : pulse duration

f : frequency

USer gUIde P6/8

eqUIPment maIntenance

CLEANING (when the product is switched off)

Please use a soft and dry cloth. Do not use any abrasive material.

Do not use any cleaning solvent or aggressive chemical product.

TPL Vision recommends to use isopropyl alcohol.

oPeratIng condItIonS

-10° to +40°C / 80% of humidity without condensation.

No thermal shock (max temperature variation: 10°C in 24h).

PoWer SUPPly

125 250 375 500 625 750 875 1000 1125 1250

Power needed in Strobe (W) 48 96 144 192 240 288 336 384 432 480

Power needed in Continuous Working (W) 11.1 22.2 33.3 44.4 55.5 66.6 77.7 88.8 99.9 111

Min. functioning Voltage 20V in the light input

Normal functioning Voltage 24V in the light input (±10%)

Max. functioning Voltage 30V in the light input

dImmIng 0-10V

30%

50%

70%

100%

0 2 4 6 8 10

VOLTS

Dimming between 0 & 10 V

At 0 Volts, the product reaches

100% of its lighting power. Only

usable in the Overdrive mode.

Please consider a tolerance of ±5%

when measuring the dimmed bri-

ghtness levels.

P7/8

USer SecUrIty

Please respect the power supply voltages and the connection terminals.

Do not modify or dismantle all or part of the product.

Do not connect or clean when power is on.

Do not watch the lighting source directly, and follow the advice below :

• If the workstation enables it, interpose a lter that will stop the lighting radiation under xed or adjustable

frame between the source and the operator.

• When these measures cannot be implemented, supply the operators with glasses (class 4) available for sale

at TPLVision, or with a dedicated protective mask, that will stop the lighting radiation.

• Forbid or limit the direct access to the lighting source (exposure into the radiation axis).

• Establish a security perimeter so as to prevent the operators from approaching the lighting source beyond

therecommendations of the manufacturer, as for eye irritation is concerned.

• In any case, ensure that the chosen means properly reduce the exposition quantities (features of screens or

glasses to be chosen, according to the wavelengths that the operators are exposed to).

TPL VISION UK

Brenchley House – School Road – Charing – Kent TN27 0JW – UK

Tel. +44 (0)1738 310 392 – www.tpl-vision.com

Features and presentations liable to changes without notice. Documentation valid from June 2017 until further notice. Ref.UG-010103-C1, 2020/09 edition.
