Tradesman CP125 Handbuch

GENERAL HAZARD WARNING

FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH

THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS,

OR DAMAGE FROM THE HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON

MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD

USE OR SERVICE THIS HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTION

MANUAL, LABELS, ETCETERA, CONTACT THE MANUFACTURER.

CONSUMER: Retain this manual for future reference.

150-30825 REV.%

USER’S MANUAL AND OPERATING INSTRUCTIONS

PROPANE

CONSTRUCTION HEATER

CP125 (70,000/125,000 BTU/HR, FORCED - AIR)MODEL:

ANS Z83.7-201 CSA 2.14-201

Adequate ventilation must be provided.

Questions, problems, missing parts? Contact your L.B. White dealer

or call our customerservice department at 800-345-7200

or email us at [email protected]

www.lbwhite.com

• General Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

• Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

• Unpacking Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• Size & Capacity Of Propane Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

• Installation To The Propane Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

• Leak Checking & Positioning Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

• Lighting & Shutdown Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9

• Test Firing Heater & Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

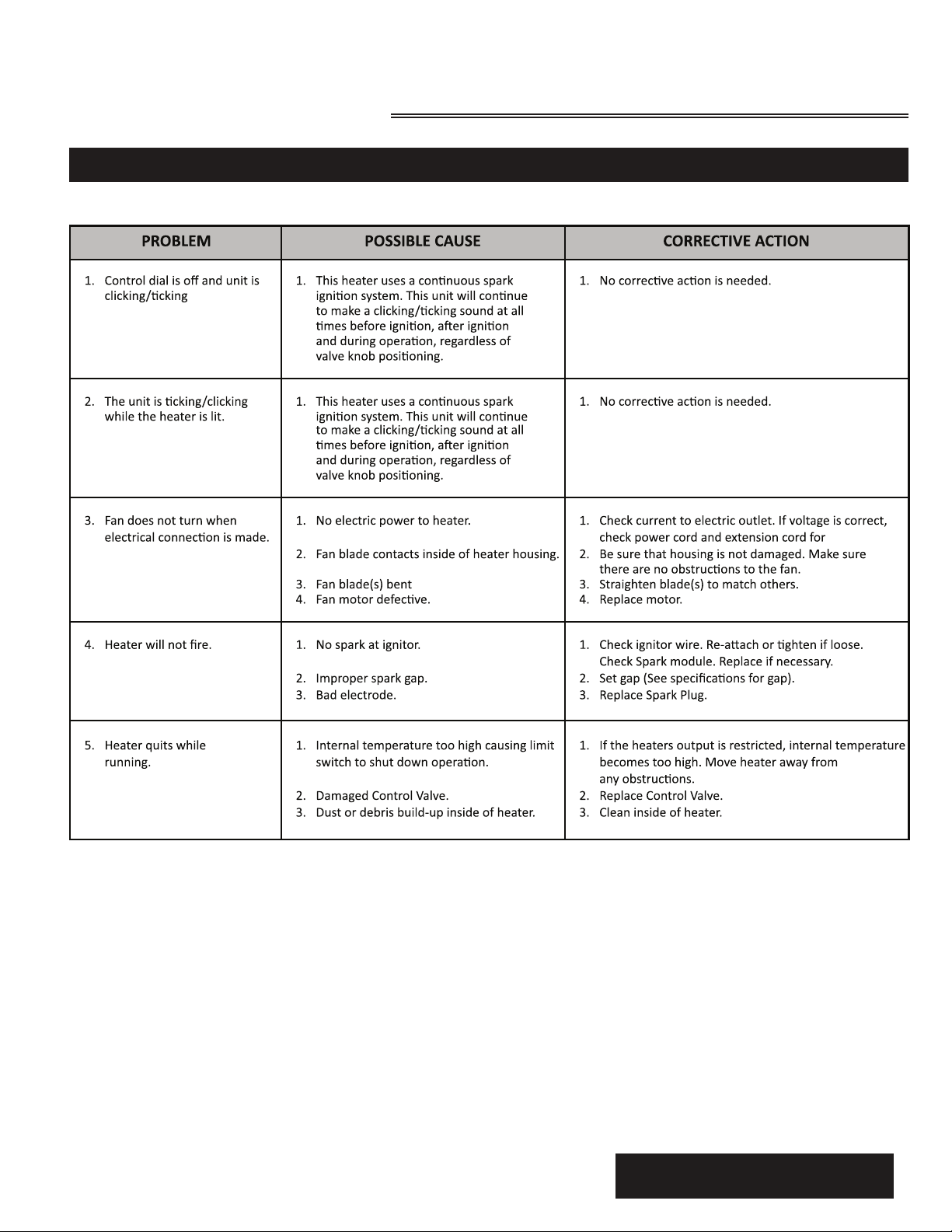

• Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

• Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

PROPANE CONSTRUCTION HEATER ILLUSTRATED / PARTS BREAKDOWN:

CP125 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

• Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

TABLE OF CONTENTS

WARNING: NOT FOR HOME OR RECREATIONAL VEHICLE USE.

WARNING

: FIRE, BURN, INHALATION, AND EXPLOSION HAZARD, KEEP SOLID

COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE

DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS.

NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR

AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT

THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.

PROPANE CONSTRUCTION HEATER

WARNING

: Using this heater in a residential garage requires that the heater is positioned

so that it is protected against any possible damage by a moving vehicle, etc. It must be

8 ft (2450 mm) in repair garages. The heater must be placed on a stable surface. Do not place it on

a chair, ladder, etc. Raising the heater will reduce BUT NOT eliminate the possibility of lighting the

gasoline is present, DO NOT operate this heater until the area has been properly ventilated.

WARNING: CONSTRUCTION HEATERS ARE NOT FOR USE IN

GARAGES IN CANADA.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

WARNING:

This product and the fuels used to operate this product (liquid propane),

and the products of combustion of such fuels, can expose you to chemicals including benzene,

which is known to the State of California to cause cancer and reproductive harm.

For more information go to www.p65Warnings.ca.gov

The heater is designed and approved for use as a construction heater under ANS Z83.7 CSA 2.14. It is hard

to anticipate every use which may be made of this heater. CHECK WITH YOUR LOCAL FIRE SAFETY

AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.

PROPANE FORCED AIR CONSTRUCTION HEATERS

use is primarily the temporary heating of buildings or structures under construction, alteration or repair. All the

products of combustion generated by the heater are forced through the heater and released into the area being

of carbon monoxide. Humans can tolerate small amounts of carbon monoxide for short periods. Carbon

monoxide can build up in a heated space and failure to provide adequate ventilation could result in poisoning

or death.

PROPANE CONSTRUCTION HEATER

Your local authority can advise you about these.

IMPORTANT: READ THIS USER’S MANUAL CAREFULLY AND COMPLETELY BEFORE TRYING

TO OPERATE OR SERVICE THIS HEATER. IMPROPER USE OF THIS HEATER CAN CAUSE

SERIOUS INJURY OR DEATH FROM FIRE, EXPLOSION AND CARBON MONOXIDE POISONING.

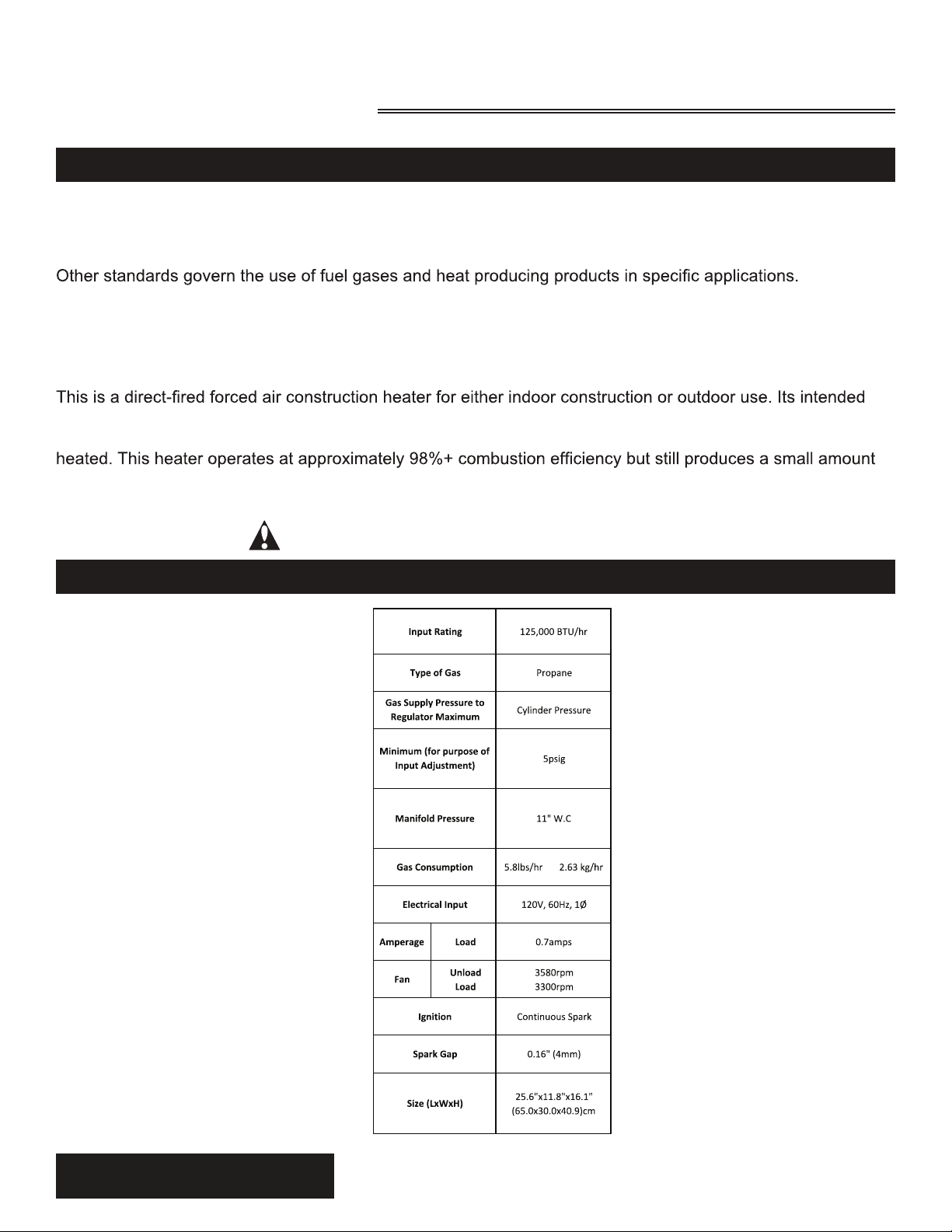

SPECIFICATIONS

WARNING

: NOT FOR USE WITH DUCT WORK.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Accidents are always tragic especially because so many of them could have been prevented with little care

and judgment. There are some basic good practices, we hope you will follow for safe use of your heater.

• Children should be carefully supervised, when they are in the area.

• Always maintain proper clearance from combustible materials. Minimum clearance from combustibles:

• Heater must be placed on level and stable surface.

vapours and liquids.

• Adequate clearance for accessibility and for combustion & ventilation air supply must be maintained at all

times when the heater is operating.

necessary. Do not service while hot or operating.

• Never connect heater to an unregulated gas supply.

• The heater is shipped from the factory for LP(Propane) gas. This heater is for use with propane gas only,

do not convert heater to any other gas. Installation must conform to local codes or, in the absence of local

Natural Gas and Propane Installation Code CSA B149.1

• The minimum and maximum inlet pressures to the regulator from the gas tank are 5 psi and bottle pressure,

respectively. Use only the regulator & hose assembly provided with the heater. Inspect the regulator/hose

assembly prior to each use of the heater. If there is excessive abrasion or wear, or hose is cut, replace with

regulator/hose assembly listed on the parts list prior to using this heater.

to check for gas leaks.

• The electrical connection & grounding must comply with National Electrical Code. ANSI/NFPA 70 or in

Canada CSA C22.1, Canadian Electrical Code, Part 1. Use only a properly grounded three

(3) prong receptacle.

• This heater should not be directed toward any propane-gas container within 20 ft (6M). The heater must be

located at least 6 ft. (1.83 m) in the U.S.; or (ii) 10 ft. (3 m) in Canada, from any propane gas container.

• The propane cylinder supply system must be arranged to provide for vapour withdrawal from the

operating cylinder.

• This heater is not to be used with external thermostats, timers or other devices that control or alter electrical

supply to the heater.

PROPANE CONSTRUCTION HEATER

PRODUCT FEATURES

• Portable & Stable • 100% Safety Shutoff System

• Wind Resistant & Rain Protected • Continuous Adjustable Input Ratings

• Continuous Spark Ignition

GENERAL SAFETY INSTRUCTION

IMPORTANT SAFETY INSTRUCTION

WARNING

: Motor and fan must be running before lighting, during operation and at shutdown,

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

PROPANE CONSTRUCTION HEATER

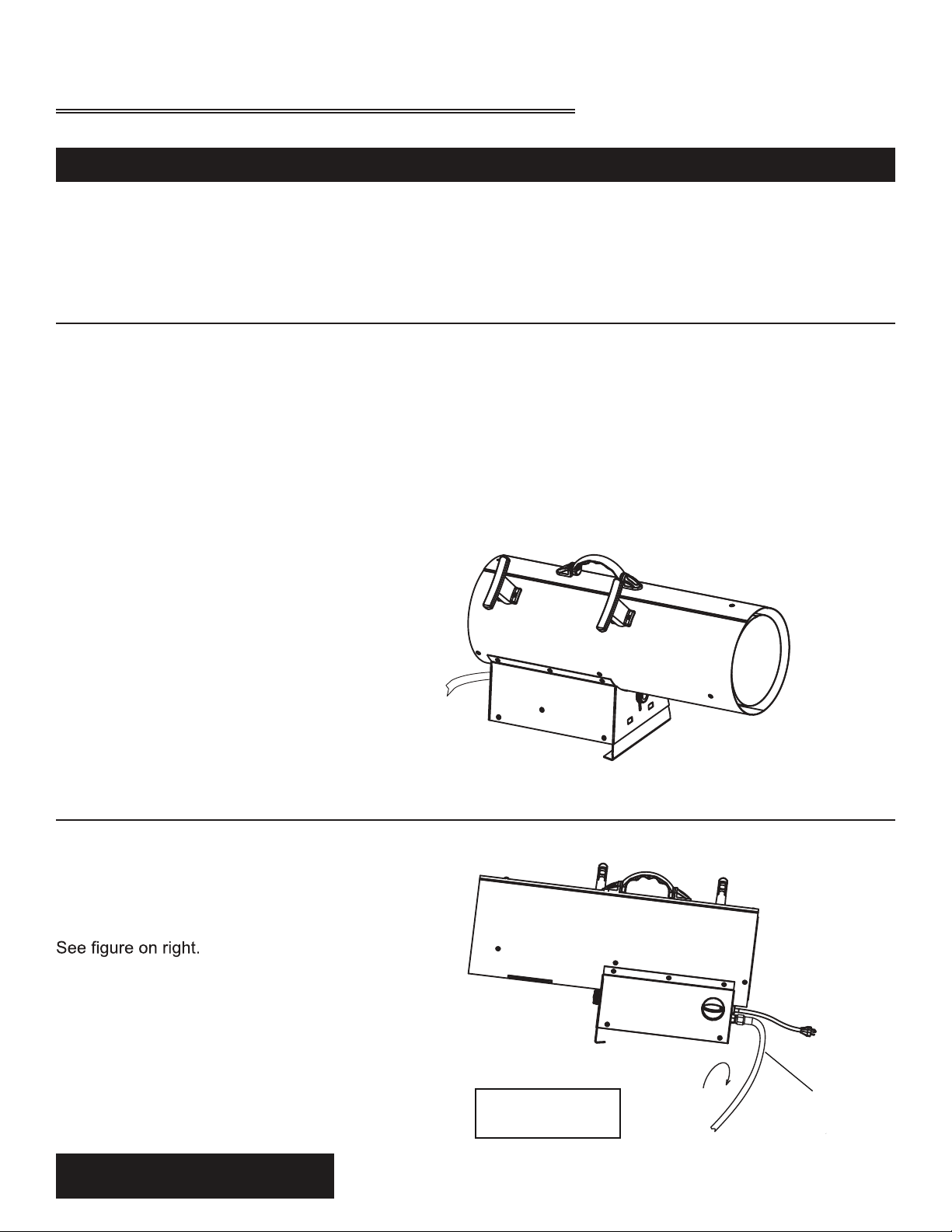

UNPACKING HEATER

1. Remove heater from carton.

2. Remove all protective packing applied to heater for shipment.

3. Retain cartons and packaging material until unit is operated and found in good condition.

4. Check heater for any shipping damage. If heater shows any external or internal

damage, promptly inform dealer/distributor where you purchased heater.

Assembly Components and Instructions for Steel Base Units:

Tighten, clockwise,

use a wrench

Hose Assembly

Assembly Time:

5 Minutes

Contents:

Unit, Manual, Hose and Regulator Assembly

2 Cord Wrap Attachments, 4 Screws (ST3.5x10)

Tools required for assembly:

Adjustable Wrench

Phillips Head Screw Driver

1. Assembling the Cord Wrap Attachments:

Parts Required:

4 Screws (ST3.5x10),

and 2 Cord Wrap Attachments

Place the cord wrap attachment

as shown, then use Phillips

screwdriver to tighten the

screws and secure the

cord wrap attachments.

2. Regulator and Hose Connection:

Connect the hose tightly to

the heater using a wrench.

Please also refer to

page 7 in the manual.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

PROPANE CONSTRUCTION HEATER

INFORMATION ON SIZE * CAPACITY OF PROPANE GAS CYLINDERS:

The chart below shows the number and size of propane tanks needed to run this heater.

*Less gas is vaporized at lower temperatures.

You may need two or more 100 pound (45 kg) tanks or one larger tank in colder weather.

The propane (LP) gas tank must also be equipped with the following:

• A collar to protect the Propane gas valve.

American National Standards for Compressed Gas Cylinder Valve Outlets and Inlet

Connections.

• A safety relief valve having direct communications with the vapor space of the tank.

• An arrangement of vapor withdrawal.

The propane (LP) gas pressure regulator and hose assembly supplied with

this heater must be used without alteration.

The hose assembly shall be visually inspected prior to each use of the heater. If it is evident

that there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the

by the manufacturer.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Temperature

(°F-°C) at tank

Number of tanks

125,000 BTU/h

Above

32°F (0°C) 2 - 100lb (45kg)

20°F (-7°C) 2 - 100lb (45kg)

10°F (-12°C) 3 - 100lb (45kg)

-10°F (-23°C) Use Larger Tank

-20°F (-29°C) Use Larger Tank

Propane/LP

Supply Valve

Propane/LP

Tank

Regulator

Fuel Gas

Fitting Hose to

Heater

PROPANE CONSTRUCTION HEATER

INSTALLATION TO THE PROPANE GAS TANK

IMPORTANT: You must use a propane/LP gas supply cylinder that is compatible with the connection device

provided with the hose and regulator.

REFILLING THE PROPANE GAS TANK

ALL NEW CYLINDERS MUST BE PURGED BEFORE THE FIRST FILLING.

• Turn heater gas valve knob and gas tank valve to OFF position.

• With heater gas valve knob still in the OFF position, turn ON tank valve and check for leaks

with soap solution.

WARNING

has been thoroughly trained in accepted LP gas industry procedures. Failure to follow

1. Provide propane/LP supply system. Ensure that the valve on the cylinder is fully closed by turning the knob

fully clockwise ( ). Ensure that the cylinder is fully upright for vapor withdrawl. (see size/capacity, page 7).

Position regulator so that hose leaving the regulator is in a horizontal position.

(or until you hear a click) and open again slowly.

5. Check all connections for leaks. Apply a 50/50 solution of liquid dish soap and water to gas joints.

Bubbles forming show a leak that must be corrected.

6. Close propane / LP supply valve before attempting to repair connection.

Connector Inlet

Hose to Regulator

Hose Fitting

FIGURE 1 FIGURE 2

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

PROPANE CONSTRUCTION HEATER

PROPANE SAFETY

Propane is safe to use when properly handled. Careless handling of the Propane gas tank could

• Always keep tank/cylinder securely fastened in an upright position.

• Avoid tipping tank on its side when connected to a regulator since this may cause damage to

diaphragm in regulator.

• Handle valves with care.

• Never connect an unregulated Propane tank to construction heater.

• Do not subject Propane tank to excessive heat.

• Tightly close the gas shutoff valve on the Propane tank after each use.

• Never store a Propane gas tank inside a building or in the vicinity of any gas burning appliance.

THE DISCONNECTED TANK MUST NEVER BE STORED IN A BUILDING, GARAGE

OR ANY OTHER ENCLOSED AREA.

LEAK CHECKING

Check all gas connections with a soap solution to be sure they are tight and leak proof.

• The installation of your heater must meet all local codes and/or gas utility requirements or, in the

58 and the Natural and Propane Installation Code, CSA B149.1.

• The minimum clearances to combustible construction: Side - 24” (61 cm); Top - 36” (92 cm);

Front - 72” (183 cm); Floor - combustible, must be maintained at all times.

• The hose assembly should be visually inspected prior to each use of the heater. If it is evident that

there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the heater being

put into operation.

LIGHTING INSTRUCTIONS

WARNING

: Motor and fan must be running before lighting, during operation and shutdown, in

NOTE: This heater uses a continuous spark ignition system. This unit will continue to make a clicking/

ticking sound at all times before ignition, after ignition and during operation, regardless of valve knob

positioning.

1. Connect power cord to a properly grounded three (3) prong 120V, 60Hz, single phase receptacle.

2. Turn gas valve knob clockwise to OFF position.

4. Turn gas supply ON by turning Propane tank valve counterclockwise .

5. Push in and turn gas control knob counterclockwise to “LOW/IGN”. This will light the burner. If

needed, keep pressing control knob until the burner lights and keep depressing and turning from

OFF to LOW/IGN on Piezo electric spark models.

6. Keep the valve knob depressed for at least 30 seconds after lighting the burner. After 30 seconds

release valve knob.

7. If burner does not stay lit, repeat the lighting procedure.

8. When burner is lit, turn gas valve knob counterclockwise to desired setting.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

PROPANE CONSTRUCTION HEATER

SHUTDOWN INSTRUCTIONS

TEST FIRING HEATER

tem employed. Leak test all gas connections with soap solution. Soap bubbles indicate gas leakage.

STORAGE

Never store a Propane gas tank inside a building or in the vicinity of any gas or oil burning appliance.

When the Propane tank is not disconnected from the construction heater, the gas tank and heater

must be stored outdoors in a well ventilated area, out of the reach of children. If for any reason the

heater is to be stored indoors, the tank must be disconnected and stored outdoors in a well ventilated

area out of reach of children, in accordance with the standard for the the Storage and Handling of

Code. The plastic tank valve plug supplied with your tank must be tightly installed when the tank is

disconnected from the heater.

MAINTENANCE INSTRUCTIONS

1. Turn unit off, allow heater to fully cool and disconnect propane hose before performing any Mainte-

nance

functions. Unplug the unit from the 120V receptacle.

2. Keep unit clean and keep the inside of the torpedo housing debris free.

season.

WARNING

: Motor and fan must be running before lighting, during operation and at shutdown,

Turn gas valve knob clockwise to OFF position.

Turn gas supply OFF by turning Propane tank valve clockwise to close.

Disconnect the power cord once the heater has cooled to ambient temperature.

REPLACEMENT PARTS

Do not substitute or use generic parts. Improper replacement parts could cause serious or fatal

injuries.

This will also protect your warranty coverage for parts replaced under warranty.

Parts warranty and non-warranty: Contact authorized L.B White dealers of this product. You may also

call L.B White Co.//& at (800)345-7200 for assistance or email to[email protected].

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Always be sure to follow proper maintenance procedures, by cleaning the heater once per

month during regular usage, and check spark gap at least once per season.

TROUBLESHOOTING

PROPANE CONSTRUCTION HEATER

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Inhaltsverzeichnis

Sprachen:

Andere Tradesman Heizung Handbücher

Tradesman

Tradesman K70 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
