A. CONNECTING THE DIMMER:
1. Unplug the lamp from the wall socket.
2. Strip the wires (core diameter minimum 0.75 mm²) from both the lamp and the power supply (No. 3) and (No.
4) in the drawing above).
3. Unscrew the dimmer and remove the interior (PCB) from the housing.
4. Insert the stripped brown and blue wires of the wall plug and lamp into the relevant part of the terminal block
(No. 5) and tighten the screws. If a ground (yellow-green) wire is present, connect it to the middle contact.
5. Place the interior, including cords, back into the housing and ensure that the slide is at the bottom.
6. If using a flat cord, skip this step. If using a round cord, remove the strain reliefs from the top of the dimmer
and turn them over so that the short side of the strain reliefs press on the cables.
7. Place the top of the dimmer. Make sure that the adjusting screw (No. 1) and the indicator-led (No.2) fit into the
appropriate holes. Also make sure that the slider (No. 7) is at the bottom (test whether the slider moves along).
8. Replace the 4 screws in the housing.
B. SETTING THE MINIMAL DIMMING POSITION:
PAY ATTENTION! NEVER PLUG THE PLUG INTO THE SOCKET WHEN
INSTALLATION IS NOT FINISHED YET! CHANCE OF ELECTRIC SHOCK!
1. Insert the plug into the wall and check if it works.
2. Switch on the dimmer by moving the slider (No. 7). The indicator-led (No. 2) lights up.
3. Push the slider (No. 7) to the minimal position at which the dimmer does not completely switch off.
4. The indicator-led (No. 2) stays on. The lamps should not be off in the minimal dimming position. If the lamp
is off, simply use a screwdriver to adjust the adjustment screw (No. 1) on the dimmer until the light is on.
5. When the minimal dimming position is set as desired, the dimmer is ready for use.
The manufacturer and/or supplier is not liable for damage caused by misuse or improper installation of the dimmer.
The warranty period is 2 years from the date of purchase, to be proven with your purchase receipt to the seller.
Version EN 1.0 (16/2/22). Keep this manual safe for (re)installation!
TRADIM Aalsbergen 9, 6942 SE Didam NL www.tradim.nl

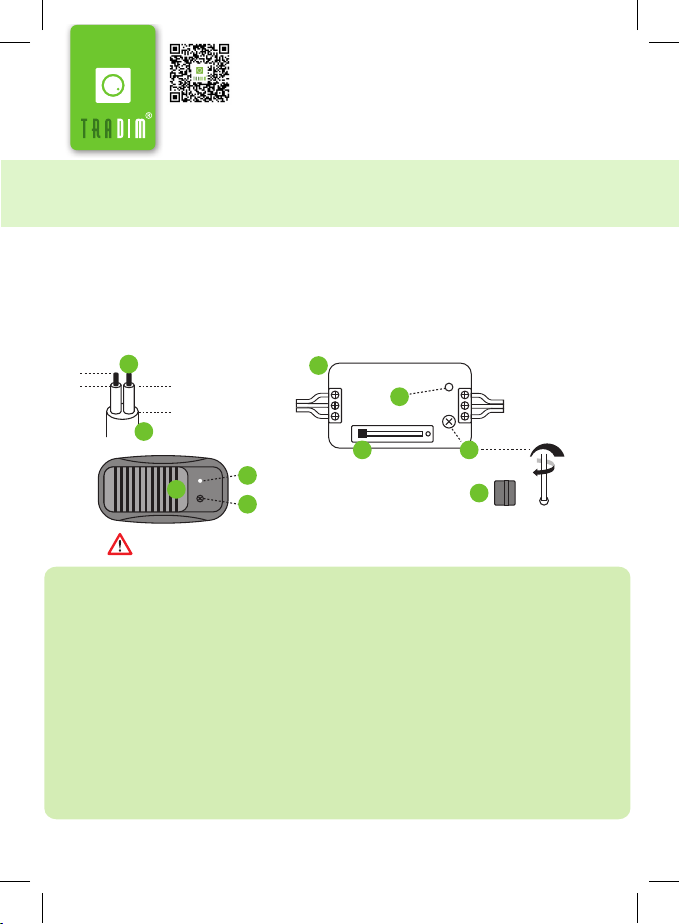

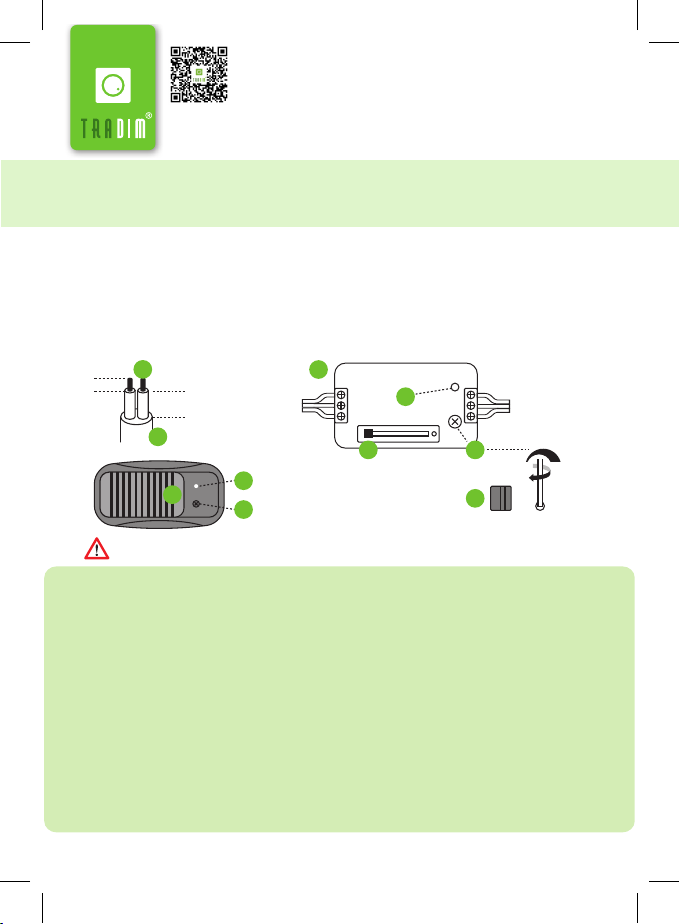

Adjustment screw
Indicator-led
Cable insulation
1
2
3
4 Core diameter
Connection diagram
Strain relief
Slider
5
6
7
15 mm
5 mm
3
4 min.
0,75 mm2
Input
2
7
1
6
-
+
To lamp
USER MANUAL FLOOR DIMMER 230V LED 631042
REQUIRED TOOLS:
•Small philips screwdriver • Small flat screwdriver • Stripping pliers
This floor dimmer is suitable for dimming the following light sources:
•Dimmable led (filament) lamps (230V, max. 70W).
•Low voltage led lamps combined with dimmable led drivers (max. 80W).
•Incandescent and halogen lamps (230V, max. 100W).
•12V halogen lamps combined with dimmable electronic transformers (max. 80W).
CHARACTERISTICS OF THIS FLOOR DIMMER:
•The dimmer has a potentiometer to set the minimum brightness.
•The µ on the sticker indicates that there is no voltage on the lamp in the off-position.
•The indicator-led (No. 2) indicates that the dimmer is on-position.
•Use indoors only and at a temperature between 0-40ºC.
OPERATION OF THE DIMMER:
The slider (drawing 7) can be operated by foot. The indicator-led (drawing 2) indicates that there is
voltage on the lamp. When the slider is at the bottom, an internal switch is operated which switches off
the device completely. At that moment, the lamp is no longer powered and the indicator-led will be off.
7 1
2
(N) blue
(PE) yellow/green
(L) brown
(N) blue
(PE) yellow/green
(L) brown
N
PE
L
N
PE
L
To plug/socket
Output
5
