TRENDnet TFM-PCIV92A - DATA SHEETS Bedienungsanleitung

The TFM-PCIV92A Internal PCI Fax Modem with Agere Chipset

delivers faster access to the Internet for more efficient upload and

downloads. The V.92/V.90 standard modem provides you with the

highest possible data transfer rates and reliable fax transmissions.

The modem complies with the latest V.92 standard, which provides

Quick Connect, Modem-on-Hold, and 48Kbps Upload Rate features

for your Internet connection. TFM-PCIV92A delivers quick and easy

installation with free communication software. Save money and surf

faster with TRENDnet’s TFM-PCIV92A.

TFM-PCIV92A

56K (V.92) High Speed Internal PCI Data/Fax

/TAM Modem

TFM-PCIV92A

rev:01.17.2007

• Compliant with V.92, V.90, V.44 Standards

• Supports V.44 and V.92 Quick Connect, PCM Upstream and Modem On Hold Features

• Up to 56Kbps Data Download, 48Kbps Data Upload

• Supports TAM (Telephone Answering Machine) via Sound Card

• Supports Group III, Class 1 Fax with Fax Transfer Rate up to 14.4kbps (T.31 Pro-tocol)

• Video Phone ready (Interface to H.324 Video Conferencing Support)

• Compatible with Windows 98SE/Me/2000/XP

• AT commands for data, Class 1 Fax and IS-101voice

• ACPI Power Management with PME pin supply for Low Power Consumption

• Free Data/Fax/Voice Communication Software

• 3-Year Warranty

FEATURES

Data Mode

Error Correction

Fax Mode

Voice Function

Video Phone Ready

Power Management

Power Consumption (Input 3.3VDC)

Dimensions

• PC: PCI Specification 2.2

• Data/Fax/Voice Call Discrimination

• PSTN: RJ-11

• TIA-695 Command Set

• Modem and Audio Paths Concurrent Across PCI Slot

• Idle Mode: 200mW

• 133 x 124 x 21mm (5.2 x 4.8 x 0.8 inches)

• V.92 & V.90, V.34, V.32(bis), V.22(bis), V.23, V.21, Bell 212A, Bell 103

• V.42, LAPM & MNP 2-4

• V.44, V.42(bis) & MNP5

• 8-Bit u- Law/A-Law/Linear Coding

• ACPI Power Manager Registers

• V.80 sync Access mode Supports Host-Controlled Communication Protocol

• H.324 interface Support

• Call Progress, Blacklisting Support

• Operating Mode: 300mW

• Sleep Mode: 25mW

• Group III Send & Receive, ITU-T V.17, V.29, V.27ter and V.21 ch2

• TAM (USA) Support with Concurrent DRMD Detect, Ring Detect

• 8000 Hz Sample Rate

Multiple Country

Other

Interface

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

56K (V.92) High Speed Internal PCI Data/Fax/TAM Modem

TFM-PCIV92A

RELATED PRODUCTS

TFM-560X External 56K (V.90) High Speed Voice/Fax Modem

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

SPECIFICATIONS

TFM-560E 56Kbps (V.90) High Speed PCMCIA Fax Modem

TFM-CF56 CompactFlash 56K Fax Modem Card

• Single Profile Stored in Host

• DTMF

• PME# pin and APM Support

Weight • 55g (1.94 oz)

• Operating: 0°~ 55°C (32°~ 131°F) • Storage: -20°~ 60°C (-4°~140°F)

Temperature

Humidity

Supported OS

System Requirements

Certifications

• 10%~90% (non-condensing)

• Windows 98SE/ME/2000/XP

• CPU: Pentium K6 200Mhz or Above • Memory: 32Mbytes or Above • HDD Space: 4Mbytes or Above

• FCC, CE

Data Compression

Phone Jack

Workstation with

TFM-PCIV92A

Telephone or

Fax Machine

INTERNET

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

Andere Handbücher für TFM-PCIV92A - DATA SHEETS

Inhaltsverzeichnis

Andere TRENDnet Modem Handbücher

TRENDnet

TRENDnet AC750 TEW-816DRM Bedienungsanleitung

TRENDnet

TRENDnet TFM-PCIV92I Bedienungsanleitung

TRENDnet

TRENDnet TFM-560E Bedienungsanleitung

TRENDnet

TRENDnet TFM-560R Bedienungsanleitung

TRENDnet

TRENDnet TFM-561U Bedienungsanleitung

TRENDnet

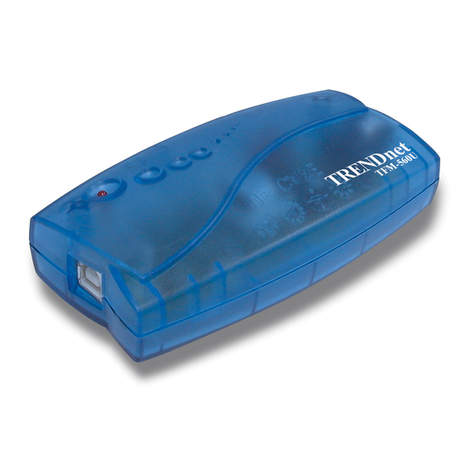

TRENDnet TFM-560U - DATA SHEETS Bedienungsanleitung
