TRENDnet TPE-TG80G Bedienungsanleitung

TPE-TG80g

rev: 07.02.2012

PRODUCT OVERVIEW

• 8 x Gigabit PoE+ ports (up to 30 watts per PoE+ port)

• Reduces equipment cost by delivering data and power over existing network cables

• 16 Gbps switching capacity

• Sturdy metal case

• Up to 75% GREENnet power savings

8-Port Gigabit GREENnet PoE+ Switch

TPE-TG80g (v1.0R)

TRENDnet’s 8-Port Gigabit GREENnet PoE+ Switch, model

TPE-TG80g, reduces equipment and installation costs by delivering

data and power over existing Ethernet cables. This unmanaged switch

offers eight Gigabit PoE+ ports which supply up to 30 watts of power

per port for devices such as high power wireless access points, PTZ

(Pan / Tilt / Zoom) internet cameras, and VoIP telephony systems.

Auto sensing technology delivers 30 watts to 802.3at PoE+ devices (up

to 3 devices), 15 watts to 802.3af PoE devices, and only data to

non-PoE devices. GREENnet technology reduces energy consumption

by up to 75% when the switch is not in use. Boost ofﬁ ce efﬁ ciency and

reduce network congestion with a total switching capacity of 16 Gbps.

LED indicators display device status for efﬁ cient troubleshooting. This

switch comes in a sturdy metal case and quickly adds PoE+, PoE, and

non-PoE devices to your network.

TEG-TG80g

rev: 07.02.2012

8-Port Gigabit GREENnet PoE+ Switch

TPE-TG80g (v1.0R)

FEATURES

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

• Supports PoE Class 2 (7 watts) , 3 (15.4 watts), and 4 (30 watts)

• 8 x Gigabit Auto-MDIX PoE / PoE+ ports

• Provides up to 30 watts for PoE+

• Provides up to 15.4 watts for PoE

• Automatically detects the PoE class level of a Powered Device

• 16 Gbps switching fabric

• Forwarding Rate: 1000 Mbps (1,488,000 pps), 100 Mbps (148,800 pps), 10 Mbps (14,880 pps)

• Status LEDs: System Power, PoE, 1000 Mbps, and Link/Activity

• 1K Mac address entries

• 96 Kbyte memory buffer

• Full wire-speed non-blocking reception and transmission

• Store-and-forward switching method

• Back pressure Flow Control for Half-Duplex mode

• IEEE 802.3x Flow Control for Full-Duplex mode

• Power saving technology powers down unused ports and when a connected device is in standby mode

• Jumbo Frame support up to 9K

• Plug and Play

• Sturdy metal case

• 3-year limited warranty

TEG-TG80g

rev: 07.02.2012

8-Port Gigabit GREENnet PoE+ Switch

TPE-TG80g (v1.0R)

SPECIFICATIONS

HARDWARE

Standard • IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3ab 1000Base-T

• IEEE 802.3at Power over Ethernet (PoE+)

• IEEE 802.3af Power over Ethernet (PoE)

• IEEE 802.3X Flow Control

• IEEE 802.3az Energy Efﬁ cient Ethernet

Ports • 8 x Gigabit Auto-MDIX PoE / PoE+ ports

Data Transfer Rate • Ethernet: 10/20 Mbps (Half / Full Duplex)

• Fast Ethernet: 100/200 Mbps (Half / Full Duplex)

• Gigabit: 2000 Mbps (Full Duplex)

Forwarding Rate • 1,000 Mbps: 1,488,000 pps

• 100 Mbps: 148,800 pps 1

• 10 Mbps: 14,880 pps

Data RAM Buffer • 96 Kbytes

Address Table • 1K MAC entries

Switch Fabric • 16 Gbps

Power • Input: 100-240V 50/60 Hz, 2.1A

• Output: 52VDC, 2.31A External Power Adapter

Diagnostic LEDs • Power, PoE, 1000 Mbps, Link/Activity

Power Consumption • Min: 5 watts (standby)

• Max: 120 watts

• PoE Max: 105 watts

• (7 x 15 watts PoE devices connected or 3 x 30 watts PoE+ devices connected)

Temperature • Operating: 0° ~ 40°C (32° ~ 104°F)

• Storage: -20° ~ 90°C (-4° ~ 194°F)

Humidity • Max 90% (non-condensing)

Dimensions • 142 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.)

Weight • 400 g (14 oz.)

Certiﬁ cations • CE, FCC

POE

Power over Ethernet • Up to 15.4 watts for PoE

• Up to 30 watts for PoE+

• PoE: pin 3, 6 for power+ and pin 1, 2 for power- (mode A)

8-Port Gigabit GREENnet PoE+ Switch

TPE-TG80g (v1.0R)

CONTACT INFORMATION

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web: www.trendnet.com

Email: [email protected]

1-888-326-6061

PACKAGE CONTENTS

TPE-TG80g

Quick Installation Guide

Power Adapter (52V DC, 2.31A)

RELATED PRODUCTS

TPE-T88G 16-Port GREENnet 10/100 Mbps PoE+ Switch

TPE-114GS Gigabit Power over Ethernet (PoE) Splitter

TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch

NETWORKING SOLUTIONS

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time,

Andere TRENDnet Schalten Handbücher

TRENDnet

TRENDnet TE100-S86FX Bedienungsanleitung

TRENDnet

TRENDnet TPE-30284 Bedienungsanleitung

TRENDnet

TRENDnet TPE-S80 Bedienungsanleitung

TRENDnet

TRENDnet TPE-TG160g Bedienungsanleitung

TRENDnet

TRENDnet TK-222DVK Bedienungsanleitung

TRENDnet

TRENDnet TK-209K Bedienungsanleitung

TRENDnet

TRENDnet TK-407K Bedienungsanleitung

TRENDnet

TRENDnet TEG-S2400I - DATA SHEETS Installations- und Betriebshandbuch

TRENDnet

TRENDnet TI-PG541i Bedienungsanleitung

TRENDnet

TRENDnet TPE-117Gi Bedienungsanleitung

TRENDnet

TRENDnet TEG-2248WS - Gigabit Web Smart Switch Bedienungsanleitung

TRENDnet

TRENDnet TEG-2 248WS Bedienungsanleitung

TRENDnet

TRENDnet TEG-S40TXE Bedienungsanleitung

TRENDnet

TRENDnet TK-401R Bedienungsanleitung

TRENDnet

TRENDnet TK-400K - DATA SHEETS Bedienungsanleitung

TRENDnet

TRENDnet TI-IG60 Bedienungsanleitung

TRENDnet

TRENDnet TEG-S224M Bedienungsanleitung

TRENDnet

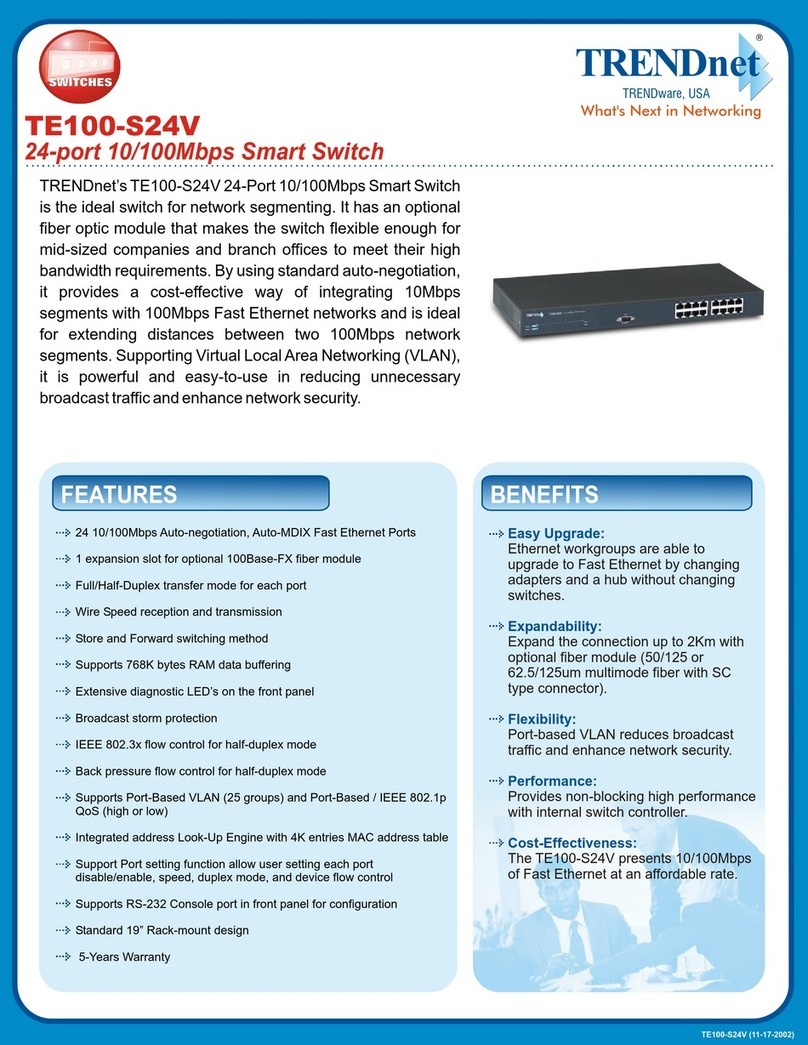

TRENDnet TE100-S24V Bedienungsanleitung
