Tributaries HDMI HX101 Bedienungsanleitung

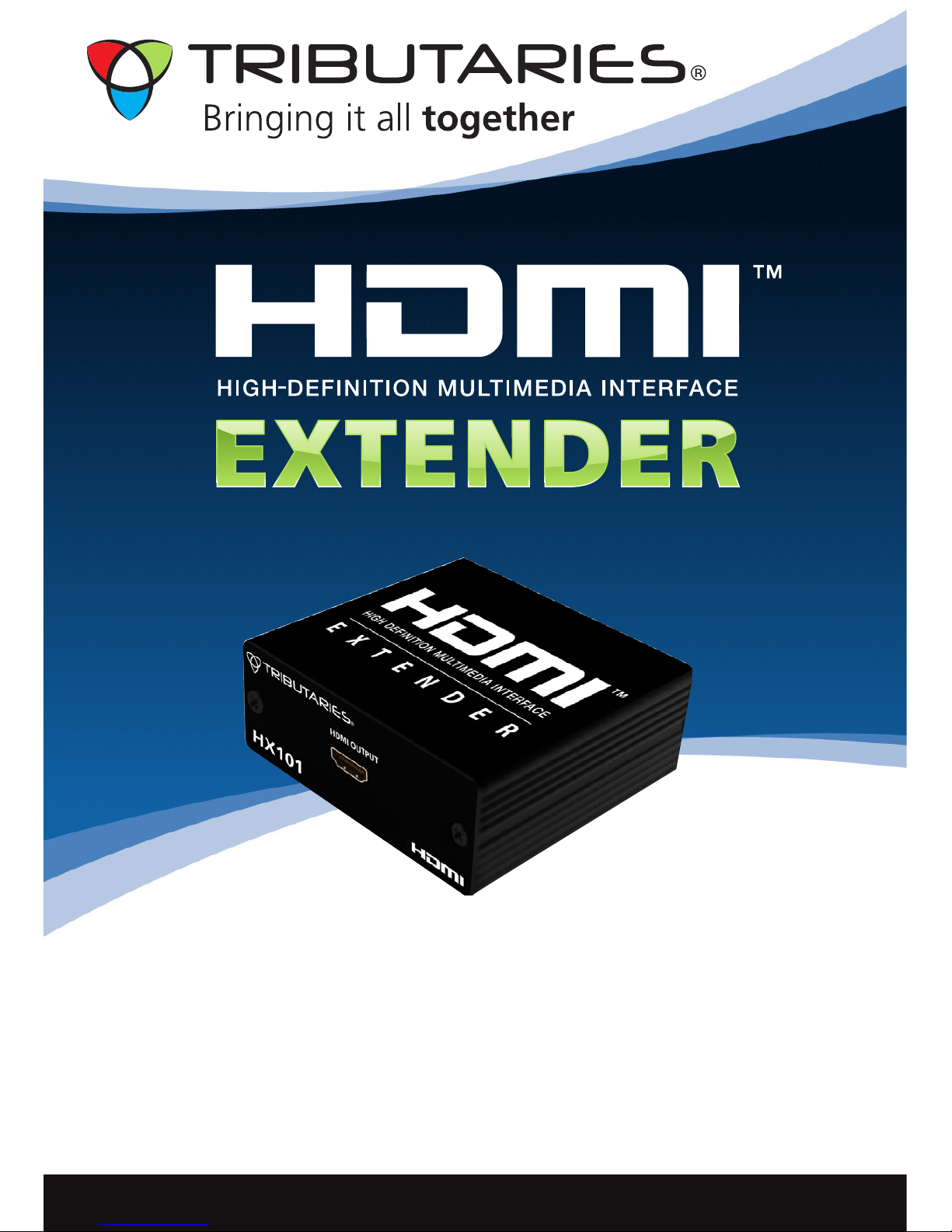

HX101
Extends an HDMI 1080p signal up
to 40 meters using HDMI cable
www.tributariescable.com
HX101
1. Introduction
The Tributaries HX101 is the most advanced solution for extending
HDMI v1.3 cable up to 40 meters. The HX101 corrects digital errors and
automatically provides equalization up to 40dB to compensate for cable
transmission loss. It eliminates digital noise (sparkles) to ensure you
receive the perfect HDTV picture.
2. Features
• Supports HDMI v1.3 features such as: 1440p, 120Hz, WQXGA
resolutions of 2560x1600, CEC controls, Deep color: 10, 12, 16 bit color
depth, x.v. color, Dolby ® TrueHD, DTS®-HD and Master Audio.
• HDCP is compliant with HDCP1.1 downward compatible to HDCP1.0.
• HDCP pass through.
• Operational frequency up to 225Mhz.
• Input/output resolutions:
PC: VGA, SVGA, XGA, SXGA, UXGA up to 225Mhz.
HD: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1440p.
• Fully automatic equalization up to 40dB at 825MHz (1.65Gbps), no
system control required.
• Extend cable runs up to 40 meters from the source to the equalizer
plus 10 meters from the equalizer to the projector, TV/monitor.
• Easy to install and simple to operate.
3. Package Contents
1. HX101 Extender.
2. 5V DC power supply adaptor.
3. Operation Manual.
4. Operation Controls and Functions
4.1 Front Panel
1. HDMI OUTPUT:
HDMI output: Connect to the HDMI input of your display using
an HDMI cable.
4.2 Rear Panel
HDMI input: Connect to the HDMI output of your source
equipment such as DVD player or set-top-box using an HDMI
cable.
Power: Plug the 5VDC power supply into the unit and connect
the adaptor to AC wall outlet.
1
1
2
1
1 2
DC 5V
HDMI INPUT
©2008 Gordon J. Gow Technologies, Inc. All rights reserved.
TRIBUTARIES® is a registered trademark of Gordon J. Gow Technologies, Inc. All other
trademarks are the property of their respective owners. As we continually strive to
improve our products, TRIBUTARIES® reserves the right to change product specications
without notice. The technical and other information contained herein is not intended
to set forth all technical and other specications of TRIBUTARIES® products. Additional
information can be obtained on-line at www.tributariescable.com
Gordon J. Gow Technologies, Inc.
Orlando, FL 32809
www.tributariescable.com
5. Connection and Installation
Input port
Output port
Power Supply
Dimensions (mm)
Weight(g)
Chassis Material
Silk Skin Color
Operating Temperature
1 x HDMI
1 x HDMI
5V/1A DC (US/EU standards, CE/FCC/UL
certied)
72(W) x 76(D) x 30(H)
150
Aluminum
Black
Operating from 0°C ~ 48°C
HDM
I
HDM
I
HDMI Cable
DVD or Set-Top-Box
HDTV LCD TV
OR
HDMI Cable
HDM
I
HDM
I
OR
HDMI display
6. Specications
