SPEEDLITE

3000本

E版使用说明书

SPEEDLITE

The Speedlite Features

1 2

1.TTL flash

2.Manual flash

3.Multi flash

4.Wireless slave unit function:Compatibility with the Canon and Nikon

wireless flash system,realize TTL from machine,manual and frequency flash

5.S1.S2 Light flashing mode

6.Flash control by Camera (Only for the newest Canon Version)

7.High-Speed Sync 1/8000s

8.Rear-curtain Sync

9.Voice prompt

10.Custom function

11.Power save mode

12.Overheating protection

13.Automatic save function

14.Large size LCD display

15.Manual,Auto zoom function

16.Quick response:Full output recycle time only 2.9 seconds

17.Support high speed continuous shooting:In 1/16 brightness and blew,It

can support 12EPS high speed continuous shooting.

Thank you for this purchasing this speedlite.

3 4

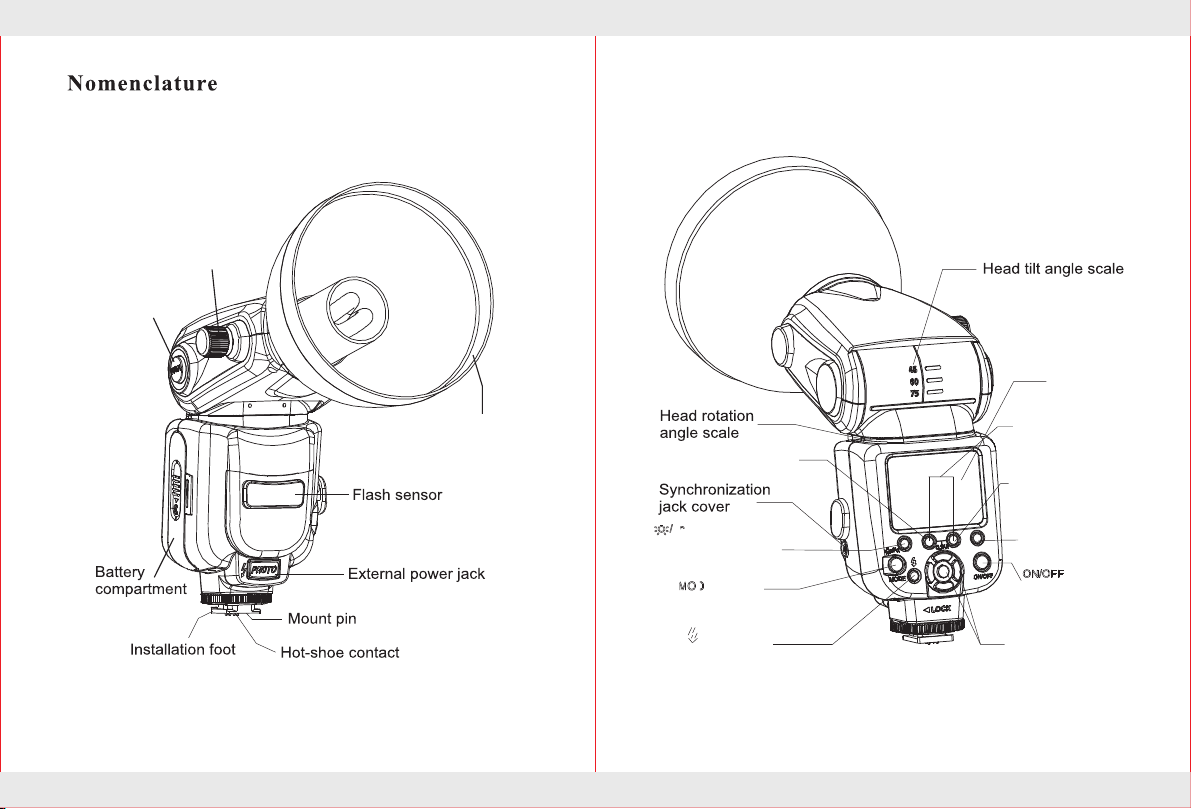

Reflect

Lampshade

lockingbutton

Head locking

button

LCD screen

Two key at the same

time according to

factory default key

Wireless Settings

button

Select/Settings

button group

Flash key/

Wake up key

Wireless select keys

High Speedsync/

Rear-Certion/Normal

flash cutover key

(Canon version)

Mode

selection buttons

Backlight switch/

Long press button set

custom function Settings

Switch button

Set the Bounce Drecion

Power regulation

Power trimming/stroboscopic

frequency setting/TTL

Exposure Compensation

Light induction mode

( )

Multiple frequency flash

M/MULTI Manual flash/

Induction mode(S1/S2)

Buzzer switch

Custom function icon

Overheating protection icon

Electricity display

Manual Zoom

Affiliate account

( )Channel

Flash mode

5 6

Zoom

< >

<E-TTL>

<i-TTL>

Flash Exposure Bracketing

Canon TTL Modle

Nikon TTL Modle

Slave

High Speedsync

Rear-Certain

Aperture value

Auto Zoom

AF-Assist illuminator

When working under a darkness condition,the automatic AF

which is in the right ahead of the flash light may temporary

project red hard light to assist focusing.

It may disturb the subject,you can turn to manual focusing.

180

7 8

1.The external

power connector

Provides more

adequate power.

2.Conetect with the

PC sync

Make sure camera

and speedlite

synchronized flash.

910

,When the speedlite do

not working within 60 seconds,the CPU automatically into

hibernation.In this case press any key to wake up the speedlite.When the

speedlite does not work for more than 30 minutes,the CPU will shut

down automatically.

After automatically shut off the power opened

TTL Flash

Set the camera's shooting mode to <P>( Program automatic exposure)

or < >(Auto),when fully automatic flash will make photography

became as simple as <P> mode and < > mode under normal automatic

exposure.

Set the flash exposure compensation

value

1.Select the flash mode

2.Press 【MODE】 mode button until

the LCD display

Canon

Nikon

Set the flash exposure compensation

value.

When press five select button settings

group【Up】【Down】to set the

compensation value.

1.Select the Settings button group【RIGHT】keys,power values increase

sequentially.

Select the Settings button group【LEFT】keys,power values decrease

sequentially.

2.The compensation value is in the range of +3.0EV to -3.0EV.

The compensation value icon:

0EV→+0.3EV→+0.7EV→+1.0EV→+1.3EV→+1.7EV→....→+3.0EV

0EV→-0.3EV→-0.7EV→-1.0EV→-1.3EV→-1.7EV→.. ..→-3.0EV

State of charge indicator

Before shooting,confirmed that flash charging

indicator light and camera viewfinder lights

have been lit.

Extended Interface

Turn on the power

11 12

Using E-TTL and Autoflash in the shooting Modes

Just set camera’s shooting mode to <AV/A>(aperture -priority AE),

<TV/S>(shutter-priorityAE),or<M>(manual)and you can use E-TTL/

i-TTL autoflash.

Select this mode when you want to set the shutter speed manually.

The camera will then automatically set aperture matching the

shutter speed to obtain a standara exposure.If the aperture display

blinks,it means that the background erposure will be underexposed

or overexposed. Adjust the shutter speed until the aperture display

stops blinking.

Select this mode when you want to set the aperture manually.

The camera will then automatically set the shutter speed matching

the aperture to obtain a standard exposure.If the background is

dark like a night scene ,a slow sync speed will be used to obtain a

standard exposure of both the main subject and background.

Standard exposure of the main subject is obtained with the

flash,while a standard exposure of the background is obtained

with a slow shutter speed.Since a slow shutter speed will be

used for low-light scenes, using a tripod is recommended.If

the shutter speed display blinks,it means that the background

exposure will be underexposed or overexposed.Adjust the

aperture until the shutter speed display stops blinking.

Select this mode if you want to set both the shutter speed and

aperture manually.Standard erposure of the main subject is

obtained with the flash.The exposure of the background is

obtained with the shutter speed and aperture combination

you set.

AV/A

TV/S

If you use the <DEP>or <A-DEP>shooting mode, the result will be the

same as using the <P>(P AE)mode.rogram

Flash Sync Speeds and Apertures Used

Shutter Speed Setting Aperture Setting

Set automatically(1/60 sec.~1/Xsec.) Automatic

Manual

Automatic

Manual

Set automatically(30 sec.~1/Xsec.)

Set manually(buLb,30 sec.~1/Xsec.)

Set manually(30 sec.~1/Xsec.)

1/X sec.is the camera’s maximum flash sync speed.

13 14

0 3.02.72.32.01.71.31.00.70.3

FEB: Set theFlash exposure bracketing value

You can take three flash shots while automatically

changing the flash output for each shot up to ± 3

stops in 1/3-stop increments (1/2-stops increments

if the camera enables only 1/2-stop increments).

This is called FEB(Flash Exposure Bracketing).

For Feb,set the camera's drive mode to "single

shot".Before shooting to ensure that flash ready.

Press "Five select settings button group" 【Up】【Down】 key to set the

required exposure bracketing value.

1, Press "Five select settings button group" 【Up】 key,bracketing value

increases;

Press "Five select settings button group" 【Down】 key,bracketing value

decreasing.

2.The FEB is in the range of 0-3.0.

The FEB icon:

FEL:Flash exposure lock

Select the flash mode

Press 【MODE】 mode button until the

LCD display .

Power setting

1.Select the Settings button group

【RIGHT】keys,power values increase

Manual flash mode M

When you need a manual exposure,according to own requirements to

set the brightness of the flash output between 1/128 power to 1/1 full

power.Adjust the flash output with 1/3 speed increment,press the zoom

button 【ZOOM】 into the manual zoom.

sequentially.

Icon:1/128→1/64→1/32→...→1/1

2.Select the Settings button group

【LEFT】 keys,power values decrease

sequentially.

Icon: 1/1→1/2→1/4→...→1/128

3.Select the Settings button group

【UP】【DOWN】keys,Fine tuning of

the value of power of the flash.

Icon:

0EV→+ 0.3EV→+ 0.7EV

0EV→- 0.3EV→- 0.7EV

Flash exposure lock locks the correct flash exposure setting for any part

of the scene.With <TTL> displayed on the LCD panel,You press the

camera’s <FEL>button,If the camera does not have the <FEL>button,

press the "*" button. Nikon camera press "FV" button.If the camera

support flash exposure lock: connect the flash screen under TTL mode,

you can set the flash on the camera exposure by locking, after set, the

speedlite will fire a preflash and the required flash output for the subject

is retained in memory.The camera will calculate the flash compatible

output data,you have time to composition again,after finishing

composition can press the shutter to shot (this feature requires you to

use the camera itself support,please refer to your camera manual settings).

Select the Settings button group【RIGHT】key,focus values

increase sequentially.

Select the Settings button group【LEFT】key,focus values

decrease sequentially.

15 16

Stroboscopic flash mode(Multi)

Using Multi mode,you can issue a series of quick flash,it can shoot

multiple images of moving objects on a photo,you can set the flash

frequency (number of flashes per second can use Hz to show),the

number of flashes and flash output.During repeated Multi mode,Single

exposure create a strobe effect of multiple exposures.This mode is often

used when shooting moving objects.

To prevent the flash head overheat and damage,do not perform more

than 10 times in a row strobe flash burst.Between twice repeated

exposure operation please let flash plenty of time for the call

After flash work for 10 times please let it cool for at least 15

if you are trying to perform more than 10 times in a row strobe flash

burst the flash may automatically stop to prevent overheating of the

flash head.If this happens,please let the flash cool for at least 15

minutes.Please use a new battery or a fully charged battery to operate

this mode.

Under Strobe mode (Multi),It support flash power,time of flash as

well as frequency regulation.

Select the flash mode

Press 【MODE】 mode button until the

LCD display .

Select the setting button group

【MIDDLE】key of settings button

group to display flicker,Press

select settings button group 【LEFT】

【RIGHT】 to set the frequency.The

available flash frequency is 1HZ-

199HZ.After value setted then select

the setting button group 【MIDDLE】

key to confirm.

Frequency setting

The number of flashes set

Press select the Settings button group 【MIDDLE】 key until LCD

display flashing. Select the Settings button group 【LEFT】

【RIGHT】 key to set the flash power.After Values is setted and

then select the Settings button group 【MIDDLE】 key to confirm.

Exposure power setting

1-40 1-20 1-12 1-8 1-4 1-2

1-128 1-64 1-132 1-16 1-8 1-4

Flash power and the number of flash relational tables

Flash power

Flash number

Press the zoom button 【ZOOM】 key

to display the zoom data flashing,Select

the Settings button group 【LEFT】

【RIGHT】key to set the appropriate

focal length value,After focal length

value have been setted,Press 【ZOOM】

key to confirm.

【ZOOM】Zoom settings

back.

minutes,

Select the Settings button group 【MIDDLE】key to display

flashing,Select the Settings button group 【LEFT】【RIGHT】key to

set the number of flashes,the available number of flashes for 1-40.After

Values setted and then select the Settings button group 【MIDDLE】

key to confirm.

Automatic

17 18

Wireless flash mode

C means that only to receive

Canon wireless flash signal,

avoid N signal interference;

N means that only to receive

Nikon Remote flash signal,

avoid C signal interference;

With multiple speedlite having the wireless flash feature,you can create

various lighting effects with the same ease as using normal TTL autoflash.

1.Set the speedlite to wireless flash mode by press wireless selection key,

When the LCD screen display SLAVE C.Press the Wireless select button.

The flash will switch between SLAVE C/SLAVE N/S1/S2/ as well as normal

flash.The SLAVE C/SLAVE N/S1/S2 four models as the slave unit from

machine use,create different lighting effect.

SLAVE C indicate receiving wireless flash signals from the canon 7D

/60D/600D camera flash and 580EX II,600EX,ST-E2.SLAVE N indicate

received C instruction form Nikon camera as well as C instruction signal

of SB-900/800/700, SU-800 .SLAVE C/N supports 4 channel, 3 different

groups,TTL,manual and stroboscopic wireless flash.Using this mode by

rotating flash lamp,It make the wireless trigger sensors toward the master

speedlite.Before shooting,this speedlite and the Master speedlite should

be arranged in the same channel.This speedlite as the slave unit,press the

[ZOOM] button until the channel or category flicker,respectively setting

the slave unit Communication channels (1, 2, 3, 4) and the slave unit group

(A, B, C).When work in Slave units,

The flash mode of brightness

and completely controlled by the Master control unit,and to display the

received information.

Focal length is not controlled by the

Master flash light, need to adjust manually.

4.Press【ZOOM】 key to flashing,press 【LEFT】【RIGHT】key

to set the group. Press【middle】key to confirm exit the settings.

A/B/C

2.The Master unit

The Master speedlite set any flash exposure compensation setting,flash

exposure bracketing, exposure lock,manual flash stroboscopic flash,

information settings will be automatically transferred to this speedlite.

3.Press【ZOOM】 key to . Flashing,press 【LEFT】【RIGHT】

key to set the wireless channel,Press【middle】key to confirm,exit the

settings.

Inhaltsverzeichnis

Andere triopo Kamerablitz Handbücher

triopo

triopo TR-980 Bedienungsanleitung

Beliebte Kamerablitz Handbücher anderer Marken

Canon

Canon 5246B002 Bedienungsanleitung

Sigma

Sigma EF-610 DG SUPER - Bedienungsanleitung

Godox

Godox DP300 Bedienungsanleitung

Sony

Sony HVL-FDH4 Bedienungsanleitung

Sony

Sony HVL-RLA Bedienungsanleitung

Nikon

Nikon SB-28 Bedienungsanleitung

Canon

Canon Speedlite 380EX Bedienungsanleitung

Olympus

Olympus FL 36R Bedienungsanleitung

Nikon

Nikon BC-7 Bedienungsanleitung

Altura Photo

Altura Photo AP-305N Bedienungsanleitung

Nikon

Nikon SB-800 Bedienungsanleitung

DÖRR

DÖRR DFX-300 Bedienungsanleitung

Canon

Canon SPEEDLITE 300EZ Bedienungsanleitung

Sunpak

Sunpak 622 Super Pro-System Bedienungsanleitung

Polaroid

Polaroid PL108-AF Bedienungsanleitung

Godox

Godox Thinklite TT350P Bedienungsanleitung

Pentax

Pentax AF240Z Bedienungsanleitung

Pixapro

Pixapro Li-ion 350 II N Bedienungsanleitung

triopo Speedlite Bedienungsanleitung

Beliebte Kamerablitz Handbücher anderer Marken
