Tripp Lite MTB3-DOCK-04 Bedienungsanleitung
1
Thunderbolt 3 Dual-Monitor Docking
Station with 8K DisplayPort, 4K HDMI,
USB-A Hub Ports, 3.5 mm Audio, Gigabit
Ethernet and 60W PD 3.0 Charging
Model: MTB3-DOCK-04
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR®surge protector in our monthly drawing!
tripplite.com/warranty
Este manual esta disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
tripplite.com
2
• MTB3-DOCK-04
• Owner’s Manual
• P568-Series High-Speed HDMI Cables
• U428-Series USB 3.1 A/C Cables
• N201-Series High-Speed Cat6 Gigabit Ethernet Cables
• P580-Series DisplayPort Cables
• Thunderbolt 3 input supports data transfer rates up to 40 Gbps
when used with a Thunderbolt 3-enabled host computer
Note: Product is compatible only with a Thunderbolt 3 port and will not
work with a standard USB-C port
• DisplayPort output supports 4-lane DP 1.4 video resolutions up
to 8K (7680 x 4320) @ 30 Hz
• HDMI output supports UHD 4K @ 60 Hz (HDR and 4:4:4), as
specified by HDMI 2.0
Package Contents
Optional Accessories
Product Features
3
• Source computer with Windows 10 or Mac OS 10.15.3 and
above and Thunderbolt 3 port
• Displays with DisplayPort and/or HDMI input
• Ethernet network with speeds up to 10/100/1000 Mbps
(1 Gbps)
System Requirements
Product Features
• Transmits video from both ports simultaneously to two displays
Note: See Multi-Monitor Requirements for exact product features
• RJ45 port supports 10/100/1000 Mbps Gigabit Ethernet
speeds to connect to a wired network
• Dual USB 3.2 Gen 2 ports individually support 10 Gbps data
transfer speeds for connecting USB-A peripherals
• Supports self-powered mode when using the PD Charging port
and bus-powered mode when plugged into the host laptop or
computer
Note: Product features vary based on type. See Specifications Table
for exact product features
• 3.5 mm audio port enables connection of speakers or headset
• USB-C Power Delivery (PD) 3.0 port supports 20V 3A (60W)
power output for charging host computer
• Plug-and-play operation with no software required for easy,
immediate installation
4
Front
Rear

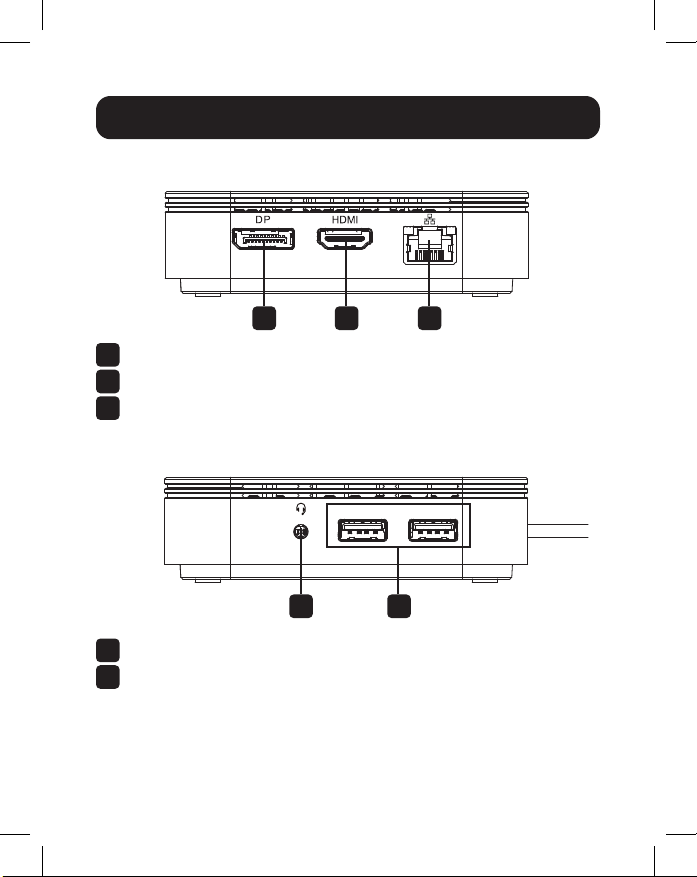

Product Overview
1DisplayPort output
2HDMI output
3RJ45 Gigabit Ethernet jack
43.5 mm audio jack
5USB 3.2 Gen 2 Type-A ports
USB 3.2 USB 3.2
PD CHARGE
USB 3.2 USB 3.2
PD CHARGE
1
4
2
5
3
5
Side
Product Overview
660W (20V 3A) PD 3.0 Charging port
USB 3.2 USB 3.2
PD CHARGE
6
6
Installation
Notes:
• Docking station must be connected to a dedicated Thunderbolt 3 port
to function. It will not function with a standard USB-C port.
• Supports the connection of two monitors at the same time: one via
DisplayPort and a second via HDMI. See Multi-Monitor Requirements
section for details.
• See Optional Accessories section for suggested cables.
• When the dock is in self-powered mode, both USB-A ports support
full USB 3.2 Gen 2 speeds up to 10 Gbps. When using bus-powered
mode, one port supports USB 3.2 Gen 2 (10 Gbps) and the other will
support USB 2.0 speeds on a first-come, first-serve basis.
• When the docking station is connected to the USB-C port on the
host computer and to a network using UTP patch cabling, a network
connection will be established automatically. If no connection is made,
one can be established manually by going to the host computer’s
network settings. For example, on a Mac, navigate to the Network
section in System Preferences, click the “Assist Me” button to get to
the Network Setup Assistant, and then follow the prompts to establish
a connection.
1. Connect the docking station’s built-in Thunderbolt 3 plug to
the Thunderbolt 3 port on your computer or laptop.
2. Connect the DisplayPort output to a DisplayPort monitor with
a user-supplied DisplayPort cable.
AND/OR
3. Connect the HDMI output to an HDMI monitor with a user-
supplied HDMI cable.
Note: The DisplayPort and HDMI outputs can be used to transmit
video simultaneously. See Multi-Monitor Requirements section for
details.
7
Installation
4. Connect an external speaker, microphone, headset or other
audio device to the 3.5 mm audio jack.
5. Connect up to two USB peripherals to the USB-A ports.
6. Connect the RJ45 jack to a wired Gigabit Ethernet network
with a user-supplied UTP patch cable.
8
Multi-Monitor Requirements
The MTB3-DOCK-04 supports the connection of a DisplayPort
monitor and an HDMI monitor simultaneously for dual 8K + 4K
video via Thunderbolt 3 technology. The following limitations must
be taken into account when connecting multiple monitors at the
same time:
Does the Source Computer Support DisplayPort 1.4
Alternate Mode?
When connecting to a Thunderbolt 3 source that supports
DisplayPort Alt Mode, the EDID information of both connected
monitors will be read by the computer and appear as separate
displays that can be shown in mirror mode or extended mode.
The DisplayPort output can achieve video resolutions up to
8K (7680 x 4320) @ 30 Hz when used with a Thunderbolt
3-enabled source computer and 8K DisplayPort cable. The HDMI
output supports UHD 4K (3840 x 2160) @ 60 Hz when used
with a 4K HDMI cable. Both ports can be used simultaneously for
dual 8K + 4K resolutions.
Does the Source Computer Support a Thunderbolt
3 Connection?
The MTB3-DOCK-04 can be used to transmit video from source
computers that have a Thunderbolt 3 port. The docking station
will not work with a standard USB-C port. Be sure your computer
or laptop includes a dedicated Thunderbolt 3 port prior to use.
9
Specifications
Input Connector
Thunderbolt Thunderbolt 3 Type-C (Male)
Output Connectors
DisplayPort DisplayPort (Female)
HDMI HDMI (Female)
USB (x2) USB 3.2 Gen 2 Type-A (Female)
PD Charging USB-C PD 3.0 Charging (Female)
Audio 3.5 mm (Female)
Display Specifications
DisplayPort 8K (7680 x 4320) @ 30 Hz
HDMI 4K (3840 x 2160) @ 60 Hz
Network Specifications
Ethernet 10/100/1000 Mbps (1 Gbps)
USB Functionality
USB-A 3.2 Gen 2
(Self-Powered Mode)
Self-Powered Mode means the PD
Charging port is being used by the host
computer and the docking station is
powered via PD pass-through. Both
USB-A ports support USB 3.2 Gen 2
speeds up to 10 Gbps.
USB-A 3.2 Gen 2
(Bus-Powered Mode)
Bus-Powered Mode means the docking
station is only being powered by the
host computer. Only one USB-A port will
support USB 3.2 Gen 2 speeds up to
10 Gbps. The other will support USB 2.0
on a first-come, first-serve basis.
10
Specifications
Electrical Specifications
PD Charging PD 3.0 Charging up to 60W (20V 3A)
Environmental Specifications
Operating Temperature
Range
32° to 95°F / 0° to 35°C
Storage Temperature
Range
-4° to 158°F / -20° to 70°C
Relative Humidity
Range
0 to 90%
