Owner’s Manual
IP66-Rated Gigabit PoE
Outdoor Surge Protector
Model: B110-SP-CAT-OD
Copyright © 2020 Tripp Lite.
All trademarks are the property of their respective owners.
WARRANTY REGISTRATION
Register your product today and be automatically entered
to win an ISOBAR surge protector in our monthly drawing!
tripplite.com/warranty
Español 13 • Français 25 • Русский 37
19-11-220-933B57-BOOK.indb 119-11-220-933B57-BOOK.indb 1 2/5/2020 1:28:50 PM2/5/2020 1:28:50 PM
2
Package Includes
• B110-SP-CAT-OD Outdoor Surge Protector
• 18 AWG Grounding Wire – 1 ft.
• Metric Cable Gland, 8.4 mm Diameter (x2)
• PCBA Mounting Screws (x2)
• (x4) Surface Screw Anchors
• (x4) Surface Mounting Screws
• Unit Cover Screws (x4)
• Owner’s Manual
Product Features
• Protects valuable outdoor PoE equipment from power
surges, lightning, ESD and cable discharge events in
unforgiving environments
•
Complies with 802.3af, 802.3at and 802.3bt IEEE
Standards
• Support PoE devices up to 90W and Ethernet speeds up to
1 Gbps
• Meets the following IEC regulations:
o IEC 61000-4-2 (ESD) +/- 15kV(Air), +/- 8kV(Contact)
o IEC 61000-4-5 (Lightning) 10kA (8/20µs), 20kV (8/20µs)
• Supports both Mid- and End-Span PoE
• Passive by design—no external power required
Optional Accessories
• N224-Series Cat6 Plenum-Rated Solid-Core Bulk Cable
• T100-001-TST Wire Crimper with Built-In Cable Tester
19-11-220-933B57-BOOK.indb 219-11-220-933B57-BOOK.indb 2 2/5/2020 1:28:50 PM2/5/2020 1:28:50 PM
3
Figure 2Figure 1
Mounting Instructions
On the bottom of the enclosure, the distance from the center
to center of each mounting hole are engraved (Figure 1).
Securely mount the bottom portion of the enclosure to the
desired outdoor location. Screw hole diameter supports
mounting screw sizes up to M3.5.
Note: Mount the enclosure with the screw slit side in the bottom
right corner, see Figure 2)
92
62
19-11-220-933B57-BOOK.indb 319-11-220-933B57-BOOK.indb 3 2/5/2020 1:28:51 PM2/5/2020 1:28:51 PM
4

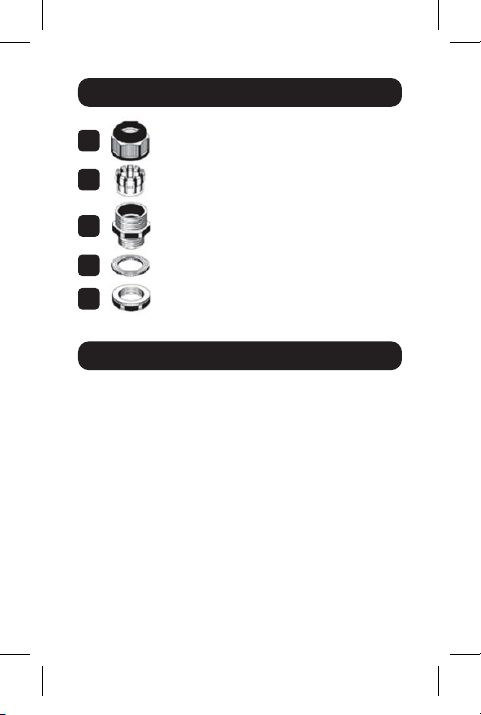

Metric Cable Gland Assembly
Protect outdoor edge network devices like PoE cameras or
LAN access points from water, dust or electrical damage by
installing the B110-SP-CAT-OD between the source and edge
network equipment.
Note: Maximum cable distance between B110-SP-CAT-OD and
source is 328 ft. (100 m); maximum cable distance between
B110-SP-CAT-OD and equipment is 328 ft. (100 m). For best
protection performance, the total cable distance in the installation
should not exceed 328 ft. (100 m).
Note: The B110-SP-CAT-OD must be grounded to function properly.
Installation
A
B
C
D
E
19-11-220-933B57-BOOK.indb 419-11-220-933B57-BOOK.indb 4 2/5/2020 1:28:51 PM2/5/2020 1:28:51 PM
5
Note: Use standard size Cat5e, Cat6 or Cat6a cables that feature a
wire gauge of 23/24 AWG. Slim category cables are not supported.
1. Remove both the cap Aand end nut Efrom one of the
metric cable glands (refer to section Metric Cable Gland
Assembly). Slide the cap and remaining portion of the
metric cable gland onto both the included grounding wire
and bare-wire category cable coming from your source (ex:
PoE switch) as shown:
Note: Use standard size Cat5e, Cat6 or Cat6a cabling that features
a wire gauge of 23/24 AWG. Slim category cables are not supported.
Installation
PoE Camera
Equipment (Edge) Protection Only
This installation protects only your edge equipment from
surge, lightning or ESD damage. To protect both the source
and edge equipment, refer to section Source and Equipment
(Edge) Protection.
19-11-220-933B57-BOOK.indb 519-11-220-933B57-BOOK.indb 5 2/5/2020 1:28:51 PM2/5/2020 1:28:51 PM
6
2. Insert both the grounding wire and the bare-wire end of the
category cable in the enclosure, making sure it is inserted
on the side with the slit.
3. Using a crimping tool (such as Tripp Lite’s T100-001-TST,
sold separately), crimp an RJ45 connector to the bare end
of the category cable.
Screw the metric cable gland to the enclosure using the
end nut Epreviously removed in Step 1. Then tighten
the cap securely onto the metric cable gland.
Installation
19-11-220-933B57-BOOK.indb 619-11-220-933B57-BOOK.indb 6 2/5/2020 1:28:51 PM2/5/2020 1:28:51 PM
7
Installation
4. Repeat Steps 1-3 for the equipment (ex: PoE camera) side
of the enclosure without the addition of a grounding wire.
Note: To achieve the best protection performance, the Cat5e/6/6a
patch cable between the equipment end of the B110-SP-CAT-OD surge
protector and the equipment to be protected must not exceed 300 ft.
5. Once both bare wires are crimped, connect the newly
crimped RJ45 cables to the PCBA, then secure the PCBA
board to the enclosure using the included mounting screws.
Lastly, attach the grounding wire to the available screw on
the PCBA board.
Note: Ensure the cable end of the PCBA is facing the side with the
slit and the equipment end facing the other. Make sure you connect
your source to the cable end, and your PoE-compliant device to the
equipment end.
Equipment End
19-11-220-933B57-BOOK.indb 719-11-220-933B57-BOOK.indb 7 2/5/2020 1:28:51 PM2/5/2020 1:28:51 PM
8
Installation
6. Screw the front cover to the back portion of the enclosure
using the included unit cover screws, making sure both the
groove and the slit line up.
7. The connected PoE device is now protected.
Equipment End
19-11-220-933B57-BOOK.indb 819-11-220-933B57-BOOK.indb 8 2/5/2020 1:28:51 PM2/5/2020 1:28:51 PM
9
Source and Equipment (Edge) Protection
The previous installation only protects your edge equipment
from surge, lightning or ESD damage. To protect both the
source and edge equipment, install two B110-SP-CAT-OD
units in your application. A B110-SP-POE can be installed
instead of a second B110-SP-CAT-OD to protect the source if
the second unit will be installed indoors.
Note: Use standard size Cat5e, Cat6 or Cat6a cables that feature a
wire gauge of 23/24 AWG. Slim category cables are not supported.
Maximum cable distance between two B110-SP-CAT-OD units is
328 ft. (100 m).
Installation
Wireless Access Point
PoE Switch
To LAN
19-11-220-933B57-BOOK.indb 919-11-220-933B57-BOOK.indb 9 2/5/2020 1:28:52 PM2/5/2020 1:28:52 PM
10
Installation
1. Install a second B110-SP-CAT-OD between the first
B110-SP-CAT-OD unit and your source following Equipment
(Edge) Protection Only installation Steps 1-3.
2. In order to protect both the source and edge equipment,
the two B110-SP-CAT-OD units need to be wired cable
end-to-cable end as shown below.
Equipment End
Equipment End
328 ft.
(100 m)
19-11-220-933B57-BOOK.indb 1019-11-220-933B57-BOOK.indb 10 2/5/2020 1:28:52 PM2/5/2020 1:28:52 PM
