Tripp Lite S3MT Series Bedienungsanleitung

Owner’s Manual

S3MT-Series 3-Phase Input

and Output Transformers:

480V-208V and 208V-480V

Model: S3MT-100KWR480V

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

Español 19 • Français 37

1. Introduction ................................................................................. 3

2. Important Safety Warnings.......................................................... 5

3. Installation .................................................................................. 6

3.1 Mechanical Data ...................................................................................6

3.2 Package Inspection ..............................................................................7

3.3 Unpacking the UPS ...............................................................................7

3.4 Package Contents.................................................................................9

3.5 Cabinet Overview ..................................................................................9

3.6 Power Cables ......................................................................................11

3.7 Input and Output Transformer-to-UPS Connection Line Diagram........12

3.8 Input and Output Transformer Connections........................................13

4. Operation................................................................................... 14

4.1 Over-Temperature Protection..............................................................14

4.1.1 Over-Temperature Warning LED Light .......................................................... 14

4.1.2 Over-Temperature Protection Relay and Thermal Switch............................. 14

5. Speciﬁcations............................................................................ 15

6. Storage...................................................................................... 18

7. Warranty and Regulatory Compliance........................................ 18

Table of Contents

1. Introduction

Tripp Lite’s S3MT-100KWR480V is a 480V Wrap-Around Transformer that includes two transformers in one enclosure: a

480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up

transformer.

The input isolation transformer mitigates utility line surges and spikes, while protecting the UPS. The output auto transformer

is designed to support 480V (Wye) IT loads. This model has built-in circuit breakers to prevent dangerous circuit overloads.

Eight ball-bearing fans maintain quiet operation and help to dissipate transformer heat. An overheat-sensing relay and switch,

combined with an LED light in the front panel, provide over-temperature warning and overheating protection. The UPS system’s

small footprint and quiet acoustic proﬁle enable installations with minimal space and noise impact. The transformer features a

rugged all-metal housing with a front panel similar to the S3M-Series 208V 3-Phase UPS line.

UPS Model Series Number Capacity Description

S3MT-100KWR480V AG-0513 100kW Input Transformer: 480V to 208V Isolation

Step-Down Transformer

Output Transformer: 208V to 480V Auto Step-

Up Transformer

Typical applications

4-Wire (3Ph+N+PE) IT equipment loads in government, manufacturing, hospitals, industrial settings and corporate settings

that have 480V electrical mains and 480V IT loads.

Key Features

• The input step-down transformer provides 480V (Delta) to 208V/120V (Wye) isolation protection to the UPS input

• The output auto transformer provides 208V (Wye) to 480V (Wye) step-up to support 480V IT loads

• Circuit breakers at the output of the input transformer and the input of the output transformer

• Overheating warning and protection

• 96.7% to 97.8% efﬁciency

• Copper windings

• Wide input voltage and frequency operating range: Voltage: -20% to +25% @ 100% load and 40-70 Hz

• Insulation class: 180 material

• Reliability-tested according to ISTA-3B for vibration, shock, drop (tip test)

• UL and CSA TUV certiﬁcations

• Rugged all-metal housing shipped ready for installation

• 2-year warranty

1. Introduction

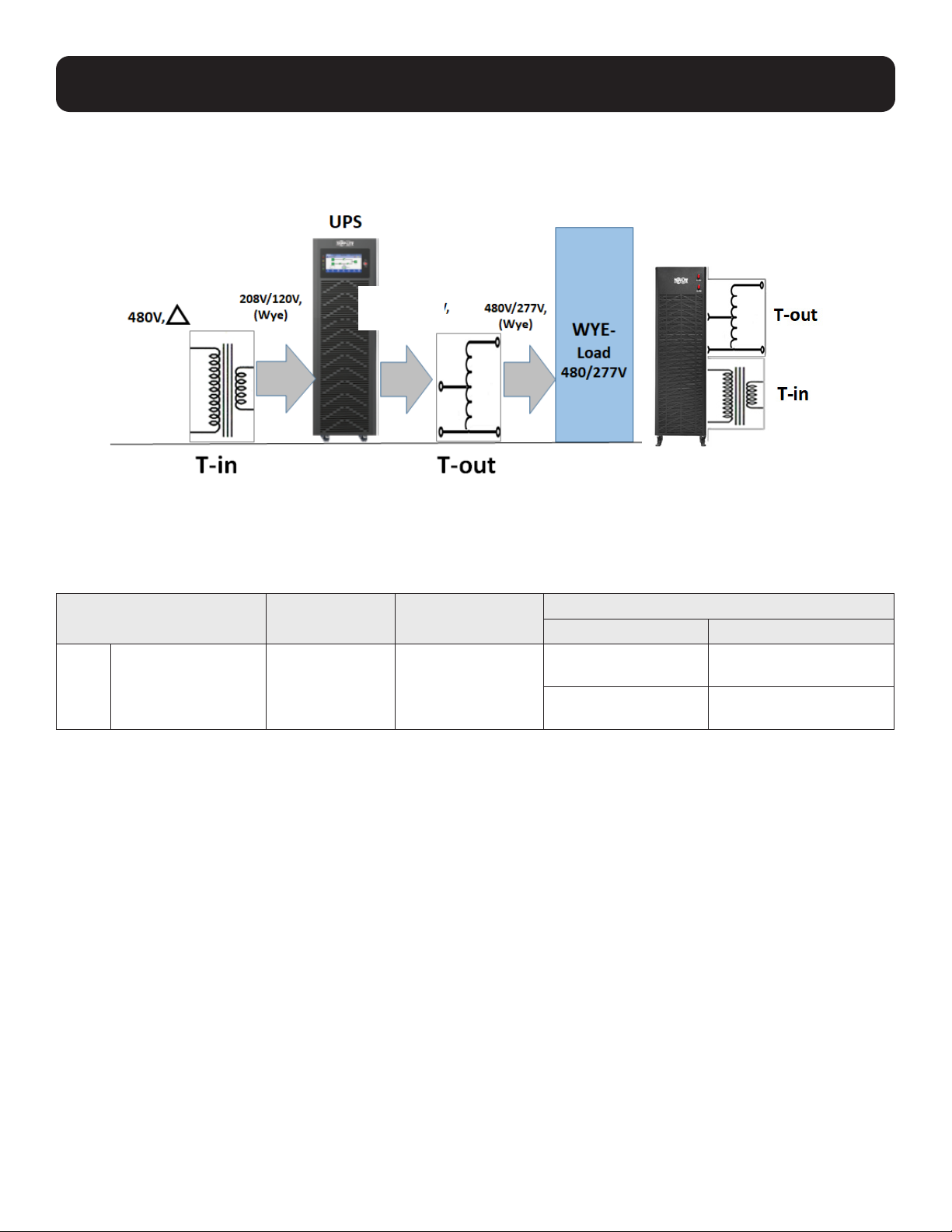

Typical Conﬁgurations

The 480V Wrap-Around (WR) Transformer includes both the input (T-in) and output (T-out) transformers in one enclosure.

This 480V Wrap-Around Transformer may be purchased separately or as part of kit model with a Tripp Lite S3M80K or

S3M100K 3-Phase UPS:

Wrap-Around

Transformer Models

Maximum

Constant Load

Compatible with

208V 3Ph UPS

Kit Models: UPS + Transformer

Kit Models Kit Models Include

480V S3MT-100KWR480V 100kW 80-100kW UPS

S3M80K-100KWR4T S3M80K UPS +

S3MT-100KWR480V

S3M100K-100KWR4T S3M100K UPS +

S3MT-100KWR480V

208V/120V,

(Wye)

Note: The input (T-in) and the output

(T-out) transformers are both inside

one cabinet, as shown above.

2. Important Safety Warnings

SAVE THESE INSTRUCTIONS

This manual contains important instructions for model S3MT-100KWR480V that should be followed during installation and

maintenance of the transformer and UPS.

CAUTION! Risk of electrical shock! Hazardous live parts inside this unit are energized from the transformer even when

the breaker is turned off.

WARNING! The unit intended for installation in a controlled environment.

CAUTION! A transformer can present a risk of electric shock and high short circuit current. The following precaution should

be observed when working on the transformer:

• Remove watches, rings or other metal objects.

• Use tools with insulated handles.

To reduce the risk of electric shock, disconnect the transformer and UPS from the mains supply before performing

maintenance or service.

Servicing the 3-phase transformer and UPS should be performed by Tripp Lite certiﬁed personnel with knowledge the 3-phase

transformer and UPS and all required precautions.

The transformer is extremely heavy. Caution should be taken in moving and positioning equipment. The instructions contained

within this manual are important and should be closely followed at all times during installation and follow-up maintenance of

the 3-phase transformer and UPS.

CAUTION!

The transformer has a dangerous level of heat. If the transformer’s front-panel red LED indicator is on,

the unit’s outlets may have a dangerous level of heat.

All servicing on this equipment must be carried out by qualiﬁed Tripp Lite-certiﬁed personnel.

Before conducting any maintenance, repair or shipment, ﬁrst ensure everything is turned off completely

and disconnected.

Special Symbols – The following symbols are used on the transformer to warn you of precautions:

RISK OF ELECTRIC SHOCK - Observe the warning that a risk of electric shock is present.

CAUTION - REFER TO OWNER’S MANUAL for information regarding important operating and maintenance instructions.

SAFE GROUNDING TERMINAL - Indicates THE primary safe ground.

3. Installation

3.1 Mechanical Data

Physical Requirements

Leave space around the cabinet for operation and ventilation (Figure 3-1):

1. Leave at least 23.6 in. (600 mm) space in the front for ventilation

2. Leave at least 20 in. (500 mm) space at the right and left for operation

3. Leave at least 20 in. (500 mm) space at the back for ventilation

Figure 3-1

31.5”

(800 mm)

77.6”

(1970 mm)

33.5”

(850 mm)

≥20”

(500 mm)

≥20”

(500 mm)

≥20”

(500 mm)

≥20”

(500 mm)

≥23.6”

(600 mm)

3. Installation

3.2 Package Inspection

1. Don’t lean the transformer cabinet when removing it from the packaging.

2. Check the appearance to see if the transformer cabinet was damaged during transport. Do not power on the transformer

cabinet if any damage is found. Contact the dealer immediately.

3. Check the accessories against the packing list and contact the dealer in case of missing parts.

3.3 Unpacking the UPS

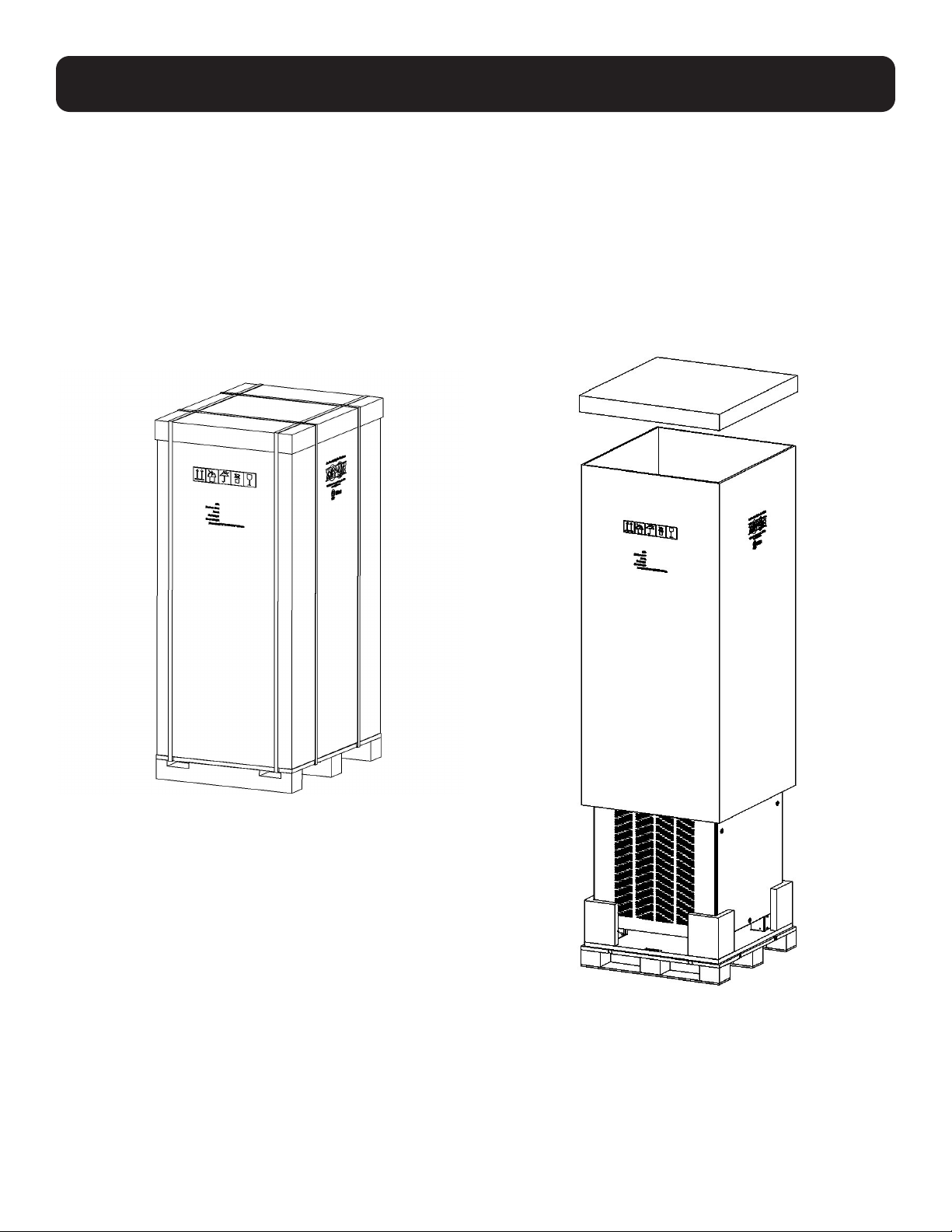

1. Hold the sliding plate steady. Cut and remove the binding

straps (Figure 3-2).

Figure 3-2

2. Remove the plastic bag and the outer carton (Figure 3-3).

Figure 3-3

3. Installation

3. Remove the foam packing material and the beveled pallet

(Figure 3-4).

Figure 3-4

4. Remove the screws securing the cabinet to the pallet

(Figure 3-5).

Figure 3-5

5. Lift the cabinet with a forklift and remove the packing pallets (Figure 3-6).

Figure 3-6

3. Installation

3.5 Cabinet Overview

1Output Transformer Over-Temperature Alarm LED

2Input Transformer Over-Temperature Alarm LED

3Output Transformer Cooling Fans

4Input Transformer Cooling Fans

5Input Transformer Breaker with Trip

6Output Transformer Breaker with Trip

7Input Transformer Cabling Terminal

8Output Transformer Cabling Terminal

9Bottom Entry Knockouts

(for Power Cable Entry and Exit

Rear ViewFront View

3.4 Package Contents

Contents TL P/N S3MT-100KWR480V

Input and Output Transfers in One Cabinet 1

Owner’s Manual 933D06 1

Bottom Skirts 1038F8A 2

Bottom Skirts 103924A 2

Screws for Skirts 3011C3 24

3. Installation

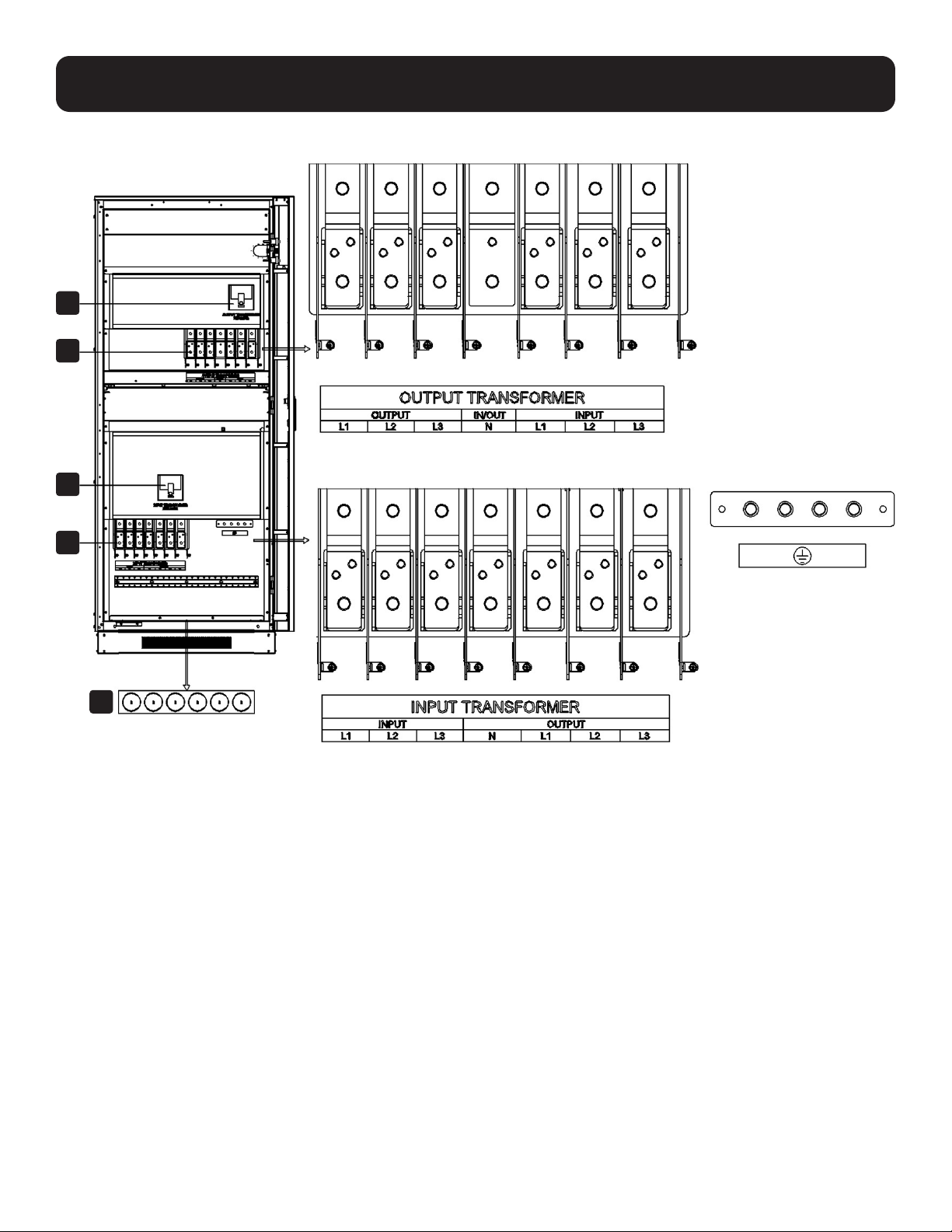

Front View (Terminal Block without Cover) of S3MT-100WR480V
