TRONXY X5 Bedienungsanleitung

Step 1 Assemble Base Frame

Parts:

2020 Aluminium profile 355mm –2pcs

2020 Aluminium profile 380mm –2pcs

2020 Aluminium profile 500mm –4pcs

Acrylic corner cushion –4pcs

M4-10mm screw –8pcs

M4 T-Nut –8pcs

M5-25mm screws –4pcs

Step 2 Assemble Top Frame

Parts:

2020 Aluminium profile 355mm –2pcs

2020 Aluminium profile 380mm –2pcs

Corner bracket –8pcs

M4-8mm screws –16pcs

M4 T-Nut –16pcs

M5-25mm screws –4pcs

Step 3 Assemble Z axis

Parts:

1: Y axis motor –1pcs

Y axis motor holder (acrylic) –1pcs

Pulley (with grub screw in it) –1pcs

M3-45mm screws –4pcs M4-10mm screws –2pcs

M4 T-Nut –2pcs

2: Z endstop –1pcs Z endstop holder –1pcs

M2-10mm –2pcs M3-16mm –1pcs M3 nut –1pcs

3: Z axis motor –1pcs Z motor holder(acrylic) –1pcs

M3-45mm screws –4pcs M4-10mm screws –2pcs

M4 T-Nut –2pcs coupling –1pcs

Lead screw 385mm -1pcs

4: Flange bearing –2pcs Copper nut –1pcs

M3-45mm screws –1pcs Spring –3pcs

Flange bearing holder –1pcs M3-10mm screws –8pcs

5: KFL08 bearing –1pcs Sliding rod holder –2pcs

M4-10mm screws –6pcs M4 nuts –6pcs

Sliding rod 460mm –2pcs

1 3

Step 4 Assemble KP08 Bearings

Parts:

KP08 Bearing –4pcs

M4-8mm screws –8pcs

M4 T-Nut –8pcs

Step 5 Assemble SK8 support shaft

Parts:

SK8 support shaft –4pcs

M4-8mm screws –8pcs

M4 T-Nut –8pcs

Step 6 Assemble sliding rods

Parts:

Sliding rod 420mm –2pcs

Pulley (with grub screw in it) –5pcs

Closed belt –1pcs

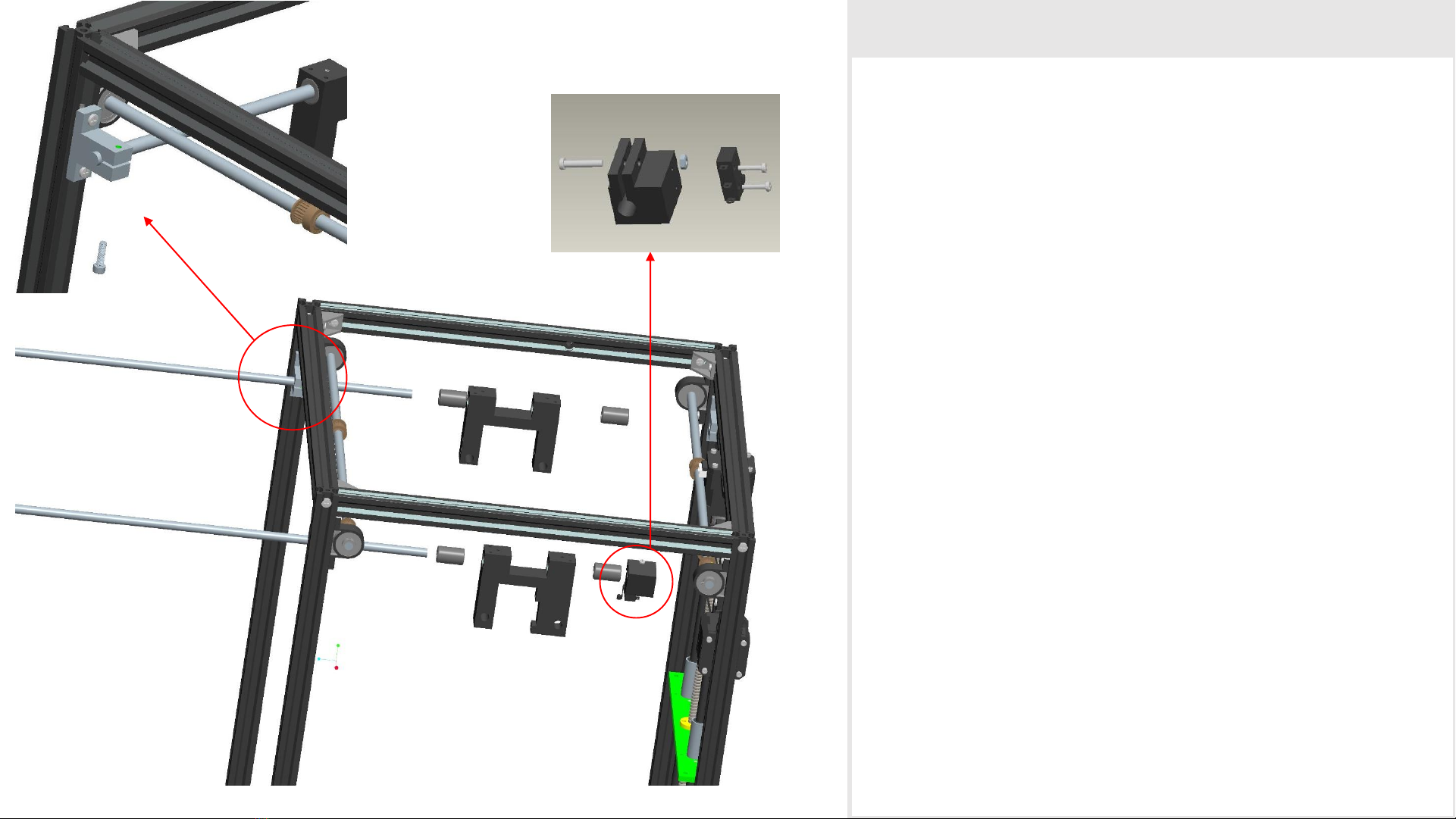

Step 7 Assemble X-pulley&motor mount

Parts:

Sliding rod 395mm -2pcs

LM8UU linear bearing –8pcs

X-Pulley mount –1pcs

X-motor mount –1pcs

Y-endstop –1pcs

Y-endstop mount –1pcs

M2-10mm –2pcs

M3-16mm –1pcs

M3 nut –1pcs

Step 8 Assemble X axis

Parts:

①

Belt pulley –1pcs

M5-32mm screw –1pcs

M6 washer –3pcs

M5 washer –2pcs

M5 nut –1pcs

②

X endstop –1pcs

X endstop holder ( acrylic) –1pcs

M2-10mm screw –2pcs

M2-10mm nut –2pcs

M3-40mm nut –2pcs

③

Sliding rod 360mm –2pcs

Extruder assembly –1pcs

①

②

③

Step 9 Assemble heat bed

Parts:

Timing belt –1pcs

Zip-ties –2pcs

Tighten one end of the timing belt to the belt

hole which is on the extruder using a zip-ties .

Run the other end of timing belt to the X-Motor-

Pulley and Belt pulley . Then tighten it to another

belt hole using a zip-ties, as shown in the picture .
