OPERATING MANUAL

HOT AIR BLOWER

HYSTREAM3400

TRT-BA-HYSTREAM3400-HS-002-EN

Operating manual – Hot air blower HYSTREAM 3400 ENB – 1

Table of contents

Notes regarding the operating manual ..............B - 1

Safety...............................................................B - 1

Operation..........................................................B - 3

Transport ..........................................................B - 4

Errors and faults ...............................................B - 4

Maintenance.....................................................B - 4

Repair...............................................................B - 5

Technical data .................................................B - 5

Disposal............................................................B - 6

Optional accessories ........................................B - 5

Notes regarding the operating manual

Symbols

cHazardous electric voltage!

Warns about a hazard from electrical voltage

which can lead to injuries or even death.

Hazard from hot surfaces!

Warns of a hazard resulting from hot surfaces

which can lead to injuries.

mDanger!

Warns of a hazard which can lead to injuries.

mCaution!

Warns of a hazard which can lead to property

damage.

The current version of the operating manual can be found

at:

www.trotec.de

http://hub.trotec.com/?id=26899

Legal notice

This release replaces all previous versions. No part of this

publication may be reproduced without written permission

from Trotec. The same applies for electronically processing,

duplicating or spreading the publication. Subject to techni-

out guarantee that they may be used freely and primarily

following the spelling of the manufacturer. Product names

are registered.

Changes to construction in the interests of constant im-

provements to the product, as well as changes to the shape

and colour are reserved. The scope of delivery may vary

from product images. This document was created with all

due care. Trotec accepts no liability whatsoever for possible

mistakes or omissions. © Trotec

Safety

Carefully read the operating manual before using the

device and keep it within reach!

mDanger!

The device becomes very hot! Improper use

of the hot air blower can result in injuries

due to burns and in an imminent ﬁre hazard!

•Do not use the device in rooms exposed to explosion

hazards where fuel, solvents, varnishes or other easily

inﬂammable vapours are stored nor in atmospheres con-

taining oil, sulphur, chlorine or salt.

•Do not use the device in humid, wet or muddy surround-

ings.

•Ensure a minimum distance of 50 cm to combustible

substances. Do not use the device in immediate prox-

imity to curtains.

•Do not use the device on combustible ground or near

inﬂammable objects.

• Make sure that air inlet and nozzle are not obstructed.

•Only connect the device to the mains if voltage and fre-

quency correspond to the values given on the nameplate.

•Keep a sufﬁcient distance to animals, especially small

animals, e.g. aviaries.

Operating manual – Hot air blower HYSTREAM 3400

EN B – 2

• Keep away children. People who use this device must

be aware of the dangers that occur when working with

a hot air blower.

• Never reach or put objects into the device.

• Never cover the device during operation, for it becomes

very hot!

• Never point the activated device at people, animals,

plants or combustible objects or liquids.

• Never leave the activated device unattended.

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals).

• Observe the device's power input, cable length and in-

tended use when selecting extensions to the connecting

cable. Avoid electrical overload. Extension cables must

always be reeled off completely.

• Pull the plug from the socket if the device is not in use for

extended periods of time.

• Allow the device to cool down completely before trans-

porting it.

Intended use

The device was developed for the purpose of generating hot

air and may only be used whilst adhering to the technical

data.

The hot air blower HyStream 3400 was designed for the

following ﬁelds of application:

• for hot air applications combined with a tile lifting sys-

tem such as the TilexPro from Trotec

• to remove ﬂooring

• to shrink foils and shrinking hoses

• to dry incombustible paints and varnishes, damp objects

or grounds

• to remove incombustible paints and varnishes

• to bend and heat-seal plastics

• for sealing work e.g. roofs, plastic foil, tents, tarpaulin

and the like

• for melting and thawing incombustible parts

Every application going beyond these terms of use is pro-

hibited!

Improper use

Only use the device as intended, never in the immediate

vicinity of combustible objects and not to set ﬁre.

Residual risks

Hazard from hot surfaces!

Parts of the device, especially at the noz-

zle, become very hot during operation.

There is a danger of burning and ﬁre.

Danger!

Parts of this appliance can become very

hot and cause burns. Particular attention

is to be paid when there are children or

vulnerable persons present!

mDanger!

Improper handling entails a risk of burn-

ing. Only use the device as intended!

mDanger!

The device must not be covered, there is

an imminent ﬁre hazard!

Hazardous electric voltage!

Work on the electrical components must

only be carried out by an authorised spe-

cialist company!

Behaviour in the event of an emergency

1. In case of an emergency, immediately switch the device

off using the ON/OFF switch.

2. Remove the mains plug from the mains socket.

Do not reconnect a defective device to the mains.

Operating manual – Hot air blower HYSTREAM 3400 ENB – 3

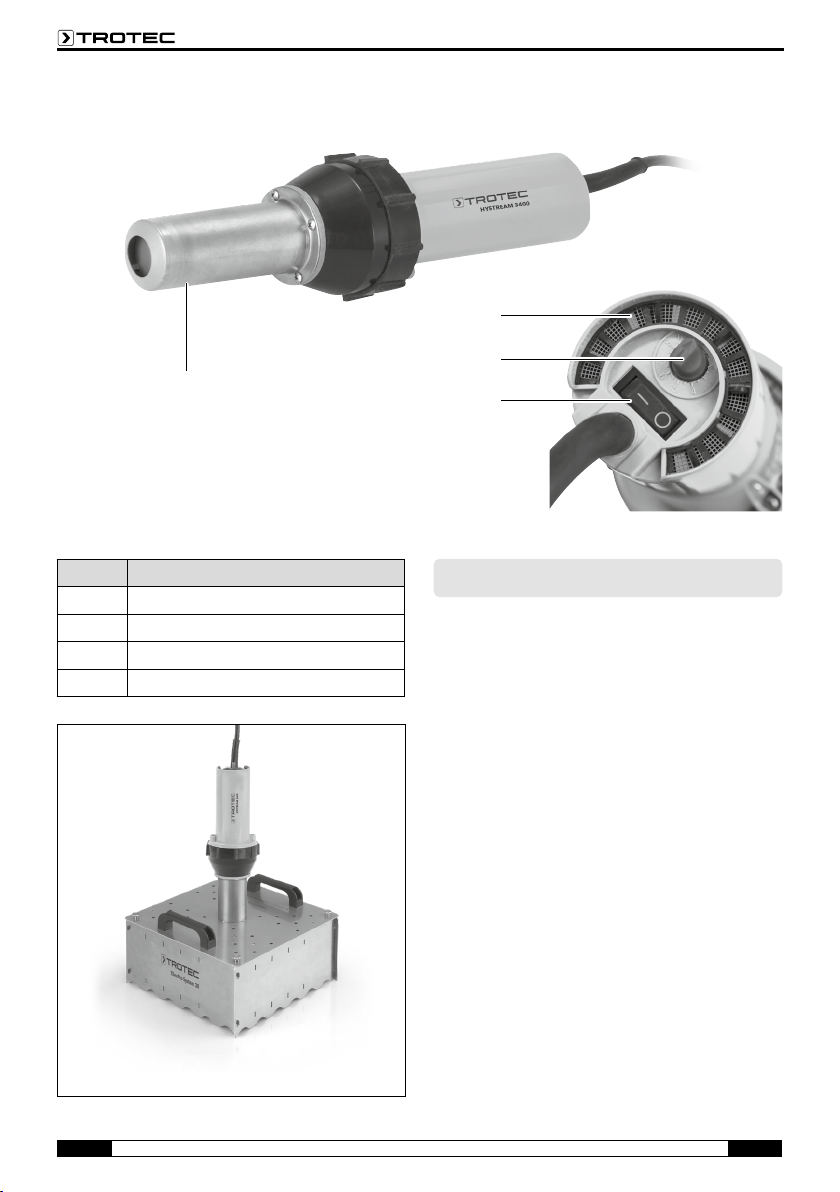

No. Designation

(1) Nozzle

(2) Venting slots

(3) temperature setting +/- °C [1-9]

(4) ON/OFF switch [0/1]

Operation

•The device was designed for many application areas,

plan yours carefully and prepare a corresponding work

space with sufﬁcient distance to combustible materials.

•The device must be connected to a properly secured

mains power socket.

Start-up

1. Set the device via the temperature setting(3) to the low-

est level[1].

2. Then use the ON/OFF switch(4) to switch the device on.

3. Select the desired temperature range via the tempera-

ture setting(3): the temperature can be steplessly ad-

justed between 20°C and 650°C.

4. Only hold the device in one hand or place it on the work-

ing surface. Make sure that the hot air blower cannot be

pulled down by the power cable.

5. Always start out at a low temperature and then slowly

adjust it to your operating range.

Application of the HyStream3400 with TilexPro30

tile lifting system

Operating manual – Hot air blower HYSTREAM 3400

EN B – 4

6. Further information regarding the use of the HyS-

tream3400 with tile lifting system TilexPro30 or Tilex-

Pro 50 can be gathered from the operating manual of

the TilexPro.

7. This professional tool is equipped with a highly efﬁcient

ceramic heating element. Handle the device carefully.

Do not drop it. Always put it safely aside after use.

Switching the device off

1. Turn the temperature setting(3) to minimum[1]. Allow

the device to cool down in the air ﬂow.

2. Then use the ON/OFF switch to switch the device off.

Wait for the end of the brief rundown period, then pull

the mains plug from the socket.

3. Before performing any further activities, e.g. storage or

transport, wait until the device has cooled down com-

pletely.

Transport

Before transporting the device, proceed as follows:

• Switch the device off.

• Remove the mains plug from the mains socket.

Do not use the power cable to drag the device!

• Wait until the device has cooled down completely.

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

Troubleshooting tasks which require the

housing to be opened must only be carried

out by a specialist dealer or by Trotec.

Slight smoke or odour are emitted during ﬁrst use:

•This is not a fault. These phenomena disappear after a

brief runtime.

The device does not start:

• Check the power connection (230 V/1~/50 Hz).

• Check the mains plug for damages.

• Have an electrical inspection carried out by Trotec.

The device supplies cold air only:

• The ceramic heating element or the temperature control

might be damaged.

• Please contact the Trotec customer service.

Your device still does not operate correctly after these

checks?

•In case of unusual sounds, sparking or motor problems,

switch the device off and put it down carefully.

• Please contact the Trotec customer service.

Maintenance

Activities required before starting maintenance:

• Do not touch the mains plug with wet or damp hands.

•Allow the device to cool down completely before per-

forming any maintenance work!

•Always remove the mains plug before any maintenance

work!

Maintenance tasks which require the

housing to be opened must only be carried

out upon consultation with Trotec.

Cleaning the housing:

Hazard from hot surfaces!

Burn hazard! Allow the device to cool down

completely before cleaning the housing!

Clean the device with a soft, damp and lint-free cloth. Make

sure that no moisture enters the housing. Do not use sprays,

solvents, harsh or abrasive cleaners to dampen the cloth.

Operating manual – Hot air blower HYSTREAM 3400 ENB – 5

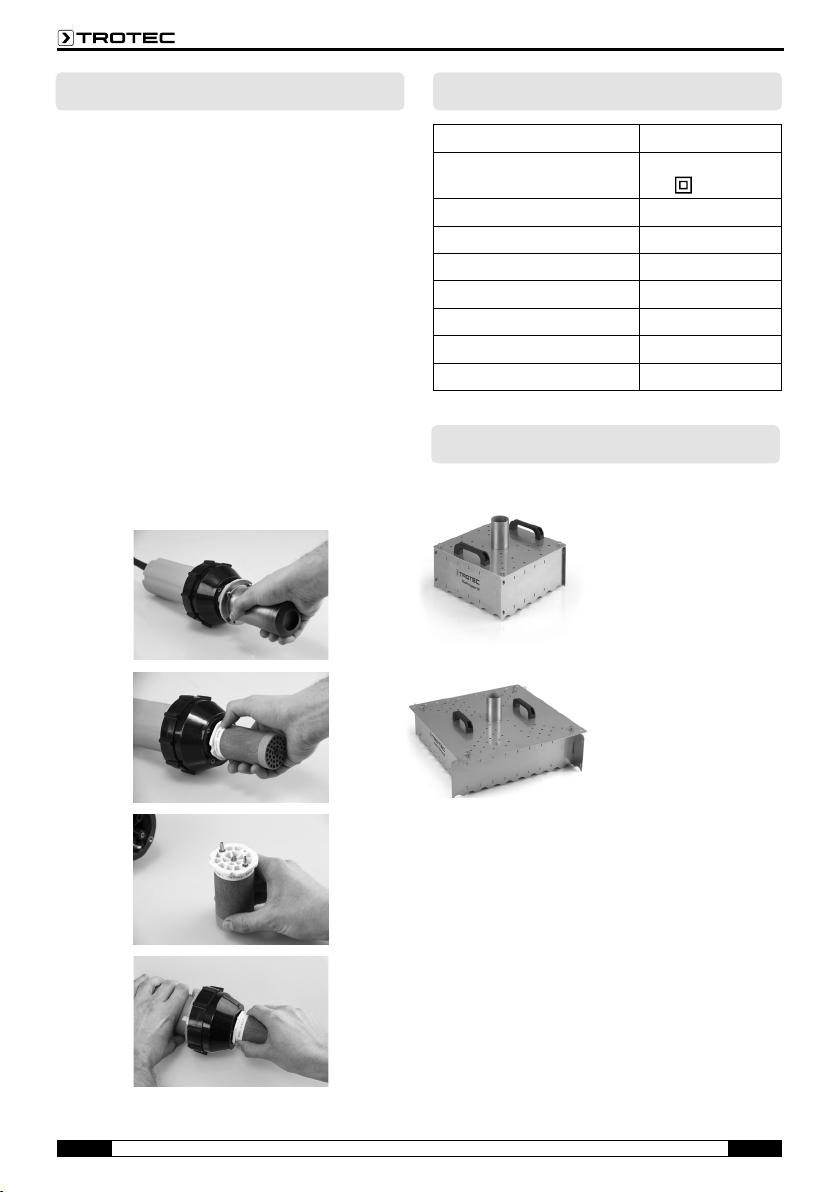

Repair

Replacing the ceramic heating element

(qualiﬁed persons only)

• Remove the mains plug from the mains socket.

• Put the cooled-off device on a working surface.

•Use a Phillips screwdriver to loosen the nozzle's

4screws(1), then carefully pull it off towards the front.

•Carefully hold the ceramic element directly by the white

rim and remove it from the plug connection by pulling

and shaking it gently.

•Observe the ﬁts before inserting the new heating ele-

ment: the notches and cut-outs must be compatible.

•Push the new heating element ﬁrmly into the plug con-

nection until the whit rim is seated ﬂush within the de-

vice.

• Fasten the nozzle back in place.

•Switch the device back on – starting at the lowest tem-

perature level.

Technical data

Nominal capacity 3400W

Mains connection

with protective insulation

1/N ~ 230V

yes

Power frequency 50Hz

Shaped plug CEE 7/17

Cable length 2.90 m

Air temperature 20°C – 650°C

Air ﬂow rate 320 l/min

Air pressure 3000 Pa

Noise level 65 dB (A)

Optional accessories

TilexPro system 30

for tile formats sized up to

30cm

art. no. 6.100.000.050

TilexPro system 50

for tile formats sized up to

50cm

art. no. 6.100.000.052

Disposal

Always dispose of packing materials in an

environmentally friendly manner and in

accordance with the applicable local

disposal regulations.

The icon with the crossed-out waste bin on waste

electrical or electronic equipment is taken from Directive

2012/19/EU. It states that this device must not be disposed

of with the household waste at the end of its life. You will

find collection points for free return of waste electrical and

electronic equipment in your vicinity. The addresses can be

obtained from your municipality or local administration. You

can also find out about other return options that apply for

many EU countries on the website

https://hub.trotec.com/?id=45090.

Otherwise, please contact an official recycling centre for

electronic and electrical equipment authorised for your

country. The separate collection of waste electrical and

electronic equipment aims to enable the re-use, recycling

and other forms of recovery of waste equipment as well as

to prevent negative effects for the environment and human

health caused by the disposal of hazardous substances

potentially contained in the equipment.

Only for United Kingdom

According to Waste Electrical and Electronic Equipment

Regulations 2013 (SI 2013/3113) (as amended) devices

that are no longer usable must be collected separately and

disposed of in an environmentally friendly manner.

Operating manual – Hot air blower HYSTREAM 3400

EN B – 6

Trotec GmbH

Grebbener Str. 7

D-52525 Heinsberg

+49 2452 962-400

+49 2452 962-200

info@trotec.com

www.trotec.com

Inhaltsverzeichnis

Andere Trotec Gebläse Handbücher

Trotec

Trotec TFV 10 S Bedienungsanleitung

Beliebte Gebläse Handbücher anderer Marken

Weed Eater

Weed Eater VS2000BV Bedienungsanleitung

KRAUSMANN

KRAUSMANN U37020-00 Bedienungsanleitung

Bosch

Bosch ALB 36 LI Bedienungsanleitung

Cub Cadet

Cub Cadet HB425 Bedienungsanleitung

GreenWorks Pro

GreenWorks Pro BLB482 Bedienungsanleitung

ARIETE

ARIETE 2768 Bedienungsanleitung

NuTone

NuTone 331H Bedienungsanleitung

GÜDE

GÜDE GLB 200 18 Li-Ion Bedienungsanleitung

I.VA.CO.

I.VA.CO. SC Series Betriebsanleitung

DeWalt

DeWalt DCE100 Bedienungsanleitung

Becker

Becker SV 7.330 Bedienungsanleitung

Metabo

Metabo AG 18 Pro Bedienungsanleitung

Desa

Desa GA3650TB Bedienungsanleitung

Echo

Echo Power Blower PB-230LN Bedienungsanleitung

Echo

Echo PB-413H Bedienungsanleitung

Black & Decker

Black & Decker BV3100 Bedienungsanleitung

Ryobi

Ryobi RY08570 Bedienungsanleitung

Haaga

Haaga 355 Bedienungsanleitung
