Il l u s t r a t e d Pa r t s Ma n u a l

Single-Stage Snow Thrower

Squall 210 & Squall 2100

Form No. 769-06259

(July 21, 2010)

Model Squall 2100 shown

0637 Black

0709 Dark Green (Bolens, Yard-Man)

0662 Oyster Gray (MTD Gold)

0638 Red (Yard Machines, Huskee, Troy-Bilt, MTD)

0691 Black Jack (MTD Gold, MasterCut)

0674 Yellow (Yard-Man)

0650 Metallic Red (White Outdoor)

0629 Silver Flake (MTD Platinum)

04038 Day Orange (Daedong)

04033 Flint Mica (Troy-Bilt XP)

Thank you for purchasing an MTD Snow Thrower. It was carefully

engineered to provide excellent performance when properly

operated and maintained.

All information in this manual is relative to the most recent

product information available at the time of printing. Please be

aware that this Illustrated Part’s Manual may cover a range of

product specifications for various models.

Components listed and/or illustrated in this manual may not be

applicable to all models. We reserve the right to change product

specifications, designs and equipment without notice and

without incurring obligation.

Throughout this manual, all references to right (RH) and left (LH)

are observed from the operating position.

To The Owner

Shroud, Chute & Handle ......................................... 4

Drive System & Auger Assembly ............................ 6

Engine Model 161-JWA 123cc ................................. 8

Engine Model 270-SU 208cc ..................................12

Table of Contents

Record Product Information

To ease in ordering replacement parts, please locate the model

plate on the equipment and record the information in the

provided area to the right. You can locate the model plate by

looking beneath the seat.

Mo d e l nu M b e r

se r I a l nu M b e r

Painted Parts

When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).

Please refer to the table below for current color codes:

This page left intentionally blank.

Shroud, Chute, & Handle

Ref. Part Number Description

1. 731-06551 Shroud

684-04236A† Shroud

2. 710-04669 Hex Washer Screw, 10-16 x .625

3. 710-1205 Eye Bolt, ⁄-20

4. 720-0279 Knob Handle

5. 710-0895 Hex Washer Screw, ⁄-15 x .750

6. 712- 04063 Flange Lock Nut, ⁄-18

7. 710-1090 Hex Screw, ⁄-18 x 1.25

8. 931-04353 Lower Chute Ring

9. 932- 0 4111 Chute Adjustment Spring

10. 931-04886 Chute Adapter

11. 931-04127 Lower Chute, 5” Diameter

12. 731-04426A Upper Chute

13. 720-04072A Wing Knob

14. 731-04388A Chute Handle

15. 710-0451 Carriage Bolt, ⁄-18 x .750

16. 710-04071 Carriage Bolt, ⁄-18 x 1.00

17. 725-0157 Cable Tie, ⁄ x .05 x 7.4

18. 74 9 - 04114 B Lower Handle

19. 710-04532 Carriage Screw, ⁄-18 x 2.00

20. 749-04106A Gullwing Handle

21. 747- 04159A Gullwing Control Bail

22. 731-1033 Shave Plate, 21”

23. 712- 04064 Flange Lock Nut, ⁄-20

24. 710 -0134 Carriage Screw, ⁄-20 x .62

25. 710-3008 Hex Screw, ⁄-18 x .75

26. 936-0176 Flat Washer, .265 x .938 x .120

27. 746-04237 Clutch Cable

28. 710 -1882† Hex Screw, ⁄-18 x 1.50

† Model 2M5

Drive System & Auger Assembly

28 24

32 31

39 41

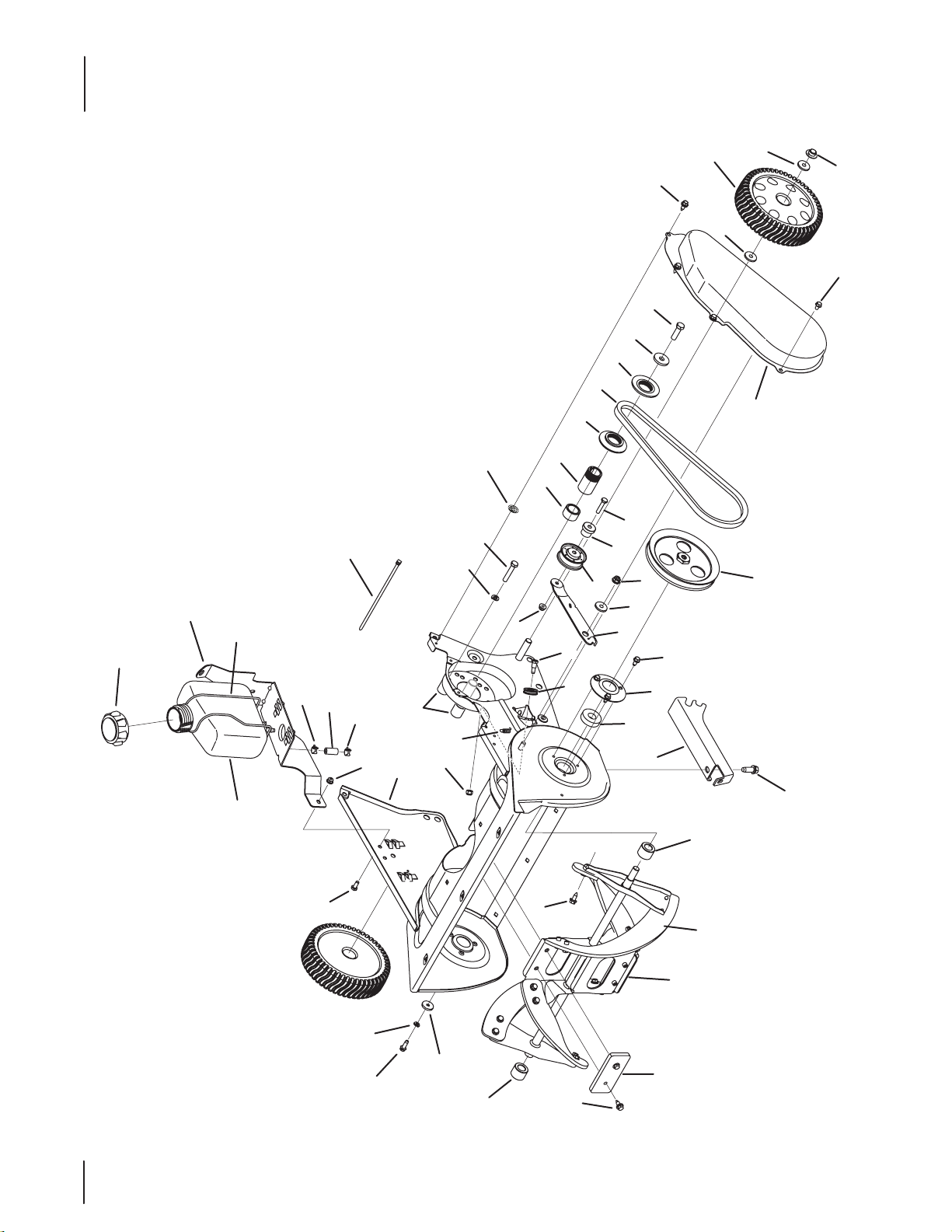

Drive System & Auger Assembly

Ref. Part Number Description

1. 734-04033 Wheel, 8 x 2 (Gray)

734-04063A† Wheel, 7 x 1.5 (Gray)

2. 936-0326 Flat Washer, .510 x 1.000 x .125

3. 710-0599 Hex Screw, ⁄-14 x .500

4. 710-1044 Hex Screw, ⁄-24 x 1.50

710-0627† Hex Bolt, ⁄-24 x .75

5. 736-0247 Flat Washer, .406 x 1.25 x .157

736-0371† Bell Washer, .343 x .880 x .062

6. 756-04353 Pulley Half, 4L-V x 2.30 OD

956-0416B† Pulley Half, .625 ID x .225 OD

7. 954-04204 V-Belt

954-0101A† V-Belt

8. 750-04303†† Spacer, .875 ID x 1.185 OD

9. 750-05084†† Spacer, .88 ID x 1.18 OD x .74 Lg.

10. 756-04232 V-Type Pulley, ⁄ x 35.7

11. 710-0409 Hex Screw, ⁄-24 x 1.75

12. 936 - 0119 Lock Washer, ⁄

13. 926- 0154 Cable Tie, 7.5

14. 790-00334 Engine Support Bracket

790-00216† Engine Bracket

15. 710-0623 Hex Washer Screw, ⁄-16 x .50

16. 750-04297B Spacer, .875 x .320 x 1.027

17. 710-0896 Hex Washer Screw, ⁄-14 x .625

18. 710-0653 Hex Washer Screw, ⁄-20 x .375

19. 790-00045C Belt Cover

684-04357† Belt Cover

20. 710-0106 Hex Screw, ⁄-20 x 1.25

21. 750-04571 Shoulder Spacer, .260 x .785 x .538

22. 684-04168 Pulley Assembly, 1.917 OD

23. 712- 04063 Flange Lock Nut, ⁄-18

24. 748-0234 Shoulder Spacer

Ref. Part Number Description

25. 790-00238A Idler Bracket w/ Brake

26. 712-04064 Flange Lock Nut, ⁄-20

27. 790-00249 Bearing Cup

28. 741-04188A Ball Bearing, 1.25 x 37 x 12.6301

29. 710-0642 Hex Screw, ⁄-20 x .750

30. 936-0329 Lock Washer, ⁄

31. 738-0924A Shoulder Screw, .340 x .335 x ⁄-28

32. 756-0625 Cable Roller

33. 936-0176 Flat Washer, .265 x .938 x .120

34. 712-0896 Hex Lock Nut, ⁄-28

35. 932-0357A Extension Spring, .33 OD x 1.12

36. 684-04252 Auger Assembly, 21”

684-04227† Auger Assembly, 21”

37. 710-05058 Hex Screw, ⁄-14 x .75

38. 735-04033 Rubber Pad

39. 735-04032 Spiral Crescent

40. 750-04758 RH Spacer

41. 750-04757 LH Spacer

42. 726-0299 Push Cap, ⁄

43. 684-04314 Auger Housing

44. 710 -0751† Hex Bolt, ⁄-20 x .620

45. 712-04064† Flange Lock Nut, ⁄-20

46. 726-0205† Hose Clamp, .490

47. 726-0233† Push Nut, .25 ID x .50 OD

48. 747-04236† Fuel Tank Support Wire

49. 951-10023† Fuel Tank, 2 Qt.

50. 751-10487† Fuel Cap

51. 790 -00134† Fuel Tank Bracket

52. 751-10349† Fuel Line Hose

NS 929-0071A^†† Extension Cord

† Model 2M5

†† Model 2P5

^ Not Shown

110

95 85

64 65

77 108

103

100

101

107

104

102

105

106 109

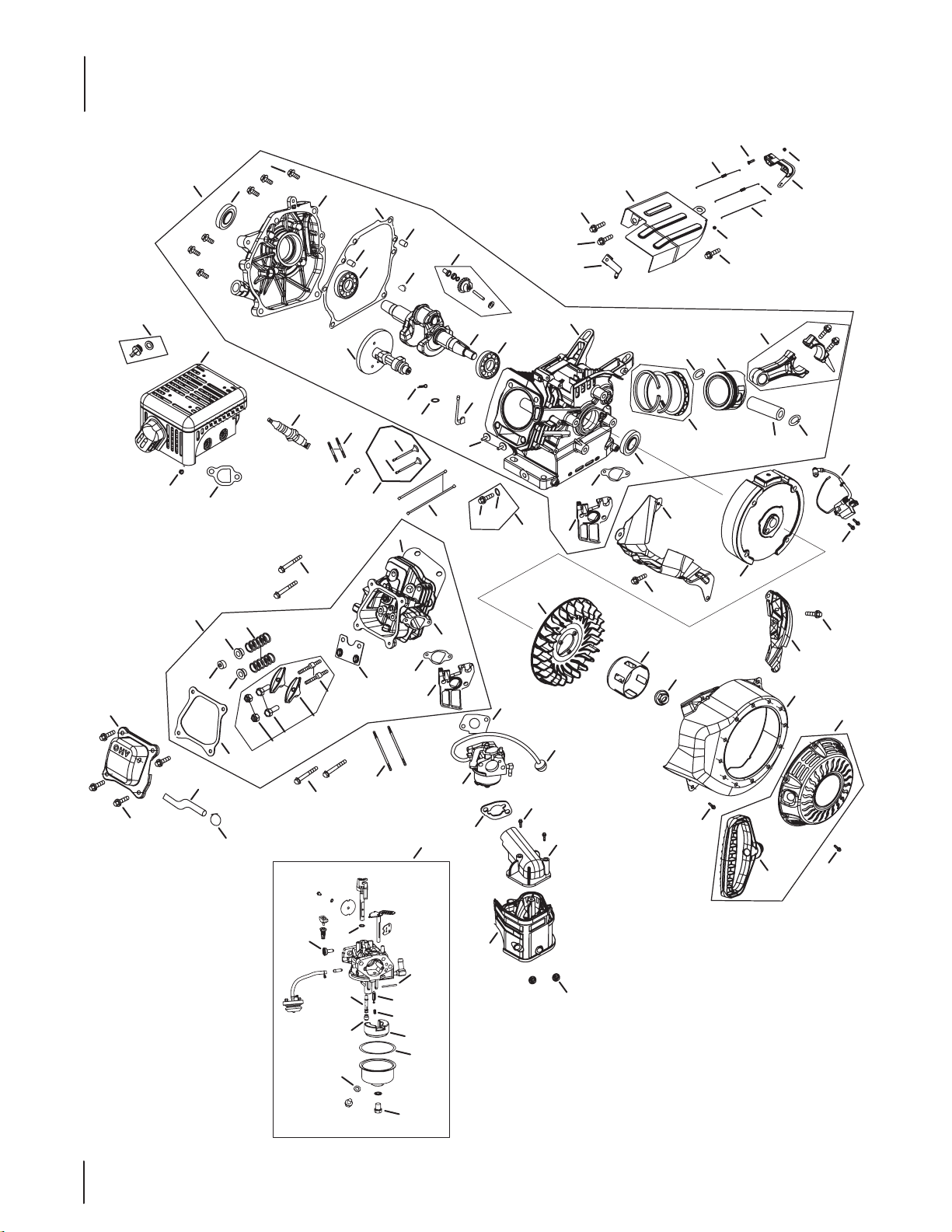

123cc 161-JWA Engine

Ref.

No. Part No. Description

1710-04920 Flange Bolt

8715-04092 Dowel Pin, 7 x 14

12 714- 04074 Governor Arm Clip

16 710-04906 Drain Plug Bolt

17 736-04440 Drain Plug Washer

18 951-10958 Ignition Coil

19 951-11102 Flywheel Bae

20 710-04919 Flange Bolt

21 951-10908 Flywheel

22 951-10910 Cooling Fan

23 951-10911 Starter Cup

24 712- 04209 Nut

25 951-11107 Blower Housing

26 710-04914 Flange Bolt

28 731-05696 Recoil Starter Handle

29 712- 0 4211 Nut

30 951-11106 Governor Arm Bracket

31 710-04908 Bolt

32 951-10954 Throttle Return Spring

33 951-11152 Governor Rod

34 951-10953 Governor Return Spring

36 951-11103 Cover Shield

37 951-11104 Governor Spring Bracket

38 710-04921 Flange Bolt

39 951-10901 Muer Assembly

41 712- 04212 Nut

42 951-10962 Intake Heater Box Base

43 951-10961 Intake Heater Box

44 710 -04913 Bolt

46 951-10639 Primer

47 951-10956 Carburetor Assembly

50 710-04902 Pivot Bolt

52 751-11123 Valve Adjusting Nut

53 751-11124 Pivot Locking Nut

61 951-10913 Push Rod Kit

68 710-04916 Bolt

69 951-1105 4A Valve Cover

71 710-04922 Bolt

72 731-07059 Breather Hose

73 951-10292 Spark Plug

Ref.

No. Part No. Description

75 951-10657 Muer Stud Assembly

77 715-04090 Dowel Pin, 10 x 16

78 710-04909 Carburetor Studs

80 715-04089 Dowel Pin, 9 x 14

82 726 -04101 Hose Clamp

83 710-04916 Bolt

85 951-11105 Cylinder Bae

87 712- 04210 Nut

88 710-04918 Flange Bolt

90 951-10959 Muer Gasket

91 951-10955 Recoil Starter Assembly

92 951-10307 Flywheel Key

96 951-10957 Dipstick Assembly

108 951-10912 Valve Kit

110 710-04928 Bolt

NS 731-05632 Ignition Key

—951-11095 Crankcase Cover Kit

4 — Crankcase Cover

9 — Case Cover Gasket

96 951-10957 Dipstick Assembly

—951-10951A Gasket Kit - Complete

5 — Oil Seal

9 — Crankcase Cover Gasket

11 — O-ring, 5.2 x 1.9

45 — Carburetor Gasket

70 — Head Cover Gasket

76 — Cylinder Head Gasket

79 — Carburetor Insulator Gasket

81 —Packing

84 — Oil Seal, 22 x 35 x 7

90 951-10959 Muer Gasket

95 951-10370 Oil Drain Plug and Washer Assembly

96 951-10957 Dipstick Assembly

—951-10952A Gasket Kit - External

70 — Head Cover Gasket

79 — Carburetor Insulator Gasket

81 —Packing

90 951-10959 Muer Gasket

95 951-10370 Oil Drain Plug and Washer Assembly

96 951-10957 Dipstick Assembly

123cc 161-JWA Engine

Ref.

No. Part No. Description

—951-11097 Crankcase Kit

14 —Bearing

15 — Crankcase Complete

84 — Oil Seal

—951-11096 Crankshaft Kit

6 — Bearing

7 — Crankshaft Assembly

14 —Bearing

92 951-10307 Flywheel Key

93 951-10948 Carburetor Kit - Major

98 — Float Pin

99 — Needle Valve Spring

100 — Needle Valve

101 — Bowl Gasket

102 — Main Jet

103 — Fuel Drain Plug Gasket

104 — Float

105 — Main Nozzle

106 — Idle Speed Adjusting Screw

107 — O-Ring- Main Cup Bolt

109 — Throttle Shaft Dust Seal

94 951-10949A Cylinder Head Assembly

40 — Carburetor Insulator Plate

50 710-04902 Pivot Bolt

51 — Rocker Arm

52 751-11123 Valve Adjusting Nut

53 751-11124 Pivot Locking Nut

56 — Valve Spring

57 — Intake Valve Spring Seat

58 — Exhaust Valve Spring Seat

59 — Exhaust Valve Adjuster

62 — Push Rod Guide Plate

70 — Head Cover Gasket

74 — Cylinder Head - Complete

76 — Cylinder Head Gasket

77 715-04090 Dowel Pin, 10 x 16

79 — Carburetor Insulator Gasket

90 951-10959 Muer Gasket

108 951-10912 Valve Kit

Ref.

No. Part No. Description

—951-11063A Valve Cover Kit

69 951-1105 4A Valve Cover

70 — Valve Cover Gasket

95 951-10370 Oil Drain Plug and Washer Assembly

16 710-04906 Oil Drain Plug

17 736-04440 Oil Drain Plug Washer

97 951-10950A Short Block Assembly

1710-04920 Flange Bolt

4 — Crankcase Cover

5 — Oil Seal

6 — Bearing

7 — Crankshaft Assembly

8715-04092 Dowel Pin, 7 x 14

9 — Case Cover Gasket

10 — Governor Assembly

11 — O-ring Gov. Shaft

12 714- 04074 Pin Lock

13 — Governor Arm Shaft

14 —Bearing

15 — Crankcase Complete

16 710-04906 Oil Drain Plug

17 736-04440 Oil Drain Plug Washer

40 — Carburetor Insulator Plate

45 — Heat Pipe Intake Gasket

48 — Camshaft Assembly

60 — Valve Lifter

61 951-10913 Push Rod Kit

63 — Piston Ring Set - Oil

64 — Piston Pin Clip

65 —Piston

66 — Piston Pin

67 — Connecting Rod Complete

70 — Head Cover Gasket

76 — Cylinder Head Gasket

79 — Carburetor Insulator Plate Gasket

80 715-04089 Dowel Pin

84 — Oil Seal

90 951-10959 Muer Gasket

92 951-10307 Flywheel Key

96 951-10957 Dipstick Assembly

123cc 161-JWA Engine

Andere Handbücher für Squall 210

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Troy-Bilt Schneefräse Handbücher

Troy-Bilt

Troy-Bilt Polar Blast 3310 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 13045 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Two-Stage Snow Thrower Bedienungsanleitung

Troy-Bilt

Troy-Bilt STORM 2620 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 521-Squall Bedienungsanleitung

Troy-Bilt

Troy-Bilt Polar Blast 3310 XP Bedienungsanleitung

Troy-Bilt

Troy-Bilt 5024 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 521-Squall Bedienungsanleitung

Troy-Bilt

Troy-Bilt Storm Tracker 1028 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Squall 521 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Storm Tracker 31AH7T74063 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 42027 Bedienungsanleitung

Troy-Bilt

Troy-Bilt storm 3090 Bedienungsanleitung

Troy-Bilt

Troy-Bilt STORM 2620 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 7524 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Vortex2490 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 31AE6GKF500 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 1345 Einrichtungshandbuch

Troy-Bilt

Troy-Bilt Storm Tracker 31AH7T74063 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 31AS6BN2711 Leitfaden

Troy-Bilt

Troy-Bilt Storm Tracker 31AH7T74063 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 769-03253 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Polar Blast 4510 Bedienungsanleitung

Troy-Bilt

Troy-Bilt 10530-polar blast Bedienungsanleitung

Beliebte Schneefräse Handbücher anderer Marken

Murray

Murray 624504X4A Bedienungsanleitung

Blizzard

Blizzard POWER PLOW 8100PP Bedienungsanleitung

Craftsman

Craftsman 486.24837 Bedienungsanleitung

Yard-Man

Yard-Man E2B5 Bedienungsanleitung

ST ST 526 A Bedienungsanleitung

MTD

MTD 3AA Bedienungsanleitung

Toro

Toro Power TRX 1428 OHXE Bedienungsanleitung

Ryobi

Ryobi RYAC800 Bedienungsanleitung

Poulan Pro

Poulan Pro 416829 Bedienungsanleitung

Poulan Pro

Poulan Pro 437986 Bedienungsanleitung

MTD

MTD 319-180-00 Bedienungsanleitung

Brute

Brute 1695565 Bedienungsanleitung

Egholm

Egholm City Ranger 2250 Bedienungsanleitung

Poulan Pro

Poulan Pro 420915 Bedienungsanleitung

GreenWorks

GreenWorks SNF402 Bedienungsanleitung

LOFTNESS

LOFTNESS 601D1 Bedienungsanleitung

LOFTNESS

LOFTNESS 1082I Bedienungsanleitung

LOFTNESS

LOFTNESS 481EL Bedienungsanleitung
