TruYard GE22 Leitfaden

GE22 Edger

Safety, Operations & Maintenance Instructions

INTRODUCTION

This manual contains information concerned with safe practices when operating the

machine, safety precautions that are necessary during operation, maintenance

instructions and troubleshooting.

Before operating the machine it is imperative to have read and understood this

manual. The instructions of this manual are intended to be read and followed to

ensure the proper running of the GE22 Edger and the safety of the user.

In the case of sale or transfer of the machine, this manual must be handed over. In

the event that this manual is damaged or lost, the owner must ask the manufacturer

or the former owner for a copy. This manual is to be considered as an integral part of

the machine.

The information conveyed in this manual is reflective of the machine at point of sale.

The manufacturer has the right to modify the machine for technical or commercial

reasons and this does not make the manual unsuitable for use.

The copyright for this manual belongs to the manufacturer. The technical texts,

images and pictures within this manual cannot be published or used, completely or in

part, without written consent from the manufacturer.

Contents

INFORMATION ABOUT THE MACHINE..................................................................................................................... 4

INTENDED USE OF GE22 EDGER .......................................................................................................................... 4

MACHINE DESCRIPTION .......................................................................................................................................... 4

IDENTIFICATION OF MAIN PARTS..................................................................................................................... 5

SPECIFICATIONS........................................................................................................................................................ 6

SAFETY PRECAUTIONS ............................................................................................................................................... 7

ACCIDENT PREVENTION MEASURES.................................................................................................................. 7

SAFETY LABELS AND DESCRIPTIONS................................................................................................................ 8

AFTER A PERIOD OF INACTIVITY.......................................................................................................................... 9

OPERATING INSTRUCTIONS..................................................................................................................................... 10

BEFORE USE ............................................................................................................................................................. 10

DURING OPERATION............................................................................................................................................... 10

AFTER USE................................................................................................................................................................. 11

GENERAL MAINTENANCE......................................................................................................................................... 11

ADJUSTMENT OF THE DRIVE BELT ................................................................................................................... 11

CHANGING THE BLADE.......................................................................................................................................... 11

TYRE PRESSURE...................................................................................................................................................... 12

STORAGE.................................................................................................................................................................... 12

CLEANING .................................................................................................................................................................. 12

PARTS LIST.................................................................................................................................................................... 13

WARRANTY POLICY.................................................................................................................................................... 14

MACHINE MAINTENANCE SCHEDULE................................................................................................................... 14

NOTES.............................................................................................................................................................................. 15

INFORMATION ABOUT THE MACHINE

INTENDED USE OF GE22 EDGER

The Truyard GE22 Edger is designed to perfectly cut lawn edges for domestic

applications.

MACHINE DESCRIPTION

The GE22 Edgers consists of the following features:

Pneumatic wheels to manoeuvre the machine

A metal frame

A Height Adjuster

An Engine

A 12” blade

A Blade guard

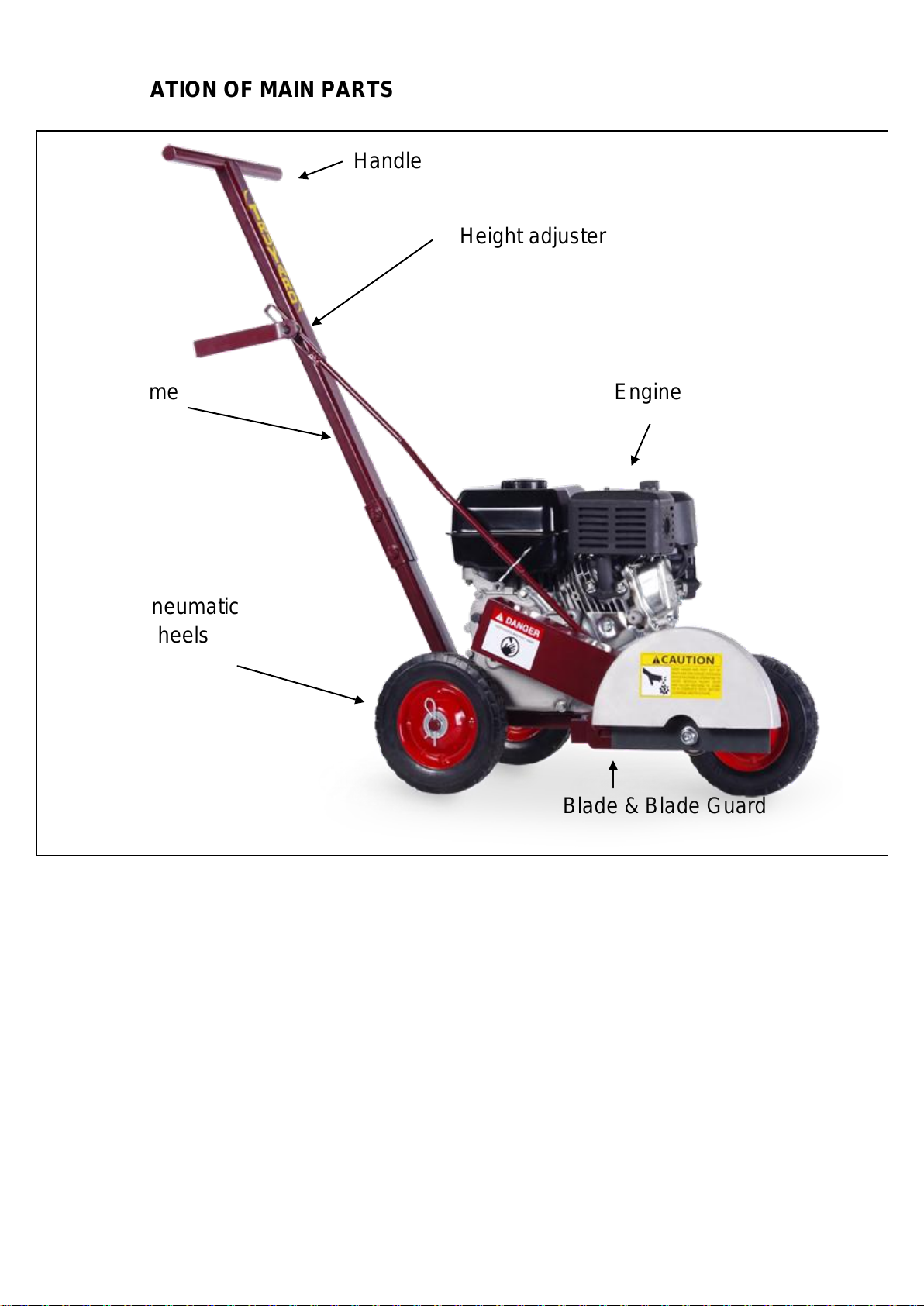

IDENTIFICATION OF MAIN PARTS

Pneumatic

Wheels

Frame

Handle

Height adjuster

Engine

Blade & Blade Guard

Handle

SPECIFICATIONS

GE22

Engine Specifications

Transmission

Engine

Kohler 5.5hp

Belt Drive

V Belt A Section

Engine Type

Petrol

No Load

Starting

Clutch

Cutting System

Machine Construction

Blade Size

9”/225mm

Weight

46kg

Number of Blades

Chassis

Steel construction

Special Features

Wheels

Pneumatic 200mm

with steel ball bearing

Warranty

Domestic Application 2

years, Commercial

Application 3 Months

SAFETY PRECAUTIONS

ACCIDENT PREVENTION MEASURES

1) Ensure that the operator of the machine has read and understood fully this

manual and the engine manual

2) Always wear suitable footwear. Do not use in bare feet

3) Always stop the engine and disconnect the sparkplugs when guards are not in

place

4) Check that items to be edged are free of all foreign debris this includes and is

not limited to nails, wire, ropes etc.

5) Do not allow children to come near the GE22 Edger. Always ensure that the

children are at a safe distance and are well away from the machine

6) Do not put hands whatsoever inside the machine or near the belt or blade while

the machine is running

7) Read the engine manufactures operating instructions carefully. Do not alter

governor settings or over speed the engine

8) Carefully follow the refuelling safety instructions when refuelling the engine:

Always refuel the GE22 outdoors in a well ventilated area

Ensure the engine is turned off and cooled before beginning refuelling

process.

Keep all ignition and heat sources clear of the refuelling area.

If spillage occurs mop up immediately and wait a suitable time so the

fumes disappear

When storing fuel make sure it is in a suitably designed container

(AS/NZS 2906:2001) and it is stored in a cool dry place.

9) Use your GE22 Edger only in daylight when visibility is good

10) When using the GE22 Edger slopes should be treated with caution. Never

aaaaaplace the GE22 Edger on uneven ground

11) Never leave the GE22 Edger unattended whilst engine is running

12) Do not use GE22 Edger in confined spaces with no ventilation

13) It is advisable to wear safety glasses and hearing protection whilst operating

aaaaathe GE22 Edger

14) Always operate with all guards in place

STRICT ADHERANCE TO THE FOLLOWING RULES, PRECAUTIONS

AND SAFETY MEASURES LISTED HERE MUST BE CONDUCTED TO

AVOID THE DANGER OF ACCIDENT AND DAMAGE TO PEOPLE

AND THE MACHINE.

SAFETY LABELS AND DESCRIPTIONS

CAUTION –keep hands and feet

away from the discharge and inlet

openings on the machine as this

could cause injury

CAUTION –the operating of the

engine, its maintenance and starting

must be done after having read the

manual to prevent any harmful

incidents and misuse of the engine

from occurring

CAUTION –ensure that the operator

has read and understood this manual

before operating the machine to

prevent injury

CAUTION –keep hands and feet

away from openings on the machine

to prevent injury

CAUTION –ensure you or anyone

around you does not touch the hot

muffler after use of the machine to

prevent injury

CAUTION –ensure all guards are

firmly in place and that hands and

feet are kept away from the rotating

blades in the machine to prevent

injury

CAUTION –when operating, make

sure that the operator has fully read

and understood the engine manual,

do so in an open area and only refuel

the machine once cool

AFTER A PERIOD OF INACTIVITY

Ensure the following checks have been done on the GE22 before operation after a

long period of inactivity:

Check that the machine is undamaged and all guards are attached

Check all the mechanical parts of the machine are not rusty and are in working

condition

Ensure that the engine has sufficient oil and fuel

Check all nuts and bolts are tight

OPERATING INSTRUCTIONS

BEFORE USE

Before operating the machine it is important to ensure the following to use the

machine to its full capability and to keep the operator and the surrounding area safe.

Make sure that the operator has read and understood how to use the engine as

per the manufacturer’s instructions

Ensure that the oil and fuel in the engine are as per the engines manufacturer’s

instructions

Check that all guards and parts are in place

Ensure that the GE22 is located on flat, even ground and that there are no

people or animals in the vicinity of its working function.

Ensure that the operator has read and understood this manual, including how to

control the machine

Wear the prescribed safety equipment

DURING OPERATION

Once satisfied that the above criteria have been met, turn on the engine as per the

manufactures instructions. Once running:

Oil and fuel engine as per engine manufacturers. Make sure height adjuster is

at the top or highest so the blade does not make contact with the ground. Make

sure the throttle control is at its lowest rev setting. The blade will turn as soon

as the starter is pulled. With the Clutch version the blade will still be at an idle

position until the centrifugal clutch engages. Keep hands and feet at a safe

distance at all times.

When the motor is running gently increase the throttle.

Gently lower the blade to the desired hole setting or depth. There are 7 hole

settings with the bottom hole being the deepest the edger will cut.

Push the edger along the line of garden edge you wish to cut. Take care and do

not hit any foreign objects such as pavement or paving etc. Ensure you are

cutting grass at all times.

When finished edging put the engine back to idle with the throttle control and

turn the engine off at the off switch. Read the engine manufacturers operating

manual to familiarise yourself with turning off the engine. The blade will still be

turning when the engine is idling.

Regularly check tightness of the bolts and nuts on the entire machine. If

anything is damaged replace immediately.
