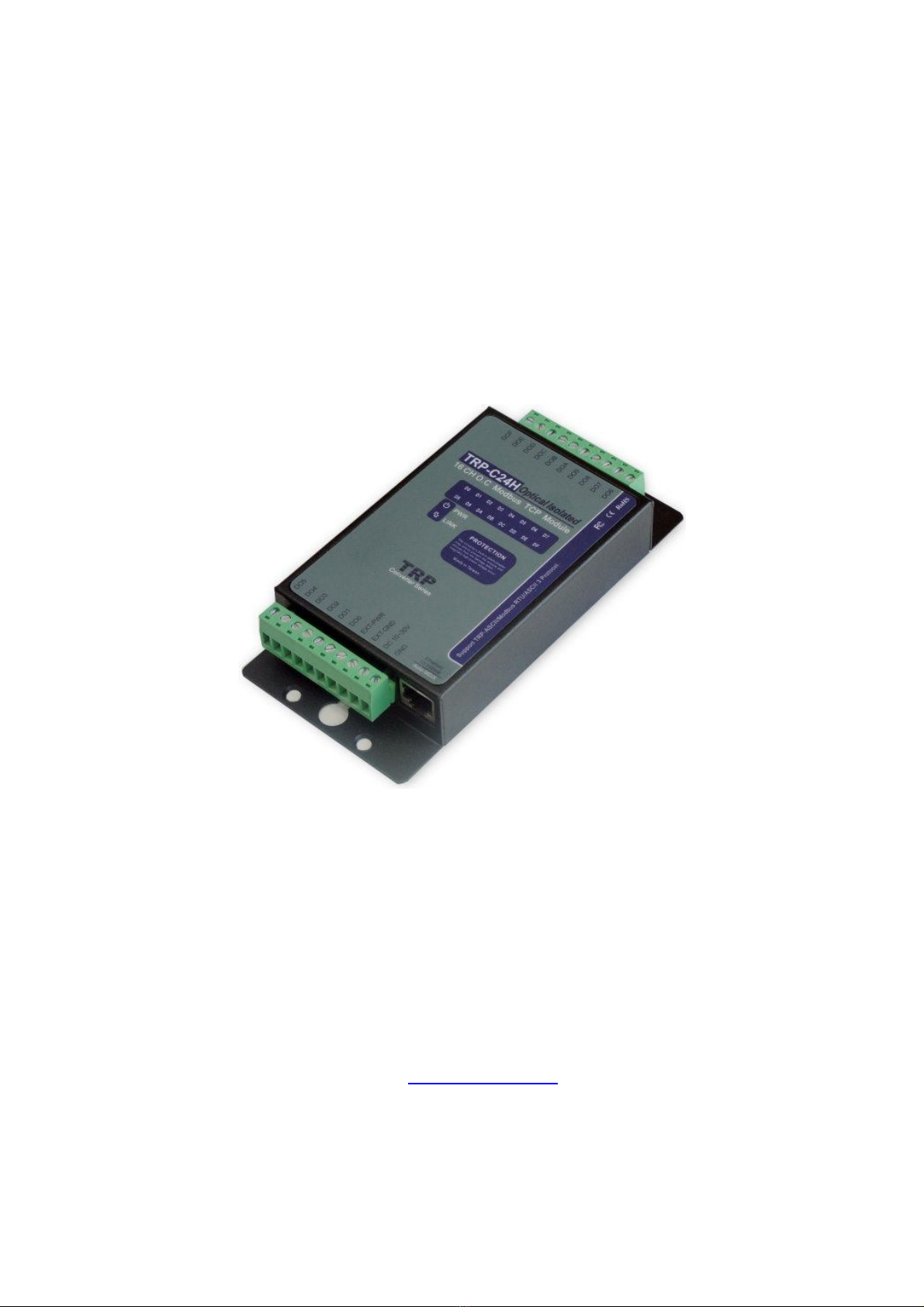

Trycom Technology TRP-C24H Bedienungsanleitung

TRP-C24H

16 channels isolated digital output

(Open Collector) Modbus TCP module.

User’s Manual

Printed Sep. 2014 Rev 1.4

Trycom Technology Co., Ltd

No.35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan.

Tel : 886-3-350-3351 Fax: 886-3-350-3352

Web: www.trycom.com.tw

function and does not represent a commitment on the part manufacturer. No part of this manual may be

reproduced, copied, or transmitted in any form, without prior written permission by the manufacturer. Products

mentioned in this manual are mentioned for identification purposes only. In this manual, product names appearing

may or may not be registered trademarks of their respective companies or copyright.

1. Introduction

The TRP-C24H is an Isolated open collector digital outputs Modbus TCP Module, It provides 16 channels output

open collector signal (100mA) to driven your devices on network, It supports 3 communication Protocols, TRP-ASCII,

Modbus RTU / ASCII, It can be easy and convenient to use application supports Modbus.

Software engineers can use the TRP-ASCII or Modbus RTU/ASCII command set quickly and easily integrated into

the self-development program, such as Microsoft VB, VC...

The TRP-C24H built-in independent IP, WEB-browsing more convenient to rewrite the configuration and collect

information through computers, tablet computers, smart phones, will be available!

The TRP-C24H built-in watchdog Hardware ensure the normal operation of the module, and a built-in voltage

monitoring to ensure that the boot, excellent and advanced hardware for harsh environment.

The TRP-C24H can TRP-C26H, 16 remote control directly, do not need to run the software and equipment.

When TRP-C24H and TRP-C26H are paired, they can support 16 channels remote control does not require any

drivers and software support.

The TRP-C24H is also offers the maximum connection 16 host client to link the network server that is easy to

operate in Modscan32 ,Modbus Poll,CAS Modbus Scanner and SCADA ...application uses TCP mode and

Virtual-COM mode.

1-1 Features

 Wide input range DC power supply.

 Automatically determine 3 TRP-ASCII and Modbus RTU/ASCII communication protocol.

 16 TCP Port can be open at the same time.

 Heart Beat function ensures a reliable communicating connection.

 Support Virtual-COM mode.

 IO status can be set in the boot.

 WEB PAGE can be directly output and read IO status.

 Easily update the firmware using the Internet.

 Back to factory configuration by external touch Button.

 Auto reconnection when power or Ethernet fail.

 Digital output signal with 3750Vrms isolation protection.

 Built-In watchdog function prevents system boot fail.

 LED for each I/O channels working status.

 Support Auto-MDIX twisted pair crossover detection and Auto-Correction.

 Power/Link/16 CH DO LED indicator.

 DIN-Rail and panel mount support.

 Dual power input select from screw terminal or DC-Jack.

1-2 Specification.

 Power Input Voltage DC +10V to +30V.

 Protocol: TRP-ASCII and Modbus RTU/ASCII.

 Digital output maximum voltage:+30V.

 Digital output maximum current: 100mA.

 Digital output isolation: 3750Vrms.

 Communication interface: Ethernet RJ45.

 Configuration mode: Trycom Device Manager, WEB settings.

 Matching remote control: with TRP-C26H.

 Heart Beat: TCP Port sent string every 5 seconds.

 TCP Maximum Connection:1~16.

 Module ID :1~255.

 Connection type: Screw terminal for maximum AWG 12 wire.

 Power supply: Screw terminal, or external DC adapter.

 Power consumption 240mA/12V.

 Operating environment: 0 to 50℃.

 Storage temperature:. -10 to 70℃.

 Humidity: 10~90% Non-condensing.

 Dimension: 151mm X 75mm X 26mm .

 Weight: 395g .

2. Hardware Description

2-1. Panel layout

Notice: The Module provides two type power inputs, optional DC-JACK or Screw Terminal input, not to two used

together!

2-2. Block Diagram

PWR LED: Blinking is ready.

LINK LED: RJ-45 cable connection and data active.

D0~DF LED: Each digital status indication.

DC Jack: Power Input DC +10V to +30V, Please use the 5.5*2.1mm DC JACK.

2-3. Factory Button

Hold down the button, and then power on, until the power light flashes, Release the button.

2-4. Factory parameter values

2-5. Screw Terminal Pin assignment Description

2-6. Block Diagram

2-7. Pin Description

DO5 Digital output Channel 5 DOF Digital output Channel F

DO4 Digital output Channel 4 DOE Digital output Channel E

DO3 Digital output Channel 3 DOD Digital output Channel D

DO2 Digital output Channel 2 DOC Digital output Channel C

DO1 Digital output Channel 1 DOB Digital output Channel B

DO0 Digital output Channel 0 DOA Digital output Channel A

EXT.PWR The isolated side power input MAX.30V DO9 Digital output Channel 9

EXT.GND The isolated side ground DO8 Digital output Channel 8

DC 10~30V Input DC 10~30V DO7 Digital output Channel 7

GND Power Ground DO6 Digital output Channel 6

3.Install TRP-C24H Hardware

STEP1: Connect power source with TRP-C24H, the PWR LED will blinking.

STEP2: Connect TRP-C24H with netwotk by RJ45 cable.

If the cable is properly connected the “LINK” LED will light up.

*The TRP-C24H Support Auto-MDIX, A straight-through or crossover RJ45 cable can be used to make a connection

directly to the HUB/Router/PC LAN port.

STEP3: Connect TRP-C24H screw terminal wiring, such as 2-5 picture description.

4. How to configure TRP-C24H

*Please note that the computer's IP segment adjusted with TRP-C24H same section, modify the parameter values in

order to effectively store!

For example:

Computer IP is 192.168.1.xx

TRP-C24H 192.168.1.1

There are 2 ways can change the module parameter values.

A.DSM Software

B. WEB Server

4-1. Using DSM Utility

The DSM utility software performs several functions:

A: Searching for TRP-C24H connected to the network.

B: Displaying and changing the configuration.

C: Upgrading the TRP-C24H firmware, Refer the Firmware upgrade help file.

D: Saving and Loading Configuration from external log File or EEPROM.

4-2. Searching TRP-C24H

Once TRP-C24H is connected to the network the DSM software will search it and display it in a window by name, IP

address, Mac….Information.

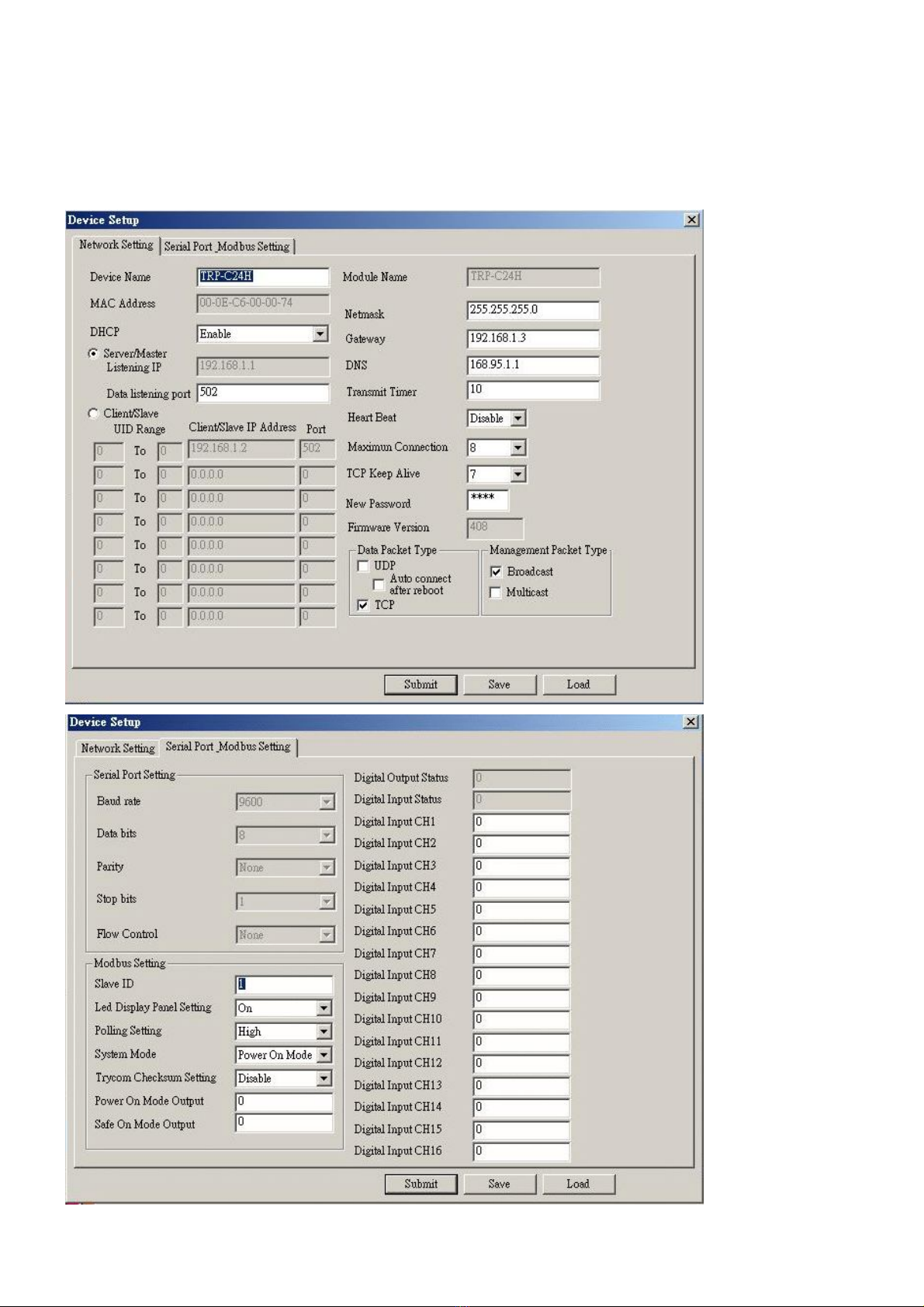

4-3.Configuring Server Properties

Select the “NO.” item and Double click to open the module configuration, after setting then click “Submit” will

save the configuration to memory.

 Device Name:

Device server name, Maximum 10 chars.

 Model Name:

TRP-C24H.

 MAC Address

The TRP-C24H MAC address.

 DHCP

If DHCP is disabled, it allows user setting the IP address, Subnet mask, Gateway.

If DHCP is enabled, the IP address, Subnet mask, Gateway address will be dynamically configuration by DHCP

server such router.

When DHCP is enabled, but the DHCP server is not available on the network, the TRP-C24H will timeout then back

to factory setting IP=192.168.1.1.

 Server Listening IP

The TRP-C24H IP address.

 Server Data listening port

TRP-C24H port address.

 Client Destination IP

When user using the pair mode, the client setting need to input module IP and port which one need to connect.

 Client Destination port

Client port address.

Port: 16 bit number. (1 ~ 65535)

 Netmask

The default LAN Netmask is configured for a Class C address. This maybe reconfigured by the user.

 Gateway

Input the gateway IP address that can be allows users to access the serial server from internet.

 DNS

Short for Domain Name System, an Internet service that translates domain names into IP addresses. Because

domain names are alphabetic, they're easier to remember. The Internet however, is really based on IP addresses.

Every time you use a domain name, therefore, a DNS service must translate the name into the corresponding IP

address.

 Transmit Timer: This feature is only available to Serial Server TRP-C37 and TRP-C37M.

 Maximum Connection: 1~16

The function allows the user to configure the TRP-C24H in Server mode, adjust 1~16 TCP client host connections.

 TCP Keep Alive: 1~7 /Minute

When TRP-C24H in Server or Client mode, the TRP-C24H without data over the 1~7 Min setting value,

The TRP-C24H will be disconnecting TCP port.

 New Password: 1234

It only accepts value from1000~9999 integer, if input the wrong password over 5 times, the WEB-Page will lock until

the TRP-C24H re-boot.

 Firmware Version: ABC

 Slave ID:1~255.

ID performs MODBUS RTU / ASCII and TRP-ASCII will use to address.

 LED Display Panel Setting :ON/OFF

The setting will turn on all panels LED or Turn off panel LED.

 Polling Setting: High/Low.

Digital High / Low potential settings, Applies only TRP-C26H/C28H

 System Mode

Power ON Mode: Digital output state when the TRP-C24H Power On.

Save ON Mode: The digital output state when the TRP-C24H is working, Once this mode is set, the digital output

state cannot be rewritten.

Pair Mode: It can be used as a remote manual remote control, when the TRP-C24H 16 DO and TRP-C26H 16 CH

DI, TRP-C28H 4 D I/O with TRP-C28H 4 D I / O. Without any driver.

Trycom Checksum setting: Disable/Enable.

TRP-ASCII command used bit checksum.

 Power On Mode Output: 0000~FFFF.

Digital output state when TRP-C24H Boot!

 Save ON Mode Output:0000~FFFF.

Digital output state when watchdog enable!

 Digital Output Status

Display last stored in the memory of the digital output state.

 Digital Input Status

This feature is only available to TRP-C26H and TRP-C28H,

Display last stored in the memory of the digital input state.

 Digital Input CH1~CH16

Display last stored in the memory of the digital input counter value.
