Short Operating Instruction
for Digital Recorder EDIC-mini Tiny 16
U352 - 300h/600h/1200h/2400h
Overlook
Digital Recorder EDIC-mini Tiny 16 U352 is
a professional device intended for making high
quality record of voice messages into a built-
in ash memory. The recordings can be further
uploaded onto the PC. The Recorder can be used
simultaneously as a voice recorder when recording
messages and a ash media when storing
and transferring data of any standards (under
“Recmanager” control).
Specications:
• VAS (Voice Activating System) to compress
pauses while recording;
• Circular recording mode;
• Built-in real time clock;
• Timers to start recording at the preset time;
• Information protection system;
• AGC system to adjust the amplication
according to the sound level;
• Magnet to stick to a metal surface.
2
Appearance

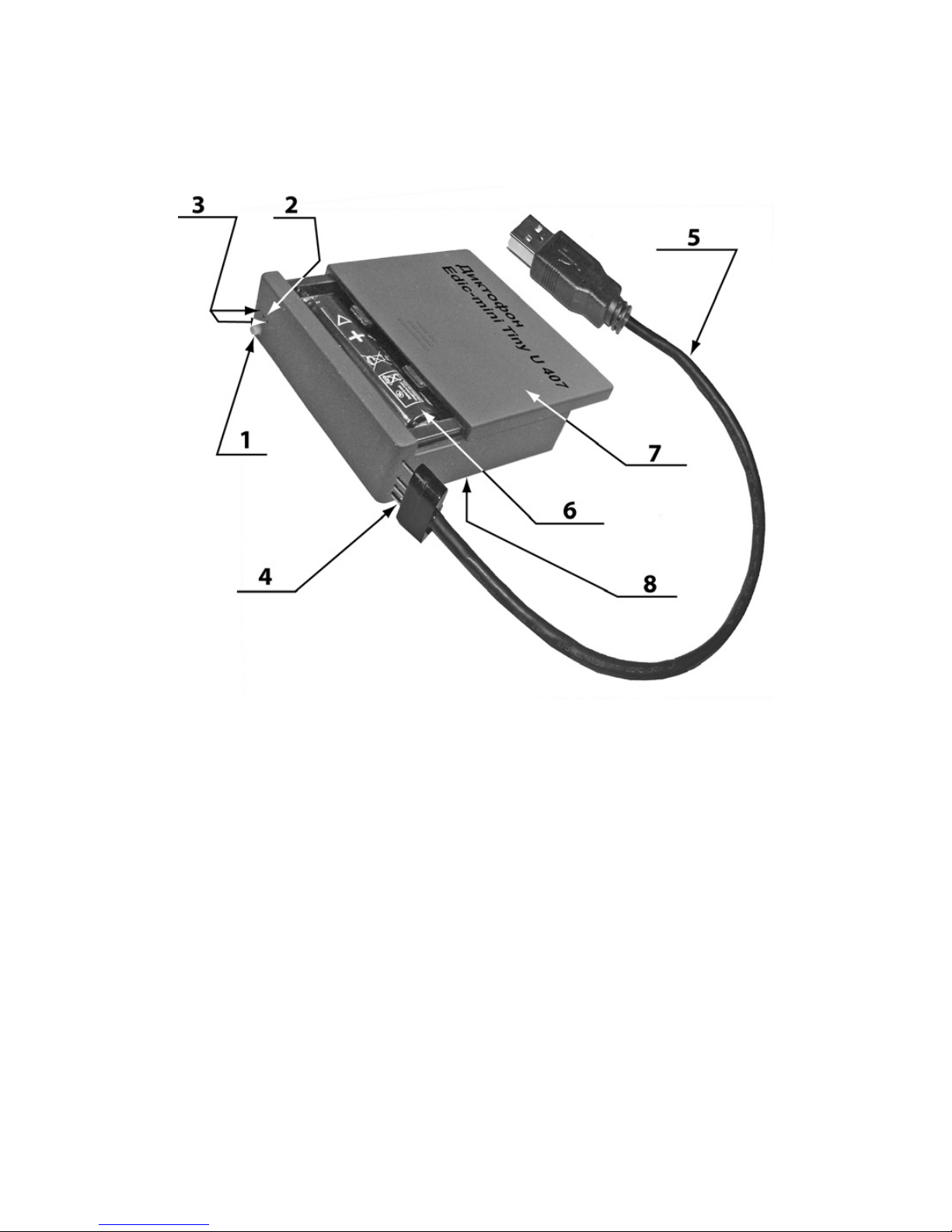

Recorder’s Appearance
1. Record;
2. Microphone;
3. LED;
4. PC connector;
5. Cable to connect to the PC;
6. 3 AA batteries;
7. Battery compartment cover;
8. Magnet.
3
Supplied Software makes it possible to:
• Save the recorded messages on the PC as
standard sound les;
• Restore compressed pauses when uploading
les onto the drive;
• Set the recorder’s parameters;
• Apply password protection of the access to the
recorder’s settings and information;
• Update software.
Technical Characteristics:
• Battery life in record mode (8 K Hz, without
compression) at fully charged batteries: up to
400 hours;
• Battery life in VAS mode (audio signals below
threshold): up to 2 months;
• Battery life in stand-by mode: min 1 year;
• Last digits in the models’ names specify the
maximum recording duration in hours (built-
in memory capacity) for the recording mode:
sample rate 8 kHz, and 2 bit ADPCM:
- 300h: 300 hours 2 Gb;
- 600h: 600 hours 4 Gb;
- 1200h: 1200 hours 8 Gb;
- 2400h: 2400 hours 16 Gb;
• Exchange rate: up to 0, 7 Mb/s;
4
• Frequency band: 0,1-10 kHz;
• Signal-to-noise ratio: –80 dB;
• Built-in microphone sensitivity: 10–12 m;
• Storage life of built-in ash memory: up to
10 years;
• Power supply: AA batteries/AA rechargeable
batteries;
• Operating temperature range: 0–40 ºС;
• Dimensions: 65х54х18 mm;
• Weight (batteries not included): 23 g;
• Case: plastic;
• Operating lifetime: 5 years.
Recorder’s Functional Testing
Remove the lid (position 7) and insert the batteries
observing the polarity. To start or stop recording
keep the button “Record” (position 1) pressed for
about 2 seconds until the LED (position 3) turns
on. When the recorder starts recording, the LED
ashes ve times. While recording, two series of
LED ashes show the battery charge and free
memory size (see Instructions on the attached
CD for more details). When the recorder stops
recording, the LED ashes once. The duration of
the last ash depends on the recorder’s memory
size.
5
To play back the recording upload it onto a hard
drive with the help of “Rec Manager” program
(located on the attached CD). To connect to the
PC use the cable (position 5) and connect the PC
connector (position 4) to the USB port of the PC.
Both AA standard batteries and AA rechargeable
batteries can be used for the recorder’s power
supply.
How to install and extract batteries
To install or extract the batteries remove the lid
(position 7) by slightly pressing its ledges. Install
the batteries observing the polarity. Otherwise the
recorder may malfunction. In case of difculty see
Instructions on the attached CD.
Attention! To avoid deformation or breakage of the
case don’t install the rechargeable batteries more
than 1800 mAh.
In Box
1. Recorder;
2. USB cable;
3. 3 AAA batteries;
4. Software CD with Instructions.
6
For more details see Operational Manual on the
shipped CD. It is also available on our website
www.ts-market.com
7
Manufacturer Warranty Coupon
Warranty: The Telesystems Company provides
warranty repair for 1 year from the selling date,
but not more than 2 years from the manufacturing
date.
This warranty is voided if the microphone is:
• improperly used
• mechanically damaged
• received without supplier warranty tag on this
document
All questions regarding product exchange and
return must be solved with the seller’s company
according to Protection of Consumers Law.
8
Digital Recorder EDIC-mini Tiny 16 U352
300h
600h
1200h
2400h
Number: ________________________________
QC:____________________________________
Selling date: _____________________________
Seller: __________________________________
Address:
TS-Market Ltd.
Building 10/1 Sosnovaya Alleya, Zelenograd, Moscow,
The Russian Federation, 124489
Tel: +7 (495) 638-8800; +7 (495) 651-91-51
(Cell) +7(903) 530-10-01, +7 (909) 638-88-00
Fax: +7 (495) 535-0491
E-mail: [email protected]
http://www.ts-market.com
GPS coordinats :
55.98065 N
37.25224 E
