Turboair TUR-28SD Bedienungsanleitung

Commercial

Refrigerator & Freezer

Service Manual

Sandwich Salad Unit

Under counter Refrigerator &

Freezer Model No.: TUR-28SD

TUR-48SD

TST-28SD

TST-48SD

TUF-28SD

TUF-48SD

TABLE OF CONTENTS

1. FEATURE CHART

1-1. FRONT VIEW / SIDE VIEW (TUR-28SD)

1-2. FRONT VIEW / SIDE VIEW (TUR-48SD)

1-3. FRONT VIEW / SIDE VIEW (TST-28SD)

1-4. FRONT VIEW / SIDE VIEW (TST-48SD)

1-5. FRONT VIEW / SIDE VIEW (TUF-28SD)

1-6. FRONT VIEW / SIDE VIEW (TUF-48SD)

2. WIRING DIAGRAM

2-1. TUR-28SD

2-2. TUR-48SD

2-3. TST-28SD

2-4. TST-48SD

2-5. TUF-28SD

2-6. TUF-48SD

3. PART DETAILS

3-1. COMPRESSOR COMPARTMENT

3-2. DOOR

3-3. REFRIGERATION COMPARTMENT

4. MAIN COMPONENTS

5. TEMPERATURE CONTROL INSTRUCTION

5-1. HOW TO USE THE TEMPERATURE CONTROL

5-2. FUNCTION TABLE

6. PART LIST

7. REPLACEMENT OF MAIN COMPONENTS

7-1. REPLACING DOOR

7-2. REFRIGERATION COMPARTMENT PARTS

7-3. COMPRESSOR COMPARTMENT PARTS

7-4. TERMINAL BOX PARTS

7-5. REPLACE DOOR SWITCH AND POWER SWITCH

1-1. FRONT VIEW/SIDE VIEW (TUR-28SD)

1. FEATURE CHART

1COUNTER TOP

2THERMOMETER

3LOUVER

4SHELF

5SHELF STANDARD

6CABINET

7CASTOR (with Brake)

8CASTOR

9DOOR

10 DOOR GASKET

11 LINER

12 SHELF CLIP

13 EVAPORATOR FAN

MOTOR

14 EVAPORATOR COIL

15 EVAPORATOR DRAIN PAN

16 DRAIN HOSE

17 SUCTION LINE

18 COMPRESSOR

19 REAR GRILL

20 DRAIN PAN HOUSING

21 DRAIN PAN

22 DOOR HINGE BOTTOM

23 DOOR HINGE TOP

FRONT VIEW

4 32 1 0 9

q w e

s a p

SIDE VIEW

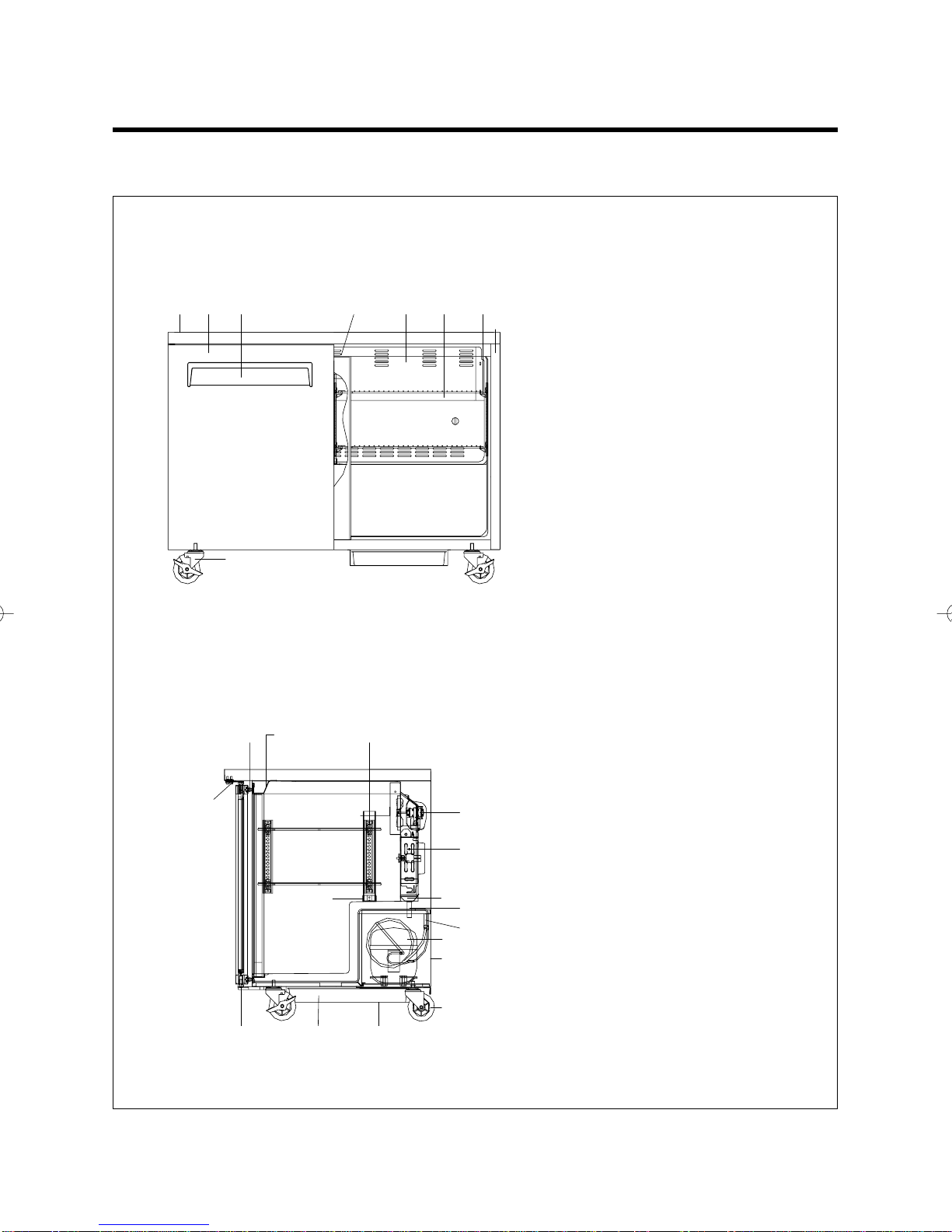

1-2. FRONT VIEW/SIDE VIEW (TUR-48SD)

FRONT VIEW

1COUNTER TOP

2DOOR

3DOOR HANDLE

4SUPPORTER MIDDLE (A)

5SUPPORTER MIDDLE (B)

6LOUVER

7SHELF (R)

8SHELF STANDARD

9CABINET

10 CASTOR (with Brake)

11 CASTOR

12 LINER

13 DOOR GASKET

14 SHELF CLIP

15 DOOR HINGE TOP

16 EVAPORATOR FAN

MOTOR

17 EVAPORATOR COIL

18 EVAPORATOR DRAIN PAN

19 DRAIN HOSE

20 SHELF STANDARD

RETAINER

21 SUCTION LINE

22 COMPRESSOR

23 REAR GRILL

24 DRAIN PAN HOUSING

25 DRAIN PAN

26 DOOR HINGE BOTTOM

FEATURE CHART

2 3 45 6 7 8

e w r

h g f

SIDE VIEW

FEATURE CHART

1-3. FRONT VIEW/SIDE VIEW (TST-28SD)

FRONT VIEW

1COUNTER TOP

2THERMOMETER

3LOUVER

4SHELF

5SHELF STANDARD

6CABINET

7CASTOR (with Brake)

8DOOR

9DOOR GASKET

10 LINER

11 SHELF CLIP

12 EVAPORATOR FAN

MOTOR

13 EVAPORATOR COIL

14 EVAPORATOR DRAIN PAN

15 DRAIN HOSE

16 SUCTION LINE

17 COMPRESSOR

18 REAR GRILL

19 DRAIN PAN HOUSING

20 DRAIN PAN

21 DOOR HINGE BOTTOM

22 DOOR HINGE TOP

23 HOOD LID

24 PAN SUPPORTER

25 HOOD

26 PAN DUCT

27 PAN

28 PAN SUPPORT BAR

29 CASTOR

4 32 1

9 8

0 kf

pa o l

SIDE VIEW

FEATURE CHART

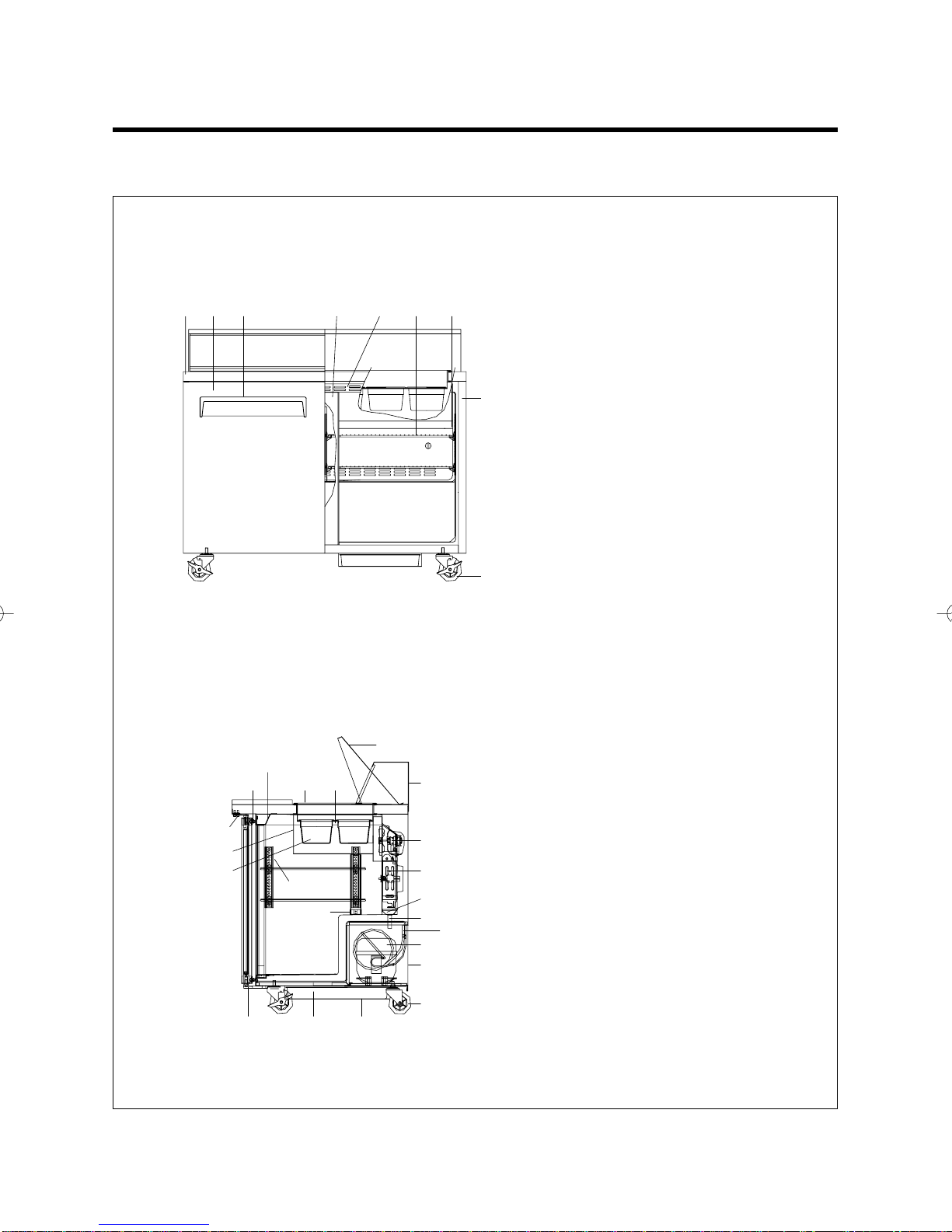

1-4. FRONT VIEW/SIDE VIEW (TST-48SD)

FRONT VIEW

1COUNTER TOP

2DOOR

3DOOR HANDLE

4SUPPORTER MIDDLE (A)

5SUPPORTER MIDDLE (B)

6LOUVER

7SHELF (RIGHT)

8SHELF STANDARD

9CABINET

10 CASTOR (with Brake)

11 LINER

12 DOOR GASKET

13 SHELF CLIP

14 DOOR HINGE TOP

15 EVAPORATOR FAN

MOTOR

16 EVAPORATOR COIL

17 EVAPORATOR DRAIN PAN

18 DRAIN HOSE

19 SHELF STANDARD

RETAINER

20 SUCTION LINE

21 COMPRESSOR

22 REAR GRILL

23 DRAIN PAN HOUSING

24 DRAIN PAN

25 DOOR HINGE BOTTOM

26 HOOD LID

27 PAN SUPPORTER

28 HOOD

29 PAN DUCT

30 PAN

31 PAN SUPPORT BAR

32 CASTOR

1 2 3 6 7 8

g f d

j z

SIDE VIEW

FEATURE CHART

1-5. FRONT VIEW/SIDE VIEW (TUF-28SD)

1COUNTER TOP

2THERMOMETER

3LOUVER

4SHELF

5SHELF STANDARD

6CABINET

7CASTOR (with Brake)

8DOOR

9DOOR GASKET

10 LINER

11 LAMP

12 SHELF CLIP

13 EVAPORATOR FAN

MOTOR

14 EVAPORATOR COIL

15 EVAPORATOR DRAIN PAN

16 DRAIN HOSE

17 SUCTION LINE

18 COMPRESSOR

19 REAR GRILL

20 DRAIN PAN HOUSING

21 DRAIN PAN

22 DOOR HINGE BOTTOM

23 DOOR HINGE TOP

24 DOOR SWITCH

25 POWER SWITCH

26 CASTOR

FRONT VIEW

4 32 1 8 9

0 q w e

s a p

SIDE VIEW

FEATURE CHART

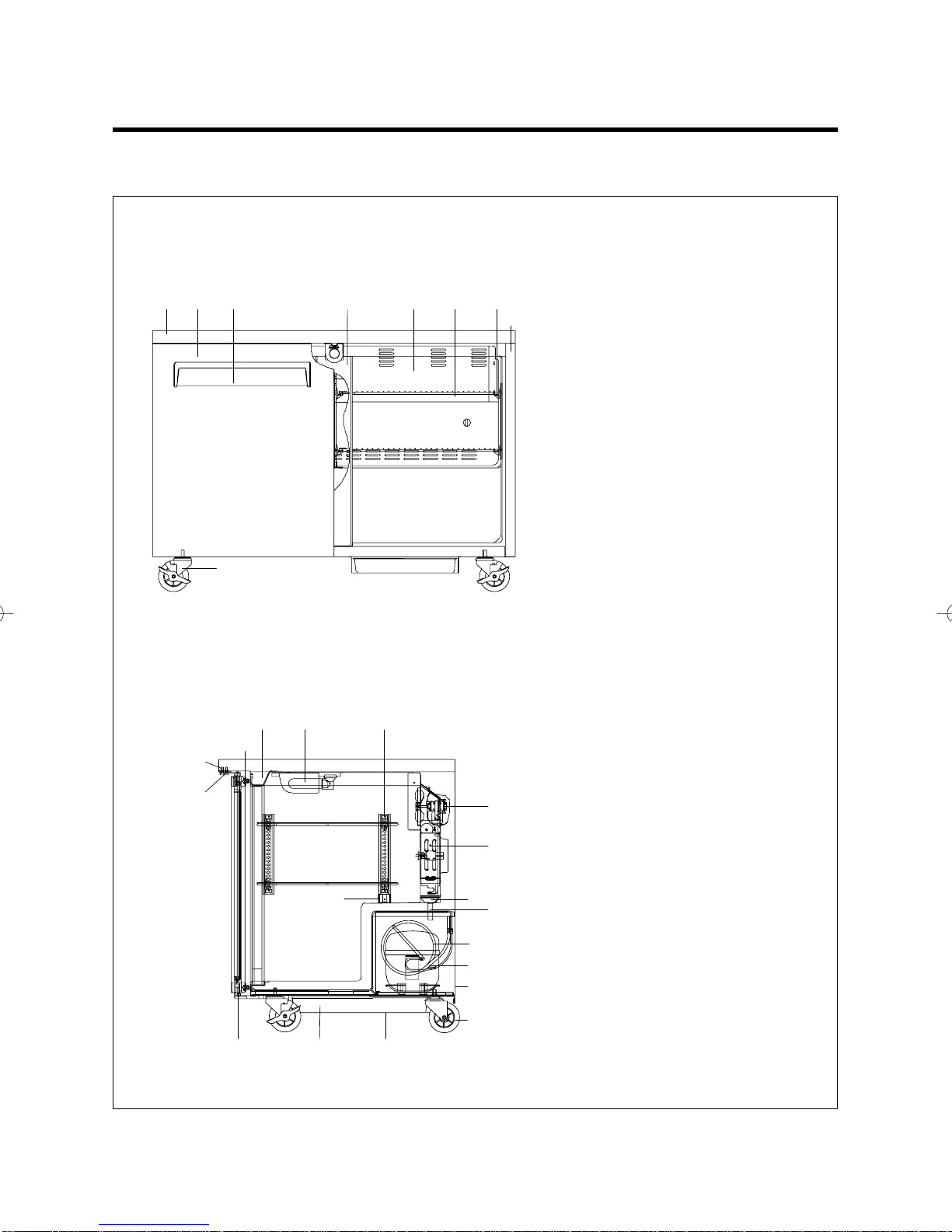

1-6. FRONT VIEW/SIDE VIEW (TUF-48SD)

FRONT VIEW

1COUNTER TOP

2DOOR

3DOOR HANDLE

4SUPPORTER MIDDLE (A)

5SUPPORTER MIDDLE (B)

6LOUVER

7SHELF (R)

8SHELF STANDARD

9CABINET

10 CASTOR (with Brake)

11 CASTOR

12 LAMP

13 LINER

14 DOOR GASKET

15 SHELF CLIP

16 DOOR HINGE TOP

17 EVAPORATOR FAN

MOTOR

18 EVAPORATOR COIL

19 EVAPORATOR DRAIN PAN

20 DRAIN HOSE

21 SHELF STANDARD

RETAINER

22 SUCTION LINE

23 COMPRESSOR

24 REAR GRILL

25 DRAIN PAN HOUSING

26 DRAIN PAN

27 DOOR HINGE BOTTOM

28 DOOR SWITCH

29 POWER SWITCH

2 3 45 6 7 8

w te

j h g

SIDE VIEW

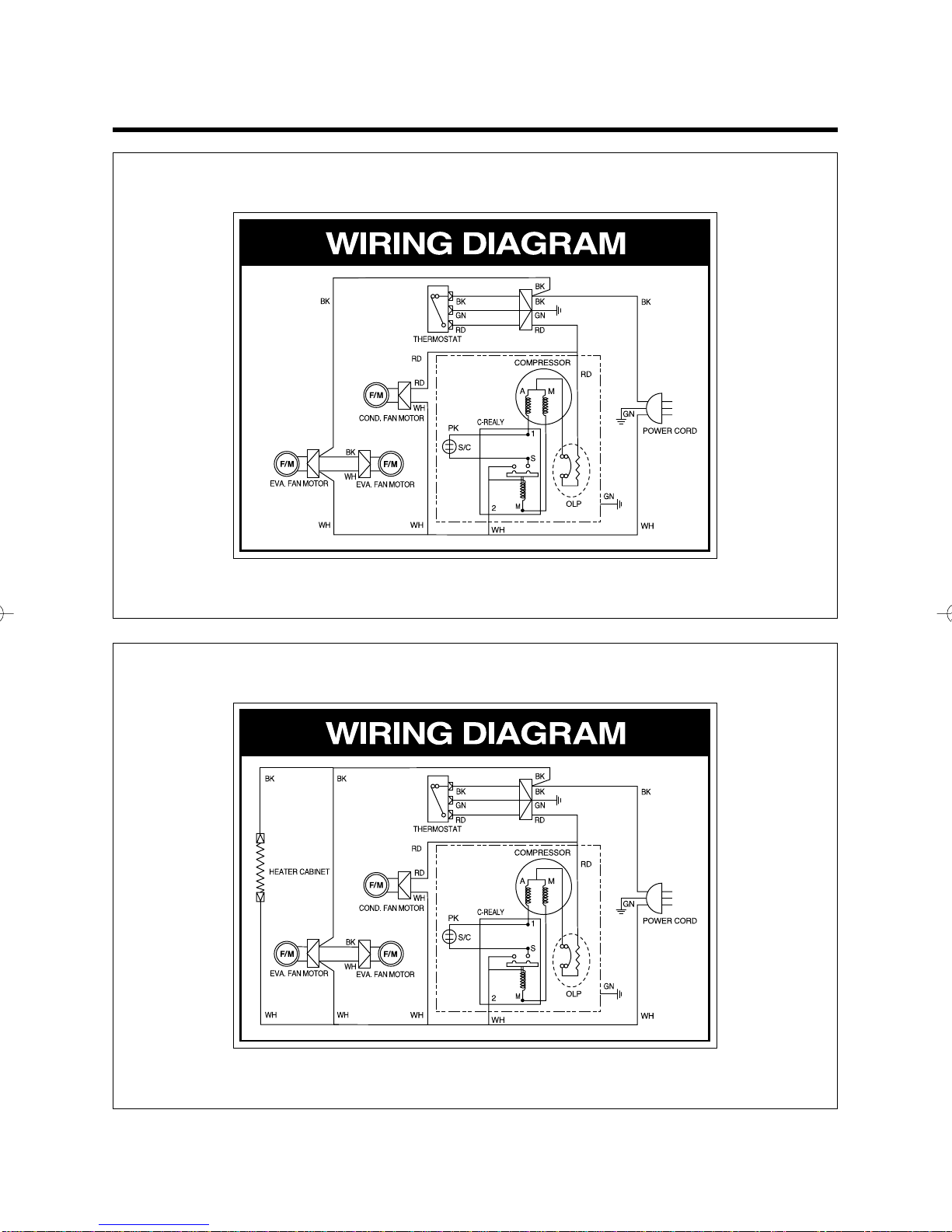

2. WIRING DIAGRAMS

2-1. TUR-28SD

2-2. TUR-48SD

WIRING DIAGRAMS

2-4. TST-48SD

2-3. TST-28SD

WHWH WH

WHWHWH

R/C S/C PK

RD BK

EVA. FAN MOTOREVA. FAN MOTOR

F/M

F/MF/M

COND. FAN MOTOR

PTC-RELAY

THERMOSTAT

OLP

POWER CORD

COMPRESSOR

BK BK BK

WH WHWH WH WH

RDBK BK

EVA. FAN MOTOR

HEATER CABINET

F/MF/MF/M

COND. FAN MOTOR

C-RELAY

THERMOSTAT

OLP

POWER CORD

COMPRESSOR
