Turnigy PRM0282 Bedienungsanleitung
User Guide
3D Printer
1
Table of Contents
1. General
1.1 Main parts identification
1.2 What’s in the package
2. Assemble the 3D printer
3. Operational checks and preprint setup
3.1 Sensors check
3.2 Print platform leveling and preheat
3.3 Loading filament
4. Trouble shooting
Potentially hazardous situation to be avoided.
Failure to avoid may result in minor or moderate injury.
CAUTION:
Potentially hazardous situation to be avoided.
Failure to avoid may result in serious injury.
WARNING:
Use standard electrostatic discharge precautions
ATTENTION
ELECTROSTATIC
SENSITIVE DEVICE
Beware of Hot Surface: Some devices may radiate high temperature.
Be cautious and use safety gloves to avoid burns.
Wear safety glasses to avoid injury to your eyes.
The following safety precautions identifications are used in this manual
Turn off and lock-out system power before servicing.
Risk of electric shock or burn if failed to comply.
p3
p4~5
p6~49
2
p51~52
p53~56
p57~58
* NOTE: THERE IS A VIDEO SERIES AVAILABLE ONLINE
FOR VISUAL REFERENCE FOR ASSEMBLY
Power On / Off
Filament Spool(Sold separately)
Print platform
Printer gantry
1) Rotary (for + / -)
2) Press (to select)
SD card slot
Main control panel
Reset button
SD card insertion direction
(SD card not included)
3
Main parts identification
1.1
Gantry
Right Panel
Control Panel
Gantry rail
x1
x2
x1
Model cooling fan
x1
Box-A
Back Panel
x1
Box-E
Front Panel
x1
Print Platform
Box-B
x1
Box-F
Left Panel
x1
Top Panel
x1
x1
Box-D
Box-C
Bottom Panel & A/C Receptacle
x1
4
Filament spool holder Set (DSA3302-U17)
x1 SCW0188
(HM4x22)
x5
Screws
this box:
x1
x2
+
Filament spool
support
What’s in the box
1.2
Box-G
MDT0140
x4
MDT0142
x1 x1
Nut (silver color)
(TB3x12)
Z-axis lead screw
Torque coupling
Lower bearing support
MST0651
x1
MST0865
“Thick” Nut
(bronze color)
MST0866
“Thin” Nut
(bronze color)
Thin
Thick
Spring Bearing
BER0038
x1
x1 x1 x1 x1
x4
Rod
MST0600
Pre-assembled Rod
(for Left and Right panels)
x2x2
PM-3PT04-P01
x3
Timing belt (Long)
ETP0110
Timing belt (Short)
ETP0111
x2x1
Spiral cut cable loom
x1
Power
x1
USB cable (type A to type B)
x1
Zip tie
x10
x40 x10
x45
MDT0139
x2
Small nut (silver color)
(TM3x8)
SCW0039
x5
5
What’s in the box
1.2
Assemble the 3D printer
2
This section will guide you through the process of building the
3D printer, step by step. Pre-assembled pieces can be located
from Boxes A to G.
6
2.1
<1>
Z-axis Lead Screw
x1 x1 x1 x1
x1
Box G
Shorter non-threaded
end
Longer non-threaded
end
Push up (compressing the spring
slightly) while threading the lead
screw (MST0625) up from the
bottom.
Anti-backlash nut
Small amount of
brass bushing is
still visible
Once done there will be a slight drag while
turning the lead screw.
A small amount of brass bushing (MST0866)
should still be exposed at the bottom. This is
called an Anti-backlash nut that is used to
remove play or slop in the Z-axis.
Thick
Thin
Find the following accessories from:
7
2.1
<2>
Z-axis Lead Screw Find the following accessories from: Box G
x3
DSA3302-U07 Print platform
from Box-B
The Z lead screw can now be installed to
the print platform by using a 2.0mm hex
driver. The screws go in from the top
2.1
<1>
(TB3x12)
DSA3302-U02 Back panel
from Box-E
2.0mm hex
driver
(TB3x12)
x2
Rod
MST0600
x2
Rod
MST0600
2.5mm hex
driver
Back Panel preparation
Start installing the 2 metal rods (MST0600)
to the back panel as shown on the right
8
2.2
<1>
2.2
<2>
Assemble to Back and Base Panels
Insert the print platform onto
the shafts of the back panel
as shown.
Turn the lead screw so that we
have approximately 2 inches
exposed from the top.
This will help to align with the
bearing.
2.1
<2>
The movement of the bearings and rods will
feel tight at this point, but we will tram (align)
the system later.
Slide the print platform upwards so that the
Z-axis lead screw inserts into the bearing.
Approx.
2”
2.2
<1>
9

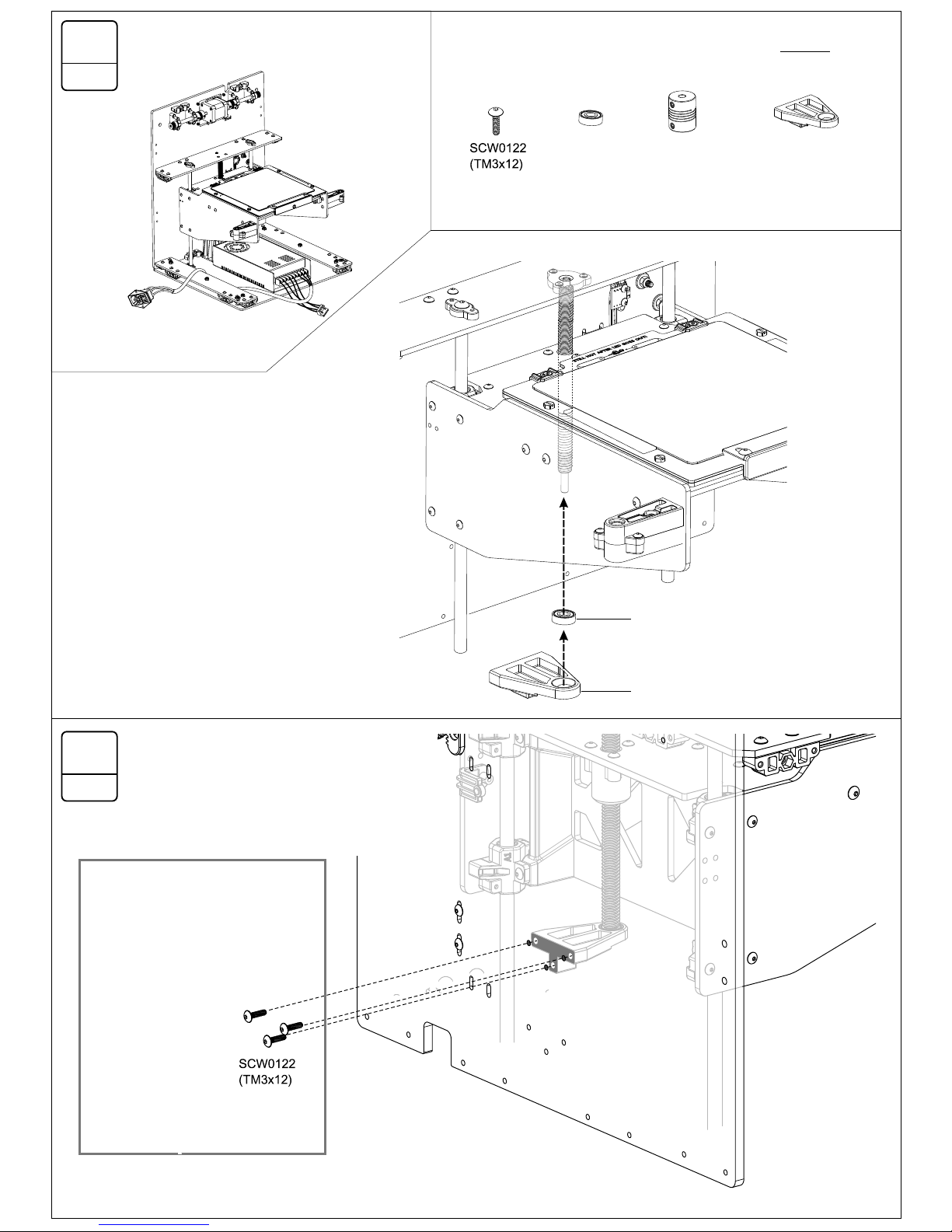

2.2
<3>
2.2
<4>
Box-G
Torque couplingBearing Lower bearing support
MDT0142 MST0651BER0038
x3 x1 x1 x1
Install the bearing in to the lower bearing
support, and slide it onto the bottom of the
Z-axis lead screw (bearing facing upward).
BER0038
MST0651
Install the 3 screws from the back side to
secure the bearing support.
When tightening the support screws, push
lightly up to put a little tension on the
bearings.
x3
2.0mm hex
driver
Back and Bottom panels Find the following accessories from:
10
2.2
<5>
