Turtle Beach Ear Force Z6A Bedienungsanleitung

ENGINEERED FOR GAMING

™

Multi-Speaker Surround Sound

Eight amplified speakers, including dual subwoofers.

Acoustically Angled Speakers

Delivers more realistic directional audio perception.

5.1 Channel Amplifier

Independent controls for all 5.1 audio channels.

Quick Disconnect

Easily detach your headset from your computer.

Microphone Monitor

Let’s you hear what you’re saying.

USB Powered

No batteries required.

XBOX 360 Compatible

Works as an amplified stereo headset on the XBOX 360.

(additional cables required: sold separately)

Gaming Headset with

Multi-Speaker 5.1 Surround Sound

User Guide

TURTLEBEACH.COM

Join The Conversation

Z6A Headset

What’s in the Box

In-line

5.1 Channel Ampliﬁer

5.1 Channel

Splitter Cable

User Guide Sticker

product support and warranty information:

www.TurtleBeach.com/support

Table of Contents

About the Ear Force Z6A pg. 1

PC Setup pg. 3

Using the Ampliﬁer pg. 5

Optional PC Setup pg. 7

XBOX 360

Setup pg. 8

Technical Speciﬁcations pg. 12

Additional Accessories pg. 13

Maintaining Your Headset pg. 14

Important Safety Information pg. 15

View our YouTube videos:

www.youtube.com/TurtleBeachVideos

About the Ear Force Z6A

Congratulations on your purchase of the Z6A! The Z6A combines

the audio quality and comfort of a professional-grade gaming

headset with the full impact and 3D positional accuracy of

multi-speaker 5.1 surround sound. With eight premium speakers,

including dual subwoofers, the Z6A is powered by a 5.1 channel

ampliﬁer with bass enhancement, letting you pinpoint critical

sound cues from every direction. To get the best gaming

experience from your Z6A, please take a few moments to review

this guide.

Multi-Speaker Surround Sound

Designed to deliver high quality 5.1 surround sound, the Z6A

incorporates 4 premium speakers in each ear cup, including

40mm subwoofers for extended bass and extraordinary

dynamic range.

Acoustically Angled Speakers

Providing more realistic directional audio perception, the

front and surround speakers in the Z6A are acoustically

angled, allowing you to more accurately pinpoint sounds than

conventional ﬂat speakers.

5.1 Channel Ampliﬁer with Quick Disconnect

The Z6A ampliﬁer gives you quick access to independent controls

for all 5.1 audio channels, letting you tune your Z6A for any

gaming situation. The headset and ampliﬁer also feature a quick

disconnect so you can easily detach it without having to unplug

the 5.1 outputs from your computer.

PC Setup

(black)

(green)

(orange)

(pink)

Step 1:

Align the multi-pin ampliﬁer and headphone connectors as shown

and carefully insert them together, making sure not to force the pins.

Step 2:

Connect the four colored audio jacks to the corresponding inputs

and outputs on your sound card, as indicated in the table below:

Step 3:

Insert the USB connector into any USB port on your PC.

Step 4:

Select the microphone as the recording source in your sound

card’s control panel. Then adjust the volume level and sensitivity

for adequate response when speaking into the mic.

Step 5:

Set your sound card for 5.1 channel output and adjust the volume

settings to a comfortable level.

Sound Card Settings:

Most sound cards allow setting the output levels and speaker

conﬁgurations via software that is accessed from the Windows®

Control Panel. Please refer to your sound card documentation

for instructions on setting up the outputs for 5.1 audio to properly

drive the headphone speakers. Also, note that some sound cards

may have the bass and center channels reversed, which will

cause an apparent decrease in bass response. This can often be

corrected with a setting in the sound card control software.

JACK COLOR

Center/Sub Orange

Mic Pink

Front Green

Surround Black

Using the Ampliﬁer

INLINE CONTROLS:

1 — Front Channel Volume

2 — Surround Channel Volume

3 — Center Channel Volume

4 — Subwoofer Volume

5 — Master Volume & On/Off Switch

Adjusts the master volume level and power for the ampli-

ﬁcation unit. In most cases, controls 1 through 3 should be

set to maximum and the volume should be adjusted with

the master volume control (5)

6 — Mic Mute Switch

Switch to “MUTE” to mute the microphone. LED will turn

RED when mic is muted.

7 — XBOX 360 Talkback Cable Jack (not used for PC gaming.)

Optional PC Setup

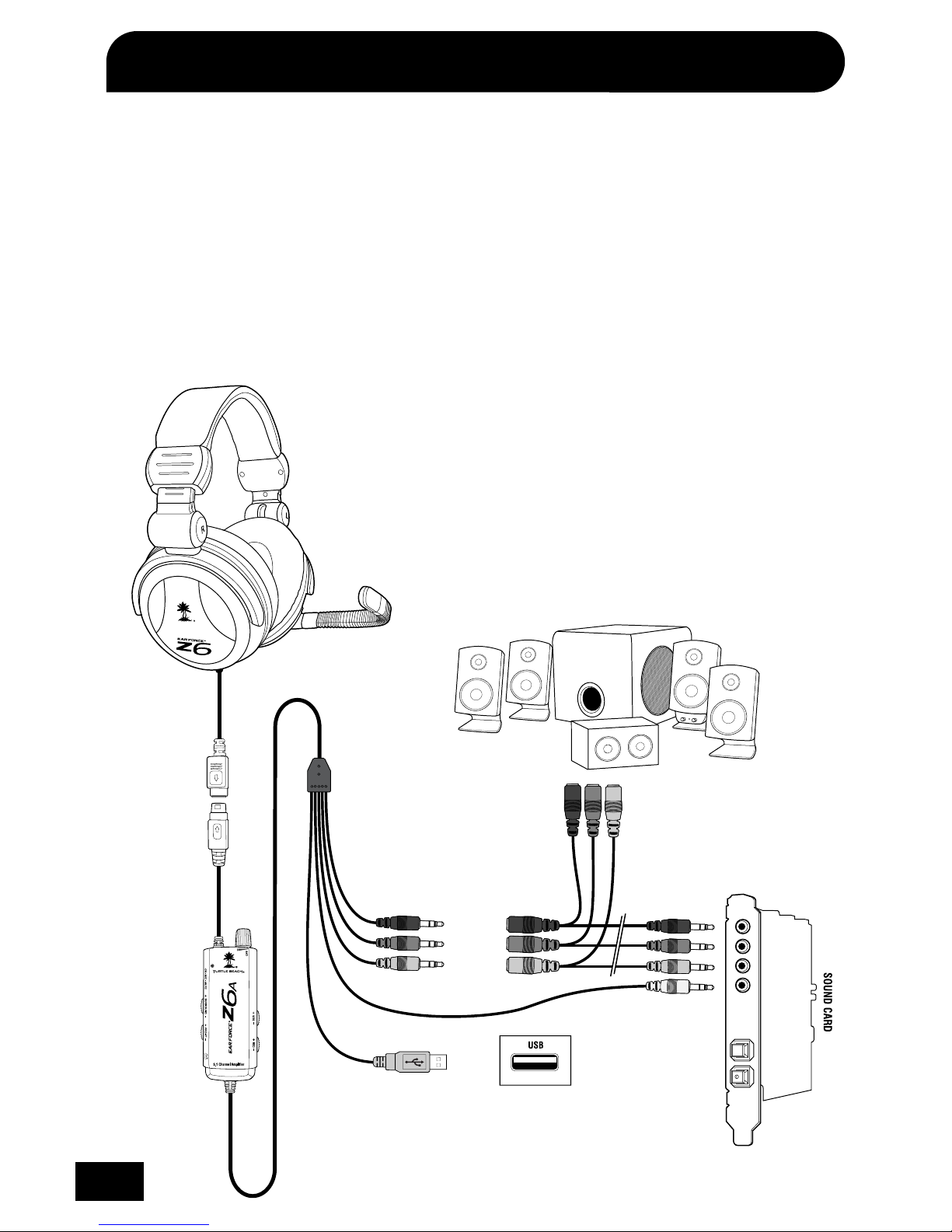

To use 5.1 speakers along with the headphones:

Connect the included splitter cable as shown below. Be sure to

match the three colored ampliﬁer jacks with the matching colored

sockets on the cable. This allows you to turn down the speakers

when using the headphones so you do not have to reach behind

your PC to disconnect the headphones and reconnect the speakers.

(black)

(green)

(orange)

(pink)
