TV Logic LVM-071W Bedienungsanleitung

Multi Format

LCD MONITOR

Operation Manual

LVM-071W

7” Multi Format LCD Monitor

MULTI

Contents

CAUTION 2

FEATURES 3

NAME & FUNCTION OF EACH PART 4

MENUCONTENTS 7

OTHERFUNCTIONS 13

DVI ANALOG INPUT SIGNAL FORMAT 17

DVI DIGITAL INPUT SIGNAL FORMAT 18

PRODUCTSPECIFICATION 19

PRODUCTLINEUP 20

OPTIONALACCESSORIES 23

........................................................................................

......................................................................................

.......................................................

.............................................................................

...........................................................................

.....................................................

......................................................

..................................................................

.............................................................................

...................................................................

FCC (Federal Communications Commission)

This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interface when the equipment is

operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential to correct the interference at his own expense

CAUTION: Change or modications not expressly approved by the manufacturer responsible for compliance void the

user’s authority to operate the equipment.

Disposal of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packing indicates that this product shall not be treated as household waste. Instead

it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By

ensuring this product is disposed of correctly, you will help prevent potential negative consequence for the environment

and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of

materials will help to conserve natural resources.

LVM-071W

7” Multi Format LCD Monitor

Caution

ALWAYS USE SET VOLTAGE. DC 12V

If liquid is spilled on or impacts this product, please disconnect the product immediately and seek

professional help before continued use.

Keep unit disconnected during extended periods of disuse.

Keep unit in a well-ventilated place to prevent overheating.

Do not install the product near any heat-generating equipment.

Also, keep the product out of direct sunlight or dusty areas.

Only clean the product with a noncommercial, mild and neutral detergent.

When transporting the product, make use of its original packaging for safer carriage.

LVM-071W

Features

LVM-071W HAS THE FOLLOWING FEATURES:

Compatible with varied SDI signals

- The product is compatible with varied SDI Signals - 480i,576i,720p,1035i,1080i,1080p,1080psf

Compatible with varied analog signals

- The product is compatible with varied analog signals - Composite, S-Video, Component, RGB

Compatible with varied DVI Digital/Analog Signals

- DVI input is standard equipment

Compatible with VGA Signals using DVI-I connection

Waveform/Vector Scope/Audio Level Meter

- Waveform & Vector Scope available for SDI Signals

- Embedded Audio Level Meter

Audio in & out

- Built in Audio Disembedder and Internal Speakers

- Stereo Audio out using phone jack

- External Audio in for Mono Speaker out

Knob Control

- Easy to adjust user conguration using the control knobs.

BLUE ONLY/MONO

H/V delay

Wide Variety of Markers & Safety Areas

- Center Marker, Safety Area Marker, Aspect Marker, Display Size(Scan)

Pixel To Pixel

- Provides both full screen and unscaled native image.

Wide Screen/LED Backlight

24Bit RGB Interface Panel

DC Compatible

- The product is powered by normal 12V source.

Remote control function

- Simple remote controllability with single cable connection, no additional modules required

Additional Features

- Active Loop Through/SDI, VESA Mounting Standard, 300:1 contrast ratio, 350 cd/m2 brightness, OSD user

interface, Rack Mountable

7” Multi Format LCD Monitor

LVM-071W

7” Multi Format LCD Monitor

Name & Function of Each Part

ANALOG

DVI

SDI

BLUE ONLY/ MONO

UNDERSCAN

ASPECT

MARKER/HVDELAY

POWER

ENTER

DOWN

WAVEFORM/VECTOR SCOPE

PHASE

APERTURE

BRIGHT

CHROMA

CONTRAST

VOLUME

TALLY

FRONT

[ANALOG] button/lamp

- Used to select desired Analog Input. (CVB1/2/3, S-Video, Component, RGB)

[DVI] button/lamp

- Used to select desired DVI Input. (DVI DIGITAL, DVI ANALOG)

[SDI] button/lamp

- Used to select SDI Input.

[UNDERSCAN] button/lamp

- Used to transfer from OVER SCAN mode to UNDER SCAN mode.

- Mode changes in the order of UNDERSCAN -> OVERSCAN -> PIXEL TO PIXEL -> UNDERSCAN.

#PIXEL TO PIXEL mode is not available in Graphic mode.

[ASPECT] button/lamp

- Used to toggle aspect ratio in SD from standard to anamorphic.

[MARKER]/[HVDELAY] button/lamp

- Used to show MARKER on the screen. The type of marker at work may be selected on the main menu.

Press and Hold the button to activate the HV Delay mode.

7” Multi Format LCD Monitor

LVM-071W

Name & Function of Each Part

[BLUE ONLY]/[MONO] button/lamp

- You may remove R(red) and G(green) from the input signal and play the screen only with B(blue) signal.

Button may be pressed twice to change the screen to MONO mode.

(This mode uses only Luminance value.)

[PHASE] button/lamp

- Used to change the Phase values.

#Phase is not available in DVI Analog and PAL mode.

[WAVEFORM]/[VECTOR SCOPE] button/lamp

- Used to activate the Waveform or Vector Scope. Pressing the button once will activate the Waveform,

pressing the button twice activates the Vector Scope.

[MENU] button

- Used to activate the OSD menu.

[UP] button

- Used to navigate menu during OSD menu activation. It may also be used to toggle clockwise through

1:1 quadrants in native scan mode.

[DOWN] button

- Used to navigate menu during OSD menu activation. It may also be used to toggle counterclockwise

through 1:1 quadrants in native scan mode.

[ENTER] button

- Used to conrm a chosen value (or mode) within the OSD menu.

[POWER] switch

- Power On/O button. If the signal is normal, LED lights in Green. If the signal is unsupported or

disconnected, LED ashes in Yellow.

[TALLY] lamp

- LED indicating monitor’s current status using optional Remote/RS-485.

[APERTURE] knob

- Used to adjust the picture sharpness between MAX(12) and MIN(-12).

#Aperture is not available in DVI Analog mode.

[BRIGHT] knob

- Used to adjust the degree of brightness between MAX(25) and MIN(-25).

[CHROMA] knob

- Used to adjust the saturation between MAX(25) and MIN(-25).

#Chroma is not available in DVI Analog mode.

[CONTRAST] knob

- Used to adjust the contrast ration between MAX(25) and MIN(-25).

[VOLUME] knob

- Used to adjust the volume between MAX(20) and MIN(0).

LVM-071W

7” Multi Format LCD Monitor

Name & Function of Each Part

DVI DIGITAL/

DVI ANALOG

SDI-IN

SDI-OUT

CVBS1/B/Pb

CVBS2/G/Y/S-Y

CVBS3/R/Pr/S-C

AUDIO IN

AUDIO OUT

REMOTE

FACTORY PGM

DC IN

REAR

REMOTE (RJ-45)

- Connection for remote control of monitor.

DVI DIGITAL/DVI ANALOG (DVI-I)

- Input connection for DVI-I.

SDI-IN (BNC)

- SDI signal input terminal.

SDI-OUT (BNC)

- SDI signal output terminal.

CVBS1/B/Pb (BNC)

- Signal input terminal used for COMPOSITE1, RGB B, COMPONENT Pb signals.

CVBS2/G/Y/S-Y (BNC)

- Signal input terminal used for COMPOSITE2, RGB G, COMPONENT Y, SVIDEO signals.

CVBS3/R/Pr/S-C (BNC)

- Signal input terminal used for COMPOSITE3, RGB R, COMPONENT Pr, SVIDEO C signals.

AUDIO IN (Phone jack)

- Used to External audio input jack.

AUDIO OUT (phone jack)

- Used to audio output jack.

FACTORY PGM (40 pins)

- Input connector for FACTORY PGM allowing for rmware updates.

DC IN (XLR, 4 pins)

- Used to supply DC power; 12V.

7” Multi Format LCD Monitor

LVM-071W

Menu Contents

[1] PICTURE PART

Below is the description of each function of the menu.

Brightness

This Item controls the degree of brightness.

#Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor.

CONTRAST

This item controls the contrast ratio.

#Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.

CHROMA

This item controls saturation.

#Saturation can be adjusted by using the [CHROMA] control knob on the front of the monitor.

PHASE

This item controls Phase value (Hue).

#Phase value can be adjusted by press the [PHASE] button on the front of the monitor.

APERTURE

This item controls the picture sharpness.

#Sharpness can be adjusted by using the [APERTURE] control knob on the front of the monitor.

NTSC Setup

This item sets IRE value in NTSC mode between 0 IRE and 7.5 IRE.

LVM-071W

7” Multi Format LCD Monitor

Menu Contents

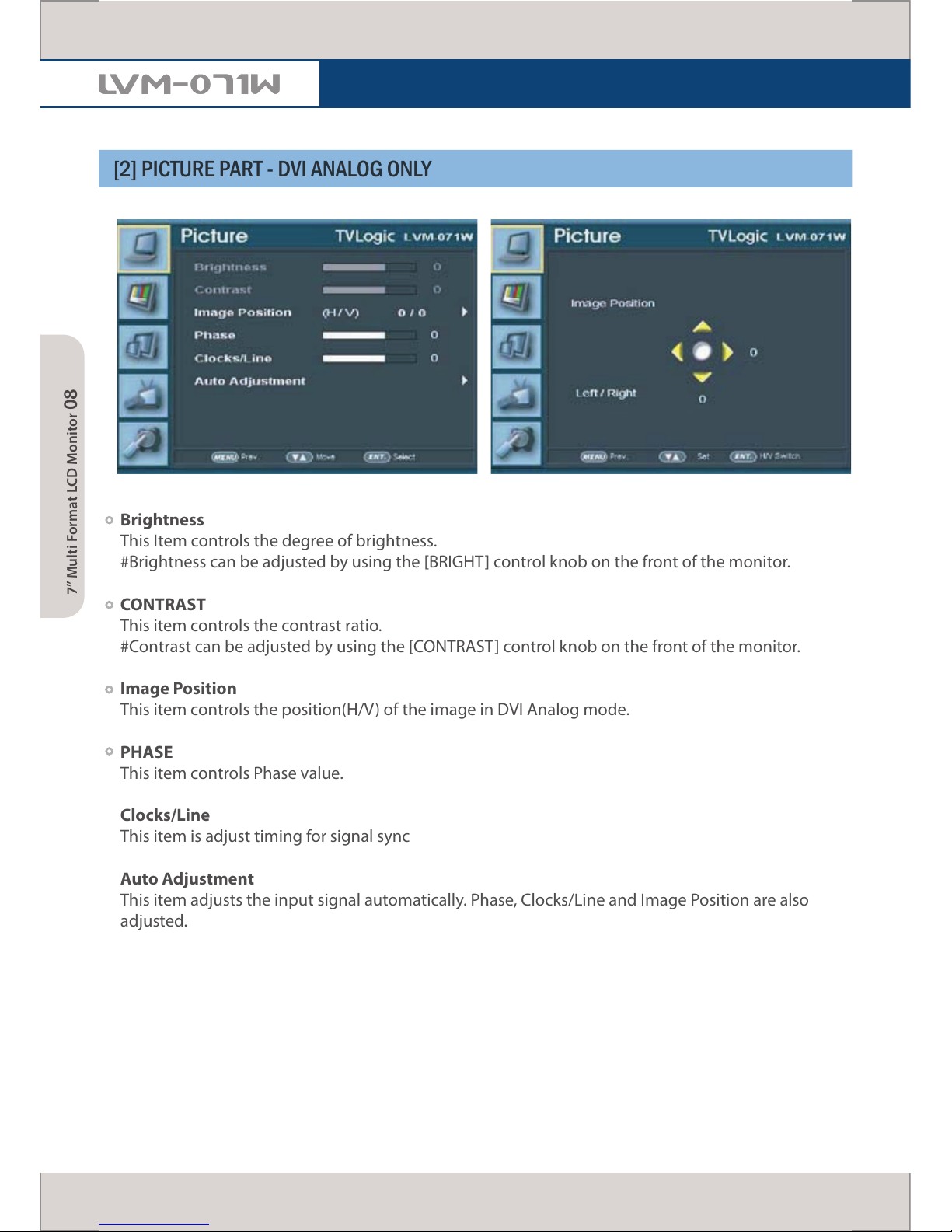

[2] PICTURE PART - DVI ANALOG ONLY

Brightness

This Item controls the degree of brightness.

#Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor.

CONTRAST

This item controls the contrast ratio.

#Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.

Image Position

This item controls the position(H/V) of the image in DVI Analog mode.

PHASE

This item controls Phase value.

Clocks/Line

This item is adjust timing for signal sync

Auto Adjustment

This item adjusts the input signal automatically. Phase, Clocks/Line and Image Position are also

adjusted.
