Twelve South HoverBar Duo Bedienungsanleitung
HoverBar Duo
owner’s guide
Table of Contents
What’s in the box 1
Attach iPad Clip 2
Choose Desk Stand or Shelf Clamp 3
Clipping in iPad 4
Adjusting and Tightening HoverBar 5
Installing Shelf Clamp 6
Tips, Tricks and New Ideas 8
View the instructional video at:
twelvesouth.com/hoverbarduo-quickstart
Getting Started Attach iPad Clip
Position Locking Washer at the end of HoverBar Arm
and align with the back of the iPad Clip
Hand tighten iPad Clip onto end of iPad Arm
with Locking Washer
1
2
2
1
HoverBar Duo > iPad
Attach iPad Clip
2
What’s in the Box
iPad Clip
Desk Base with attached arm
Shelf Clamp
Large Hex Wrench (4MM)
Small Hex Wrench (3MM)
Shelf Clamp Collar
A
B
C
D
E
F
F
A
B
CE
D
1
What’s in the Box HoverBar Duo > iPad
Getting Started Choose Desk
Stand or Shelf Clamp
HoverBar includes both a freestanding, weighted
Desk Stand and a Shelf Clamp. The Desk Stand comes
pre-attached and is the easiest to move from place
to place. The Shelf Clamp attaches the HoverBar Arm
securely to a shelf or desk edge up to 1.5-inches thick
for display in any orientation.
Where and how you want to use your iPad will
determine which option you choose. If you want to use
the Desk Stand, simply clip in iPad (page 4) and you’re
done. If you want to use the Shelf Clamp, proceed to
installing Shelf Clamp (page 6).
HoverBar Duo > iPad
3
Stand or Clamp
Getting Started Clipping in iPad
Holding the iPad horizontally, insert the bottom edge of
iPad into the clip and push down to open the iPad Clip.
When the top of the iPad Clip is expanded beyond the top
edge of the iPad, lean the iPad back into the iPad Clip.
Carefully release the iPad and let the HoverBar iPad
Clip hold the iPad.
Rotate and position the iPad into the desired placement
and orientation.
Note: It is recommended that when adjusting the position
of iPad by a significant amount, remove the iPad first,
reposition the HoverBar arms and iPad Clip to the approximate
new location, then replace iPad and make final small
adjustments with the iPad securely in place.
1
2
3
4
2
1
HoverBar Duo> iPad
2
Clipping in iPad
4
All moving HoverBar joints can be adjusted and tightened as needed or
desired. All hinges use one of two Hex Wrenches included with HoverBar.
Adjusting and Tightening HoverBar
iPad Clip Adjustment Knob
Loosen to adjust the orientation and angle of iPad. Note: Utilize notch
opposite the adjustment knob to position iPad parallel to HoverBar Arm.
HoverBar Arm Elbow
Use the Large Hex Wrench to adjust the height and angle of the Upper Arm.
Base Hinge
Rotation point for Lower Arm. To adjust, use Base Hinge Adjustment Screw.
Base Hinge Adjustment Screw
Adjust the tightness of the Base Hinge with Small Hex Wrench.
Arm Attachment Bolt
Adjust the ease of rotation with Large Hex Wrench.
A
B
C
D
E
B
D
E
C
A
HoverBar Duo > iPad
5
Adjusting / Tightening
Place Shelf Clamp Collar
onto HoverBar Arm with
inner ring facing up
Removing the HoverBar Desk Stand and installing the Shelf Clamp is a straightforward process. Pay
close attention to not lose the individual washers and screws as you follow the steps to switch parts.
Getting Started Installing Shelf Clamp
Remove Arm Attachment
Bolt from bottom of Base
and release HoverBar Arm
Unscrew and remove
the Shelf Clamp
Adjustable Segment
Hold HoverBar Arm upside
down so the three locking
posts are facing up
1
2
3
4
HoverBar Duo> iPad
Installing Shelf Clamp
6
5
6
7
Place Shelf Clamp
onto HoverBar Arm
and rotate until
Locking Plate nests
into the three posts
of the arm
Replace and tighten
Arm Attachment Bolt
Replace adjustable
side of Shelf
Clamp and screw
into place with
the Shelf Clamp
Adjustment Knob Note: Carefully store Desk Stand and extra Collar and
Locking Plate to re-install Desk Stand at a later date.
Arm Attachment Bolt
Lower Collar
Desk Stand Base
Shelf Clamp
Locking Plate
Upper Collar
HoverBar Arm
Desk Stand
Components
Shelf Clamp
Components
HoverBar Duo > iPad
7
Installing Shelf Clamp
HoverBar Tips & Tricks
Combine HoverBar with iPad to use as a
second display for your Mac with Sidecar.
With the SideCar feature, most newer Macs can
turn most newer iPads into a second screen for
applications pallets, email, small widgets, et
cetera. Use HoverBar to position your Sidecar
iPad right next to your Mac screen in vertical or
horizontal position.
Learn more about SideCar here:
https://support.apple.com/en-us/HT210380
HoverBar Duo> iPad
Tips and Tricks
8

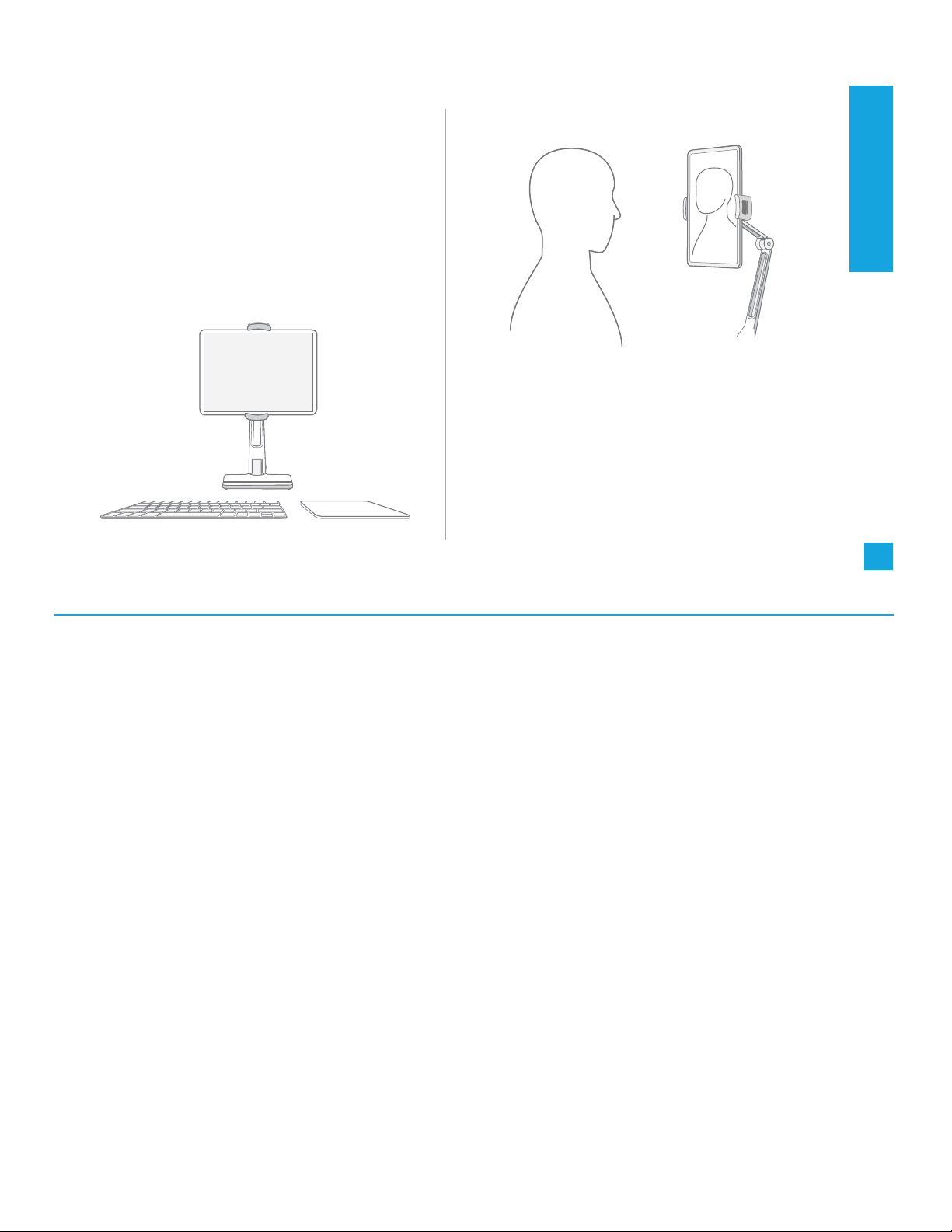

HoverBar and iPad - with an external
keyboard & trackpad
The latest iPadOS lets you use external
keyboards and pointing devices (such as a
TrackPad or mouse) to control iPad. With iPad
control on your desk - you are now free to
position iPad anywhere you like with HoverBar.
Better Video chats
To look your best on FaceTime videos, Zoom calls, et
cetera, it is always better to have your camera at eye
level and, most often, in portrait mode. Use HoverBar
to position your iPad at the perfect height for any
video call. You can even hang it from a nearby shelf to
keep your desktop nice and clear.
HoverBar Duo > iPad
9
Tips and Tricks
thank you
