Twin-Star International 18DF2433 Bedienungsanleitung

ATTENTION

IF YOU HAVE ANY PROBLEMS OR QUESTIONS, EMAIL

OR CALL CUSTOMER SERVICE BEFORE YOU RETURN

THIS PRODUCT TO THE STORE WHERE IT WAS PURCHASED.

For Customer Service: email: par[email protected]

in English Call: 866-661-1218

in Spanish Call: 866-661-1218

in French Call: 866-374-9203

ATENCIÓN

SI TIENE ALGÚN PROBLEMA O PREGUNTAS,

ENVÍE UN MENSAJE DE CORREO ELECTRÓNICO O LLAME AL SERVICIO

DE ATENCIÓN AL CLIENTE ANTES DE DEVOLVER

ESTE PRODUCTO A LA TIENDA EN LA QUE LO COMPRÓ.

Servicio de atención al cliente: Correo electrónico: par[email protected]

Línea para llamadas en inglés: 866-661-1218

Línea para llamadas en español: 866-661-1218

Línea para llamadas en francés: 866-374-9203

STOP STOP

PARE PARE

ATTENTION

SI VOUS AVEZ DES PROBLÈMES OU QUESTIONS,

ENVOYEZ UN COURRIEL AU SERVICE À LA CLIENTÈLE OU APPELEZ LE

SERVICE À LA CLIENTÈLE AVANT DE RETOURNER

CE PRODUIT OÙ VOUS L’AVEZ ACHETÉ.

Pour le service à la clientèle : courriel : par[email protected]

pour le service en anglais, composez le 866-661-1218

pour le service en espagnol, composez le 866-661-1218

pour le service en français, composez le 866-374-9203

ARRÊT ARRÊT

INSTRUCTION MANUAL ENCLOSED

MANUEL D’INSTRUCTION À L’INTÉRIEUR

MANUAL DE INSTRUCCIONES ADJUNTO

INSTRUCTION MANUAL ENCLOSED

MANUEL D’INSTRUCTION À L’INTÉRIEUR

MANUAL DE INSTRUCCIONES ADJUNTO

ELECTRIC FIREPLACE MANTEL

18DF2433

ASSEMBLY INSTRUCTION

Requires-Electric Fireplace

Insert with Heater

E-mail: [email protected]

In English call: 866-661-1218

In French call: 866-374-9203

In Spanish call: 866-661-1218

ATTENTION

For Customer Service:

Twin-Star International, Inc.

Delray Beach, FL 33445

Made in China

Printed in China

Españo p. 9

Français p. 17

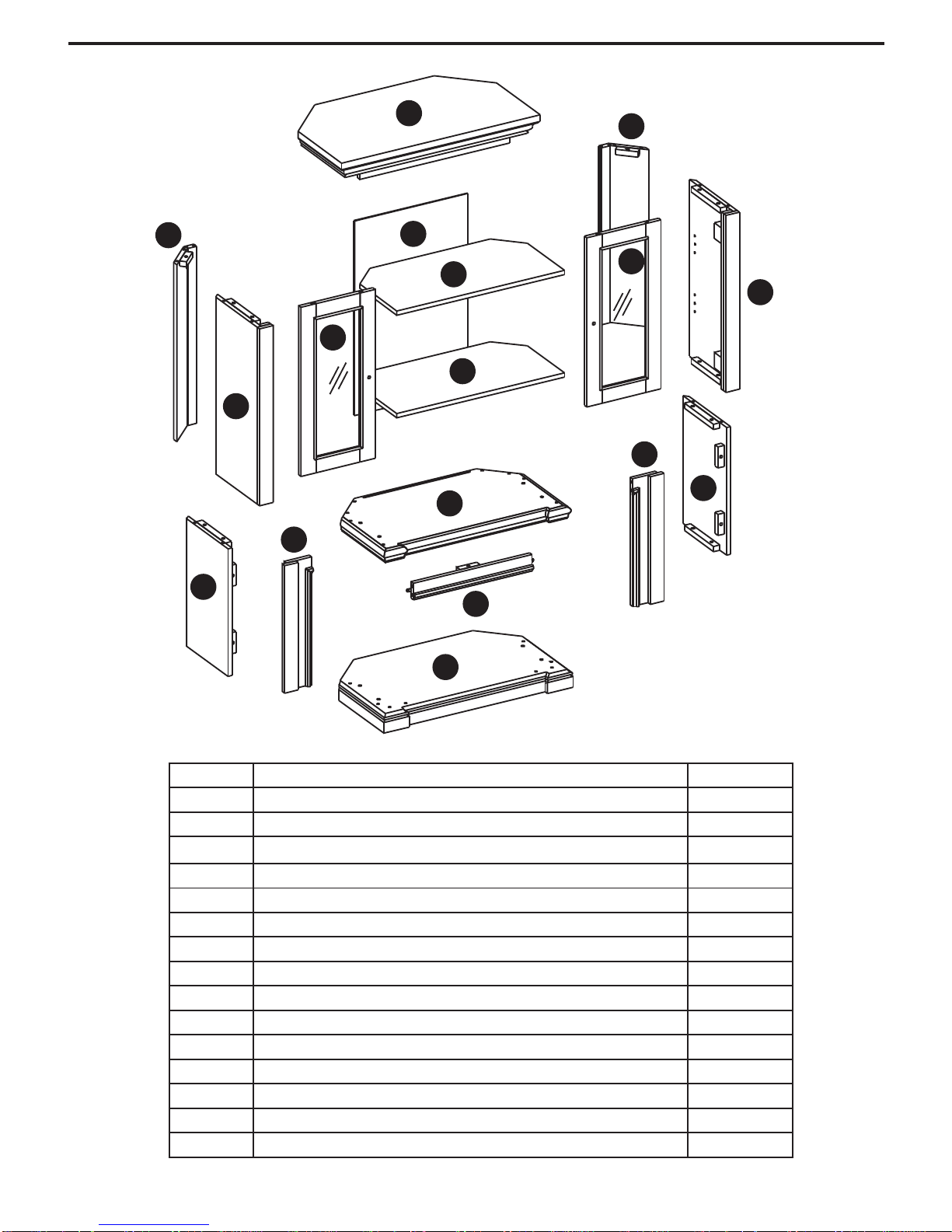

PACKAGE CONTENTS

Part Description Quantity

A Hearth/Base 1

B Left Front Panel 1

C Right Front Panel 1

D Center Front Panel 1

E Left Side Panel 1

F Right Side Panel 1

G Mantel/Top 1

H Center Shelf 1

I Upper Left Side Panel 1

J Upper Right Side Panel 1

K Wood Shelf 2

L Front Door 2

M Left Back Panel 1

N Right Back Panel 1

O Center Back Panel 1

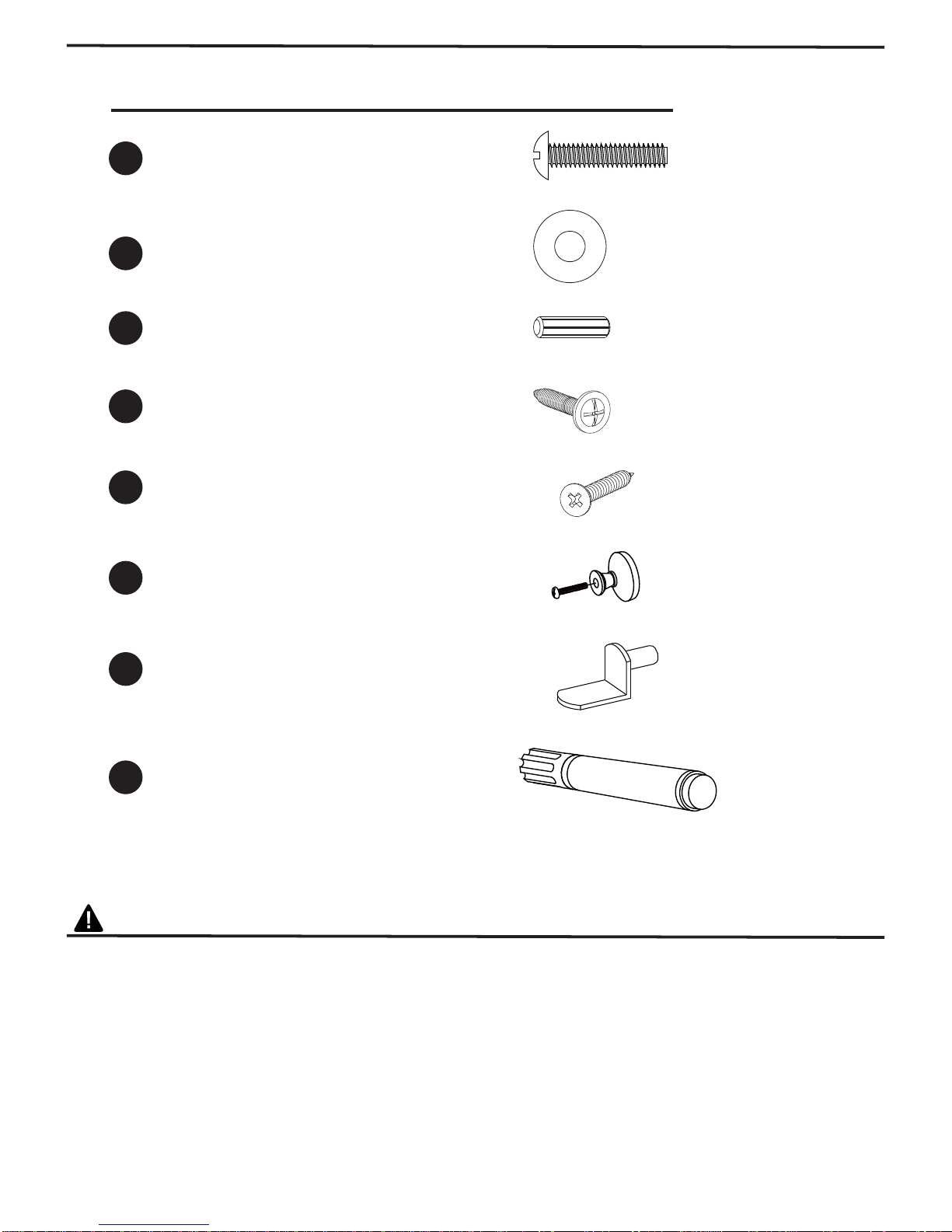

HARDWARE CONTENTS

Part Description

Bolt

Washer

Screw

Wood Dowel

Screw

Knob (with bolt)

Shelf Pin

23+1 extra

32+1 extra

Quantity Picture

(Shown to size)

SAFETY INFORMATION

WARNING

• Before assembly, carefully use scissors or utility knife to cut and unwrap all parts.

Make sure you do not discard the hardware.

CAUTION

• Use care in assembling your new ﬁreplace. Take your time and use the hardware

provided and a quality Phillips head screwdriver. Never overtighten bolts.

• Do not sit on any part of the mantel.

• All panels are labeled left and right as viewed from the front of unit.

Touch-up Pen 1

ASSEMBLY INSTRUCTIONS

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with

package contents list and diagram above. If any part is missing or damaged, do not attempt to

assemble, install or operate the product. Contact customer service for replacement parts.

Estimated Assembly Time: 60 Minutes

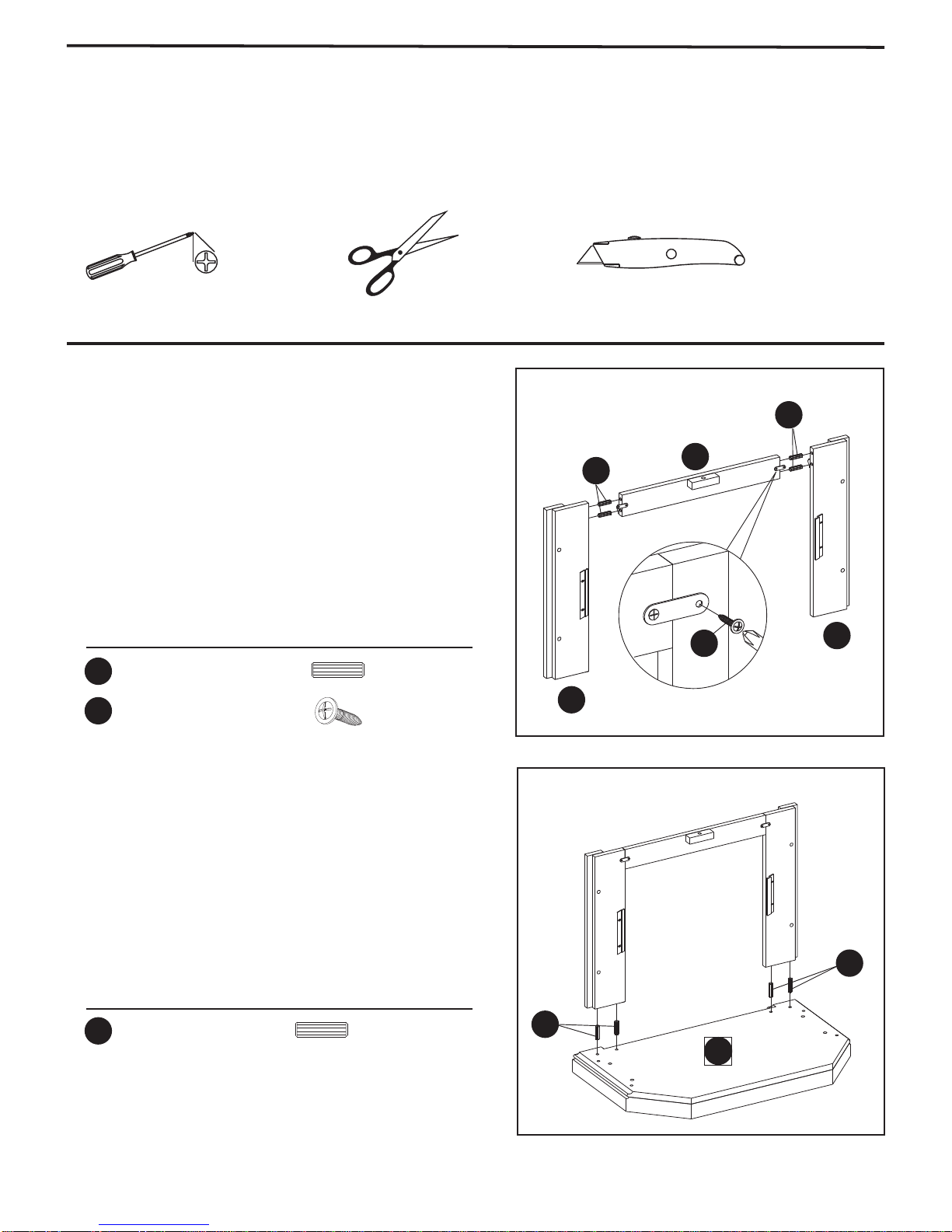

Tools Required for Assembly (not included): Phillips head screwdriver, scissors and utility knife

Fig. 2

Fig. 1

2. Locate Hearth/Base (A) and set out ﬁnished side up

on the ﬂoor.

Insert one Wood Dowel (CC) into each of the

pre-drilled holes.

Attach the completed Front panel assembly from

step 1 to the Hearth/Base (A). Make sure the dowels

are seated into the pre-drilled holes in the

Hearth/Base.

Hardware Used

CC Wood Dowel x 4

1. Locate the Left Front Panel (B), Right Front Panel

(C), Center Front Panel (D), and set out face down

on a scratch-free surface.

Insert one Wood Dowel (CC) into each of the

pre-drilled holes.

Push the Left Front Panel and Right Front Panel

snug to the Center Front Panel. Make sure the Wood

Dowels are seated in the pre-drilled holes.

Connect the Left Front Panel (B), Right Front Panel

Plate, tighten Screws (DD) through the pre-drilled

holes.

Hardware Used

Screw x 2

Wood Dowel x 4

Fig. 3

Fig. 4

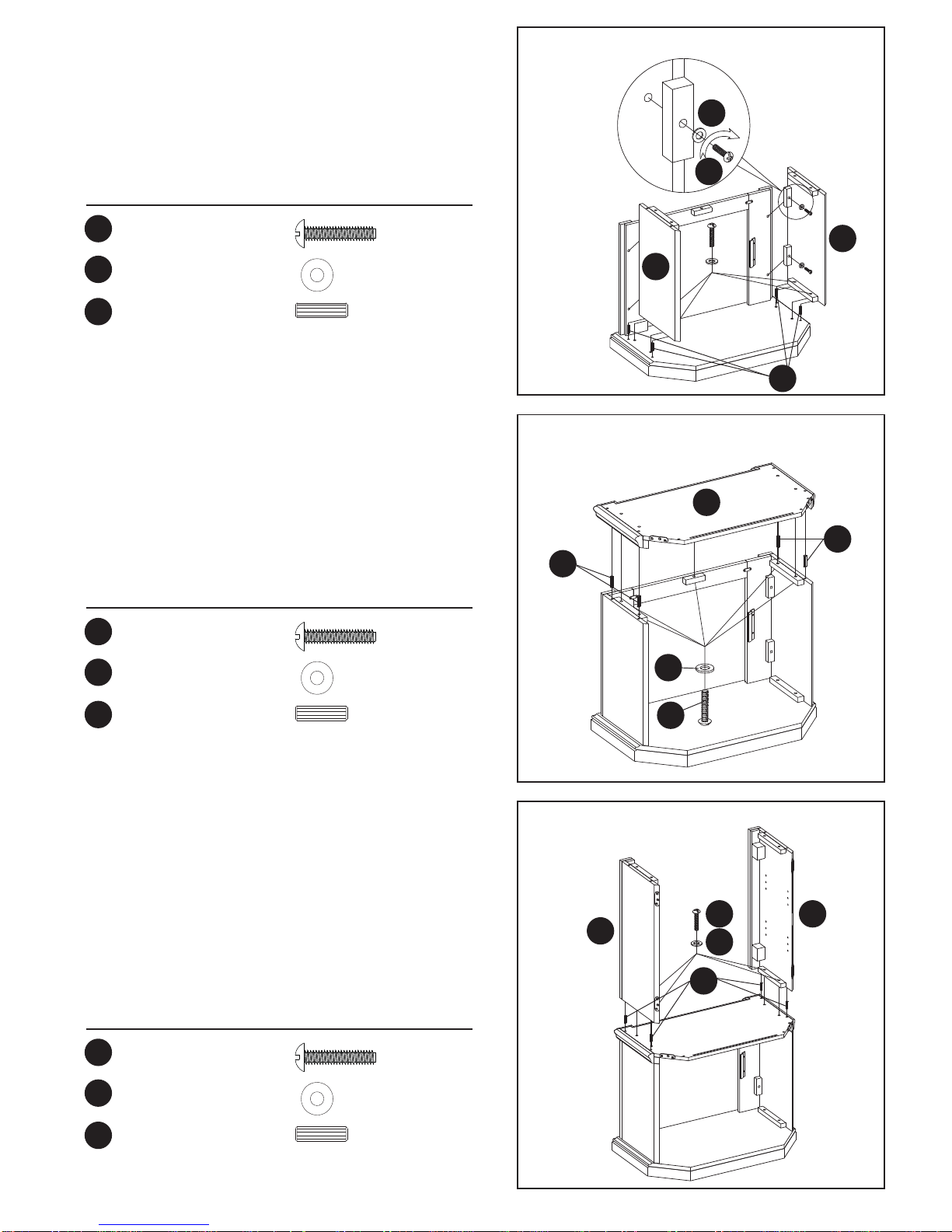

4. Insert one Wood Dowel (CC) into each of the

pre-drilled holes on the top edges of the Assembly

from step 3. Then locate Center Shelf (H) and lay

ﬁnished side up on top of completed assembly.

From the inside, attach Center Shelf (H) using Bolts

(AA) and Washers (BB) through the pre-drilled holes

in the mounting blocks.

HAND TIGHTEN ONLY.

5. Insert one Wood Dowel (CC) into each of the

pre-drilled holes on the completed assembly. Attach

Upper Side Panels (I, J) to the completed

assembly from step 4. Make sure that dowels are

seated into the pre-drilled holes. Using Bolts (AA)

and Washers (BB)attach them through pre-drilled

holes in the mounting blocks.

HAND TIGHTEN ONLY.

Hardware Used

Bolt

x 5

x 4

x 8

Washer

x 5

x 4

x 8

Wood Dowel

x 4

3. Locate Left Side Panel (E) and Right Side Panel (F),

insert one Wood Dowel (CC) into each of the

pre-drilled holes. Attach to the completed front panel

assembly and Hearth/Base use Bolts (AA) and

Washers (BB) through the pre-drilled holes in the

mounting blocks.

HAND TIGHTEN ONLY.

Fig. 5

Fig. 6

Fig. 7

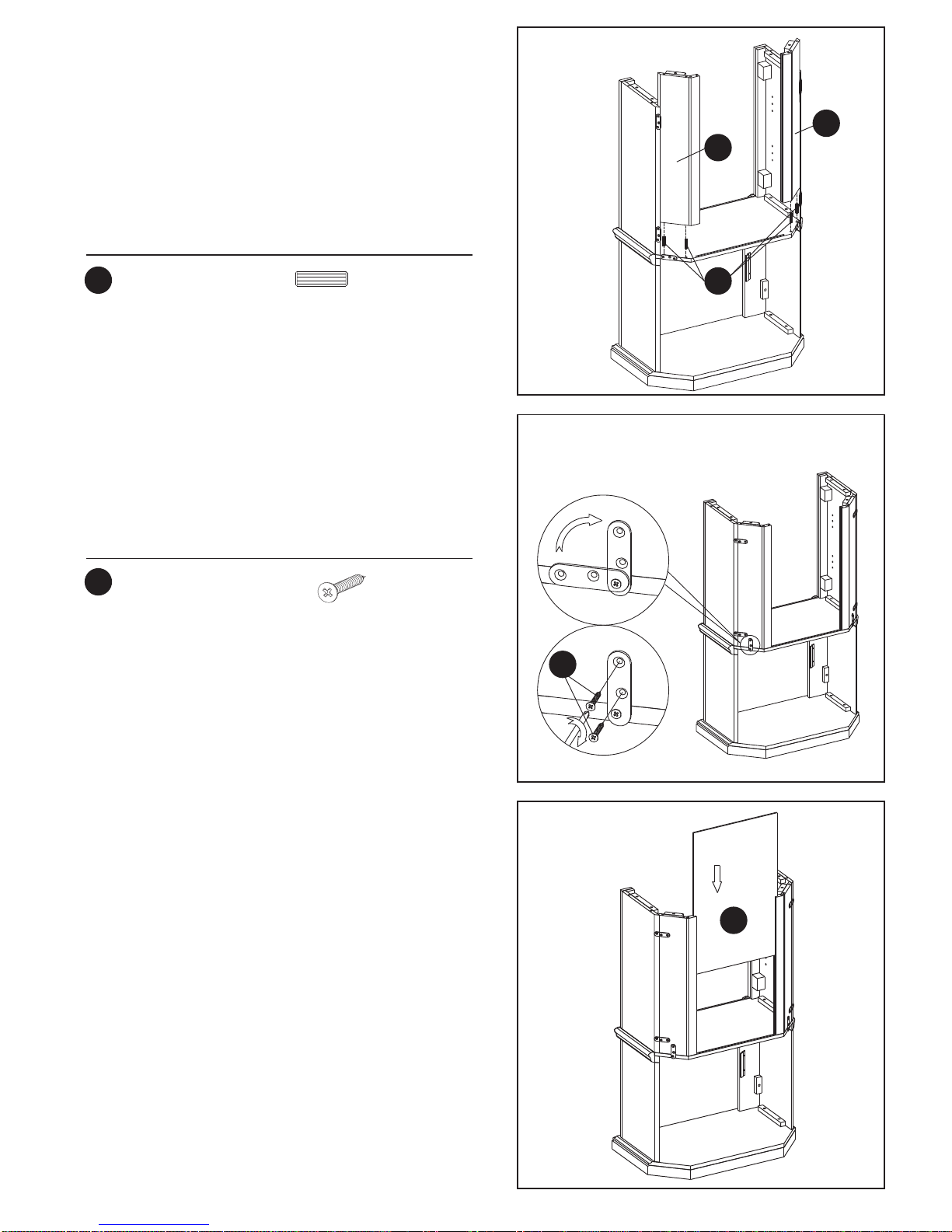

7. Connect the Right Back Panel (M), Left Back Panel

(N) and completed assembly with Connection Plate,

tighten Screws (EE) through the pre-drilled holes.

8. Push the Center Back Panel (O) to the groove on

the Upper Back Panel slowly as diagram show.

Hardware Used

Screw x 12

Wood Dowel x 4

6. Insert one Wood Dowel (CC) into each of the

pre-drilled holes on the completed assembly. Attach

the Left Back Panels (M) and Right Back Panel (N)

to the completed assembly. Make sure that dowels

are seated into the pre-drilled holes .

Fig. 8

Fig. 9

Fig. 10

Fig. 11

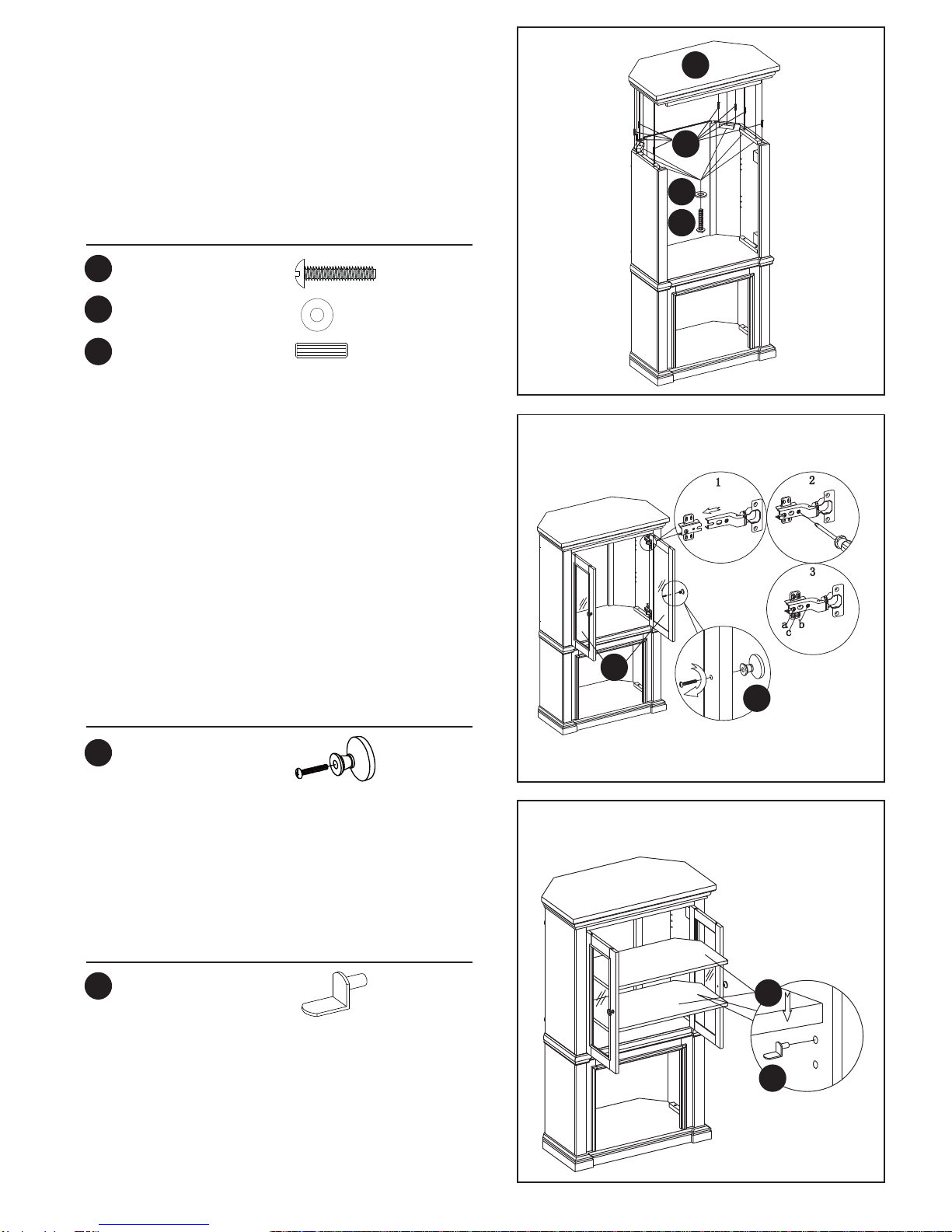

9. Insert one Wood Dowel (CC) into each of the

pre-drilled holes on the top edges of the Assembly

from step 8. Then locate Mantel/Top (G) and lay

ﬁnished side up on top of completed assembly.

From the inside, attach Mantel/Top (G) using Bolts

(AA) and Washers (BB) through the pre-drilled holes

in the mounting blocks.

HAND TIGHTEN ONLY.

Using Phillips head screwdriver tighten all Bolts

alternating top and bottom, left and right.

11. Choose desired height of Shelf (K) and place the

four Shelf Pin (GG) into same height shelf holes

inside side panels. Insert Wood Shelf (K), allow

Wood Shelf (K) to rest on the Shelf Pin (GG).

Hardware Used

Knob (with bolt)

Bolt

x 2

x 6

Washer x 6

Wood Dowel x 8

10. Locate Front Doors (L). Slide door hinge keyhole

into panel hinge bracket. (Diagram 1)

Use Phillips Head Screwdriver to tighten screws.

(Diagram 2)

TO ADJUST HINGES

To adjust door forward or backward change

keyhole slot position. (As Shown In Diagram 3a)

To adjust door right or left loosen/tighten screw.

(As Shown In Diagram 3b)

To adjust door up or down adjust bracket height.

(As Shown In Diagram 3c)

Attach the Knob (FF) to the Front Doors (L), use

the bolts attached through the pre-drilled holes in

the doors. Then use a Phillips Head Screwdriver to

tighten the bolts.

Hardware Used

GG Shelf Pin x 8

Fig. 12

Completed

Unit

Electric

Fireplace Insert

Install

Insert

From

Back

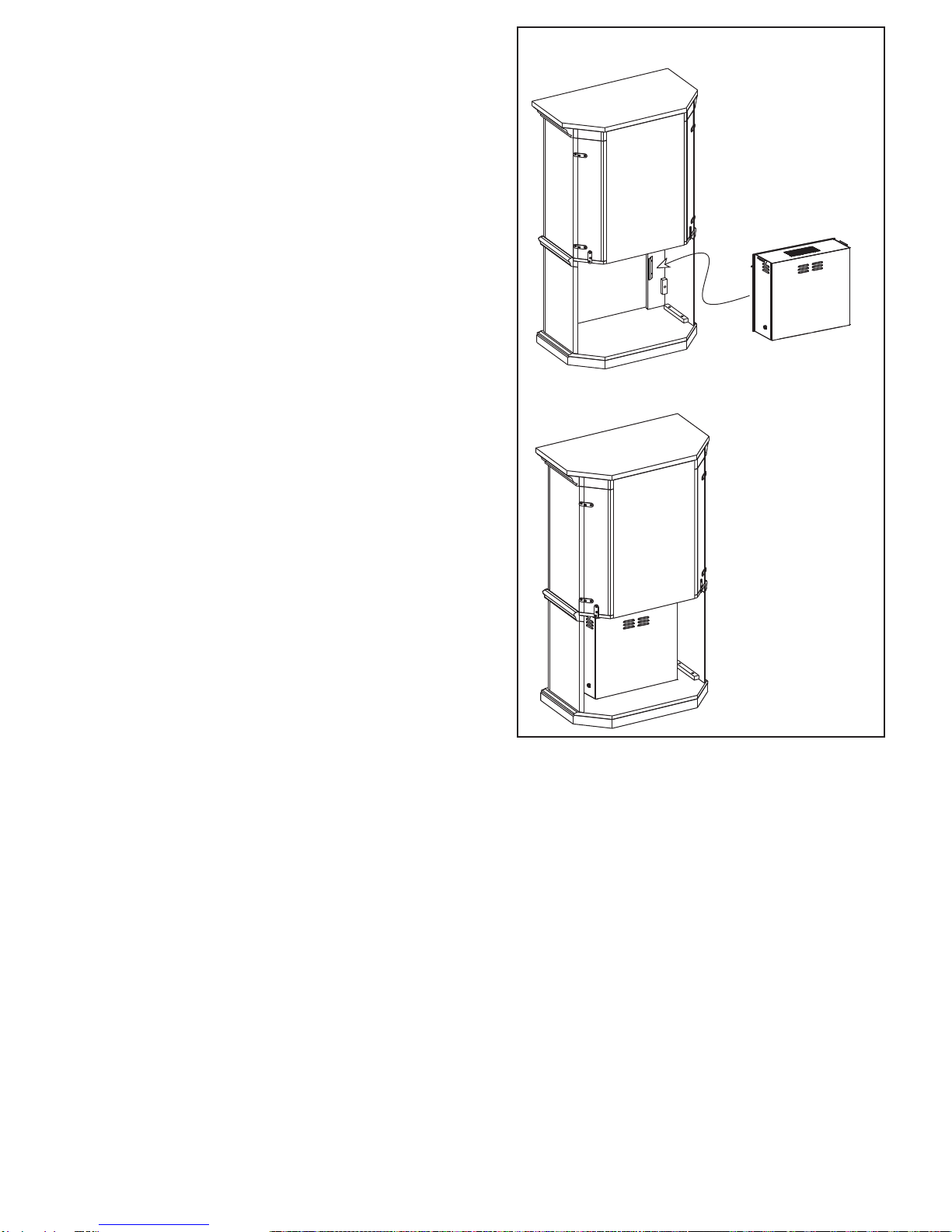

12. Remove the two mounting brackets attached to the

back of the Left and Right Front panels. Set aside

with the wood screws.

PLEASE READ ALL “ELECTRIC FIREPLACE

INSERT” INSTRUCTIONS PRIOR TO

INSTALLING ELECTRIC INSERT IN YOUR

COMPLETED FIREPLACE MANTEL. INSTALL

THE INSERT IN YOUR FIREPLACE CLOSE TO

ITS FINAL POSITION.

Lift insert carefully into the back of the unit and

center in the insert opening. Do not drag insert

across Hearth/Base (A) as it may scratch your unit.

Install the mounting brackets to hold insert ﬂush

against the inside of the mantel front panel.

MOVE YOUR COMPLETED UNIT ONLY SHORT

DISTANCES. MOVE COMPLETED UNIT WITH

GREAT CARE. IT TAKES TWO PEOPLE TO

MOVE COMPLETED UNIT INTO ITS FINAL

POSITION.

08/11/11

18DF2433

CHIMENEA ELÉCTRICA

Necesitará, Además, El

Hogar Eléctrico Con Calentador

Correo electrónico: [email protected]

Línea para llamadas en inglés: 866-661-1218

Línea para llamadas en francés: 866-374-9203

Línea para llamadas en español: 866-661-1218

ATENCIÓN

Servicio de atención al cliente:

Twin-Star International, Inc.

Delray Beach, FL 33445

Fabricado en China

Impreso en China

English. 1

Français p. 17

INSTRUCCIÓN DE MONTAJE
