Twisted audio TAWAS100HD Bedienungsanleitung

twisted Audio

INSTALLATION

MANUAL

MODEL: TAWAS100HD

100 WATT Windshield-Mount

Audio System

For most Harley-Davidson

Non-Fairing Motorcycles

INTRODUCTION

TABLE OF CONTENTS

Key Features ...................................................... 2

WARNINGS: ...................................................... 2

Tools required: ................................................... 3

Model Compatibility: ......................................... 3

FIRST STEP: ...................................................... 3

INSTALLATION-RADIO ASSEMBLY:

Attaching Audio System to Windshield ........... 4-5

INSTALLATION-WINDSHIELD:

Optional Locking Bracket ................................. 5

INSTALLATION-ELECTRICAL:

Wiring Harness ............................................... 6

FINAL INSTALLATION:

Windshield & Windshield Lock ....................... 7

ACCESSORIES/NOTES ...................................... 8

KEY FEATURES

· Easy Installation

· OEM Fit and Appearance

· Weatherproof

· System Detaches with Windshield

· 100W (50W x 2) Audio Output Power

· Integrated Amplified Antenna

· Heavy-Duty Waterproof AM/FM Radio with

Weatherband and Weather Alert

· AUX Audio Input (For use with iPods and

MP3 Players

· Radio Retains station Presets and Clock

Time When Detached (Power Disconnected)

· Windshield Lock (Optional)

WARNINGS

INSTALLATION

The motorcycle’s battery must be disconnected

before installation and not reconnected until

the installation is complete.

OPERATION

Riding a motorcycle requires your full

attention at all times. Do not attempt to

operate or adjust the audio system

while riding.

WATER/MOISTURE EXPOSURE

The components and overall product design

are weather-resistant which means they can

survive exposure to rain and normal outdoor

moisture. However, care should be taken

especially when washing your motorcycle

not to expose the system to high pressure

(hose nozzle) water spray. Since the system

easily detaches from the motorcycle with the

windshield, we recommend removing the

windshield/audio system when washing

your ride. Evidence of excessive water

exposure will void the warranty.

TOOLS REQUIRED

· Philips screwdriver

· 3/8˝ Wrench or Socket Driver

· 7/16˝ Wrench or Socket Driver

· T-25 Torx Driver

Visit our website at

www.twistedaudioradios.com

Remove the windshield from your motorcycle

and work on a bench or other flat surface.

NOTE: You may want to use some type of soft

surface to avoid scratches to the windshield.

FIRST STEP

MODEL COMPATIBILITY

1994 and later Harley-Davidson non-fairing

touring and Softail Models with windshields

NOTE: For Road King Custom (FLHRS) models,

the chrome wind deflector must be removed and

the handlebar clamp cover and nacelle trim must be

replaced with HD Road King Standard components.

Radio

Model # Applications

FLHR Road King Standard

FLHRC Road King Classic

FLSTF Fat Boy

INSTALLATION · RADIO ASSEMBLY

Remove the five original equipment manufacturer’s

(OEM) windshield screws and acorn nuts from

the windshield frame.

The two lower short bolts and the center short

bolts are not used. Set them aside(c).

Now, take the radio... and remove the three

screws and washers from the rear of the unit. You can discard the washers. (NOTE: The two

outer screws are shorter than the center screw.)

The three screws indicated here across the top

horizontal

frame(a). And, the two here on the

vertical frames(b).

Keep the two top longer bolts and nuts to use

when installing the radio(d).

Hold the radio housing from the front. Insert the

longer screw just removed from the radio through

the center hole in the windshield bracket.

ATTACHING THE AUDIO SYSTEM TO THE WINDSHIELD

Align the center hole on the radio up with the

center screw on the windshield bracket. Push the

radio onto the screw — and tighten with your ngers(e).

a b

c d

CENTER

SCREW

INSTALLATION · RADIO ASSEMBLY

Use the longer screws you set aside earlier and

use them to attach the lower radio brackets to the

windshield vertical frame members. Install screws,

but do not tighten(f)

Now, install the two shorter screws that were supplied

with your radio. Attach them through the top holes

on the windshield vertical brackets. Screw them

in loosely(g).

Once you have all the screws in, gradually tighten

all the securing fasteners (h) so you can check

proper alignment as you go.

On the lower bracket

screws you will need to use the wrench while you

tighten with the torx drive(i).

Your audio system is now installed on the windshield.

NOTE: THIS LOCKING SYSTEM

DOES NOT GUARANTEE

TO PREVENT THE THEFT OF

THE WINDSHIELD OR

AUDIO SYSTEM.

First, remove the windshield’s stock locking spring

hardware. Insert the bolt through the side frame and hook-lock

(j)

and fasten with a 3/8˝ wrench.

Repeat this procedure for the second lock.

OPTIONAL LOCKING BRACKET

(If you purchased the optional locking kit, now is the time to install them on the windshield.)

First, you must remove the seat and completely

disconnect the battery.

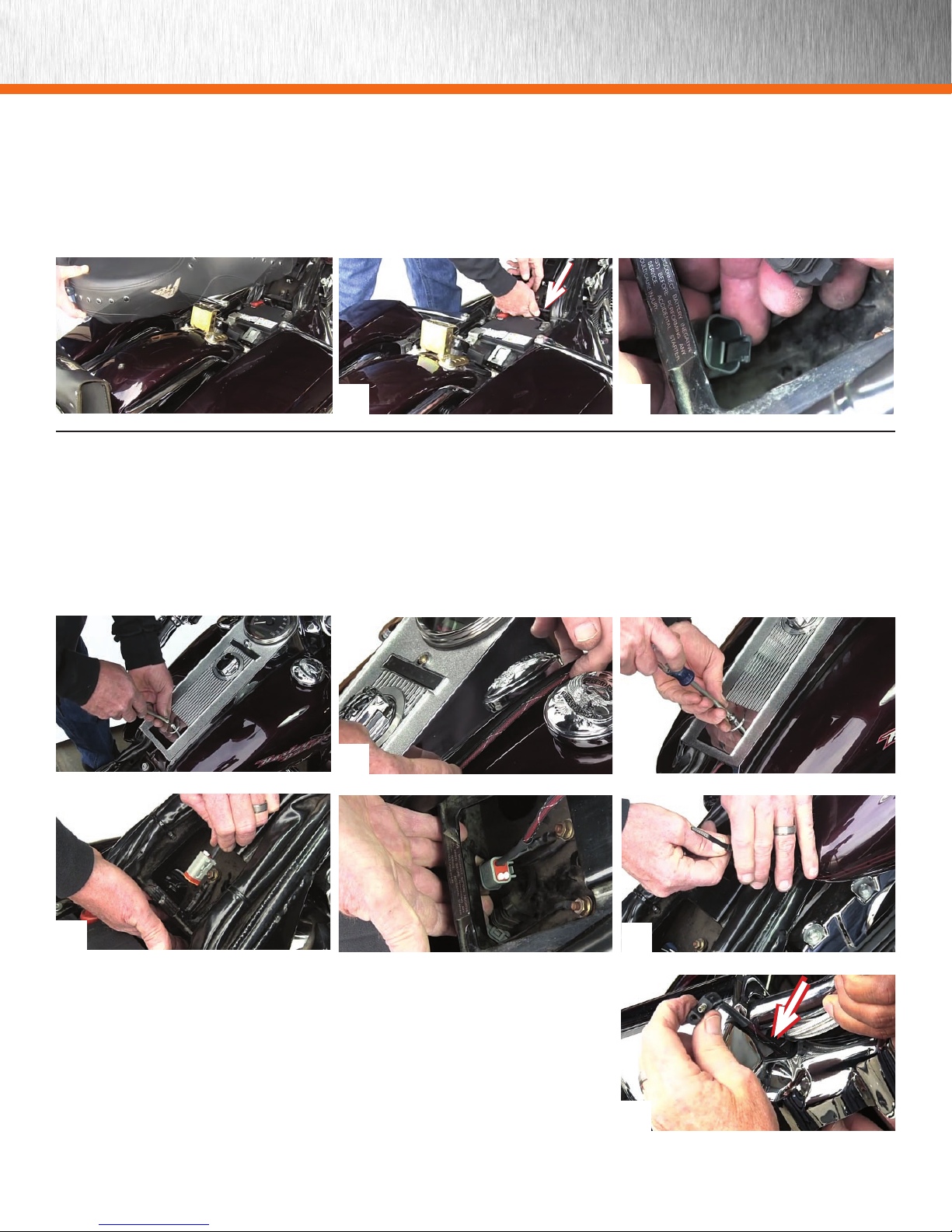

Locate the four-pin accessory plug located

between the frame rails in front of the battery

and remove the cap.

(k&l )

Next, loosen the console on top of the gas tank

by removing the lower nut and accompanying

washer... as well as the top bolt.

Pull up gently on the console, and carefully

push the wiring harness under the rubber gasket

surrounding the console. Make sure the harness

NOTE: If you are installing on an older bike that

does not have this accessory plug, you should

obtain an additional fused battery direct harness

from Twisted Audio for your installation.

is fully inserted under the gasket from one end

of the console to the other(m). Replace and tighten

the hardware that attaches the console.

Now plug the wiring harness into the accessory

plug under the seat(n) and secure the harness to

the bike’s wiring with a tie wrap(o).

INSTALLATION · ELECTRICAL

n o

Now feed the other end of the wiring harness up

through the bike’s main harness clamp — and

through the opening in the top fork cover as you see

here(p). This may take a little fiddling to achieve.

k l

ACCESSORY PLUG LOCATION

OPENING

FINAL INSTALLATION

Reattach the windshield — with the audio system —

to the bike(q).

Take the two-pin power plug on the wiring harness

and connect to the socket on the bottom of the

audio system(r).

Push the windshield back into place on the bike(u)

— if you installed the optional windshield locking

brackets, you can rotate the lock bracket down into

the lock positions(v). Make sure the hole in the lock

hook aligns with the hole in the windshield frame(w).

Secure the harness in front of the tank using

a tie wrap (s).

Be sure to switch on the Harley-Davidson accessory

switch located in front of the gas tank, otherwise

no power will get to your audio system(t).

Insert the lock screw (x) and tighten with the

Torx driver. Repeat on the other side. Now, the

windshield cannot be removed without removing

the screws.

WINDSHIELD & WINDSHIELD LOCK — FINAL INSTALLATION

q r

v w

RECONNECT THE BATTERY

AND REINSTALL THE SEAT.

THE INSTALLATION

IS COMPLETE.

ALIGN HOLES

LOCKING BRACKET

Use the optional Twisted Audio cover accessory to

help protect your audio system against the elements.

www.twistedaudioradios.com

SYSTEM COVER ACCESSORY

IMPORTANT NOTES

The audio system is weather-resistant.

However, don’t expose the system to high pressure

(hose & nozzel) water spray.

Detach windshield/audio system when washing the

motorcycle. Evidence of excessive water exposure

will void the warranty.

ALWAYS PAY FULL ATTENTION

WHEN RIDING YOUR MOTORCYCLE.

DO NOT OPERATE OR ADJUST YOUR

SYSTEM WHEN RIDING.
