pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 1

1 english

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 2

contents

1features

2overview

3date and time setting

34th center hand adjustment

4second time zone

6fly-back chronograph

8tachymeter

9care and maintenance

10 international warranty

Visit txwatches.com to register your watch online and become a mem-

ber of the TX community.

f e a t u r e s

Your TX™ time instrument has these features:

• Fly-back chronograph (up to 4 hours)

• Tachymeter scale

• Patented movement

• Second time zone

TX™ time instruments also include:

• Sculpted dial

• Solid stainless steel case

• Sapphire crystal

• Genuine leather strap or solid stainless steel bracelet

• Deployment buckle (some styles) and logo buckle (all styles)

• Signature crown with TX logo

• LumiNova® super luminous pigments on dial and hands

• Etched case back

• 10 ATM (100 meters/328 feet) water-resistance

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 4

date and time setting

To set the date and time:

1) Pull the crown to its middle position and turn it until the correct date

appears in the date window.

2) Pull the crown to its outer position and turn it until the correct time is

shown. Ensure AM/PM setting is correct by verifying that the date

changes at midnight, not noon.

4) Push crown to closed position after setting time. The second hand

will begin moving.

NOTE:

For months with fewer than 31 days, the date will need to be adjusted.

4th center hand adjustment

To readjust a misaligned 4th center hand:

1) Pull the crown to its outer position. The upper and lower hands reset

to the ends of their sweeps automatically.

2) 4th center hand should point to 12 o’clock. If within 5 seconds of

pulling the crown to its outer position the 4th center hand does not

point to 12 o’clock, press Button A or B to move the hand counter-

clockwise or clockwise until it points to 12 o’clock.

3) Push crown to closed position when finished.

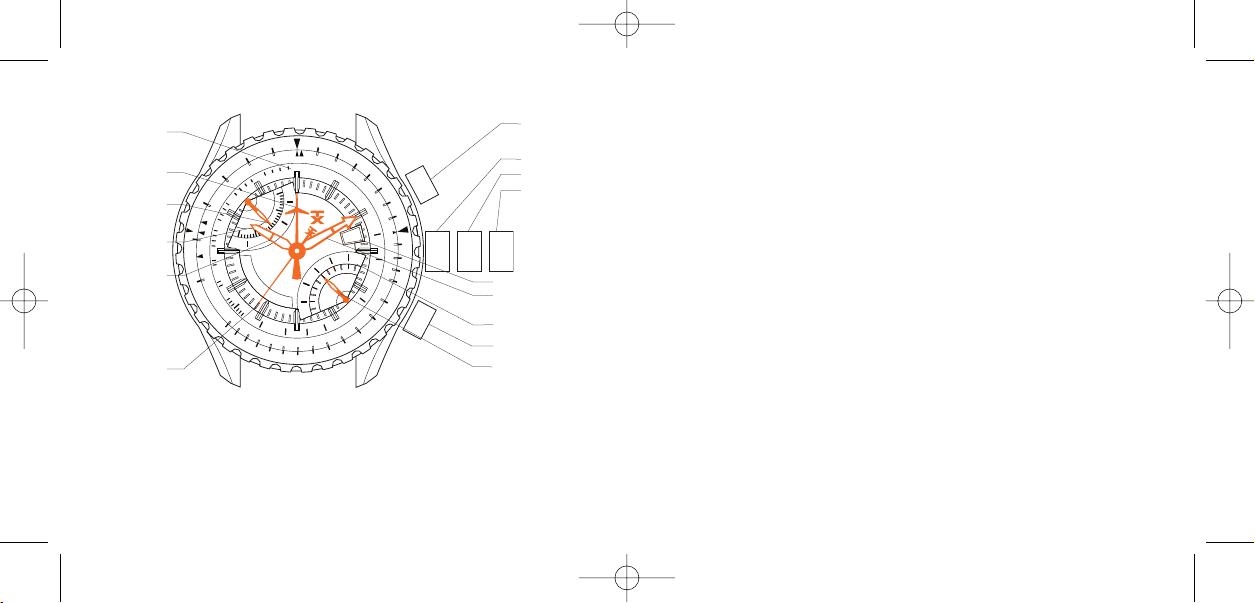

overview

NOTE:

Your TX™ watch crown has three positions: closed, middle, and outer. To

accustom yourself to the difference between the various positions,

extend the crown to its outer position and then push the crown very

lightly until you feel it click into the middle position.

MPH

NAT.

SAT.

Tachymeter

sca e

4th center hand

Upper hand

2nd time zone

and chrono

hours sca e

Hour hand

Button A

(Start/Stop)

C osed Position

Midd e Position

Outer Position

Crown

Date window

Minute hand

Chrono minutes sca e

Button B

(Fly-back/Reset)

Lower hand

Second hand

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 2

To set the second time zone:

1) Pull crown to its middle position.

The upper hand shows the second time zone time and the 4th center

hand shows the minutes. The upper and 4th center hands move

together. As the 4th center hand makes one revolution, the upper

hand moves one hour.

2) Assuming that the second time zone time has the same minutes value

as your time, the 4th center hand should be aligned with the minute

hand. If the hands are not aligned, press Button B to move the 4th

center hand forward until it is aligned with the minute hand. To move

the 4th center hand quickly, press and hold Button B.

3) Press Button A to move the upper hand forward in one-hour incre-

ments until it reaches desired second time zone hour. To move the

hand quickly, press and hold Button A.

4) Push the crown in when finished.

NOTE:

The second time zone can alternatively be used to display your home

time on a 24-hour format, if you prefer. When setting the second time in

this manner, ensure that the hour/minute display corresponds to the 24-

hour display by verifying that the date changes at midnight, not noon.

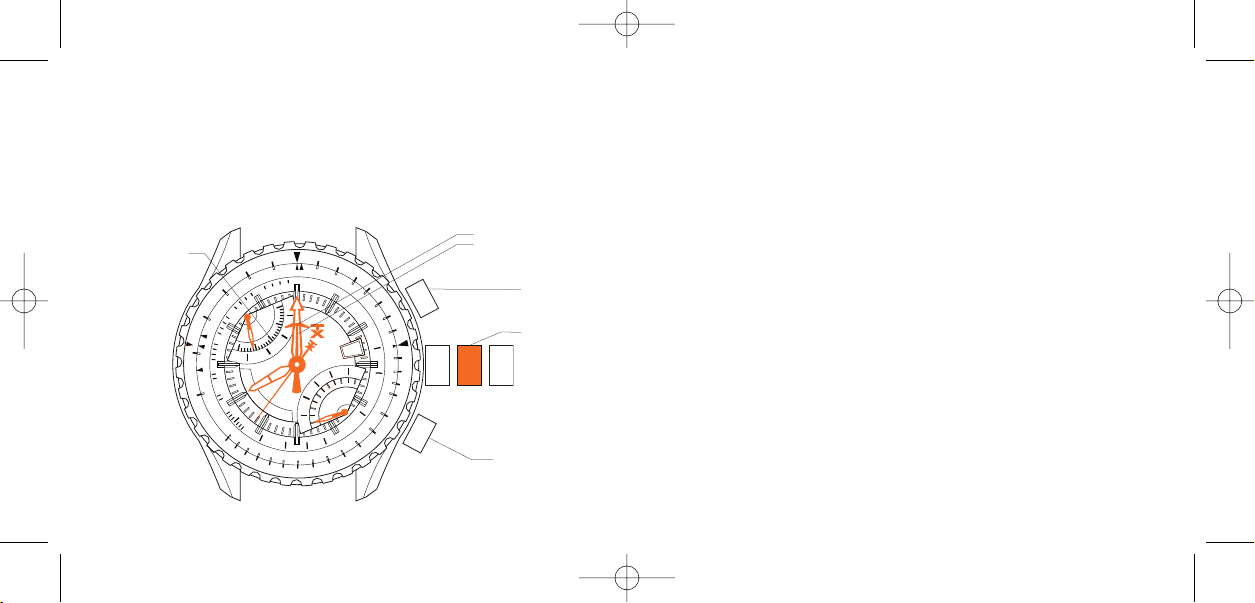

second time zone

The upper hand shows the time for the second time zone. Note that the

scale is 24-hours, with midnight at either end and noon in the middle.

Most often, time zones differ in hour increments. In such cases, the

minute value of the second time zone will be the same as that displayed

by the watch’s minute hand.

MPH

NAT.

SAT.

2nd time zone time

= 19:00 (7:00 PM)

Mo e upper

hand forward

one hour

Midd e Position

Crown

Mo e 4th center

hand forward to set

minutes

4th center hand shou d be

a igned with minute hand

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 4

counts up to four hours before stopping automatically.

2) To stop, press Button A (Start/Stop) again. All hands stop moving.

3) To resume, press Button A (Start/Stop) again.

4) To reset the fly-back chronograph to zero position, press Button B

(Fly-back/Reset).

When the chronograph is reset, all hands move to zero position. After

another eight seconds, the watch resumes normal display of the sec-

ond time zone.

5) To reset and/or restart the fly-back chronograph while it is running,

press and hold Button B (Fly-back/Reset). Release it when you wish

to restart.

Hands do not need to reach zero positions before Button B is

released. If Button B is released before hands have returned to zero

positions, timing will reset immediately, and hands will move to cor-

rect timing from time of button release. This “fly-back” feature allows

for the measurement of lap time.

fly-bac chronograph

The watch provides a 4-hour fly-back chronograph.

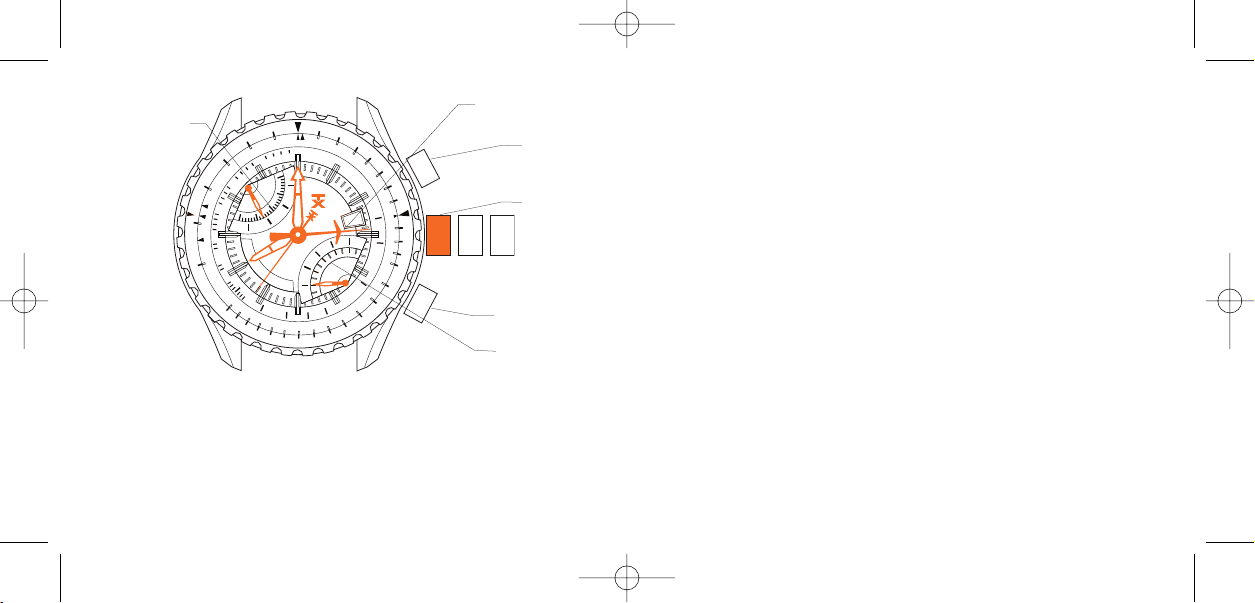

1) To start, press Button A (Start/Stop).

The 4th center hand shows the seconds with 1/5 second resolution.

The lower hand shows the last digit of the minutes, counting up to ten

and repeating. The upper hand shows the total time, including hours

and minutes, with divisions every ten minutes. The chronograph

MPH

NAT.

SAT.

Tota chrono time =

2:41:14.2

Start/Stop

C osed Position

Crown

Fly-back/Reset

Last digit of chrono

minutes = 1

Chrono seconds = 14.2

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 6

care and maintenance

Your watch is water-resistant to 10 ATM.

To maintain water-resistance, do not press or pull any button or crown

under water.

• The watch is water-resistant only as long as the crystal, push button,

crown and case remain intact

• The watch is not a diver watch and should not be used for diving

• Rinse the watch with fresh water after exposure to salt water

• The watch may be cleaned with a cloth and mild soap in warm water

The battery should provide 4 years of normal watch use. The actual

battery life will vary based on individual use.

When the battery is depleted, have it replaced promptly. For battery

replacement, please visit an authorized retailer or TX affiliate

company. See txwatches.com for a list.

tachymeter

A tachymeter measures the speed at which the wearer has traveled

overa measured distance, i.e., a measured mile on the highway. For

example, start the chronograph when you pass the starting point and

stop it when you pass the finish. You can then read your speed in units

per hour off the tachymeter scale.

1) To begin, the chronograph must be reset to zero position by pressing

Button B (Fly-back/Reset). See “fly-back chronograph.”

2) Start the chronograph at the first mile or kilometer marker by press-

ing Button A (Start/Stop).

3) Stop the chronograph at the next mile or kilometer marker by press-

ing Button A (Start/Stop) again. The 4th center hand points to the

number of units (miles or kilometers) per hour on the tachymeter

scale.

NOTE:

The tachymeter scale can be used only when the time required to trav -

el the measured distance is 60 seconds or less. If travel time exceeds 60

seconds, measured distance must be reduced, for example: from a mile

to a half-mile.

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 8

specific legal rights and you may also have other rights, which vary from country

to country and state to state.

To obtain warranty service, please return your TX timepiece to TX Watch Company,

Inc., to the authorized retailer where your watch was purchased or to your local TX

affiliate company. See txwatches.com for a list. Please include the completed origi-

nal Watch Repair Coupon or, in the U.S. and Canada only, a written statement with

your name, address, telephone number and copy of receipt with date and place of

purchase.

NEVER INCLUDE ANY OTHER ARTICLE OF PERSONAL VALUE WITH YOUR

WATCH RETURN.

For additional warranty information please visit txwatches.com for a complete list

of countries or contact your local TX Watch Company, Inc. retailer or distributor for

warranty information at one of the numbers listed below.

Japan +813-5441-4515; US 1 888 727 2931; Canada 1 800 263 0981; Mexico & Central

America 01 800 01 06000; Poland +48 22 571 67 50; Hungary +36 1 250 35 27;

Greece 00 3021 0 324 2207; South Africa 00 27 21 419 6330; Portugal +351 212 555

460; Romania 00 401 327 4444, UAE 00 971 4 3531 400; Qatar +974 4692065 /

+9744697268; Italy +39 (0) 2 58105654;

France: +33 (0) 1 41 92 98 70; Chile: +562 7775913; U +44 16 0467 9245. Please read

instructions carefully to understand how to operate your TX timepiece.

Group B.V. in the U.S. and other countries. LUMINOVA is a registered trademark of

Nemoto & Co., Ltd. in the US and other countries.

TX international warranty

(Limited Warranty)

Thank you for purchasing this TX™ timepiece. TX Watch Company, Inc. has put all its

expertise and care into the design and development of your watch and we trust that

it will give you long and reliable service. This booklet provides all the necessary infor-

mation needed for watch repair and service.

Your TX timepiece is warranted against manufacturing defects by TX Watch

Company, Inc. for a period of two years from the original purchase date. This inter-

national warranty will be honored by TX and its worldwide affiliates.

Please note that TX Watch Company, Inc. may, at its discretion, replace rather than

repair your watch with an identical or similar model. IMPORTANT – PLEASE NOTE

THAT THIS WARRANTY DOES NOT COVER DEFECTS OR DAMAGES TO YOUR

WATCH IN THE FOLLOWING CIRCUMSTANCES:

1) after the warranty period expires;

2) if the watch was not originally purchased from an authorized TX retailer;

3) from repair and services not performed by TX;

4) from accidents, tampering or abuse;

5) lens or crystal, strap, band or bracelet, watch case, attachments or battery.

TX may charge you for replacing any of these parts.

THIS WARRANTY AND THE REMEDIES CONTAINED HEREIN ARE EXCLUSIVE

AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICU-

LAR PURPOSE. TX WATCH COMPANY, INC. IS NOT LIABLE FOR ANY SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some countries and states do not

allow limitations on implied warranties and do not allow exclusions or limitations

on damages, so these limitations may not apply to you. This warranty gives you

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 10

Date of Purchase: ______________ TX Retailer Stamp:

Style Number: ______________________________________________

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 12

W256 NA 363-095000

pilot

pilot_6.q p:TX DASH 2/24/09 7:09 PM Page 14

Andere TX Betrachten Handbücher

TX 800 Series Bedienungsanleitung

Beliebte Betrachten Handbücher anderer Marken

Pandora

Pandora WATCH2 Bedienungsanleitung

Casio

Casio QW-4343 Bedienungsanleitung

Suunto

Suunto X6 Bedienungsanleitung

Seiko

Seiko N830 Bedienungsanleitung

MotionX

MotionX 365 Bedienungsanleitung

Garmin

Garmin VENU SQ 2 Bedienungsanleitung

QCY

QCY Watch GTC Bedienungsanleitung

Canyon

Canyon Cindy CNE-KW41WP Bedienungsanleitung

Esq

Esq Watches Installationsanleitung

Crane

Crane AA5-CDSM-3A Bedienungsanleitung

Timex

Timex W-214 Bedienungsanleitung

DETOMASO

DETOMASO MATERA Bedienungsanleitung

Geemarc

Geemarc Watch N Shake Bedienungsanleitung

LORUS

LORUS W590 Bedienungsanleitung

STENLILLE

STENLILLE Actío Bedienungsanleitung

Casio

Casio 5594 Bedienungsanleitung

Sinn

Sinn HUNTER'S WATCH 3. Edition Bedienungsanleitung

Slazenger

Slazenger SLZ800 Bedienungsanleitung
