S7016

Version 1.1

registered trademark of MiTAC International Corporation.

Trademark

All registered and unregistered trademarks and company names contained in this

manual are property of their respective owners including, but not limited to the

following.

TYAN®is a trademark of MiTAC International Corporation.

Intel®5500 Series and combinations thereof are trademarks of Intel Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE is a trademark of Novell.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by MiTAC International

Corporation and has been reviewed for accuracy and reliability prior to printing.

MiTAC assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. MiTAC

retains the right to make changes to product descriptions and/or specifications at

any time, without notice. In no event will MiTAC be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations 5

1.2 Hardware Specifications 5

1.3 Server Engines Pilot2 8

Chapter 2: Board Installation

2.1 Board Image 10

2.2 Block Diagram 11

2.3 Board Parts, Jumpers and Connectors 12

2.4 Installing the Processor and Heatsink 22

2.5 Thermal Interface Material 25

2.6 Finishing Installing the Heatsink 26

2.7 Tips on Installing Motherboard in Chassis 27

2.8 Installing the Memory 28

2.9 Attaching Drive Cables 31

2.10 Installing Add-in Cards 32

2.11 Connecting External Devices 33

2.12 Installing the Power Supply 34

2.13 Finishing up 34

Chapter 3: BIOS Setup

3.1 BIOS Main Menu 37

3.2 Advanced Menu 38

3.3 PCI PnP Menu 66

3.4 Boot Menu 68

3.5 Security Menu 73

3.6 Chipset Menu 74

3.7 Exit Menu 80

Chapter 4: Diagnostics

4.1 Beep Codes 81

4.2 Flash Utility 81

4.3 AMI BIOS Post Code 82

Glossary 85

Technical Support 91

http://www.tyan.com

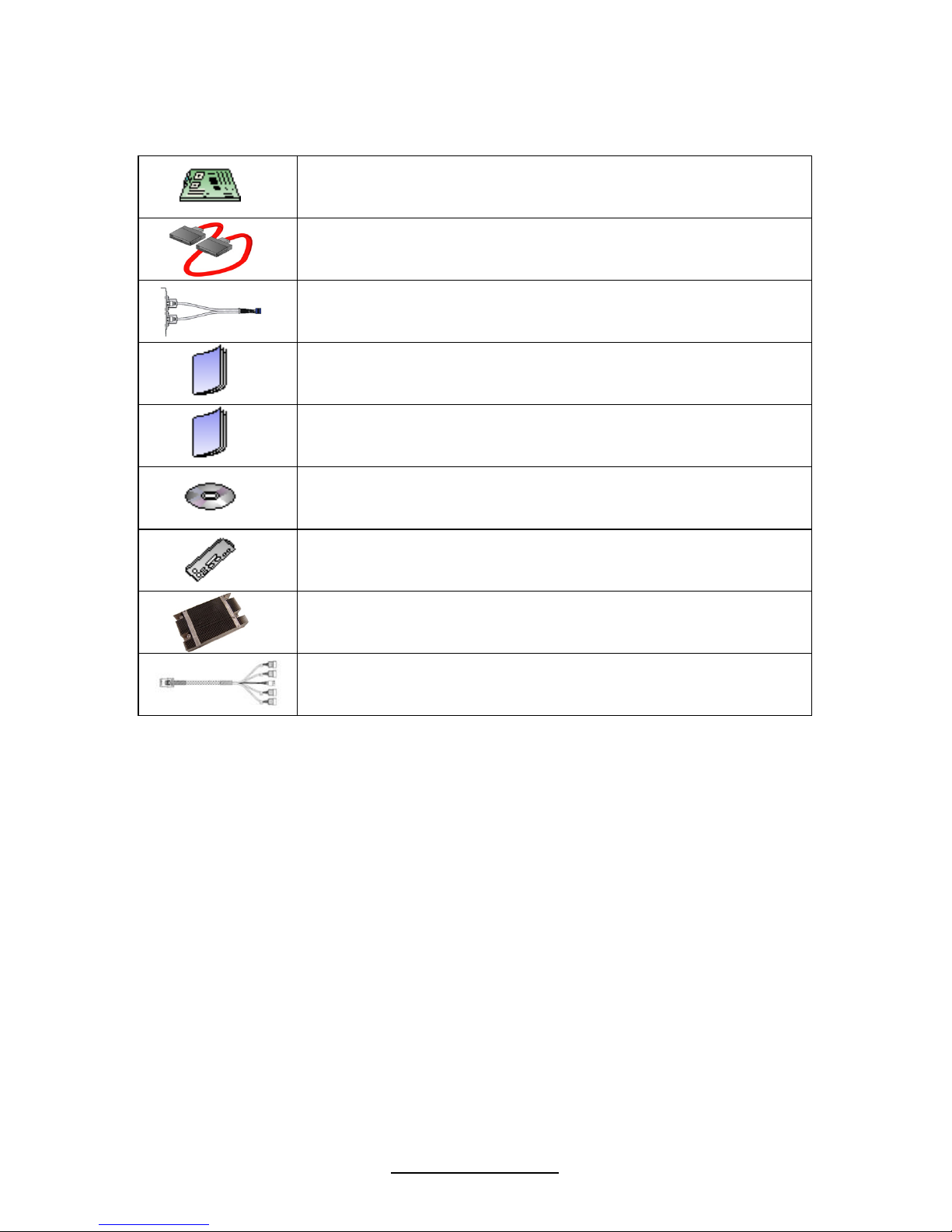

Check the box contents!

1x S7016 motherboard

2 x Serial ATA Cable

1 x USB2.0 cable

1 x S7016 user’s manual

1 x S7016 Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

2 x 1U passive heatsinks (proprietary)

(CHSK-0380, MiTAC P/N 343780900001)

2 x mini SAS Cable (S7016WGM3NR)

1 x mini SAS Cable (S7016GM3NR)

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

NOTE: Please contact your vendor for optional cables and proprietary heatsinks

purchase.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

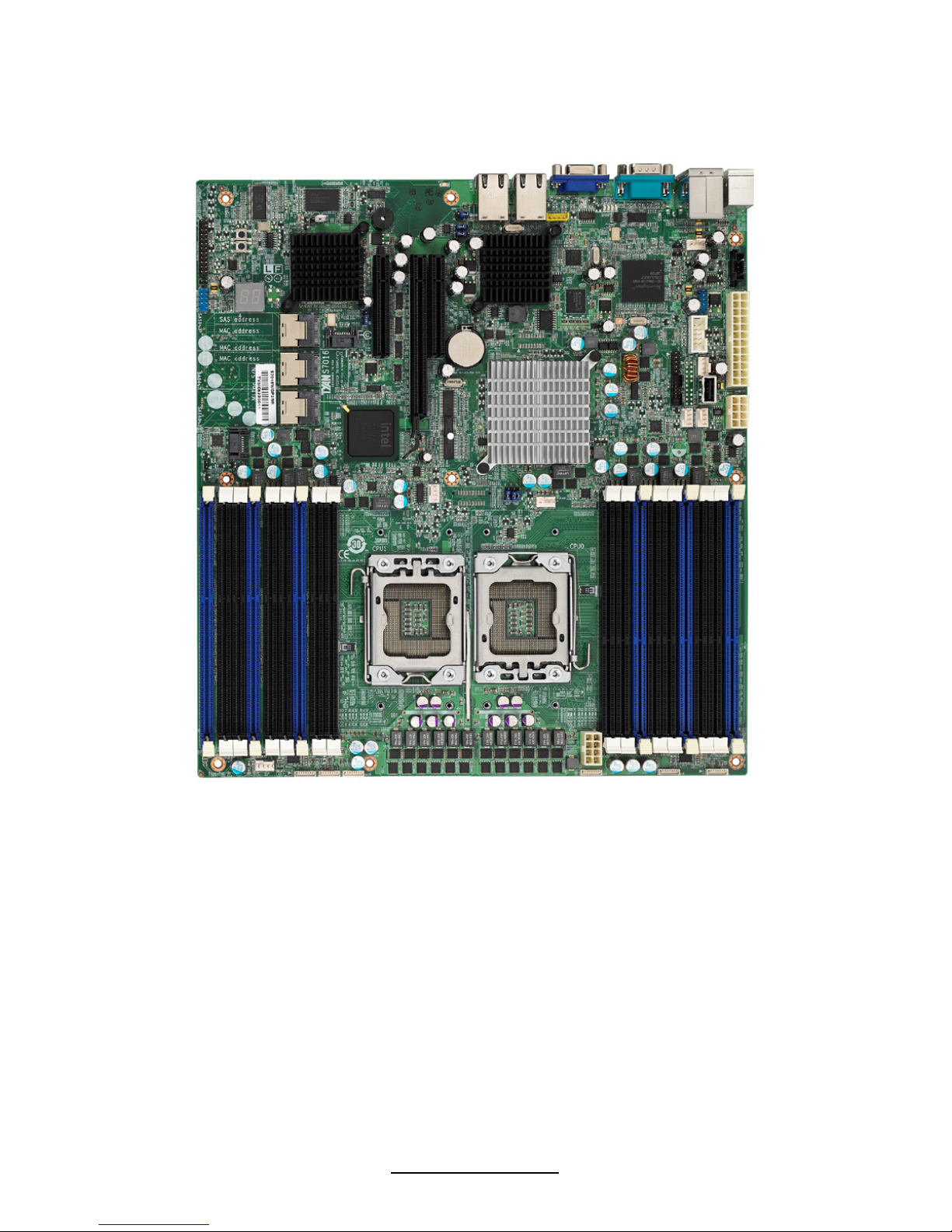

You have purchased one of the most powerful server solutions. Based on Intel®

5520 (Tylersburg-36D) and Intel®82801JIR ICH10/R chipsets, the S7016 is

designed to support up to two Nehalem-EP 5500 Series processors and up to

144GB DDR3 registered ECC 800/1066/1333 memory, providing a rich feature set

and incredible performance. Leveraging advanced technology from Intel, the S7016

is capable of offering scalable 32 and 64-bit computing, high-bandwidth memory

design, and lightning-fast PCI-E bus implementation.

The S7016 not only empowers your company in today’s demanding IT environment

but also offers a smooth path for future application usage. All of this provides the

S7016 the power and flexibility to meet the needs of nearly any server application.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

S7016WGM3NR

Supported CPU

Series Intel Xeon Processor 5500 Series

Socket Type /

Q'ty LGA1366 / (2)

Thermal Design

Power (TDP)

wattage

Max up to 95W

Processor

System Bus Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect

(QPI) support

Chipset IOH / ICH Intel 5520 / ICH10R

Supported DIMM

Qty (18) DIMM slots

DIMM Type /

Speed

DDR3 800/1066/1333* RDIMM/UDIMM / * limit 1 per

channel for 1333MHz speed

Capacity Up to 144GB at launch w/ dual rank RDIMMs

Memory channel 3 Channels per CPU

Memory

Memory voltage 1.5V

PCI-E (1) PCI-E Gen.2 x16 slot / (2) PCI-E Gen.2 x8 slots

Expansion Slots Recommended

TYAN Riser Card

M2083-RS, PCI-E x16 1U riser card (left) / M2081-2, PCI-E

x8 1U riser card (right)

Recommended

Barebone /

Chassis

1U Barebone GT24-B7016

Port Q'ty (3)

LAN Controller Intel 82574L / Intel 82576EB

Connector (2) Mini-SAS connectors (totally support 8 ports)

Storage SAS Controller LSI SAS1068E

http://www.tyan.com

Speed 3.0 Gb/s

RAID RAID 0/1/1E (LSI Integrated RAID)

Connector (1) Mini-SAS (4-port) + (2) SATA

Controller ICH10R

Speed 3.0 Gb/s

SATA

RAID RAID 0/1/10/5 (Intel Matrix RAID)

Connector type D-Sub 15-pin

Resolution 1600x1200@75Hz

Graphic

Chipset ServerEngines Pilot2

USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)

COM (2) ports (1 at rear, 1 via cable)

PS/2 (1) PS/2 connector

SAS (2) Mini-SAS (4-in-1) connectors

VGA (1) D-Sub 15-pin VGA port

RJ-45 Total (3) GbE ports, (1) shared with IPMI

Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (1) Mini-SAS connector & (2) SATA-II connectors

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power supply

Fan Total (7) 4-pin headers / Total (6) 8-pin headers

Temperature Monitors temperature for CPU & system environment

System

Monitoring

Others Chassis intrusion detection / Watchdog timer support

Onboard Chipset Onboard ServerEngines Pilot2

ServerEngines

Pilot2 IPMI

Feature

IPMI 2.0 compliant baseboard management controller (BMC)

/ Supports storage over IP and remote platform-flash/ BIOS

update / Hardware-based security engine for SSL

acceleration

Server

Management

ServerEngines

Pilot2 iKVM

Feature

Highest resolution secured KVM over IP / Dual 10/100 Mb/s

MAC interfaces

Brand / ROM size AMI / 4MB

BIOS Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot

/ ACPI 2.0 power management /Power on mode after power

recovery / User-configurable H/W monitoring / Auto-

configurable of hard disk types / Multiple boot options

Form Factor EATX

Form Factor Board Dimension 12"x13" (305x330mm)

Operating

System OS supported list Please refer to our OS supported list.

http://www.tyan.com/tech/os_support1.aspx

FCC (DoC) Class B

Regulation CE (DoC) Yes

Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating

Temp. - 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6

Complaint Yes

Motherboard (1) S7016 Motherboard

Manual (1) User's manual / (1) Quick Ref. Guide

Installation CD (1) TYAN installation CD

Package

Contains

I/O Shield (1) I/O Shield

http://www.tyan.com

SATA (2) SATA signal cables / (1) CCBL-067O, Mini-SAS cable for

GT24-B7016

SAS (1) CCBL-067O, Mini-SAS cable for GT24-B7016

Cable

USB (1) CCBL-035J, 2-port USB bracket cable

Heatsink CHSK-0380, LGA1366 CPU heatsink for S7016 (proprietary)

Riser Card M2083-RS, PCI-E 1U riser card (left) / M2081-2, PCI-E x16

1U riser card (right)

Optional

accessories for

future upgrade Cable

(1) CCBL-0615, COM port bracket cable / (1) CCBL-0311,

SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB

bracket cable / (1) CCBL-067O, Mini-SAS cable for GT24-

B7016

S7016GM3NR

Supported CPU

Series Intel Xeon Processor 5500 Series

Socket Type /

Q'ty LGA1366 / (2)

Thermal Design

Power (TDP)

wattage

Max up to 95W

Processor

System Bus Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect

(QPI) support

Chipset IOH / ICH Intel 5520 / ICH10R

Supported DIMM

Qty (18) DIMM slots

DIMM Type /

Speed

DDR3 800/1066/1333* RDIMM/UDIMM / * limit 1 per

channel for 1333MHz speed

Capacity Up to 144GB at launch w/ dual rank RDIMMs

Memory channel 3 Channels per CPU

Memory

Memory voltage 1.5V

PCI-E (1) PCI-E Gen.2 x16 slot / (2) PCI-E Gen.2 x8 slots

Expansion Slots Recommended

TYAN Riser Card

M2083-RS, PCI-E x16 1U riser card (left) / M2081-2, PCI-E

x8 1U riser card (right)

Recommended

Barebone /

Chassis

1U Barebone GT24-B7016

Port Q'ty (3)

LAN Controller Intel 82574L / Intel 82576EB

Connector (1) Mini-SAS (4-port) + (2) SATA

Controller ICH10R

Speed 3.0 Gb/s

Storage SATA

RAID RAID 0/1/10/5 (Intel Matrix RAID)

Connector type D-Sub 15-pin

Resolution 1600x1200@75Hz

Graphic

Chipset ServerEngines Pilot2

USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)

COM (2) ports (1 at rear, 1 via cable)

PS/2 (1) PS/2 connector

VGA (1) D-Sub 15-pin VGA port

RJ-45 Total (3) GbE ports, (1) shared with IPMI

Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (1) Mini-SAS connector & (2) SATA-II connectors

http://www.tyan.com

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power supply

Fan Total (7) 4-pin headers / Total (6) 8-pin headers

Temperature Monitors temperature for CPU & system environment

System

Monitoring

Others Chassis intrusion detection / Watchdog timer support

Onboard Chipset Onboard ServerEngines Pilot2

ServerEngines

Pilot2 IPMI

Feature

IPMI 2.0 compliant baseboard management controller (BMC)

/ Supports storage over IP and remote platform-flash/ BIOS

update / Hardware-based security engine for SSL

acceleration

Server

Management

ServerEngines

Pilot2 iKVM

Feature

Highest resolution secured KVM over IP / Dual 10/100 Mb/s

MAC interfaces

Brand / ROM size AMI / 4MB

BIOS Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot

/ ACPI 2.0 power management /Power on mode after power

recovery / User-configurable H/W monitoring / Auto-

configurable of hard disk types / Multiple boot options

Form Factor EATX

Form Factor Board Dimension 12"x13" (305x330mm)

Operating

System OS supported list Please refer to our OS supported list.

http://www.tyan.com/tech/os_support1.aspx

FCC (DoC) Class B

Regulation CE (DoC) Yes

Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating

Temp. - 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6

Complaint Yes

Motherboard (1) S7016 Motherboard

Manual (1) User's manual / (1) Quick Ref. Guide

Installation CD (1) TYAN installation CD

I/O Shield (1) I/O Shield

SATA (2) SATA signal cables / (1) CCBL-067O, Mini-SAS cable for

GT24-B7016

Package

Contains

Cable

USB (1) CCBL-035J, 2-port USB bracket cable

Heatsink CHSK-0380, LGA1366 CPU heatsink for S7016 (proprietary)

Riser Card M2083-RS, PCI-E 1U riser card (left) / M2081-2, PCI-E x16

1U riser card (right)

Optional

accessories for

future upgrade Cable

(1) CCBL-0615, COM port bracket cable / (1) CCBL-0311,

SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB

bracket cable / (1) CCBL-067O, Mini-SAS cable for GT24-

B7016

1.3 – Server Engines Pilot2

Please visit the TYAN Web Site at http://www.tyan.com to download the latest

Server Engines Pilot2 User’s Guide.

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of the

S7016 matches the EATX specification. Before continuing with installation, confirm

that your chassis supports an EATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

2.1 - Board Image

S7016

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN Tempest i5400XL Bedienungsanleitung

TYAN

TYAN S5221 Bedienungsanleitung

TYAN

TYAN TITAN-PRO AT Bedienungsanleitung

TYAN

TYAN Tempest i5100X S5375 Bedienungsanleitung

TYAN

TYAN THUNDER I840 Bedienungsanleitung

TYAN

TYAN TOMCAT IIIS D Bedienungsanleitung

TYAN

TYAN THUNDER K8QE Bedienungsanleitung

TYAN

TYAN THUNDER K8SD PRO Bedienungsanleitung

TYAN

TYAN S1846 Tsunami ATX Bedienungsanleitung

TYAN

TYAN TOMCAT I845GV Bedienungsanleitung

TYAN

TYAN Thunder n3600QX Bedienungsanleitung

TYAN

TYAN Tomcat i7221 S5150 Bedienungsanleitung

TYAN

TYAN TITAN I Bedienungsanleitung

TYAN

TYAN TRINITY 510 Bedienungsanleitung

TYAN

TYAN TOMCAT I7210 Bedienungsanleitung

TYAN

TYAN TIGER K8W Bedienungsanleitung

TYAN

TYAN S8028 Bedienungsanleitung

TYAN

TYAN Tiger MPX S2466 Bedienungsanleitung

TYAN

TYAN TOMCAT I875P Bedienungsanleitung

TYAN

TYAN TEMPEST II Bedienungsanleitung

TYAN

TYAN TEMPEST I5000XL Bedienungsanleitung

TYAN

TYAN S7053 Bedienungsanleitung

TYAN

TYAN TIGER 230 Bedienungsanleitung

TYAN

TYAN Triumph i7520 (S6623) Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
