TYAN TAHOE PLUS ATX Bedienungsanleitung

1S1686S/D-001-02

TABLE OF CONTENTS

1.Introduction....................................................................... 2

1.1 Overview.................................................................2

1.2Hardware Specifications........................................ 3

1.3Software Specifications..........................................4

1.4 Manual Organization ............................................ 4

1.5 Manual Conventions.............................................5

1.6 CPU types ..............................................................5

2.BoardInstallation.............................................................. 7

2.1 Unpacking.............................................................. 7

2.2 Installation of the motherboard ............................7

2.3 S1686S/D Board Layout & Jumper Locations......8

2.4 CMOS RTC............................................................14

2.5 Installing Cables and Connectors ....................... 14

2.6 DRAM Installation ..............................................16

2.7 L2 Cache Memory/SRAM Memory...................... 17

2.8 VRM (Voltage Regulator Module)........................17

2.9 Peripheral Device Installation................................17

2.10 Connecting the Power Supply..............................17

3.CPUInstallationandRemoval ........................................ 18

3.1

Installationof Pentium II Active Processors..........18

3.2 Installing CPUs...................................................... 19

3.3 Installing CPU Cooling Fans................................. 19

3.4 Installation and Removal of Passive Processors ...20

4.1 Troubleshooting Procedures .................................23

4.2 Technical Support Procedures ..............................25

4.3 Returning Merchandise for Service.......................25

4.Troubleshooting .............................................................. 23

Appendix:LM78SystemHardwareMonitorandLANDesk

ClientManager(LDCM)...................................................... 26

DeclarationofConformity......................................................27

SpeakerBeepCodes............................................................. 28

2S1686S/D-001-02 http://www.tyan.com

Chapter 1: Introduction

1.1 Overview

The S1686S/D system board is a quality, high performance, single

(S1686S) or dual (S1686D) processing motherboard designed for Intel's

Pentium II microprocessors. This motherboard utilizes Intel's 440FX PCI

series chipset and supports CPU speeds of 233 to 300MHz. The S1686S/D, will

also support two Pentium Pro processors with Tyan riser cards (M2020).

The S1686S/D's PCI Local Bus provides high performance capabilities

that are ideal for a wide range of demanding applications such as: CAD, CAM,

CAE, networking, multi-user environments, database management, desktop

publishing, image processing, 3D animation and video production.

This integrated system board achieves high reliability with numerous

features and yet is small enough to be supported in an "ATX" form-factor.

Some of the features included are: on-board dual channel PCI PIO (Mode 3 &

4), Multiword DMA (Mode 2) IDE, on-board floppy controller, and on-board

high speed I/O.

To provide you with the best board possible on the market, Tyan has also

incorporated into the board design the newest technologies available in the

industry. Some of these new features include the following:

1. LM78 System Monitoring (See Appendix for details, S1686S/D

ONLY)

2. Power off through software in Windows 95: This function allows the

user to turn off the ATX power supply and shut down the system by selecting

"Shut down" in the Start menu without hitting the power on/off switch on the

case. 3. Recovery after Power Interruption: When this function is set to

"Enabled" in the CMOS Setup, the power of the system will be automatically

turned on as soon as the power is recovered after an interruption (outage). The

user does not need to hit the power on/off switch on the case to turn on the

system power.

4. Wake on LAN: The S1686S/D provide the capability for the user to

turn on the system through another machine in the Local Area Network.

5. An on-board 12V to 5V Convertor gives support for keyboards with

built-in speakers, such as NMB Concert Master Keyboards.

For more information about your S1686S/D board, please refer to Tyan

Computer's web site located at http://www.tyan.com.

3S1686S/D-001-02

1.2 Hardware Specifications/Features

The S1686S/D board is designed for the demanding end-user who wants to

accomplish complicated tasks in a user-friendly environment. To achieve this

purpose, the main board includes the following features:

CPU Information • One or Two Pentium II Processor slots

• Intel Pentium II 233 MHz through 300 MHz

(233MHz, 266 MHz, 300 MHz) CPUs.

• Supports Pentium Pro 150-200 MHz (150

MHz, 166MHz, 180MHz, 200MHz) processors

• Single/Dual on-board CPU fan headers (+12V)

• On-board Case Fan header (+12V)

Chipset Information • Intel 440 FX series (Natoma) chipset.

• 25/30/33 MHz PCI bus

• Two PCI Bus Mastering EIDE channels (up to

22MB/sec DTR)

• PIO Mode 3 & 4 (up to 17MB/sec DTR)

• Support for up to 1GB (1024MB) system

memory

System RAM • Eight-72 pin SIMM sockets (4 double banks)

• Supports 5V or 3.3V memory SIMMs

• Supports EDO (Extended Data Out), FPM

• (Fast Page Mode), ECC (Error Correcting

Code) or Parity checking

System I/O • Two PCI Bus Mastering EIDE channels

Supports EIDE CD-ROMs

• Two floppy drives (up to 2.88 MB)

• Two ATX serial ports support 16550 UART's

• One ATX ECP/EPP parallel port

• Two USB Ports

• InfraRed port (for use with 3rd party manufac

tured software and hardware)

Expansion • Five 32-bit PCI expansion slots

• Three 16-bit ISA slots (1 shared/ 7 usable)

4S1686S/D-001-02 http://www.tyan.com

1.3 Software Specifications

BIOS • Award or AMI Plug 'n' Play flash BIOS

• Deep green and Energy Star compliant.

• ATX CMOS setup, BIOS/CHIPSET setup

and hard disk utility included.

• Year 2000, DMI, ACPI compliant.

• Support for easy BIOS upgrades with flash

chip.

Operating System • Operates with MS-DOS, Windows 3.x, Win

dows for Workgroups, Windows 95, Windows

NT, OS/2, Novell Netware, and SCO Unix.

• Tyan is also a Solaris certified manufacturer.

1.4 Manual Organization

Chapter 1 "Introduction" describes the features and performance of the

S1686S/D motherboard.

Chapter 2 "Installation" describes the procedures of setting up the system

board. Also refer to this chapter for detailed information about jumper

settings.

Chapter 3 "Installation and Removal of the CPU" gives detailed instruc-

tions on the installation and removal of the Pentium II--Active and

Passive CPU's.

If you encounter any problem, refer to Chapter 4 "Trouble-shooting",

which describes trouble-shooting procedures for the system.

5S1686S/D-001-02

Pins 1&2: Open

Pins 3&4: Closed

1 2 3 4

Refer to Addendum A (AMI BIOS Setup) and Addendum B (Award

BIOS Setup) for the BIOS Setup requirements and the CMOS Configuration

Information, including instructions to change the password, to format a hard

disk, and to troubleshoot CMOS errors. Both AMI and Award BIOS docu-

ments are also available in the ADOBE Acrobat format. Please refer to our

Web page at http://www.tyan.com for these files.

1.5 Manual Conventions

In this manual, the following terms are used in reference to setting up jumpers:

1. When the term "close" is used, the pin (pins) specified for the jumper should

be connected (closed), and the circuit of the connecting pins will be shorted.

2. When the term "open" is used, the pin (pins) specified for the jumper should

not be connected, and the circuit of the connecting pins will not be shorted.

1.6 CPU types

Currently, Intel produces two types of Pentium II processors: the Active

(Boxed) Processor, and the Passive Processor. (Refer to the pictures shown on

Page 8). These two types of processors are essentially the same in design. The

only difference between these two types of processors lies in their cooling

methods. The Active Processor is equipped with a heatsink and cooling fan,

and the Passive Processor is equipped with a heat sink only. These two types of

CPUs provide the user with the same function, and should be installed in the

"Pentium II" slots on the motherboard. (Refer to Chapter 3 for the installation

and removal of Pentium II Processors).

NOTE ON S1686D: This motherboard is designed for Dual processors, but it

will accommodate a single CPU. However, when a single CPU configuration is

chosen, the Pentium II CPU should be installed in the Pentium II Primary slot

as mentioned in Chapter 3.

6S1686S/D-001-02 http://www.tyan.com

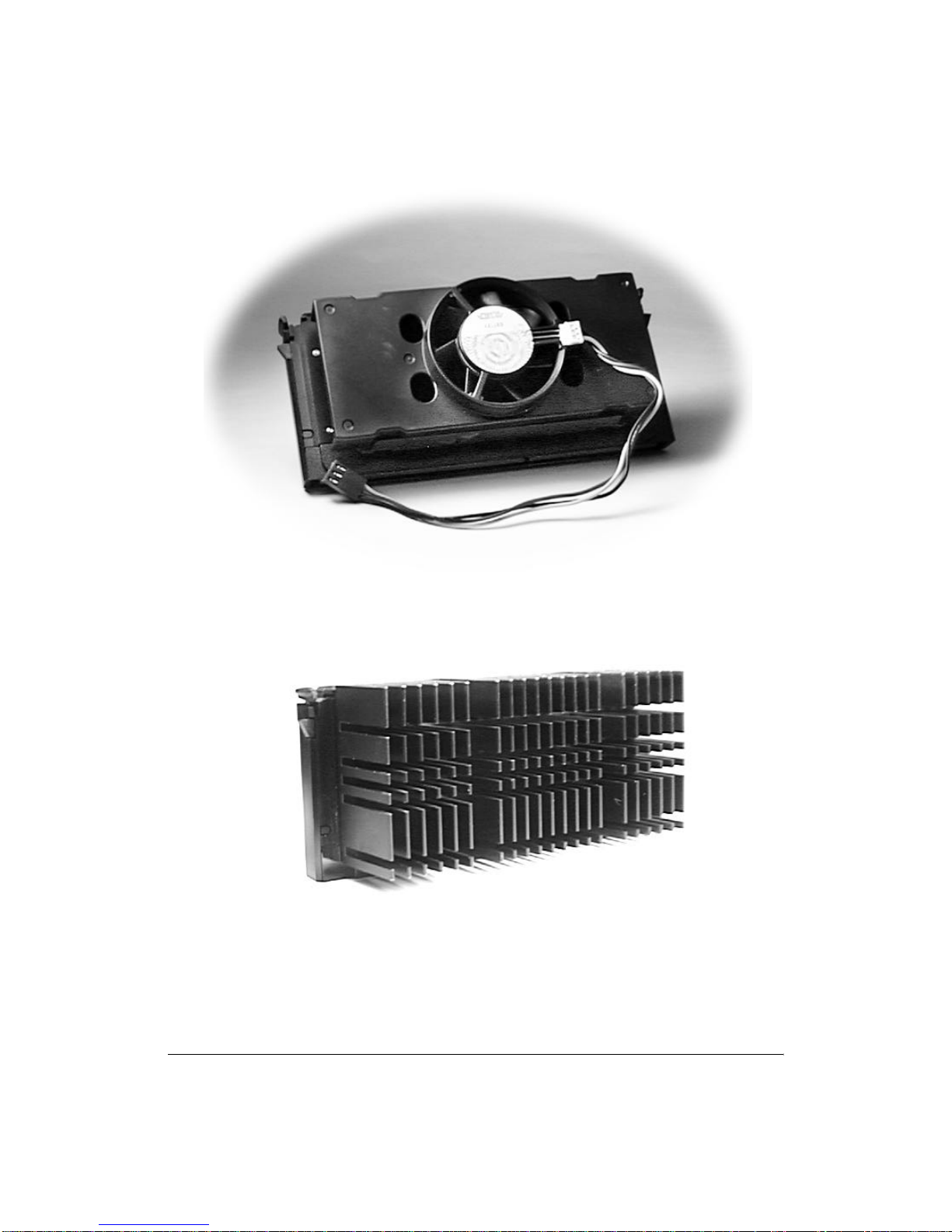

Pentium II Boxed (Active) CPU

Shown with Power Connector for Fan

Pentium II (Passive) CPU

Shown with Heatsink

7S1686S/D-001-02

Chapter 2: Board Installation

2.1 Unpacking

2.1.1. Item Checklist

The motherboard package should contain the following:

• S1686S/D Motherboard • Motherboard User's manual

• One IDE 40 pin cable • BIOS User's manual

• One 34 pin floppy cable • One or Two CPU Retention Modules

2.1.2. Precautionary measures before handling the motherboard

Since the motherboard contains sensitive electronic components which can

easily be damaged by static electricity, the motherboard should be left in its

original packaging until it is ready to be installed.

Before you open the carton of your motherboard, do the following:

1. Make sure that you stand on an Anti-static mat. (Do not stand on a rug or

carpet.)

2. It is also strongly recommended that you wear an anti-static strap. (Anti-

static straps can be purchased at computer hardware stores.)

3. With the power supply plugged in and the system turned off, touch an un-

painted area of the system chassis before handling the motherboard or any com-

ponent. Remember to repeat the above steps whenever you handle the motherboard

or its components.

2.1.3. Proper handling of the motherboard

After opening the S1686S/D motherboard carton, remove the board by holding

its edges. Place it on a grounded anti-static surface with the component side up.

Inspect the board for damage. Do not touch the bottom of the board.

(Note:

DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAM-

AGED!)

2.2. Installation of the Motherboard

You are now ready to install your motherboard. The mounting hole pattern of

the S1686S/D matches the ATX system board specifications. Please install the

board in the chassis designed for a standard ATX board form factor.

8S1686S/D-001-02 http://www.tyan.com

Parallel Port

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

ISA Slot 1

ISA Slot 2

ISA Slot 3

Mouse (Top)

KB (Bottom)

Com2

KB Controlle

82442FX

Primary Pentium II Slot

SIMM 1

Primary IDE

Secondary IDE

Floppy

I/O

APIC

J49 J50

J46

J37

J30

J24 J25

J20

J15, J16J11, J12, J13, J14

J31 J32

J44

PIIX3

J29

82441FX

Secondary Pentium II Slot

•••

RTC

(For more information about this Motherboard, please visit our Web Page

and Clickable motherboards at http://www.tyan.com/html/faq.html.)

J26 J27

SIMM 2

SIMM 3

SIMM 4

SIMM 5

SIMM 6

SIMM 7

SIMM 8

Power connector

USB

Com1

CPU Fan CPU Fan

J23

SMC

J60

Case Fan

J33 J34

J19

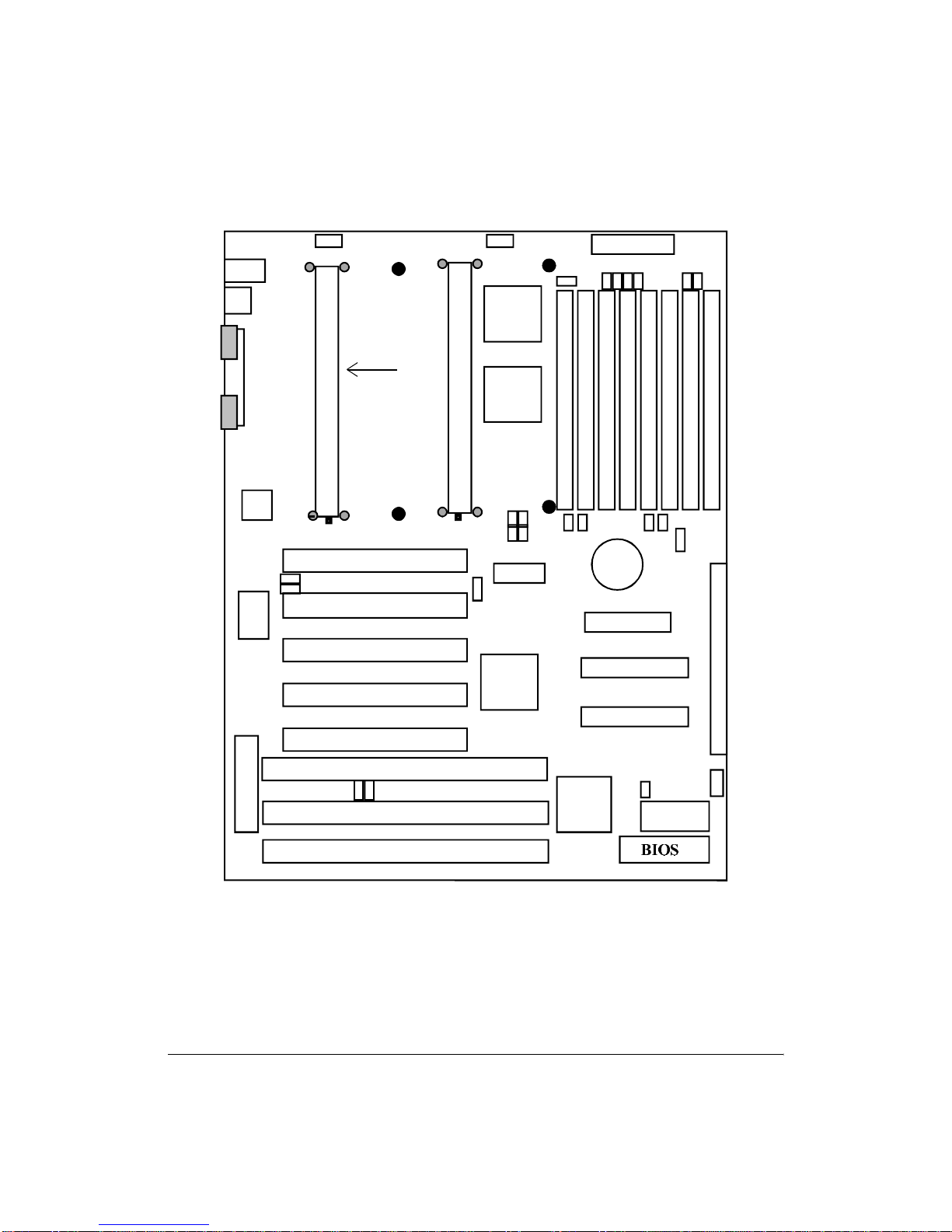

2.3.1 Motherboard Layout

••• • • • • • • • • • •

• • • • • • • • • •

•••

••••

• •

•••

JP1

IR2

••

••••

••

••••

•••

••

J36

1 (top)

2 (bottom)

LM-78

•••

• • • • • • • • • • • • • • • • • • • • • • • • • • •

Removed

On S1686S

9S1686S/D-001-02

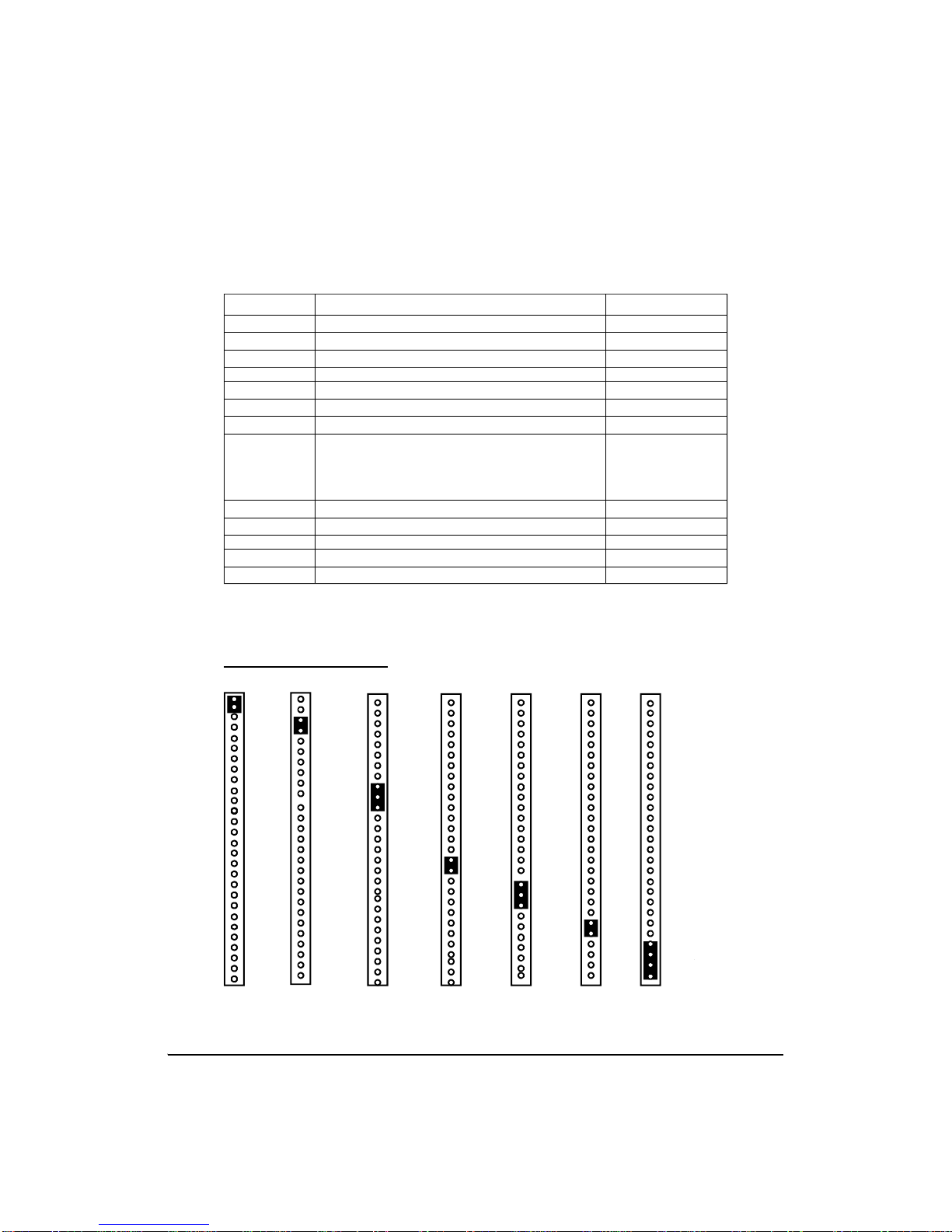

2.3.2 Summary of Jumper Settings

Refer to the following table for quick reference of jumper settings:

Jumper # Assignments Pg. #

J17 Keyboard Connector P10

J18 PS2 Mouse Connector P10

J20, J23 CPU Fan (Pin 2 is +12V) P10, P21

J19 CHS Fan (Chassis Fan) P10

J11, J12, J37 Bus Speed P12

J13-J16, J24-27 DRAM Voltage Select P12

J22 Universal Serial Bus P10

J29 Pins 1,2: Power on, Pins 3,4: EXT SMI

Pins 8-10: IR2 P14,15,16

Pins15,16: IDE LED, Pins18-20: Power LED

Pins22,23: Reset, Pins24-27: Speaker

J30, J36 COM / IR Select P13

J31-34 CPU Speed Settings P12

J49,50 LM78 IRQ Select P13

J44 CMOS Reset P12,P17

JP1 Wake-on-LAN Connector P14

Block J29 Pin Assignments

Power on: Pins 1,2 (close)

IR2: Pins8-10(close)

IDE LED: Pins 15,16 (close)

Power LED: Pins 18-20 (close)

Reset: Pins 22, 23 (close)

Speaker:Pins24-27

(Cover Pins1&2 with a jumper cap to short the circuit between Pins.)

(Cover Pins8-10 with a jumper cap and short the circuit between pins.)

(Cover Pins15,16 with a jumper cap and short the circuit between pins.)

(Cover Pins18-20 with a jumper cap and short the circuit between pins.)

(Cover Pins22,23 with a jumper cap to short the circuit between pins.)

(Cover Pins24-27 with a jumper cap to short the circuit between Pins.)

EXTSMI: Pins 3,4(close)

(Cover Pins3,4 with a jumper cap to short the circuit between Pins.)

10S1686S/D-001-02 http://www.tyan.com

1 2 3 4

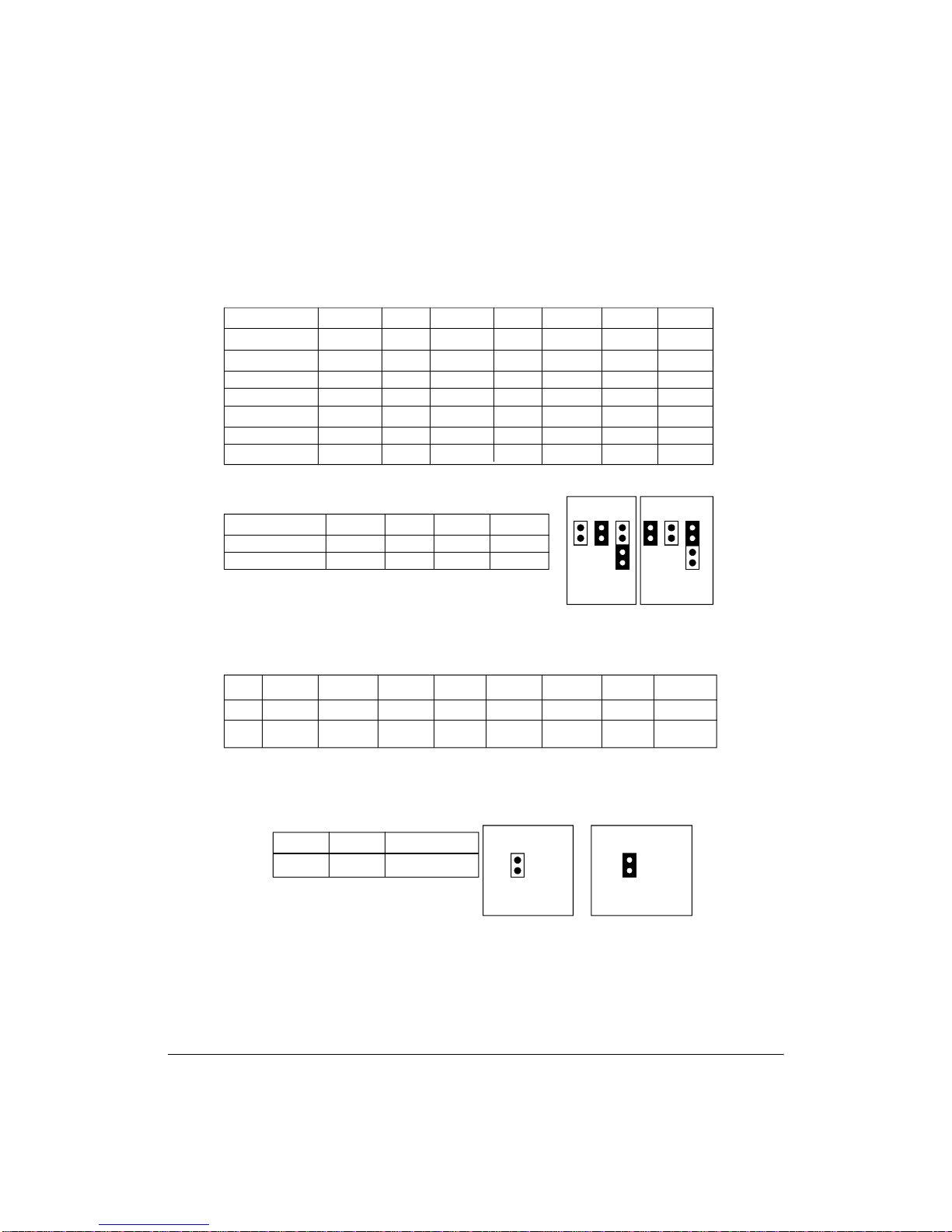

23.3 Jumper Settings

CPU Speed Settings for Pentium II and Pentium Pro Processors:

CPU J31 J32 J33 J34 J37 J11 J12

150MHz Off On On On 3-4 Off On

166MHz Off On On On 1-2 On Off

180MHz On Off On On 3-4 Off On

200MHz On Off On On 1-2 On Off

233MHz Off Off On On 1-2 On Off

266MHz On On Off On 1-2 On Off

300MHz Off On Off On 1-2 On Off

Bus Speed

HOST PCI J11 J12 J37

60MHz 30MHz 3-4 On Off

66MHz 33MHz 1-2 Off On

J11 J12 J37 J11 J12 J37

CPU60MHz

PCI30MHz CPU66MHz

PCI33MHz

DRAM Voltage Select

J13 J14 J15 J16 J24 J25 J26 J27

5V Open Open Close Close Open Open Close Close

3.3V Close Close Open Open Close Close Open Open

(* Default is 5V)

CMOS Reset: J44 (Always reset after changing BIOS)

CMOS Normal Clear (Reset) Normal Clear (reset)

J44 Open Close

1 2

J44 J44

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN THUNDER K7 Bedienungsanleitung

TYAN

TYAN S5548 Bedienungsanleitung

TYAN

TYAN S5515 Bedienungsanleitung

TYAN

TYAN Tsunami S1846S Bedienungsanleitung

TYAN

TYAN Tigercub 100 S1894 Bedienungsanleitung

TYAN

TYAN Tempest i5000XT S2696 Bedienungsanleitung

TYAN

TYAN S7050 Bedienungsanleitung

TYAN

TYAN TRINITY KT400 Bedienungsanleitung

TYAN

TYAN THUNDER K8HM Bedienungsanleitung

TYAN

TYAN S5102 Bedienungsanleitung

TYAN

TYAN TEMPEST I5000XL Bedienungsanleitung

TYAN

TYAN TRINITY 371 Bedienungsanleitung

TYAN

TYAN S8228 Bedienungs- und Wartungshandbuch

TYAN

TYAN S5510 Bedienungsanleitung

TYAN

TYAN S8253 Bedienungsanleitung

TYAN

TYAN THUNDER I7500 Bedienungsanleitung

TYAN

TYAN TYAN S1572 ATX Bedienungsanleitung

TYAN

TYAN TRINITY K7 Bedienungsanleitung

TYAN

TYAN S1570 AT Bedienungsanleitung

TYAN

TYAN TITAN TURBO AT-2 Bedienungsanleitung

TYAN

TYAN TEMPEST I5000PX Bedienungsanleitung

TYAN

TYAN TOMCAT I875P Bedienungsanleitung

TYAN

TYAN S2932-E Bedienungsanleitung

TYAN

TYAN S5549 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
