Operation: The glass bulb contains a

fluid which expands when exposed to

heat. When the rated temperature is

reached, the fluid expands sufficiently to

shatter the glass bulb, which then allows

the sprinkler to activate & flow water.

WARNING

The K17-231 Upright and Pendent

Sprinklers described herein must be

installed and maintained in compliance

with this document, as well as with the

applicable standards of the National Fire

Protection Association, in addition to the

standards of any other authorities

having jurisdiction. Failure to do so may

impair the integrity of these devices.

The owner is responsible for maintain-

ing their fire protection system and

devices in proper operating condition.

The installing contractor or sprinkler

manufacturer should be contacted

relative to any questions.

Sprinkler Identification Number

SIN C7151 - Upright

SIN C7251 - Pendent

Approvals

UL & C-UL Listed. FM Approved

(Refer to Tables 1 & 2. The approvals

apply only to the service conditions

indicated in the Design Criteria Section)

Maximum Working Pressure

175 psi (12,1 bar)

Pipe Thread Connection

3/4 inch NPT

Discharge Coefficient

K = 16.8 GPM/psi1/2 (241,9 LPM/bar1/2)

Temperature Ratings

155o F/68oC, 200oF/93oC, 286°F/141°C

Finishes

Sprinkler: Natural Brass

Tyco Fire Products --- www.centralsprinkler.com

451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA

Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

Model K17-231

16.8 K-factor

Standard Response

Standard Coverage

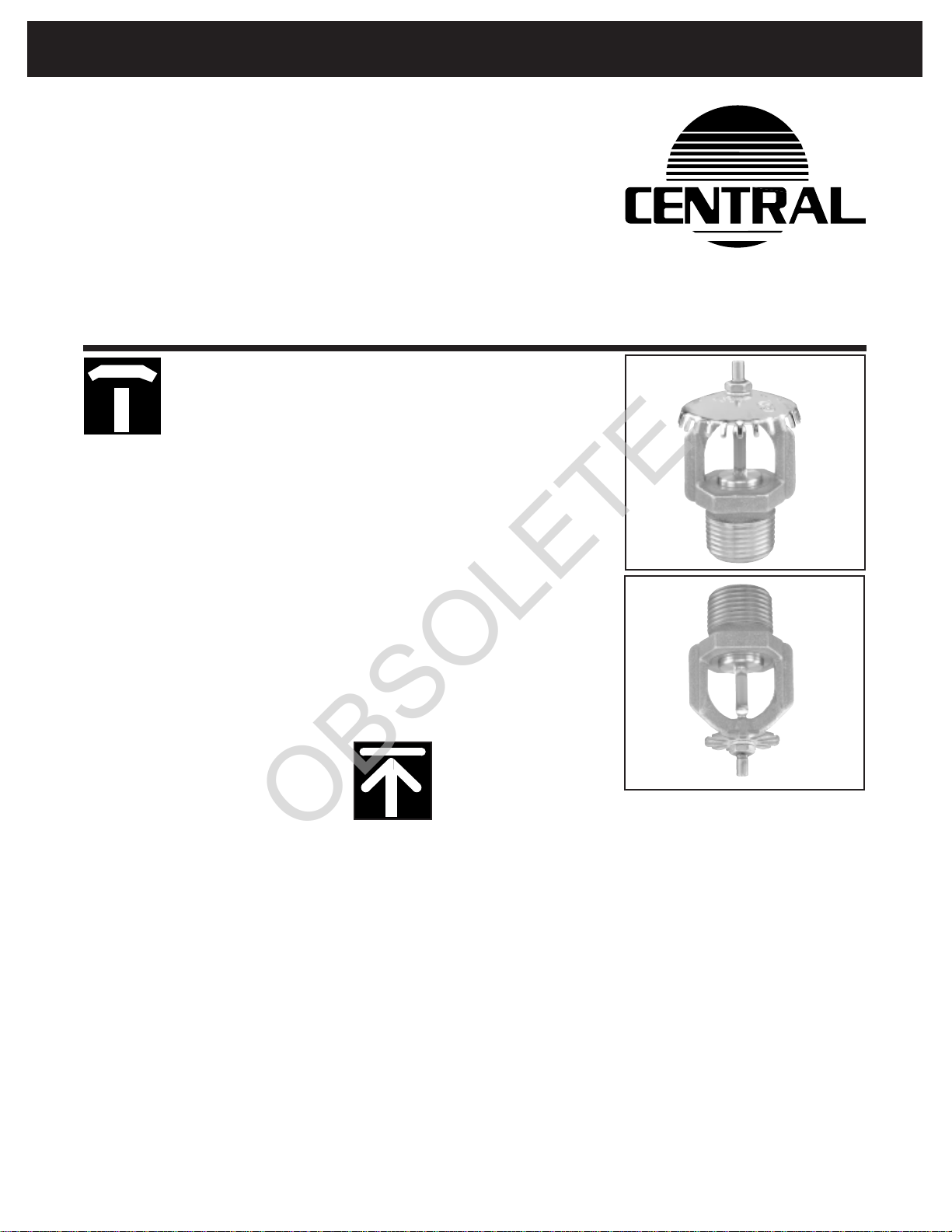

Upright & Pendent Glass Bulb Automatic Sprinkler

No. 3-4.0

General

Description

The Central Model K17-231, 16.8

K-factor, Standard Response, Standard

Coverage, Pendent & Upright Sprinklers

are automatic sprinklers of the frangible

bulb type. They are "standard response

- spray sprinklers" which produce a

hemispherical water distribution pattern

below the deflector.

The Model K17-231 Sprinklers are

intended for use in fire sprinkler

systems designed in accordance with

the standard installation rules recog-

nized by the applicable Listing or

Approval agency (e.g., UL Listing is

based on the requirements of the

National Fire Protection Association).

Also, when acceptable to the Authority

Having Jurisdiction, they may be used

with a "Reduced Design Area" as

indicated in Table 2.

The 16.8 K-factor Model K17-231

Sprinklers were subjected to full scale,

high-piled storage, fire tests to qualify

their use in lieu of 5.6 or 8.0 K-factor

standard spray sprinklers for the

protection of high-piled storage.

Higher flow rates can be achieved at

much lower presures with the Model

K17-231 Sprinklers; making their use

highly advantageous in high density

applications, such as the protection of

high-piled storage.

The use of the 16.8 K-factor Model

K17-231Sprinkler also has the advan-

tage of having a specific application

listing, which in some cases can

subsequently reduce the design area

and the overall water demand of a

sprinkler system. Refer to Table 2 for

details.

Technical

Data

CENTRAL K17-231TM 5-01

Standard Spray

Upright &

Pendent

Sprinklers

Physical Characteristics

The Model K17-231 Upright & Pendent

Sprinklers utilize a dezincification

resistant (DZR) bronze frame and a 5

mm bulb. The two-piece button

assembly is brass and copper. The

sprinkler frame orifice is sealed with a

gasketed spring plate (Belleville Seal)

consisting of a beryllium nickel disc

spring that is sealed on both its inside

and outside edges with a TeflonTM

gasket. The compression screw is

bronze, & the deflector is brass.

OBSOLETE

Design

Criteria

Figure 2 - K17-231, Pendent SprinklerFigure 1 - Model K17-231, Upright Sprinkler

Notes:

1. Listed by Underwriters Laboratories, Inc.

2. Listed by Underwriters Laboratories for use in Canada.

3. Approved by Factory Mutual Research Corporation.

The Model K17-231, 16.8 K-factor

Upright and Pendent Sprinklers (Ref.

Table 1) are UL and C-UL Listed as

Standard Response, Standard

Coverage, Spray Sprinklers for use

accordance with current NFPA

standards for the protection of light,

ordinary & extra hazard as well as

storage occupancies. These Area/

Density sprinklers are listed with a

minimum residual (flowing) pressure of

7 psi (0,48 bar).

The Model K17-231, 16.8 K-factor

Upright and Pendent Sprinklers are UL

and C-UL Listed for use, when

acceptable to the Authority Having

Jurisdiction, as "specific application"

sprinklers in accordance with the design

parameters set forth in Table 2 of this

Data Sheet.

The Model K17-231, 16.8 K-factor

Upright Sprinklers (Ref. Table 1) are FM

Approved for use in accordance with

the FM Loss Prevention Data Sheets.

These "Control Mode Area/Density

Sprinklers" are approved with a

minimum residual (flowing) pressure of

7 psi (0,48 bar).

These sprinklers can be used with any

metalic flush or extended escutcheon,

provided the maximum ceiling to top of

sprinkler deflector dimension specified

in NFPA 13 is maintained. These

sprinklers are not listed or approved for

recessed applications.

Table 1 - Laboratory Listings and Approvals

(16.8 K-factor Sprinklers 3/4" NPT)

The Model K17-231 Upright & Pendent

Sprinklers

must be installed in accor-

dance with the following instructions.

NOTES

Do not install any bulb type sprinkler if

the bulb is cracked or there is a loss of

liquid from the bulb. With the sprinkler

held horizontally, a small air bubble

should be present. The diameter of the

air bubble is approximately 1/16 inch

(1,6 mm) for the 155

F/68

C to 3/32

inch (2,4 mm) for the 286

F/141

rating.

A leak tight 3/4 inch NPT sprinkler joint

should be obtained with a torque of 10

to 20 ft.lbs. (13,4 to 26,8 Nm). A

SPRINKLER FINISH

Pendent Upright

Temperature Bulb Natural Natural

Rating Color Code Brass Brass

155°F/68°C Red 1,2,3

200°F/93°C Green 1,2,3

286°F/141°C Blue 1,2,3

1,2

Installation

maximum of 30 ft.lbs. (40.7 Nm) of

torque is to be used to install 3/4 inch

NPT sprinklers. Higher levels of torque

may distort the sprinkler inlet with

consequent leakage or impairment of

the sprinkler.

Step 1. Upright sprinklers must be

installed only in the upright position and

pendent sprinklers must be installed

only in the pendent position. The

deflector is to be parallel to the ceiling,

roof, or mounting surface, as applicable.

Step 2. With pipe thread sealant applied

to the pipe threads, hand tighten the

sprinkler into the sprinkler fitting.

Step 3. Tighten the sprinkler into the

sprinkler fitting using only the W-Type 8

Sprinkler Wrench (Ref. Figure 4), With

reference to Figure 1 & 2, the W-Type 8

Sprinkler Wrench is to be applied to the

wrench flats only.

WRENCH

FLAT

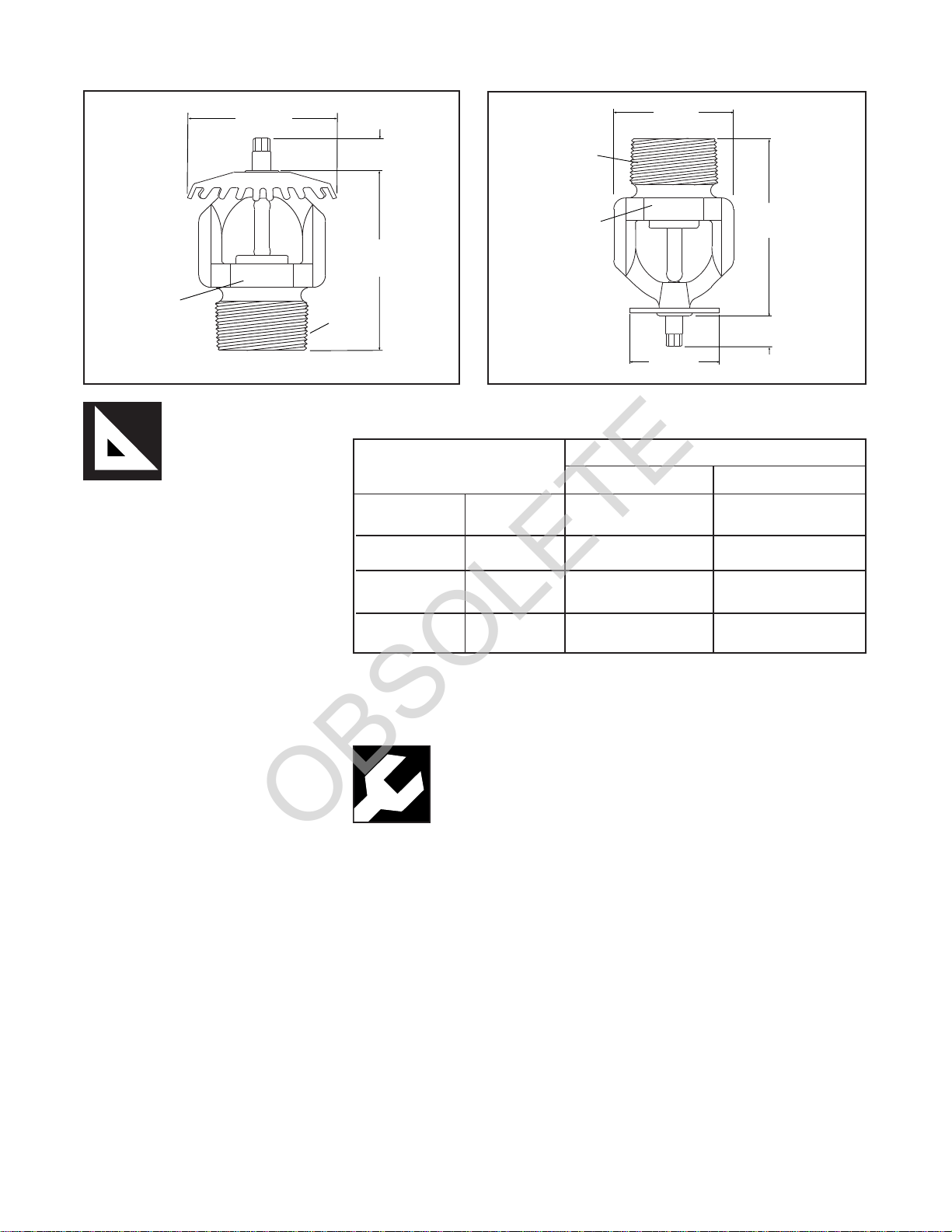

ELEVATION VIEW

7/16"

(11,1 mm)

3/4" NPT

2-3/8"

(60,3 mm)

1-3/16"

(30,2 mm)

1-11/16"

(42,9 mm)

1-3/4

(44,5 mm)

WRENCH

FLAT

ELEVATION VIEW

2-3/8"

(60,3 mm)

7/16"

(11,1 mm)

3/4" NPT

OBSOLETE

Temperature Rating: 155°F/68°C

200°F/93°C

286°F/141°C

Hydraulic Design Criteria: The density required is

0.60 gpm/sq. ft. (24,5 mm/min).

Design Area: For wet systems 2000 sq. ft. (186 m2)

and for dry systems use 2600 sq. ft.

(242 m2)

Spacing: Maximum spacing is 100 sq. ft.

(9,3 m2). The maximum distance

between sprinklers is 12'-0" (3,7 m) -

12'-6"(3,8 m) spacing is allowed in

25'-0"(7,6 m) bays. Minimum spacing

is 6'-0" (1,8 m) apart unless

separated by baffles.

Obstructions: NFPA criteria for standard spray

sprinklers.

Type of Storage: Single, double, multiple-row and

portable rack storage (No Solid

Shelves) and solid piled or

palletizied storage.

Commodity: Class I-IV, encapsulated or non-

encapsulated. Group A and B plastics -

cartoned, expanded or unexpanded as

well as exposed, unexpanded.

Maximum Storage Height: 20'-0" (6,1 m)

Clearance: 36" (0,9 m) minimum from deflector

to top of storage.

Max. Ceiling Height in Area of Storage: 25'-0" (7,6 m)

Construction Type: All types - deflector distances per

NFPA 13.

System Type: Wet or dry

Table 2 - K17-231, UL & C-UL Specific Application Guidelines

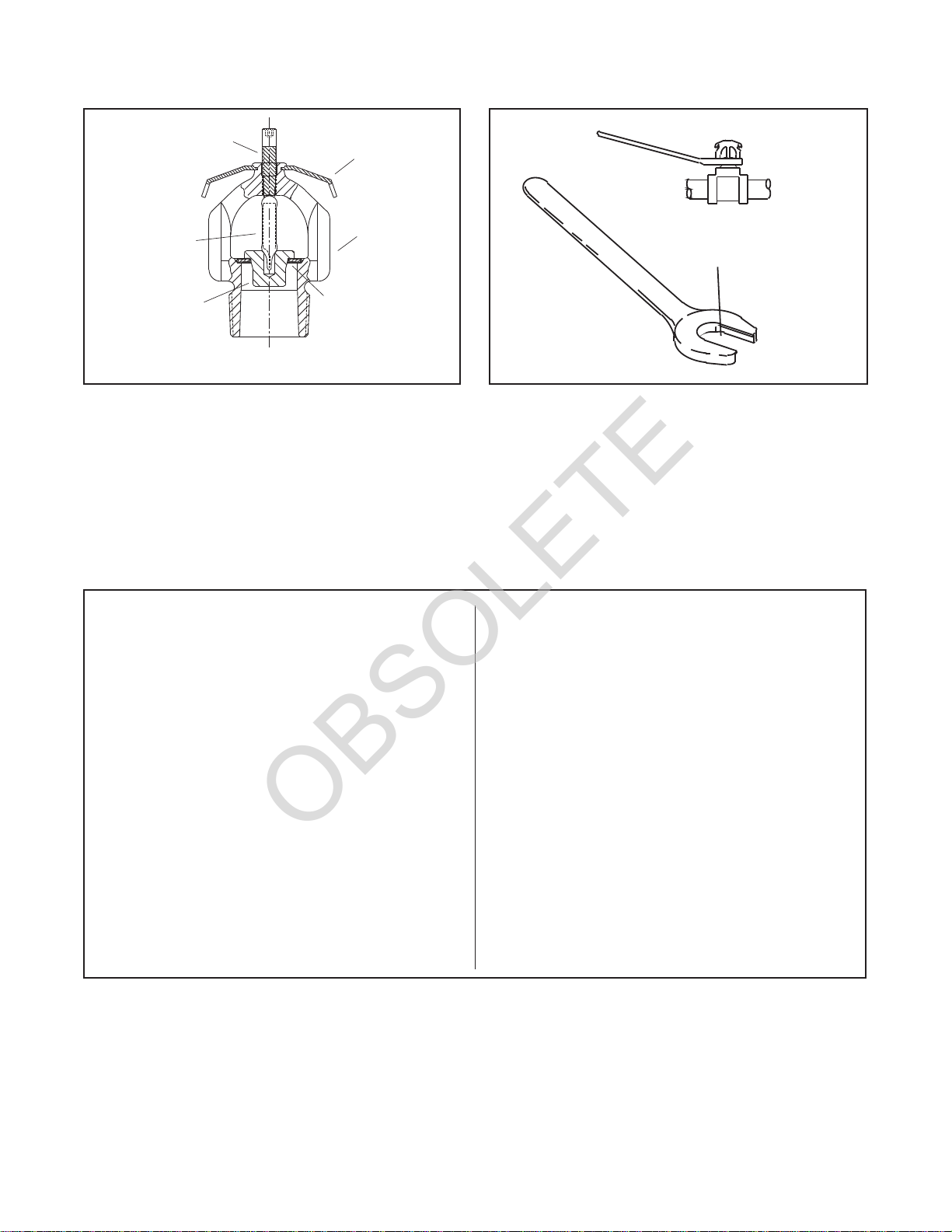

Figure 3 - Cross Section

Model K17-231, Upright Sprinkler Figure 4 - W-Type 8, Sprinkler Wrench (Part #1068)

SPRINKLER

FRAME

DEFLECTOR

GLASS BULB

OPERATING

ELEMENT

GASKETED

SPRING PLATE

(BELLEVILLE

SEAL)

BUTTON

ASSEMBLY

COMPRESSION

SCREW

WRENCH

RECESS

OBSOLETE

Printed in U.S.A. 5-01

Flow Control

Tyco Fire



Products

Ordering Information: When placing

an order, indicate the full product name.

Please specify the quantity, model,

style, orifice size, temperature rating,

type of finish or coating, and sprinkler

wrench. Refer to price list for complete

listing of Part Numbers.

Teflon is a trademark of the DuPont Corp.

The Model K17-231Upright & Pendent

Sprinklers

must be maintained and

serviced in accordance with the

following instructions.

NOTES

Before closing a fire protection system

main control valve for maintenance

work on the fire protection system it

controls, permission to shut down the

affected fire protection systems must be

obtained from the proper authorities.

All personnel who may be affected by

this action must be notified.

Sprinklers which are found to be

leaking or exhibiting visible signs of

corrosion must be replaced.

Automatic sprinklers must never be

shipped or stored where their tempera-

tures will exceed 100°F/38°C and they

must never be painted, plated, coated

or otherwise altered after leaving the

factory. Modified sprinklers must be

replaced. Sprinklers that have been

exposed to corrosive products of

combustion, but have not operated,

should be replaced if they cannot be

completely cleaned by wiping the

sprinkler with a cloth or by brushing it

with a soft bristle brush.

Care must be exercised to avoid

damage - before, during, and after

installation. Sprinklers damaged by

dropping, striking, wrench twist/

slippage, or the like, must be replaced.

Also, replace any sprinkler that has a

cracked bulb or that has lost liquid from

its bulb (Ref. Installation Section).

The owner is responsible for the

inspection, testing, and maintenance of

their fire protection system and devices

in compliance with this document, as

well as with the applicable standards of

the National Fire Protection Association

(e.g., NFPA 25), in addition to the

standards of any other authorities

having jurisdiction. The installing

contractor or sprinkler manufacturer

should be contacted relative to any

questions.

It is recommended that automatic

sprinkler systems be inspected, tested,

and maintained by a qualified Inspec-

tion Service.

Care &

Maintenance

Ordering

Information

Products manufactured by Tyco Fire

Products are warranted solely to the

original Buyer for ten (10) years against

defects in material and workmanship

when paid for and properly installed and

maintained under normal use and

service. This warranty will expire ten

(10) years from date of shipment by

Tyco Fire Products. No warranty is

given for products or components

manufactured by companies not

affiliated by ownership with Tyco Fire

Products or for products and compo-

nents which have been subject to

misuse, improper installation, corrosion,

or which have not been installed,

maintained, modified or repaired in

accordance with applicable Standards

of the National Fire Protection Associa-

tion, and/or the standards of any other

Authorities Having Jurisdiction. Materi-

als found by Tyco Fire Products to be

defective shall be either repaired or

replaced, at Tyco Fire Products' sole

option. Tyco Fire Products neither

assumes, nor authorizes any person to

assume for it, any other obligation in

connection with the sale of products or

parts of products. Tyco Fire Products

shall not be responsible for sprinkler

system design errors or inaccurate or

incomplete information supplied by

Buyer or Buyer's representatives.

IN NO EVENT SHALL TYCO FIRE

PRODUCTS BE LIABLE, IN CON-

TRACT, TORT, STRICT LIABILITY OR

UNDER ANY OTHER LEGAL

THEORY, FOR INCIDENTAL, INDI-

RECT, SPECIAL OR CONSEQUEN-

TIAL DAMAGES, INCLUDING BUT

NOT LIMITED TO LABOR CHARGES,

REGARDLESS OF WHETHER TYCO

FIRE PRODUCTS WAS INFORMED

ABOUT THE POSSIBILITY OF SUCH

DAMAGES, AND IN NO EVENT

SHALL TYCO FIRE PRODUCTS'

LIABILITY EXCEED AN AMOUNT

EQUAL TO THE SALES PRICE.

THE FOREGOING WARRANTY IS

MADE IN LIEU OF ANY AND ALL

OTHER WARRANTIES EXPRESS OR

IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR

PURPOSE.

Limited

Warranty

OBSOLETE

Andere Tyco Fire Product Bewässerungssystem Handbücher

Tyco Fire Product

Tyco Fire Product SIN S2983 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SG Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Pulsar ESFR-25 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-17 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product TFR MAX Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Celeste S150 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 GB Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product RAPID RESPONSE LFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL BV Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star SuperNova S126 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product the 1 inch NPT outlet of a malleable iron threaded tee Star Luminous... Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 BV Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star TFP1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL BV4 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product D3 PROTECTOSPRAY Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL GB Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Luminous S178 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Pulsar S160QR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL H-1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Luminous S170 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL H Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL TY-B Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Bedienungsanleitung
